Home >> Mitsubishi >> 2002 >> Lancer O-Z Rally Edition L4-2.0L SOHC >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Power Steering Line/Hose

Power Steering Line/Hose

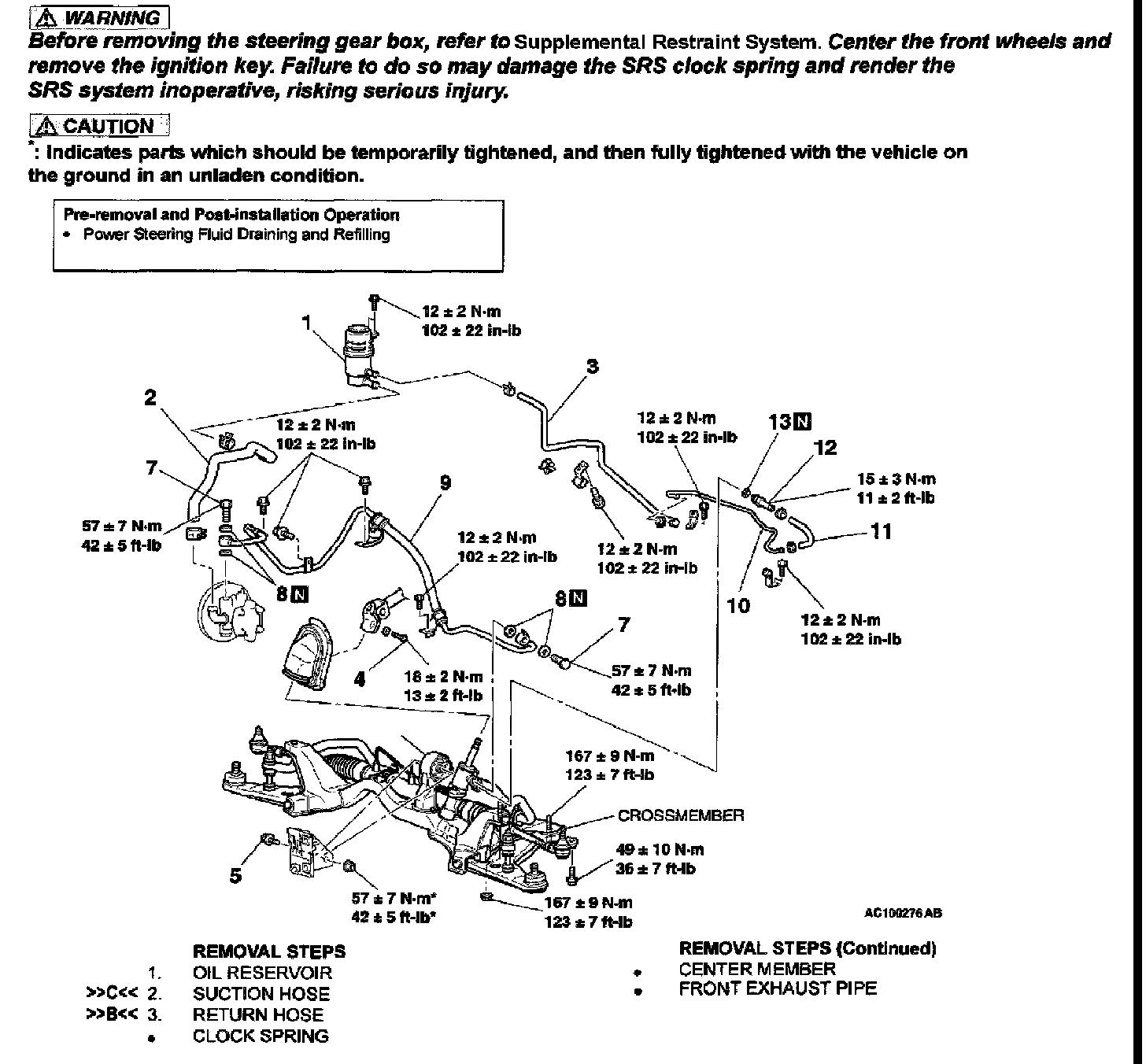

POWER STEERING HOSES REPLACEMENT W/ RELATED COMPONENTS





Part 1 of 2

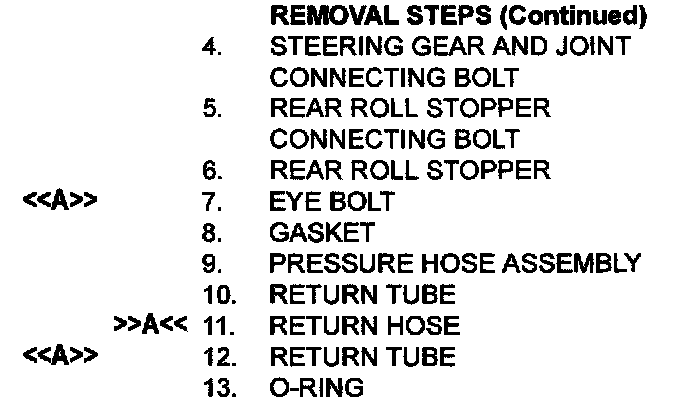

Part 2 of 2
