System Diagram

BODY CONSTRUCTION CHARACTERISTICS

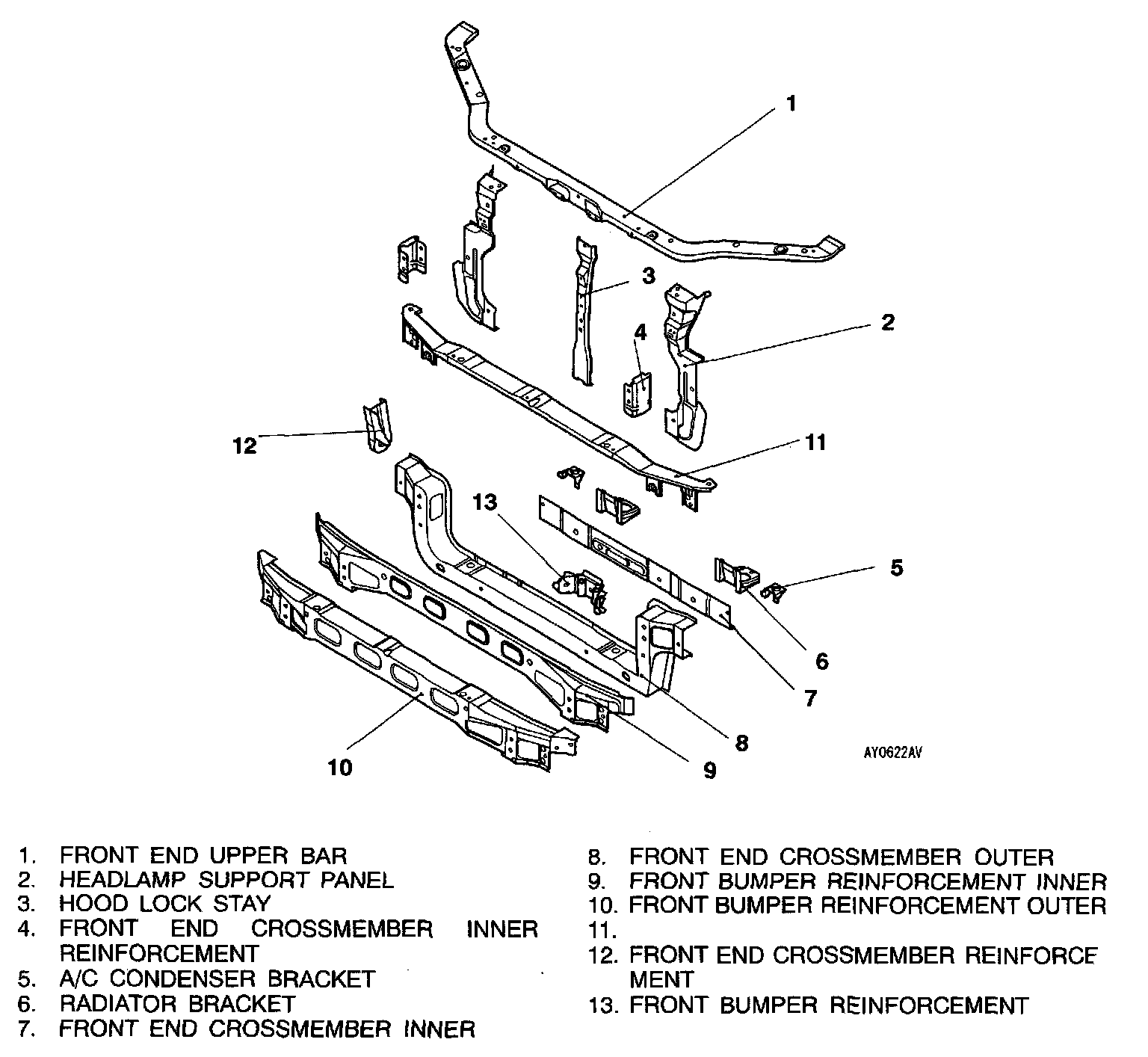

FRONT BODY

HEADLAMP SUPPORT




1. The structure has been designed to absorb energy generated during collisions with the addition of the front bumper reinforcement.
2. By adopting a steel sheet with variable thickness for the front end crossmember outer, the steel sheet thickness on the right side of the vehicle has been increased to improve safety in collision and body rigidity.

NOTE: Steel sheets with different thickness welded to formone steel sheet.
