Shifter A/T

TRANSAXLE CONTROL REPLACEMENT AND OVERHAUL W/ RELATED COMPONENTS

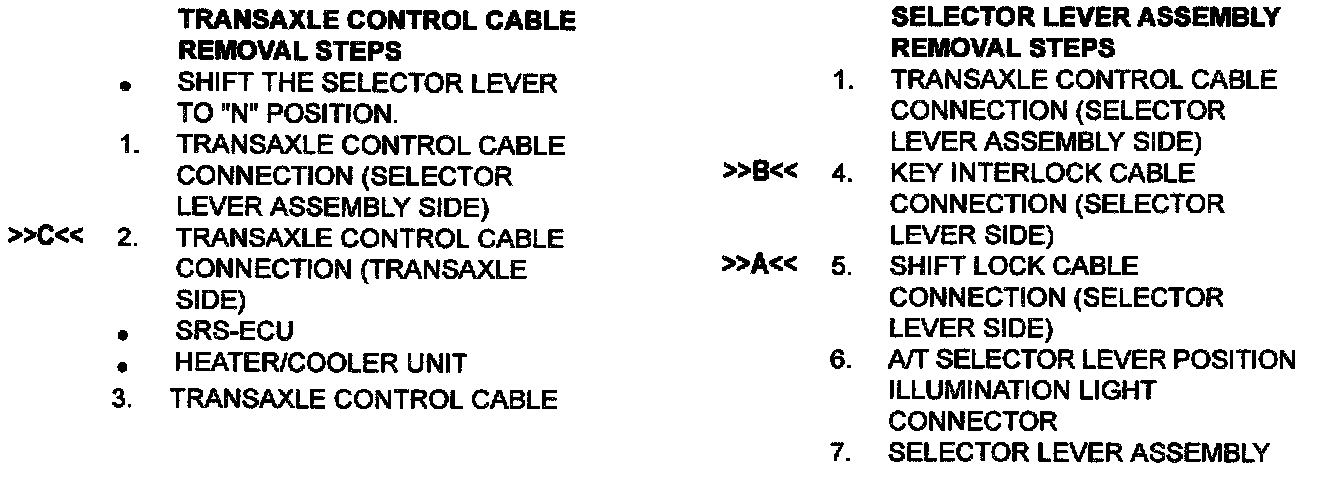

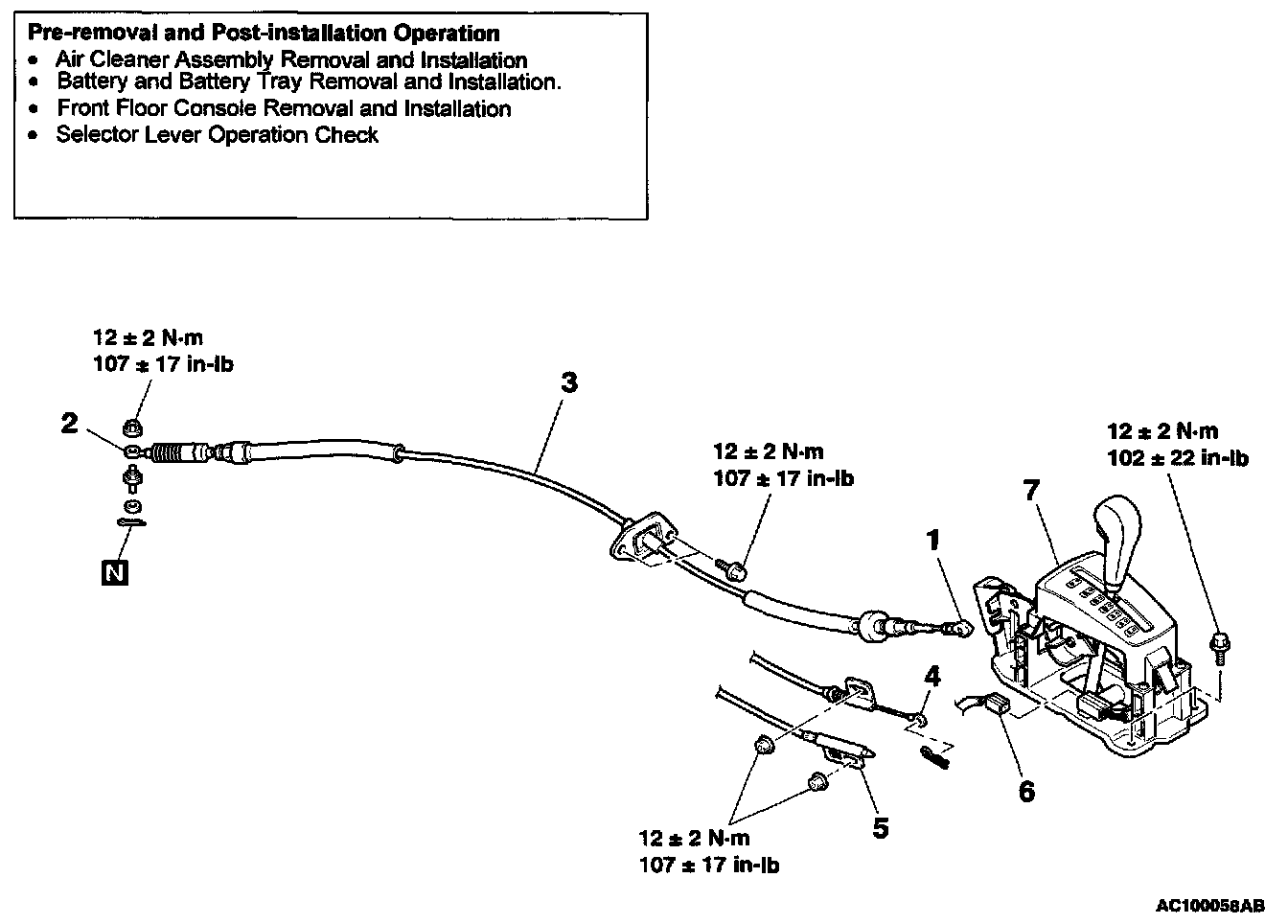

Removal and Installation

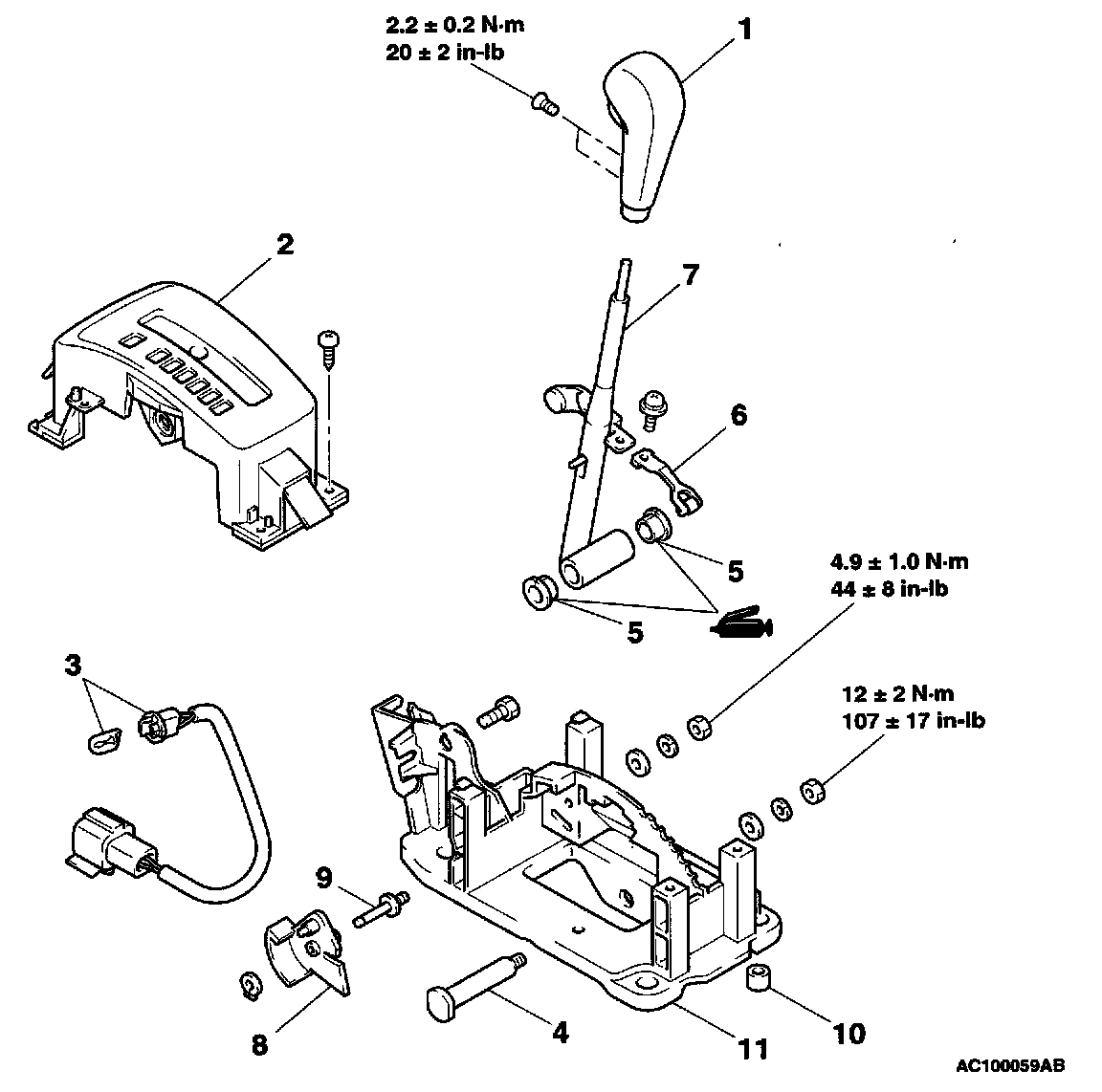

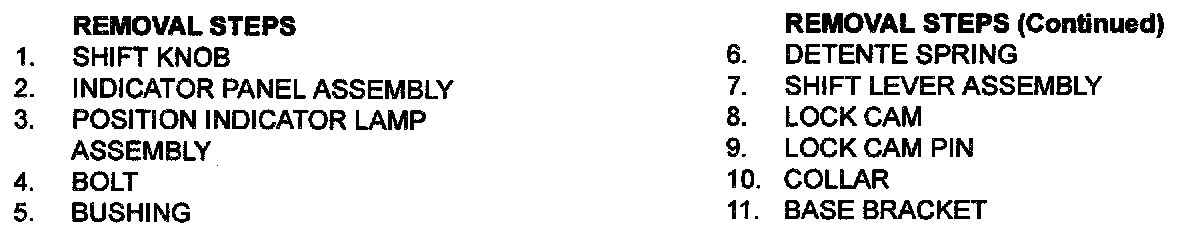

Disassembly and Reassembly
