Antilock Brakes / Traction Control Systems

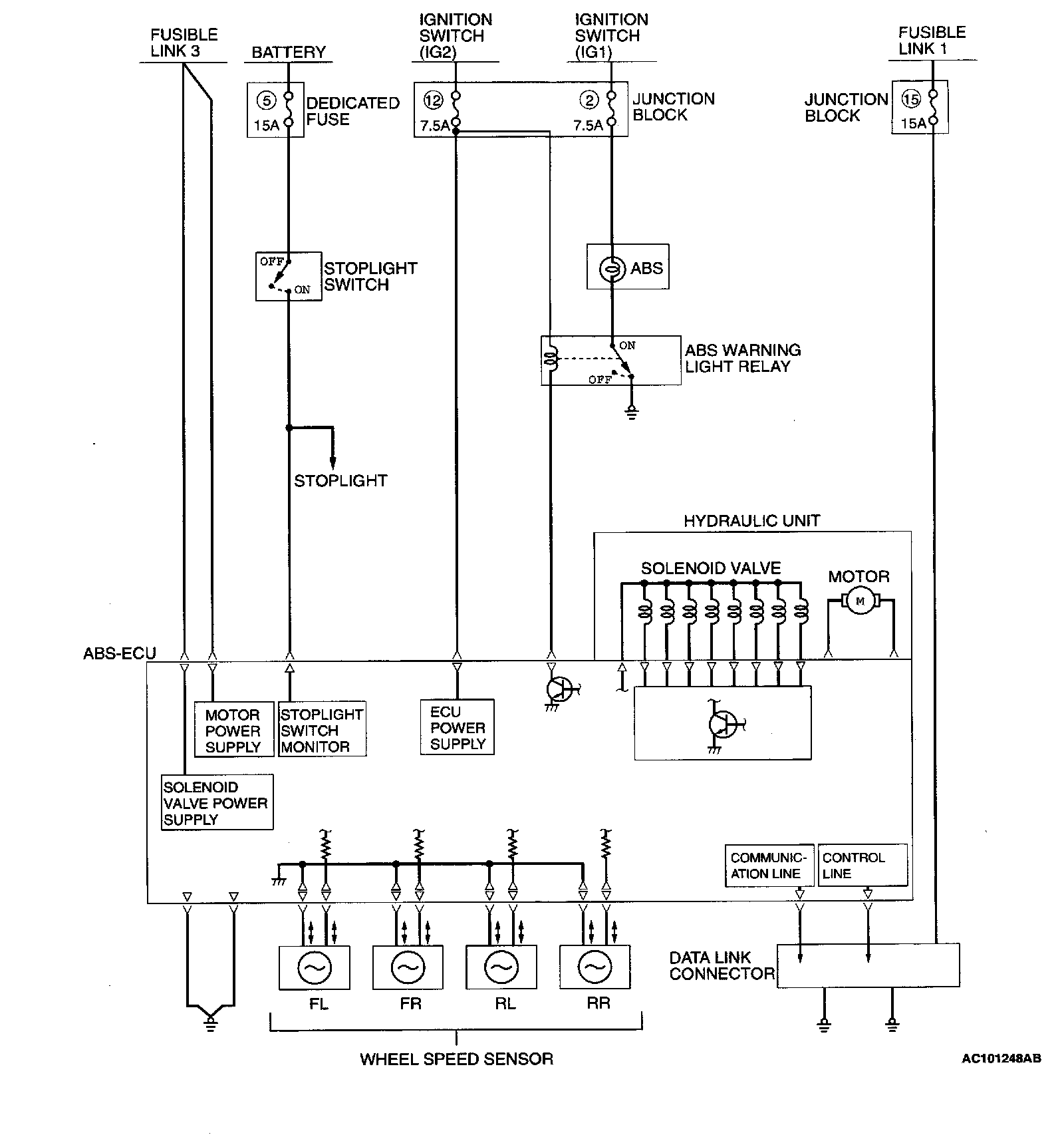

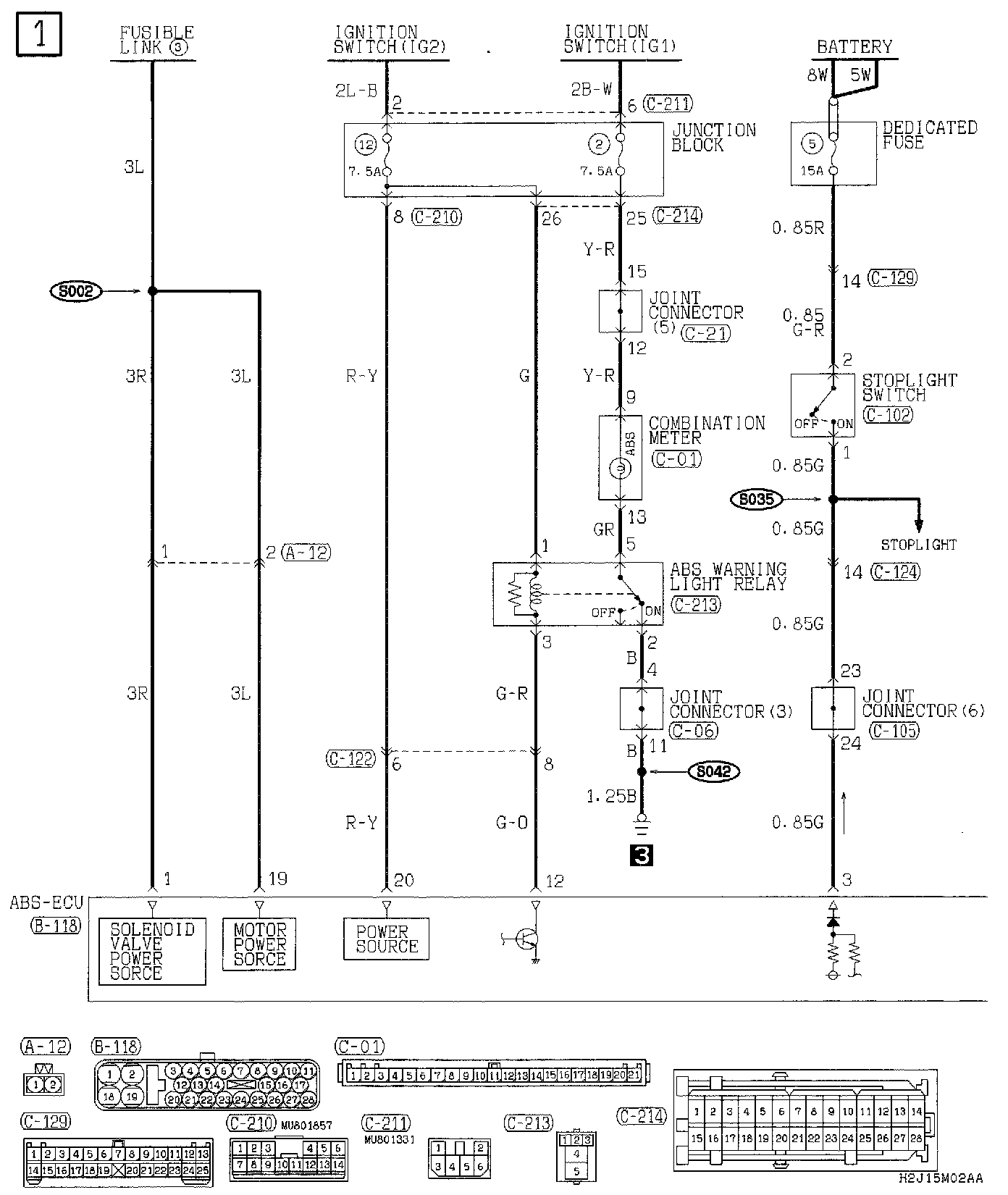

Anti-Lock Braking System (ABS) Part 1:

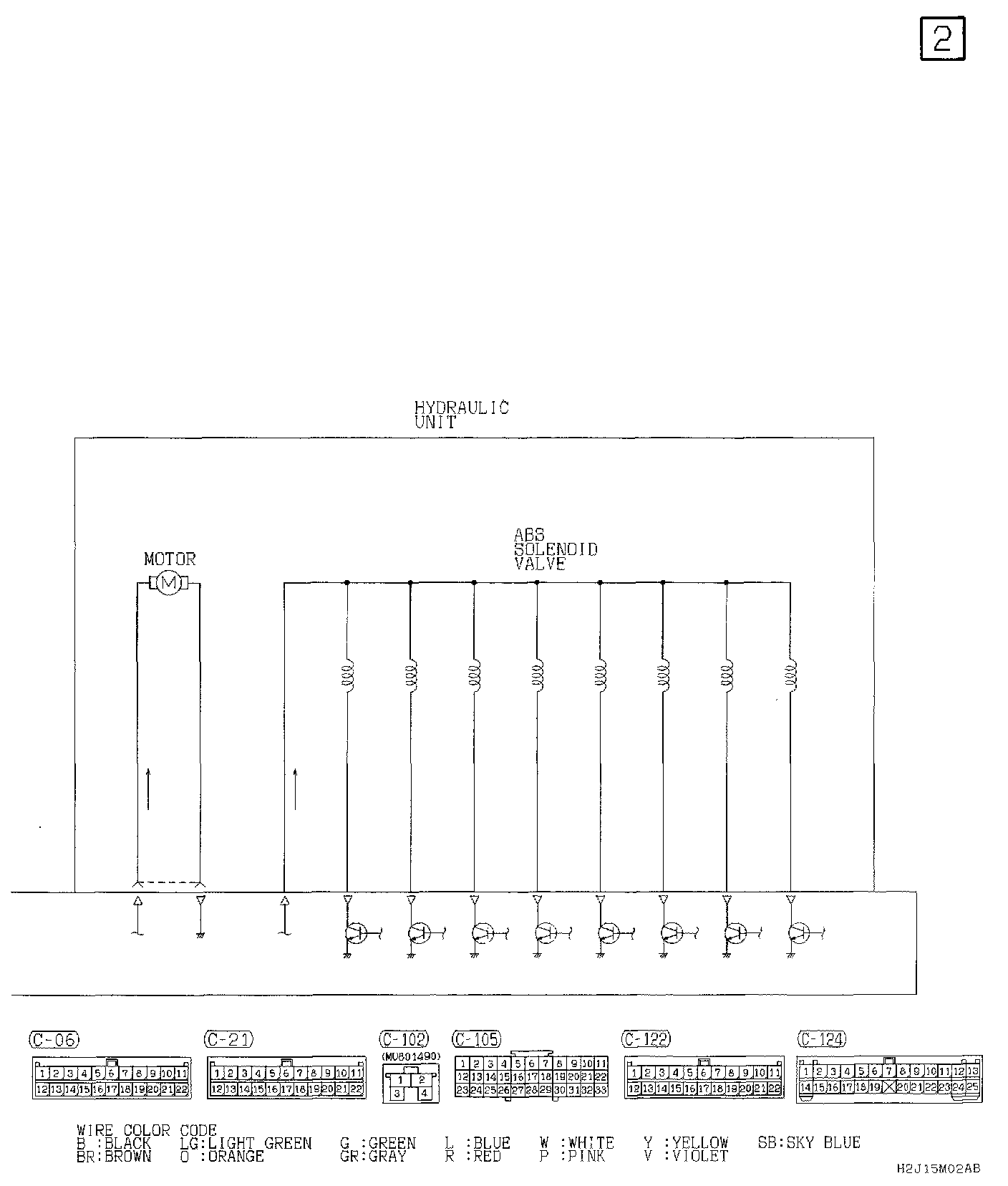

Part 2:



Part 3:

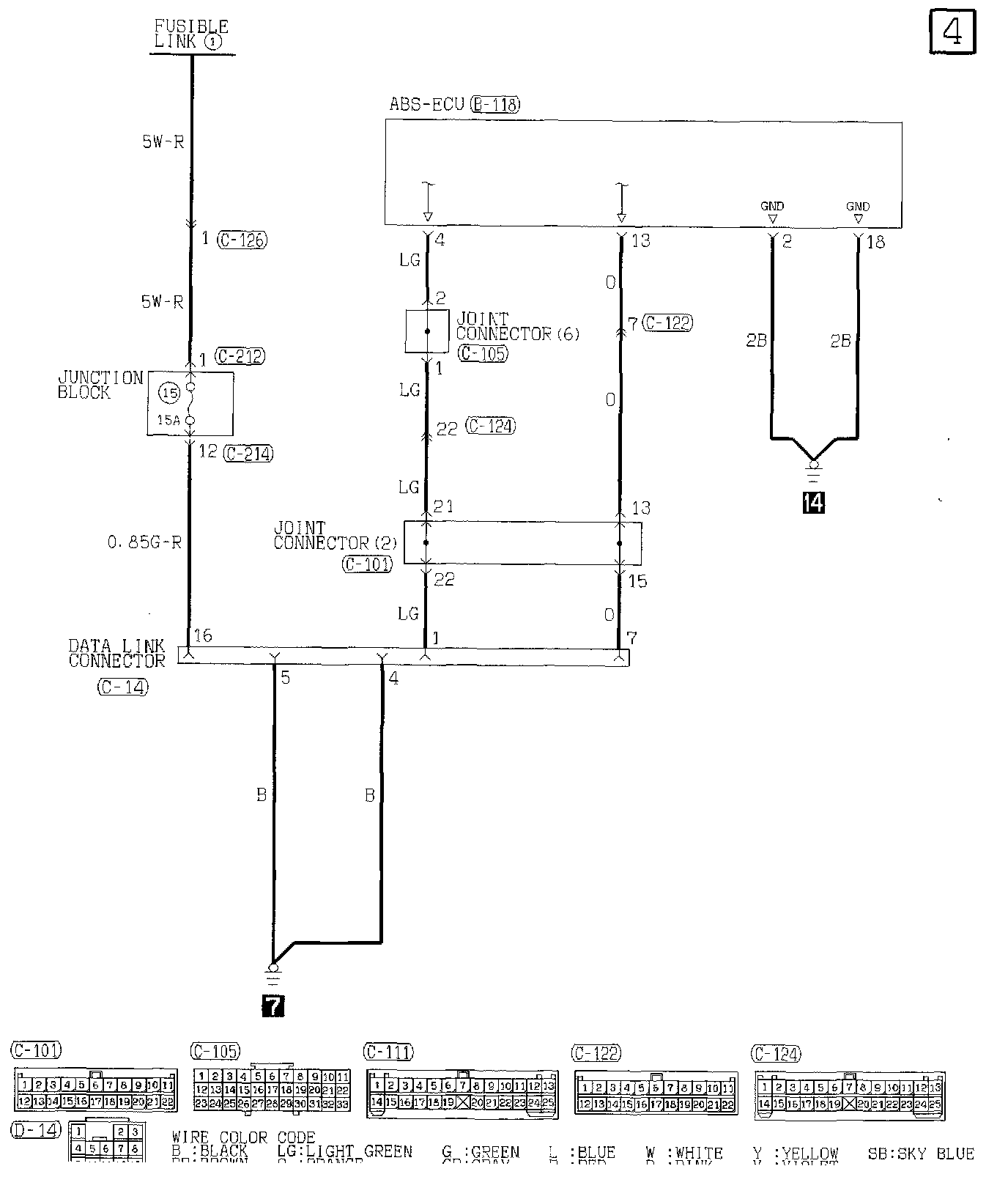

Part 4:
