Reading Diagnostic Trouble Codes

NOTE: This is the only information provided by the manufacturer for reading diagnostic trouble codes for this system.

AUTO-CRUISE CONTROL SYSTEM DIAGNOSTIC TROUBLE CODE DIAGNOSISRetrieving Auto-cruise Control System Diagnostic Trouble Codes.

Using scan tool MB991502

Required Special Tool:
- MB991502: Scan Tool (MUT-II)

CAUTION: To prevent damage to scan tool MB991502, always turn the ignition switch to the "LOCK" (OFF) position before connecting or disconnecting scan tool MB991502.

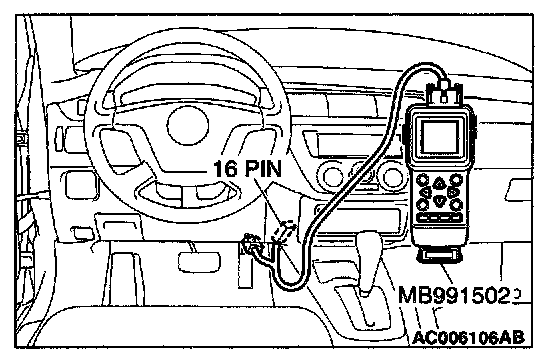

1. Connect scan tool MB991502 to the data link connector.
2. Turn the ignition switch to the "ON" position.
3. Use scan tool MB991502 to check for auto-cruise control system diagnostic trouble codes.
4. Turn the ignition switch to the "LOCK" (OFF) position.
5. Disconnect scan tool MB991502.

Diagnostic Result Display Method When Using The Auto-Cruise Control Indicator Light:

Using a Auto-cruise Control Indicator Light

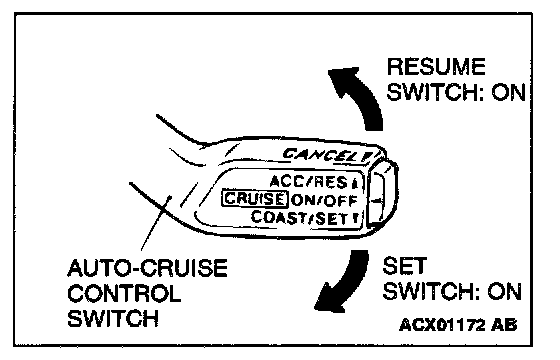

1. Turn the ignition switch to the "ON" position while holding the auto-cruise control switch in the "SET" position (down). Then, within one second, more the cruise control switch up to the "RES" position.

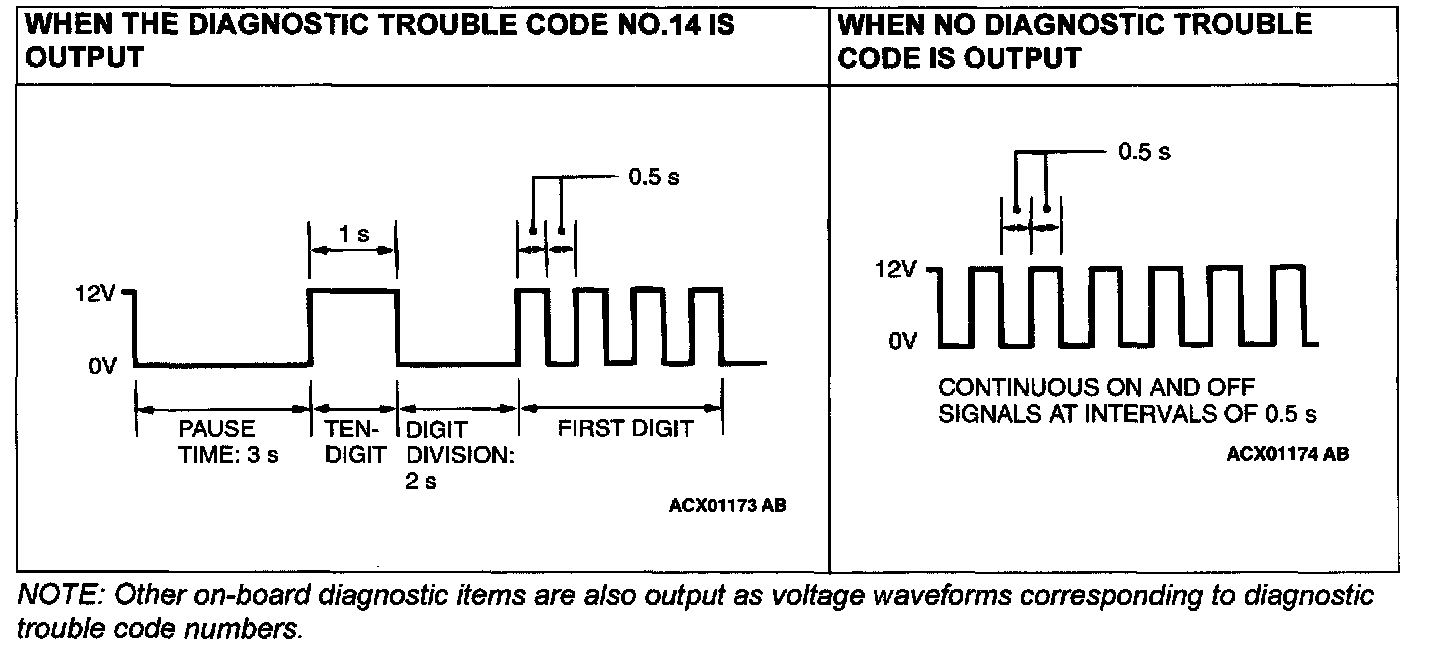

2. Read a diagnostic trouble code by observing the flash display pattern of the auto-cruise control indicator light in the combination meter.
