Clearing Diagnostic Trouble Codes

NOTE: This is the only information provided by the manufacturer for clearing diagnostic trouble codes for this system.

Erasing Diagnostic Trouble Codes
The diagnostic trouble codes can be erased by the following procedure.

NOTE: The diagnostic trouble code will not be erased even if the negative battery terminal is disconnected.

Using scan tool MB991502

Required Special Tool:
- MB991502: Scan Tool (MUT-II)

CAUTION: To prevent damage to scan tool MB991502, always turn the ignition switch to the "LOCK" (OFF) position before connecting or disconnecting scan tool MB991502.

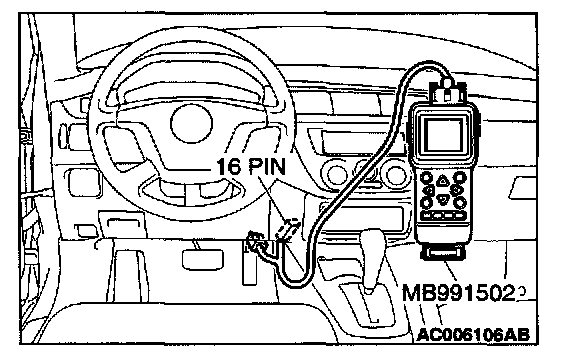

1. Connect scan tool MB991502 to the data link connector.
2. Turn the ignition switch to the "ON" position.
3. Use scan tool MB991502 to check for auto-cruise control system diagnostic trouble codes.
4. Turn the ignition switch to the "LOCK" (OFF) position.
5. Disconnect scan tool MB991502.

Without using scan tool MB991502

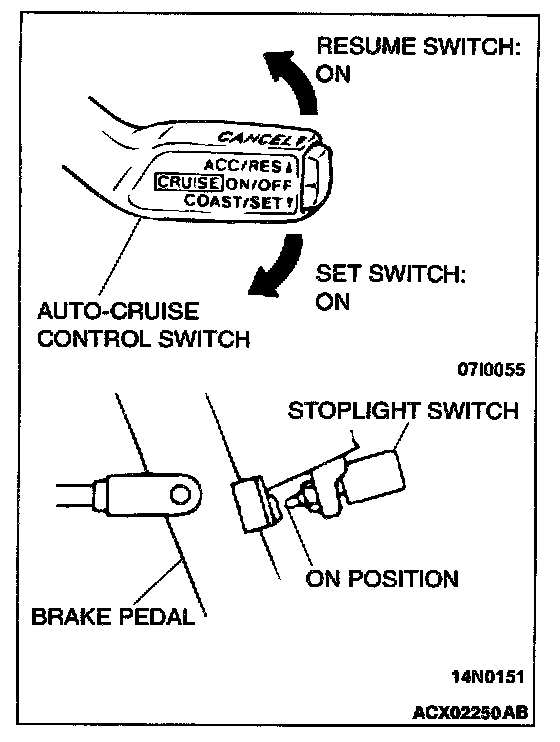

1. Turn the ignition switch to the "ON" position while holding the auto-cruise control switch in the "SET" (down) position. Then, within one second, more the cruise control switch up to the "RES" position.
2. Check to make sure the "CRUISE" light on the instrument panel is flashing.
3. Put the auto-cruise control switch in the "SET" (down) position. Depress the brake pedal and hold for five seconds or more. Release the brake pedal, auto-cruise control switch, then turn the ignition switch to the "LOCK" (OFF) position. The DTC(s) are now erased.
