Brakes - Parking Brake Lever Lock Nut Revision
No.: TSB-08-36-002DATE: October, 2008
MODEL:
See Below
SUBJECT:
PARKING BRAKE LEVER LOCKING NUT CHANGED - SERVICE MANUAL REVISIONS
PURPOSE

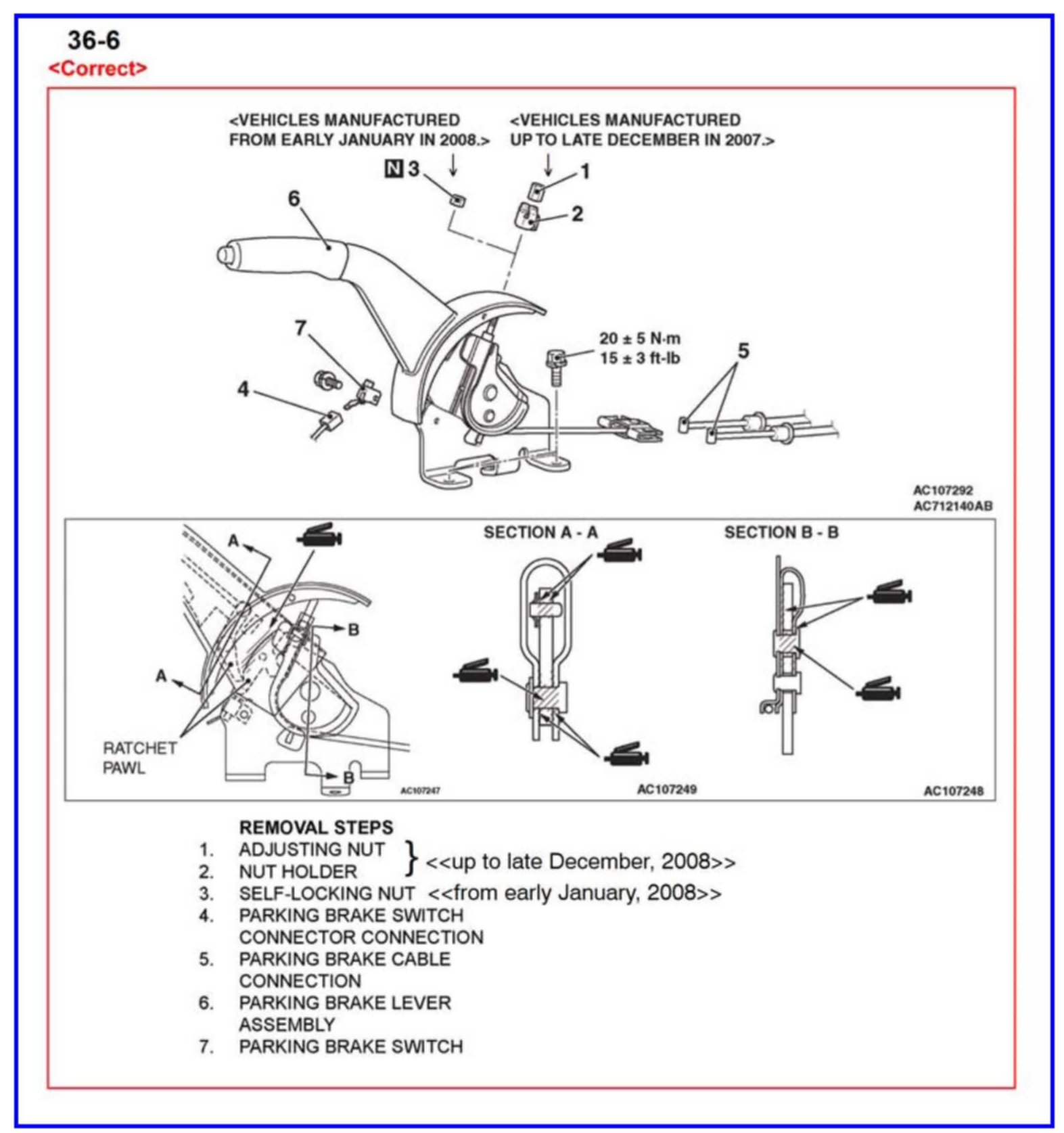

For affected vehicles, the parking brake lever adjusting nut and nut holder assembly have been simplified by changing to a self-locking nut. This Technical Service Bulletin provides updated information relating to the changes made in the applicable service manuals when installing new parts.
AFFECTED VEHICLE(S)
2002-06 Lancer
2004-06 Lancer Sportback
2003-06 Outlander
New parts production began January, 2008 and they are fully interchangeable with affected vehicles.

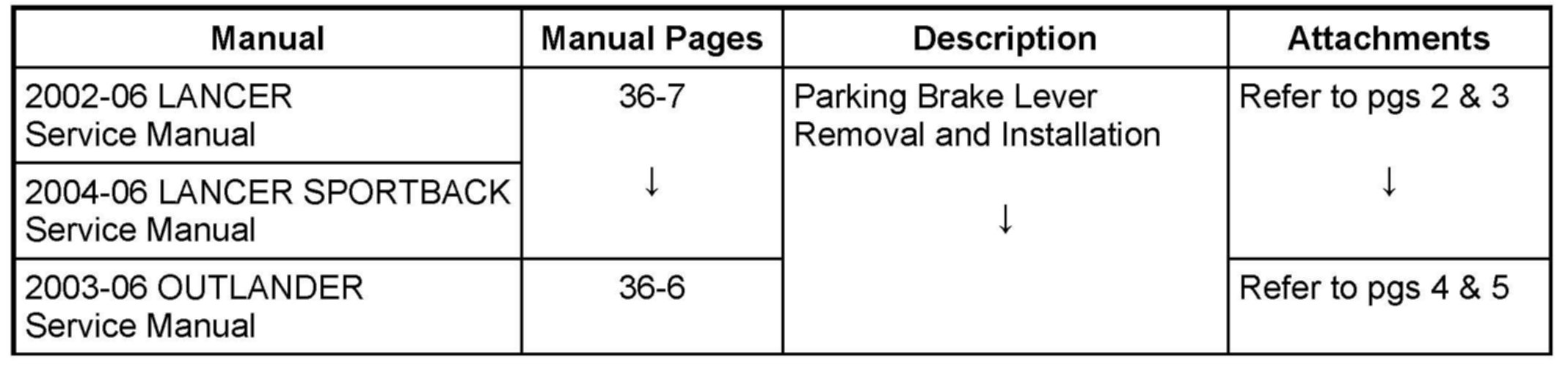

APPLICABLE MANUAL(S)

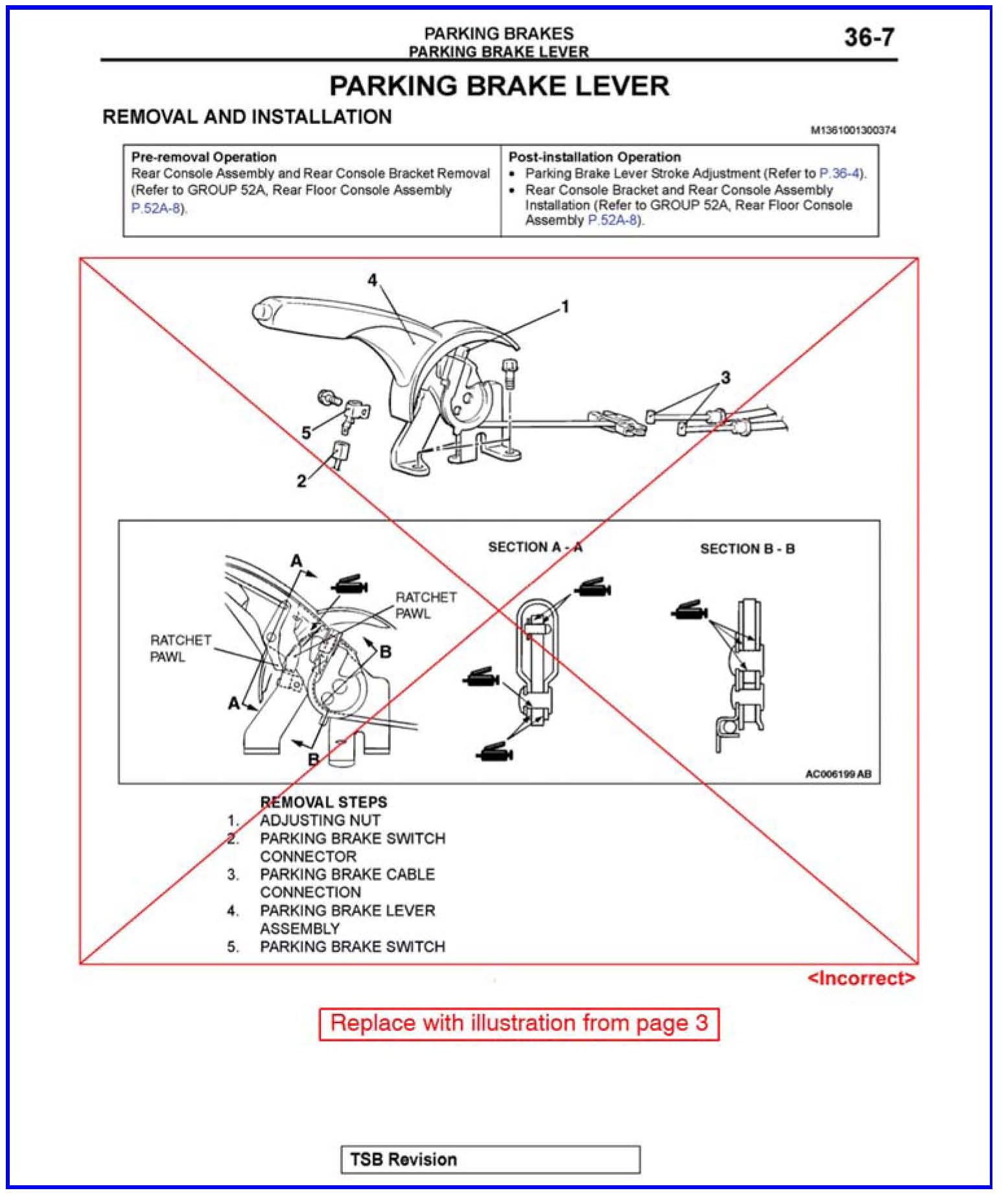

Service Manual Update for Pages 36-7 Attachments Pages 2 & 3

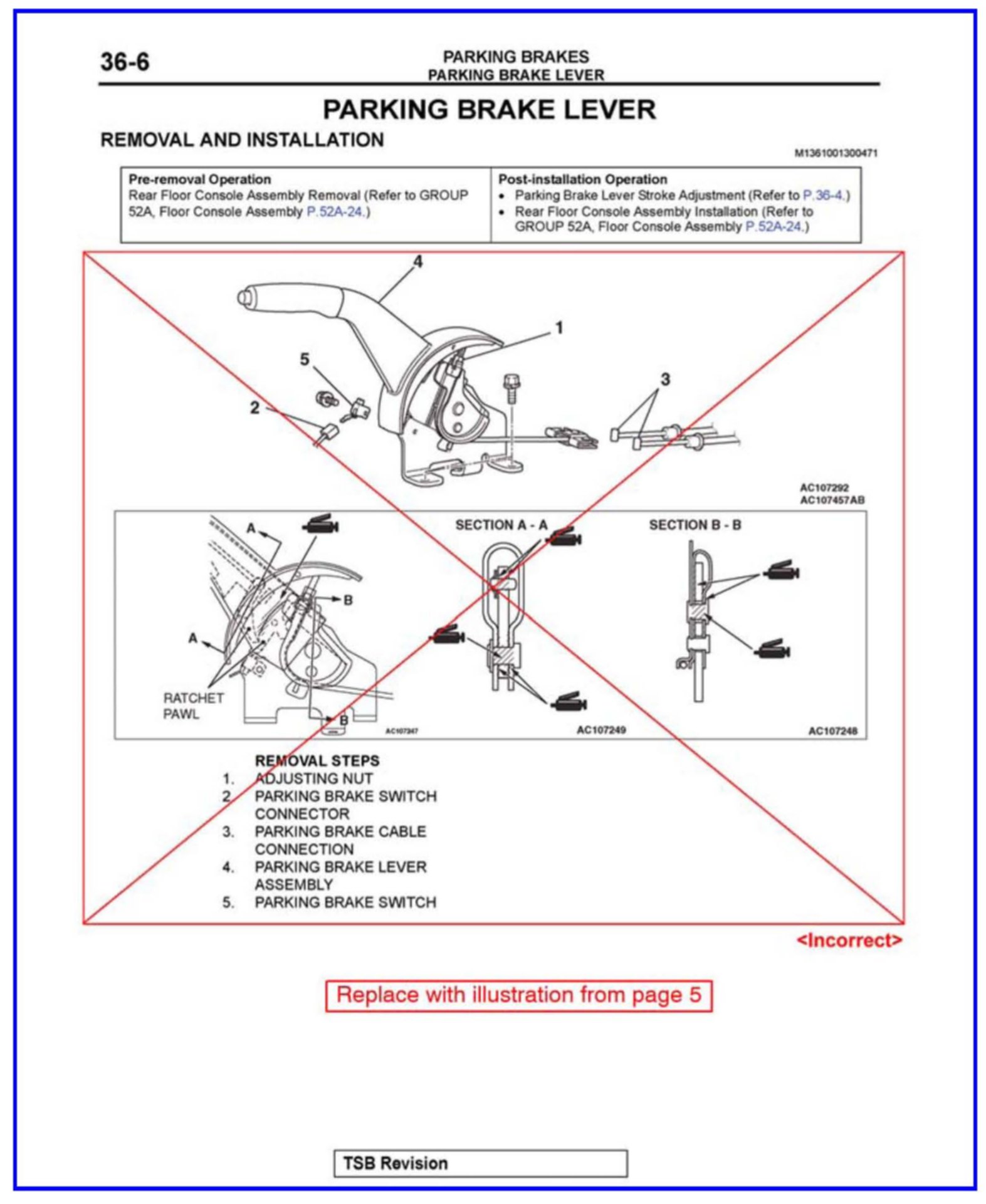

Service Manual Update for Pages 36-6 Attachments Pages 4 & 5
