Brake Drum: Service and Repair

REMOVAL AND INSTALLATION

REMOVAL SERVICE POINT

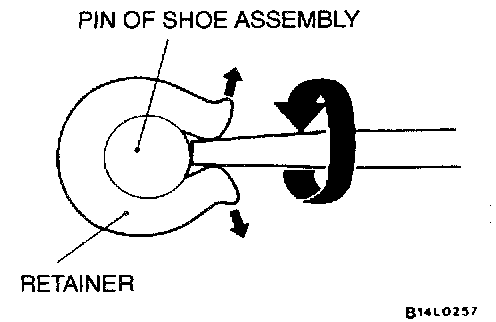

<> RETAINER REMOVAL

Use a flat-tipped screwdriver or a similar tool to open up the retainer joint. Then remove the retainer.

INSTALLATION SERVICE POINTS

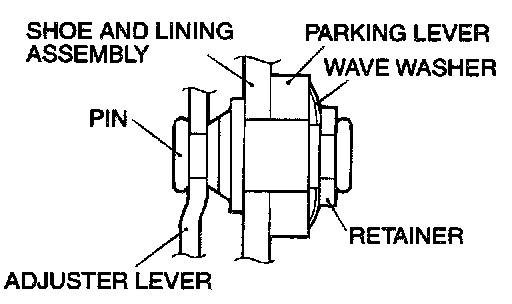

>>A<< WAVE WASHER INSTALLATION

Install the wave washer in the direction shown in the illustration.

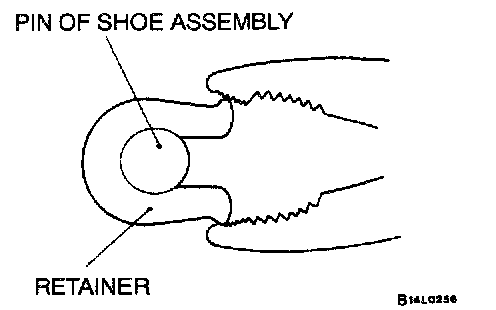

>>B<< RETAINER INSTALLATION

Use pliers or a similar tool to close the retainer end onto the pin.

INSPECTION
BRAKE LINING THICKNESS CHECK
Refer to Testing and Inspection; Procedures.

BRAKE DRUM INSIDE DIAMETER CHECK
Refer to Testing and Inspection; Procedures.

BRAKE LINING AND BRAKE DRUM CONTACT CHECK
Refer to Testing and Inspection; Procedures.
