REAR BRAKE

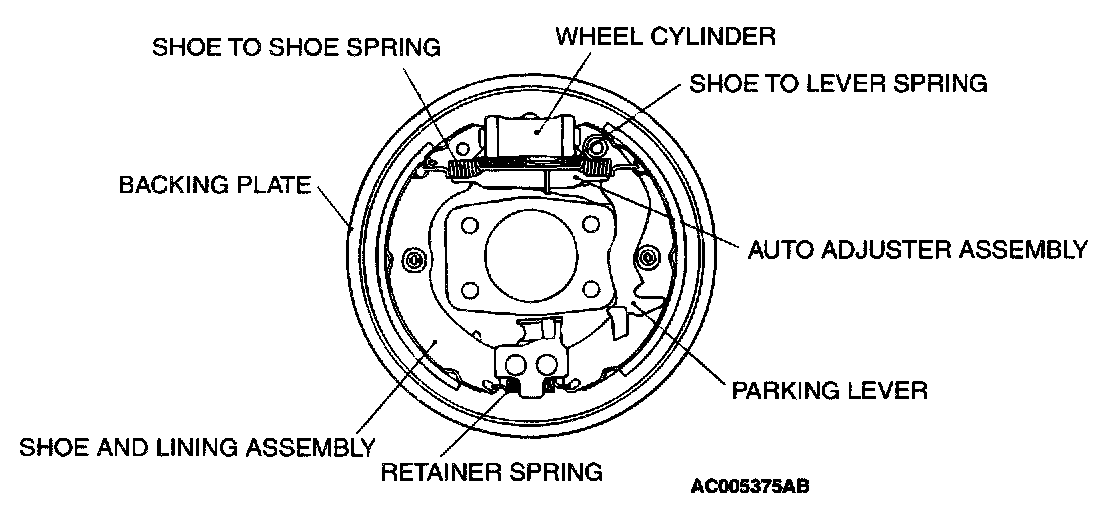

8-inch leading trailing-type drum brakes have been adopted for the rear brakes in order to provide stable braking force at all times both when moving forward and reversing.
