Front Brake

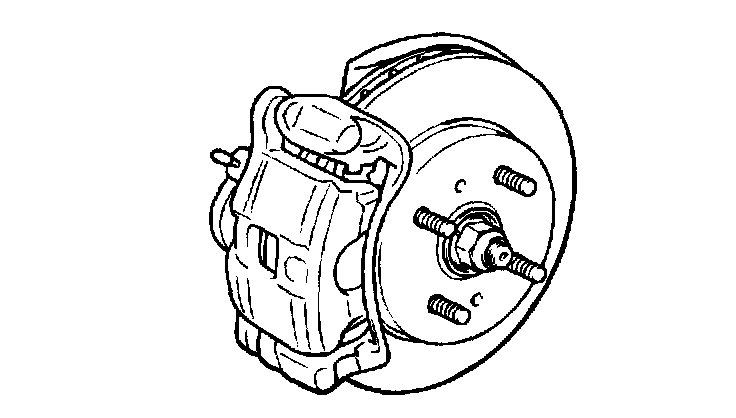

FRONT BRAKE





Brakes with the following specifications have been adopted for the front brakes.
- V4-S54 1-piston ventilate discs
- An outer disc method in which the wheels and discs are tightened together has been adopted to improve the ease of brake disc removal and installation.
- The brake pads are equipped with mechanical type audible wear indicators to notify the driver when the usage limit [2 mm (0.08 inch)] has been reached.
- Split fins adopted as the disc fins to improve cooling performance








DISC BRAKE NOMENCLATURE
