Rear Seat

FRONT SEAT ASSEMBLY




REMOVAL AND INSTALLATION

INSTALLATION SERVICE POINTS




>>A<< FRONT SEAT ASSEMBLY INSTALLATION
1. Temporarily tighten the nuts and bolts in all mounting locations shown in the illustration with no load applied to the front seat cushion and check the operation of the seat slide.
2. Tighten the nuts and bolts in all mounting locations to the specified torque.

REMOVAL SERVICE POINT




<> HEADREST GUIDE REMOVAL

Front Seat:

DISASSEMBLY AND ASSEMBLY

REAR SEAT ASSEMBLY

Bench Seat:

Split Seat:

REMOVAL AND INSTALLATION

INSTALLATION SERVICE POINTS

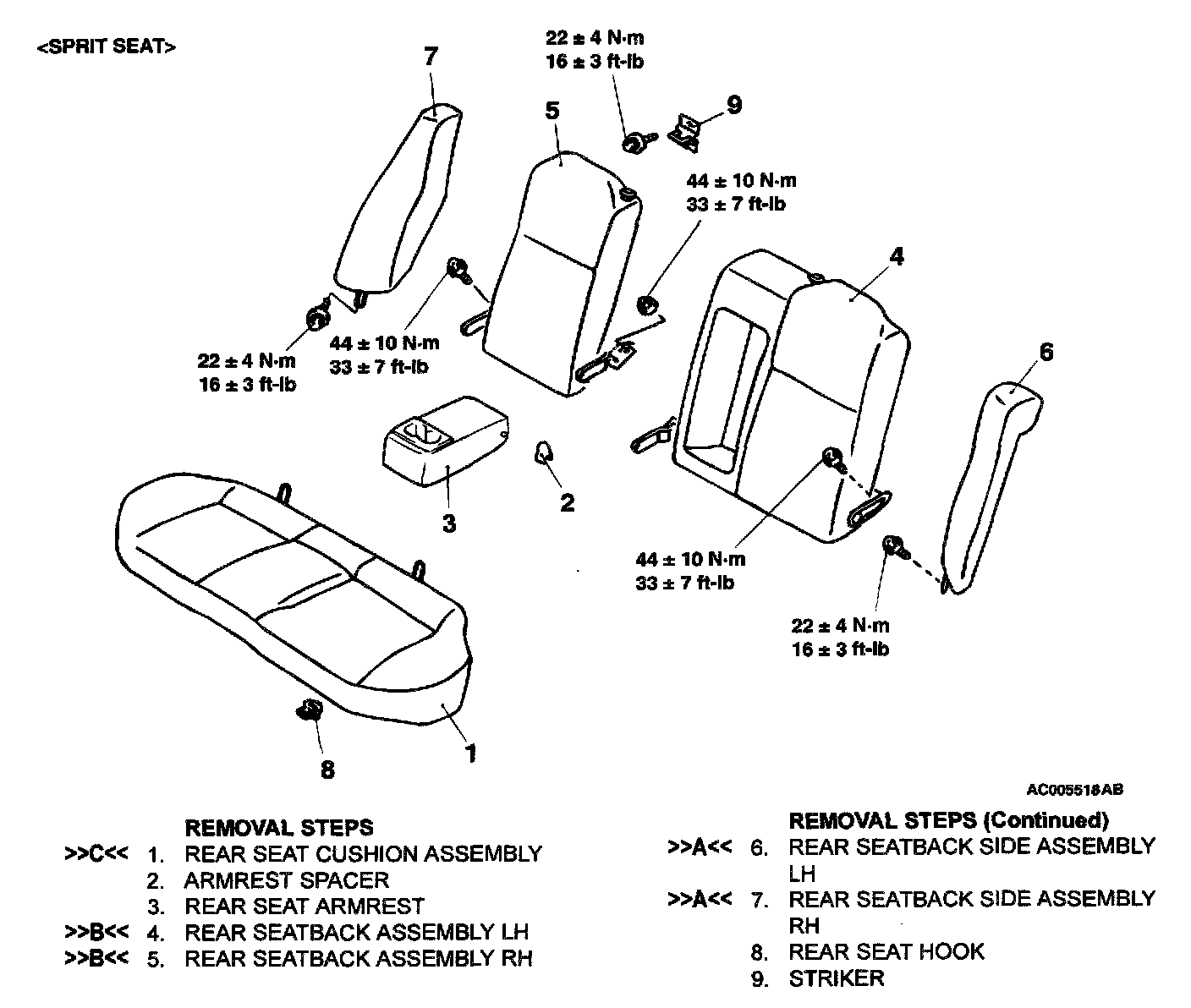

>>A<< INSTALLATION OF REAR SEATBACK SIDE ASSEMBLY LH/REAR SEATBACK SIDE ASSEMBLY RH
Press the rear seatback side assembly in the direction shown in the illustration and fit the attachment wire into the hook securely to install the rear seatback side assembly.

>>B<< INSTALLATION OF REAR SEATBACK ASSEMBLY LH/REAR SEATBACK ASSEMBLY RH
Place the center hinge bracket of the rear seatback assembly LH on top of the center hinge bracket of the rear seatback assembly RH for installation.

>>C<< INSTALLATION OF REAR SEAT CUSHION ASSEMBLY

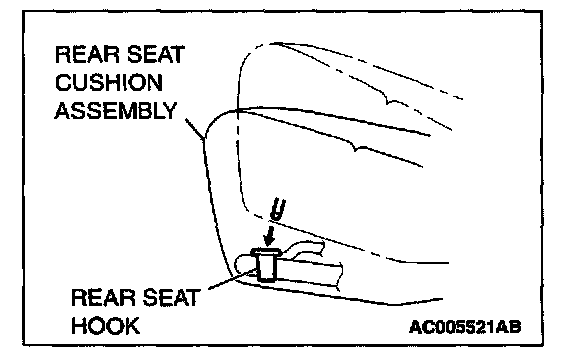

Fit the rear seat cushion into the rear seat hook securely.

Bench Seat:

Split Seat:

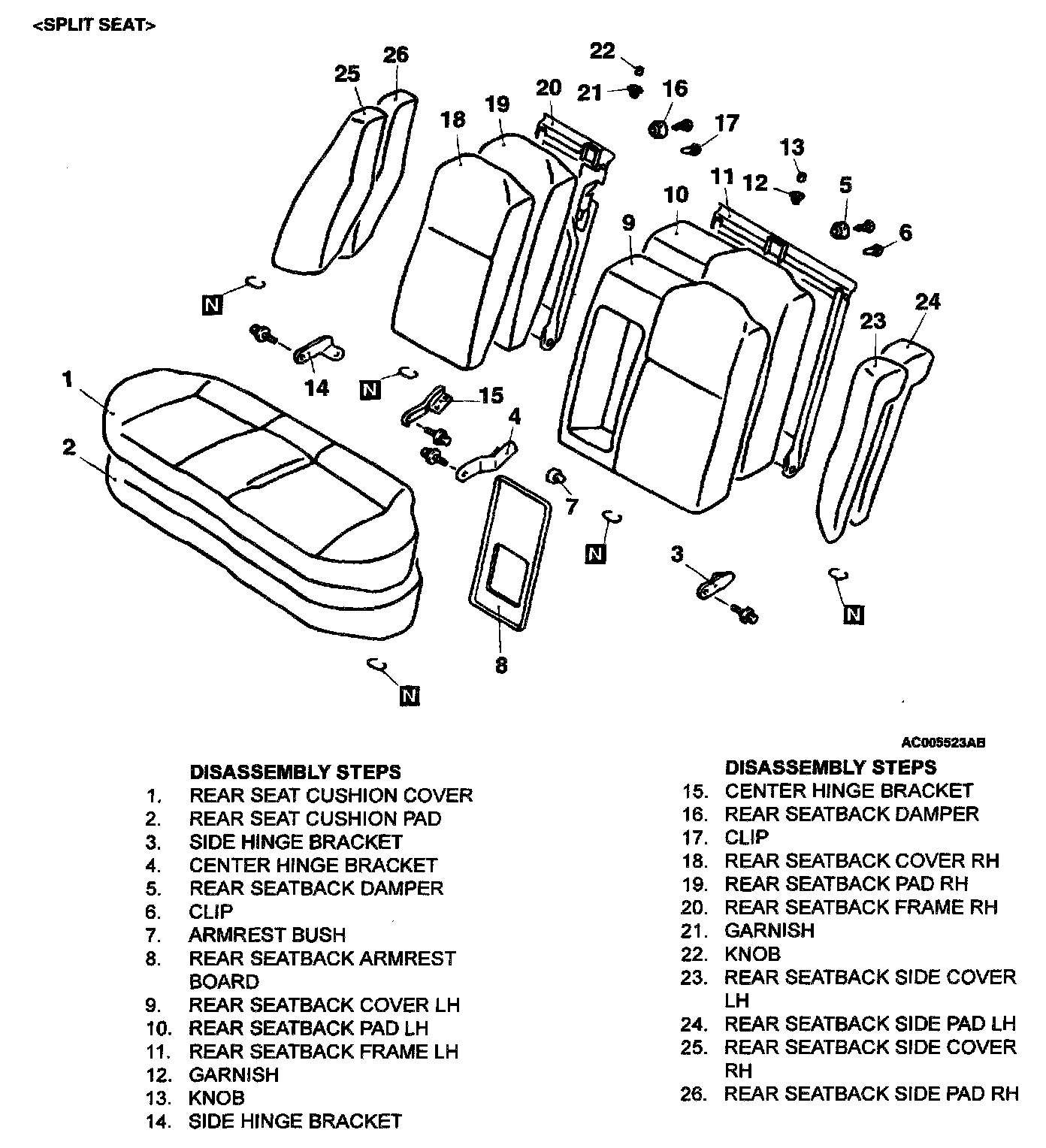

DISASSEMBLY AND ASSEMBLY
