Operation Check
OPERATION CHECKCheck that the following items. If faulty, replace the sunroof-ECU (sunroof motor assembly).
CAUTION: Check that the following items are normal before carrying out this operation check.
1. Installation condition of the sunroof assembly
2. Installation condition, deforms and attached foreign material of the sunroof drive cable
3. Unfitted sunroof lid glass
4. Sunroof switch and sunroof motor assembly

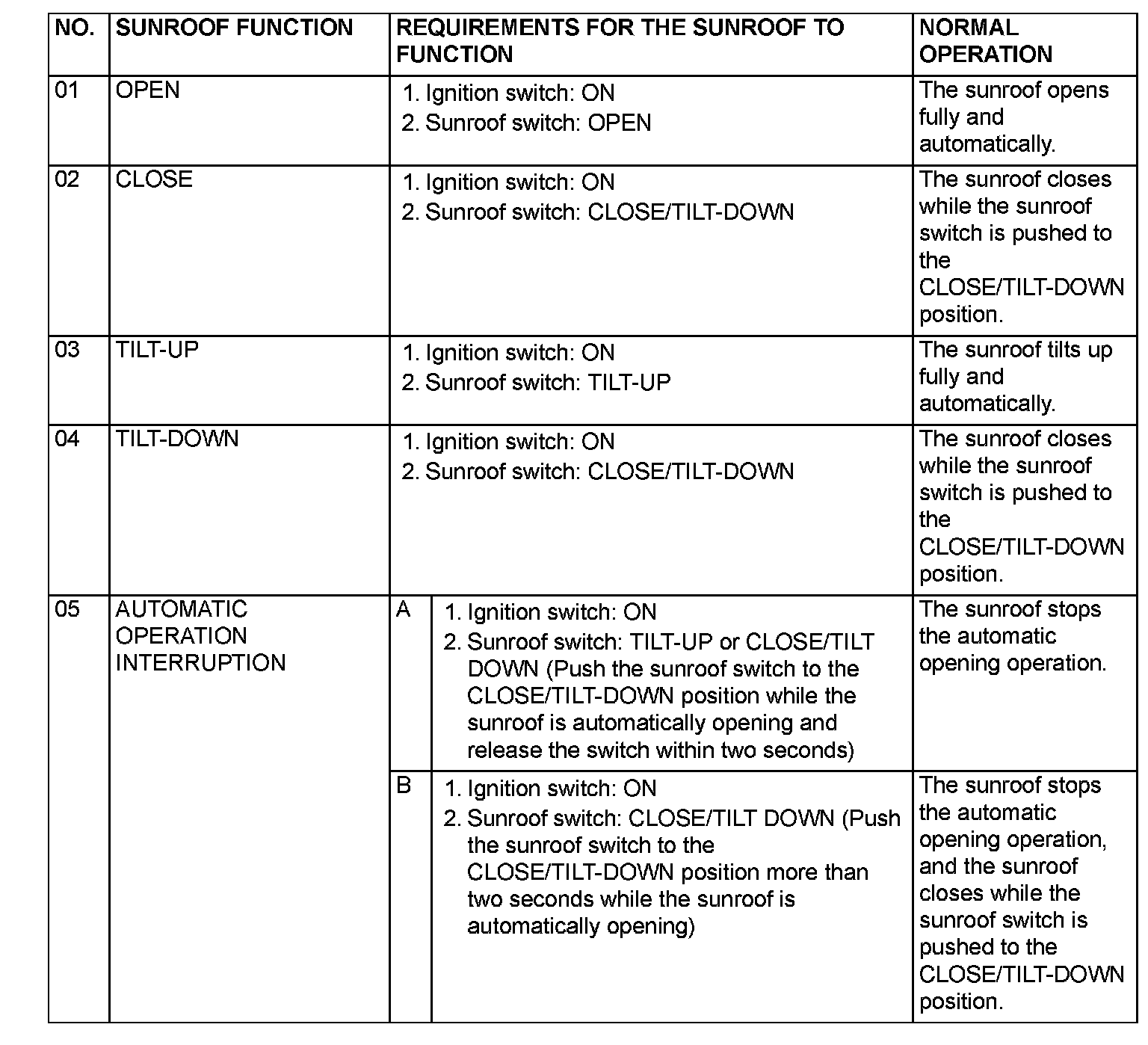

Basic operation
Jam preventing mechanism
Sunroof timer mechanism
In cases except the followings, the basic operation and jam preventing mechanism will be maintained for thirty seconds after the ignition switch is turned to the LOCK (OFF) position. (Sunroof timer function)
- If you open a door within that period (i.e. a door switch is on), the sunroof timer function will be cancelled immediately.
- If you closes the sunroof fully while the timer is working, the sunroof timer function is cancelled after that sunroof operation.
- If you turns the ignition switch to the LOCK (OFF) position while the timer is working, the sunroof will continue moving until it closes fully regardless of the time-out period.
