Sunroof / Moonroof: Description and Operation
SUNROOFGENERAL DESCRIPTION
A motor-driven outer slide-type glass sunroof with a tilt-up mechanism is adopted in some models as optional equipment. Even when the sunroof is fully closed, a sufficient amount of light and a feeling of openness can still be obtained by opening the sunroof sunshade.
GENERAL DESCRIPTION CONCERNING THE SUNROOF

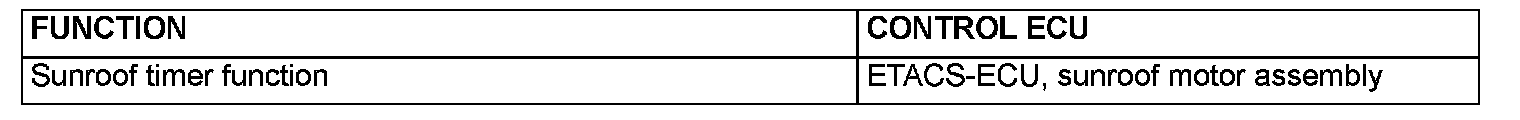

The following ECUs affect the functions and control of the sunroof.
Sunroof timer function
After the ignition switch is turned OFF, the system continues to turn ON the sunroof relay for about 30 seconds and to enable the opening and closing of the sunroof by the sunroof switch. When the driver's or front passenger's door is opened while the timer is in operation, the sunroof relay will be turned OFF and the sunroof timer function will be finished. As for the sunroof functions, refer to Sunroof.
