Rocker Panel Primer Application Locations

ROCKER PANEL PRIMER APPLICATION LOCATIONS

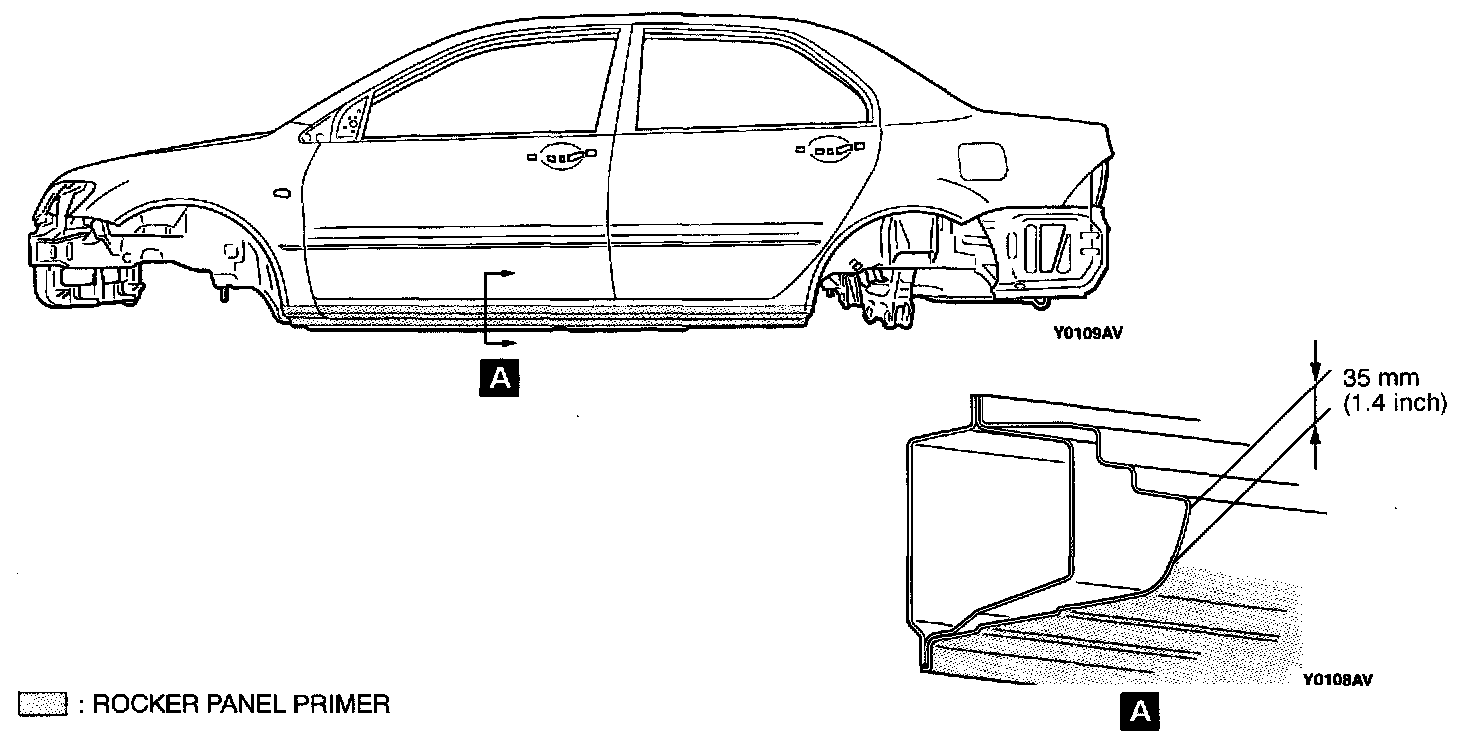

To prevent corrosion by chipping, rocker panel primer is applied to the area shown in the illustration. Rocker panel primer is applied between the under coat and second coat to prevent corrosion by preventing damage to the body by chipping caused by the film thickness and elasticity of the coating. When panels applied with rocker panel primer have been replaced, apply rocker primer before the second coat.
