Receiver Modular Locations and Electrical Connections

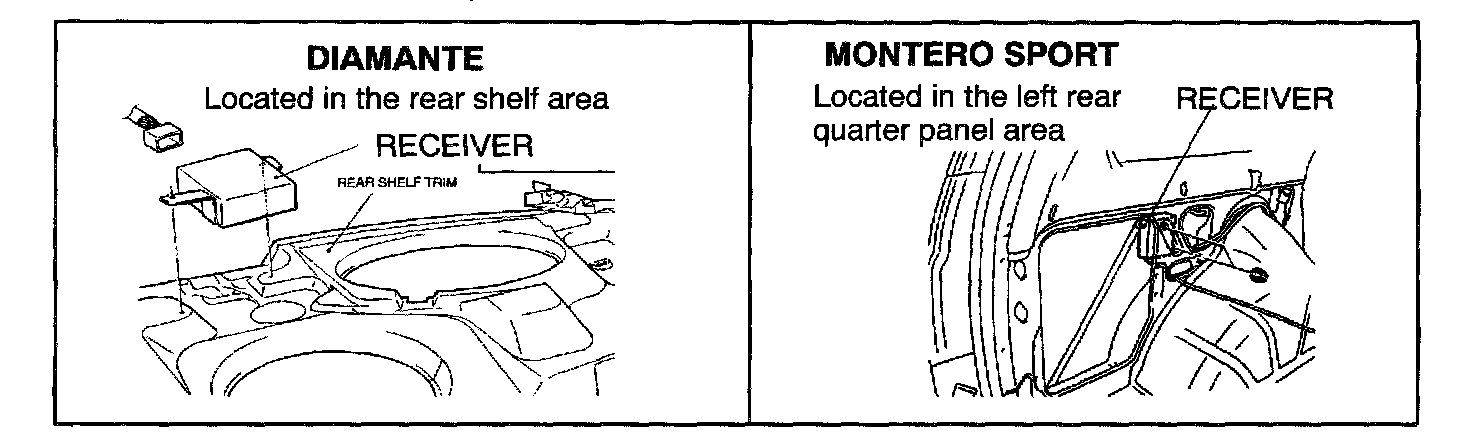

OMRON "A" System (Diamante & Montero Sport)





OMRON "B" & "C" Systems (Eclipse/Eclipse Spyder, Galant, Lancer, & Montero)

The Receiver Module and antenna are incorporated into the ETACS-ECU on the back side of the fuse block in the driver's side of the dash.

Electrical Connections: These are factory-installed systems and are "hard-wired" into the vehicle. Refer to the appropriate service manual for specific electrical connections.
