Console: Service and Repair

Front Floor Console Assembly:

Rear Floor Console Assembly:

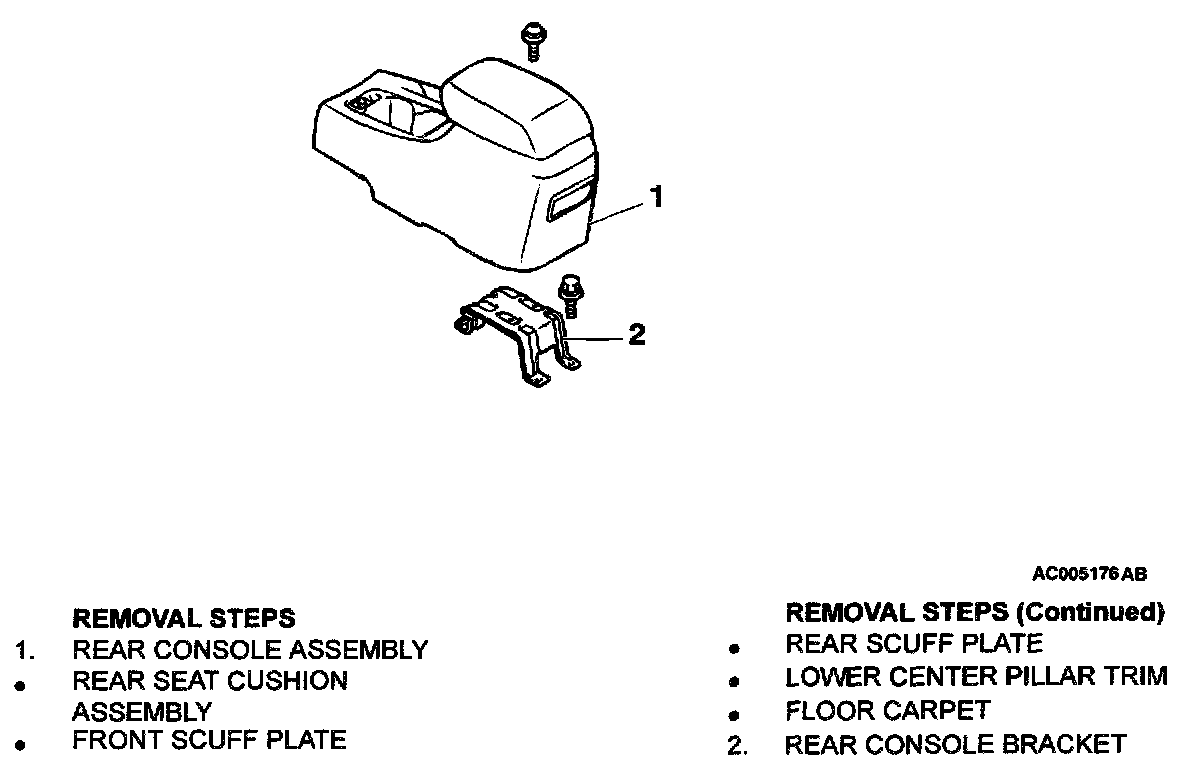

REMOVAL AND INSTALLATION

Rear Floor Console:

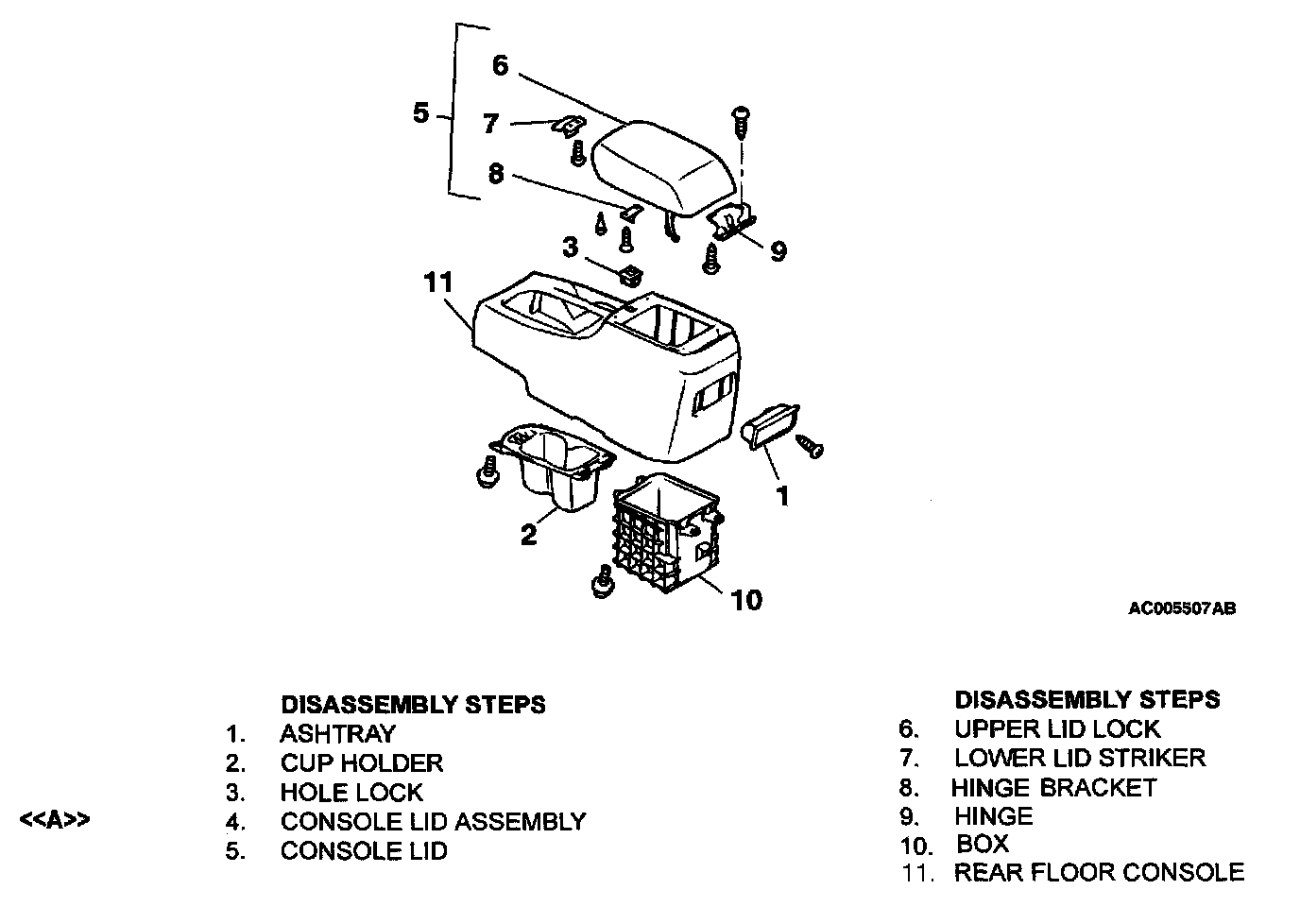

DISASSEMBLY AND ASSEMBLY

DISASSEMBLY SERVICE POINTS




<> CONSOLE LID ASSEMBLY REMOVAL

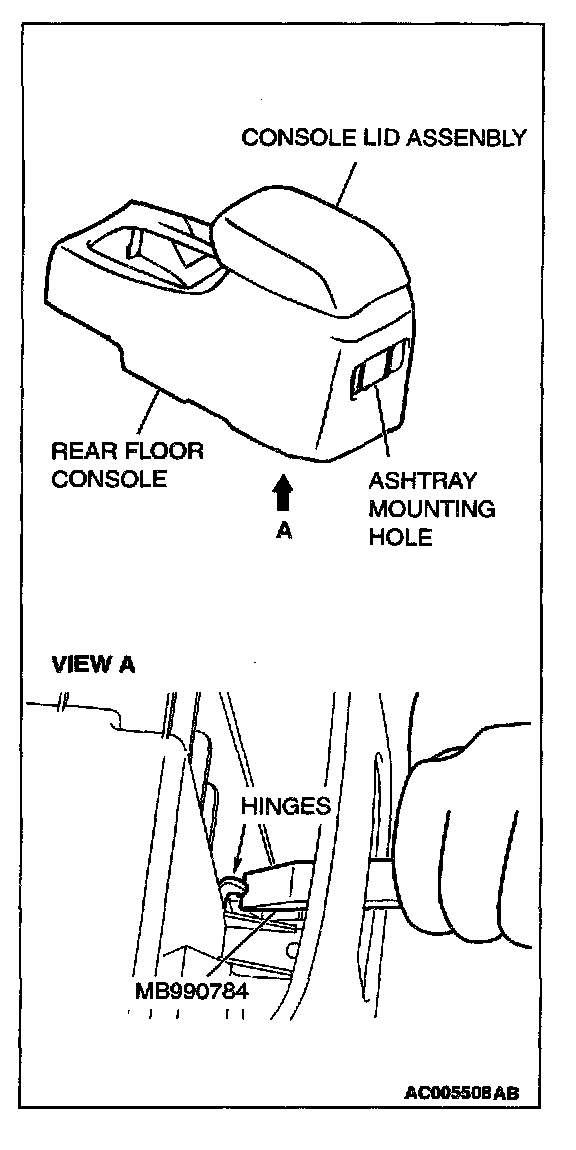

Insert the special tool into the hinges of the console lid assembly and the rear floor console through the ashtray mounting hole to pry for removal.
