Fuel Door: Adjustments
FUEL FILLER DOORFUEL FILLER DOOR ADJUSTMENT

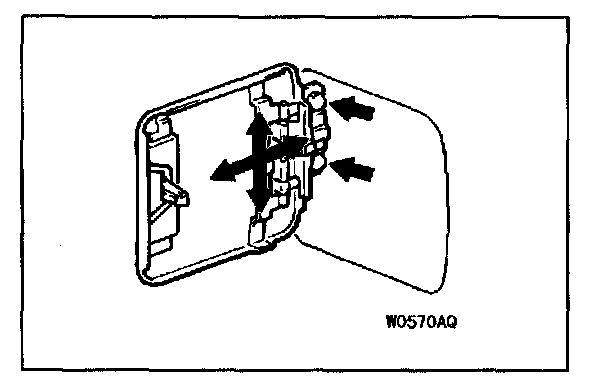

If there is step between the fuel filler door and body or if the clearance is inconsistent, loosen the fuel tiller door mounting bolts, and move the fuel filler door to adjust so that there is no step and the clearance around the fuel filler door becomes consistent.
Fuel lid mounting bolts tightening torque: 5.0 ± 1.0 N.m (44 ± 9 in-lb)
