Front Door Panel: Service and Repair

DOOR TRIM AND WATERPROOF FILM




REMOVAL AND INSTALLATION

Required Special Tool:
- MB990784: Ornament Remover

Clip And Claw Positions:

CLIP AND CLAW POSITIONS

REMOVAL SERVICE POINTS

[[A]] DOOR INSIDE HANDLE COVER REMOVAL

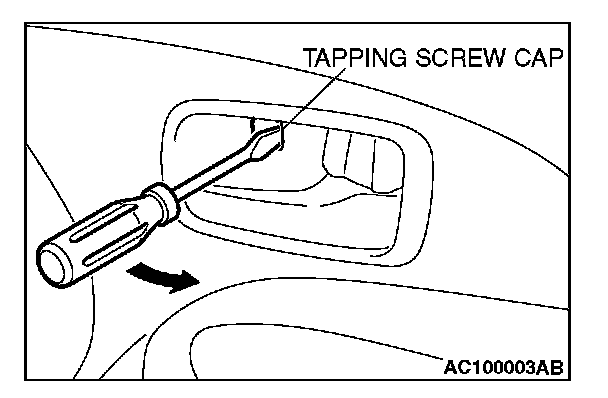

1. Insert a flat-tipped screwdriver into the rear end of the tapping screw cap on the door inside handle cover, and prize out the cap to the direction shown. Then remove the tapping screw.




2. Insert special tool MB990784 into the clearance between the door inside handle cover and the door inside handle, and disengage the claws of the door inside handle.
3. Insert special tool MB990784 into the rear end of the inside handle cover, and prize out the cover to the direction shown. Then remove the door inside handle cover.

[[B]] CLIP REMOVAL




Use cloth to remove the clip as shown in the illustration.

INSTALLATION SERVICE POINTS

]]A[[ WATERPROOF FILM INSTALLATION




Apply the specified adhesive on the waterproof film as shown in the illustration, and then glue it on the door window glass.

]]B[[ REGULATOR
HANDLE/CLIP/ESCUTCHEON INSTALLATION




1. Install escutcheon and regulator handle to the clip.
2. Close the door window glass fully, and then install the regulator handle as shown in the illustration.
