Home >> Mitsubishi >> 2002 >> Lancer O-Z Rally Edition L4-2.0L SOHC >> Repair and Diagnosis >> Body and Frame >> Bumper >> Rear Bumper >> Service and Repair >> Removal and Installation

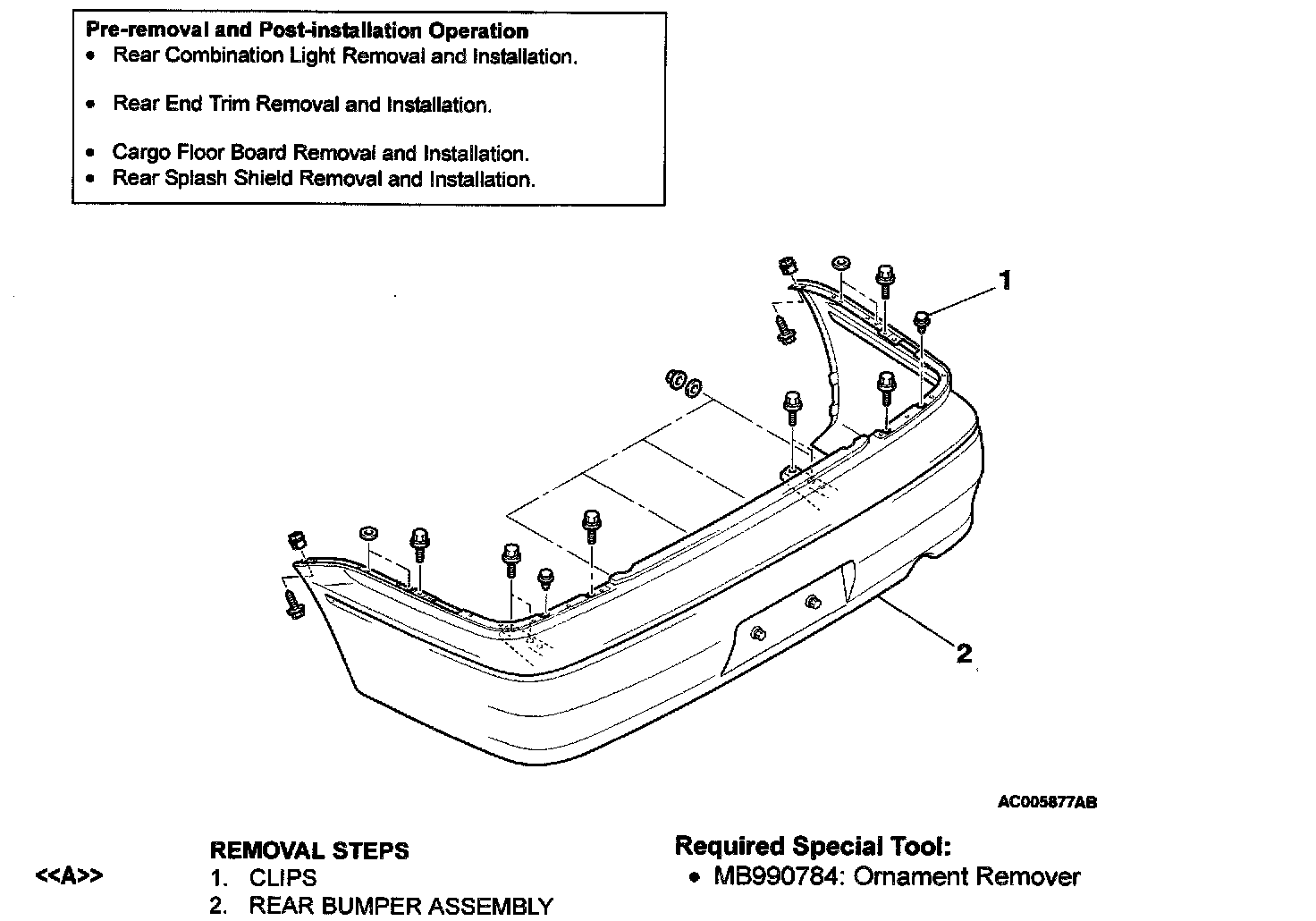

Removal and Installation






REMOVAL SERVICE POINT




<> CLIP REMOVAL

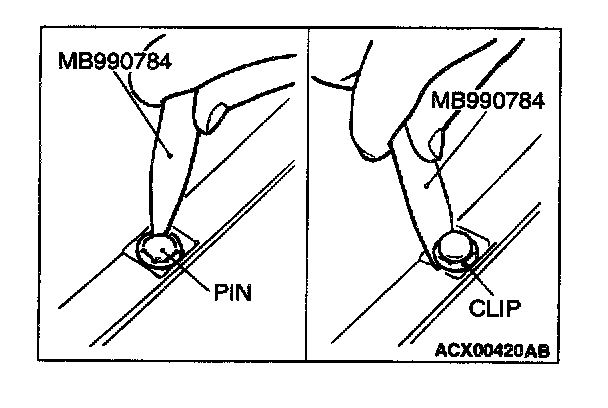

1. Use special tool MB990784 to pull up the center pin in the clip.
2. Remove the clip.
