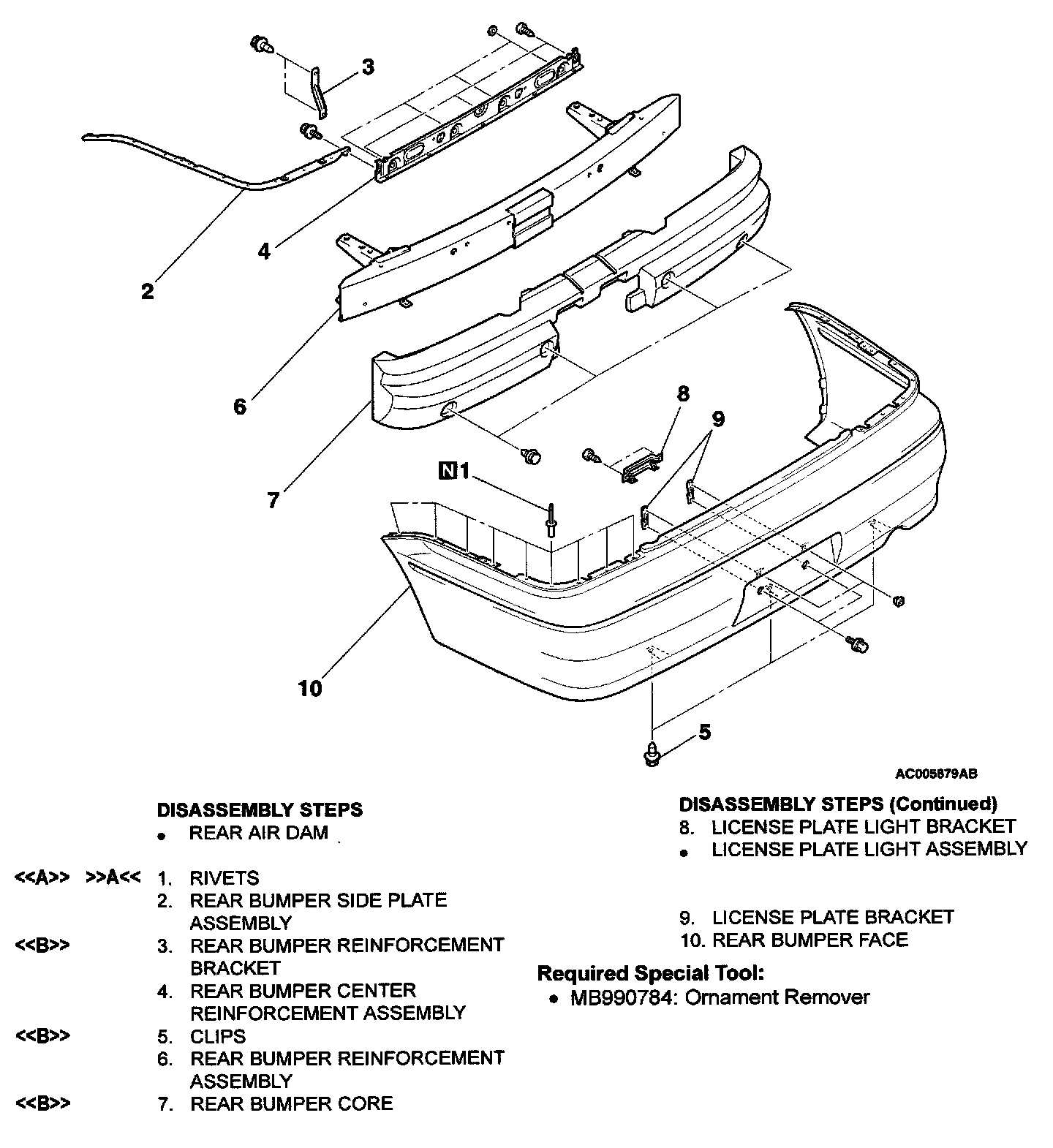

Disassembly and Assembly

DISASSEMBLY SERVICE POINTS

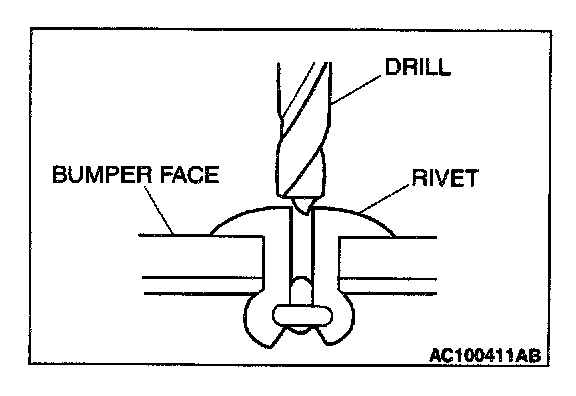

<> RIVETS REMOVAL
Use a drill [4.0 mm (0.16 inch)] to make a hole in the rivet to break it, and then remove the rivet.

<> REAR BUMPER REINFORCEMENT BRACKET/CLIPS/REAR BUMPER CORE REMOVAL
1. Use special tool MB990784 to pull up the center pin in the clip.
2. Remove the clip.

ASSEMBLY SERVICE POINT

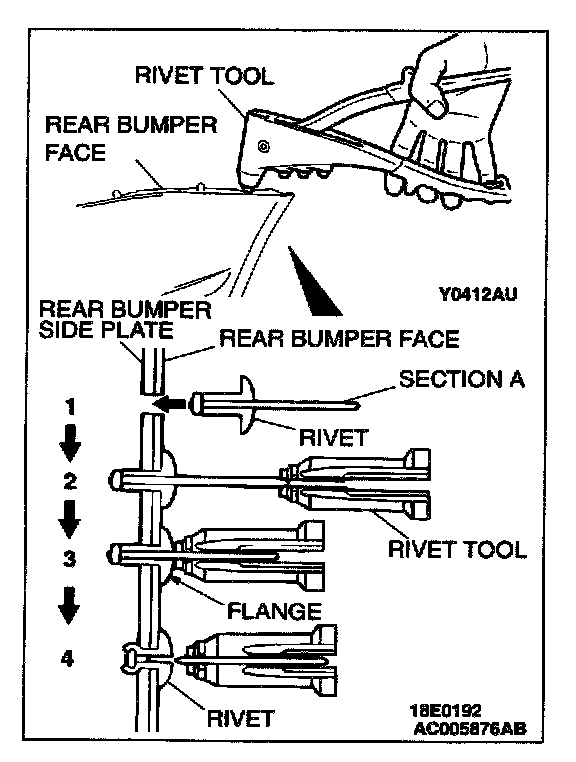

>>A<< RIVETS INSTALLATION
1. Insert the rivet into the rear bumper face and rear bumper side plate.
2. Insert "A" of the rivet into the rivet tool.
3. Pressing the flange surface of the rivet, move the handle of the rivet tool.
4. The thinnest point of "A" is cut and the rivet is held in position.
