Antenna Mast: Service and Repair
REMOVAL AND INSTALLATION
REMOVAL SERVICE POINT

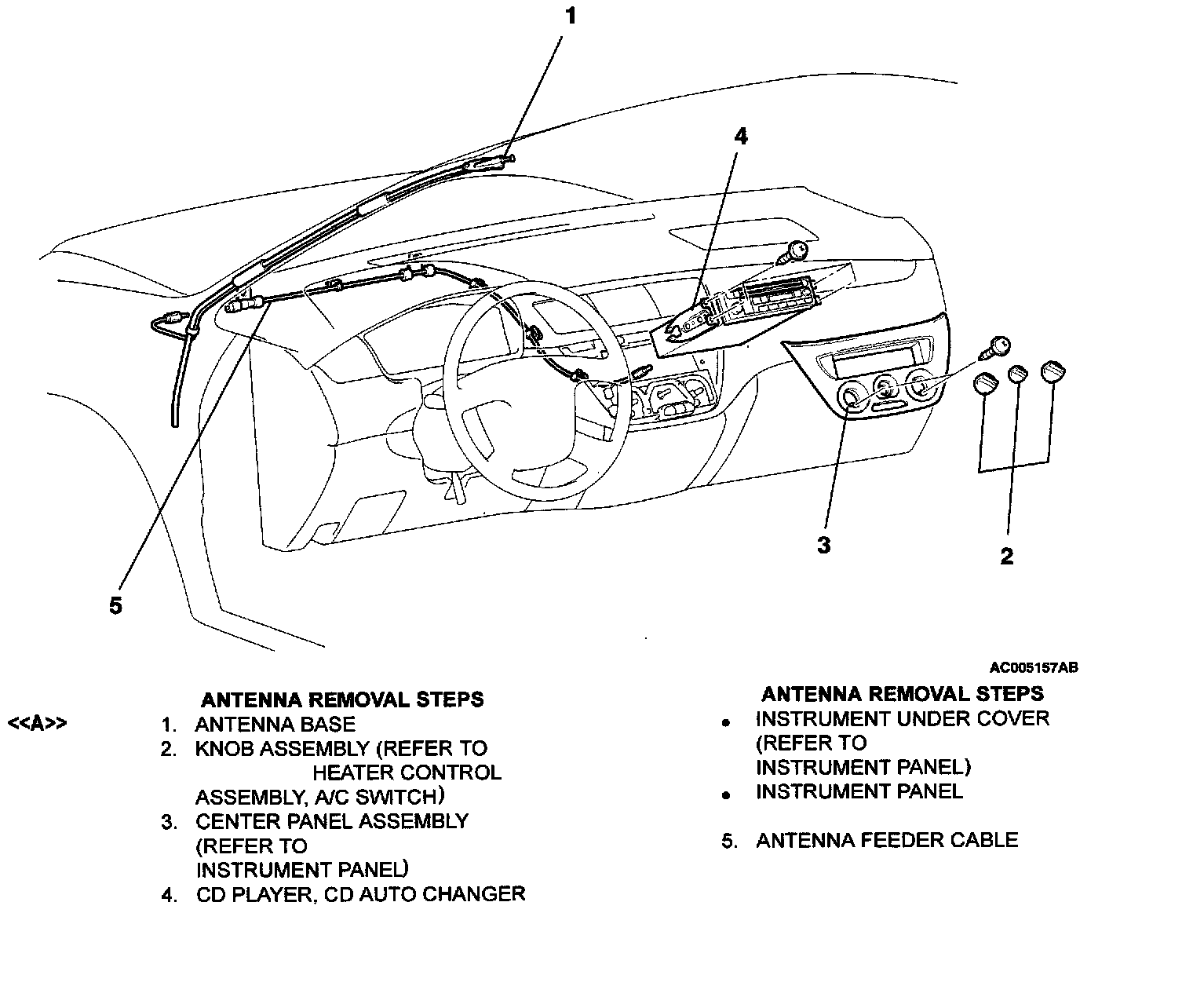

<> ANTENNA BASE REMOVAL
Use the following steps to easily route the antenna feeder cable in the event of installation:
1. Tie a string at the top end of the feeder cable.
2. Pull out the feeder cable until the pipe end of the antenna base is visible.

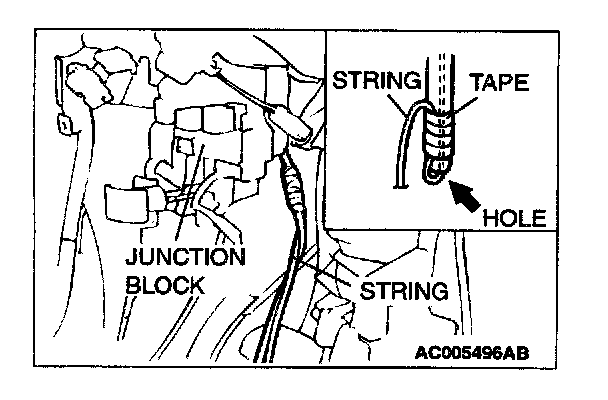

3. Insert a string into the hole at the pipe end of the antenna base, and wrap vinyl tape on the string.
CAUTION: Tape should be wrapped so that the string cannot be removed.
4. Gradually pull out remove the antenna base.
