Mirrors: Service and Repair

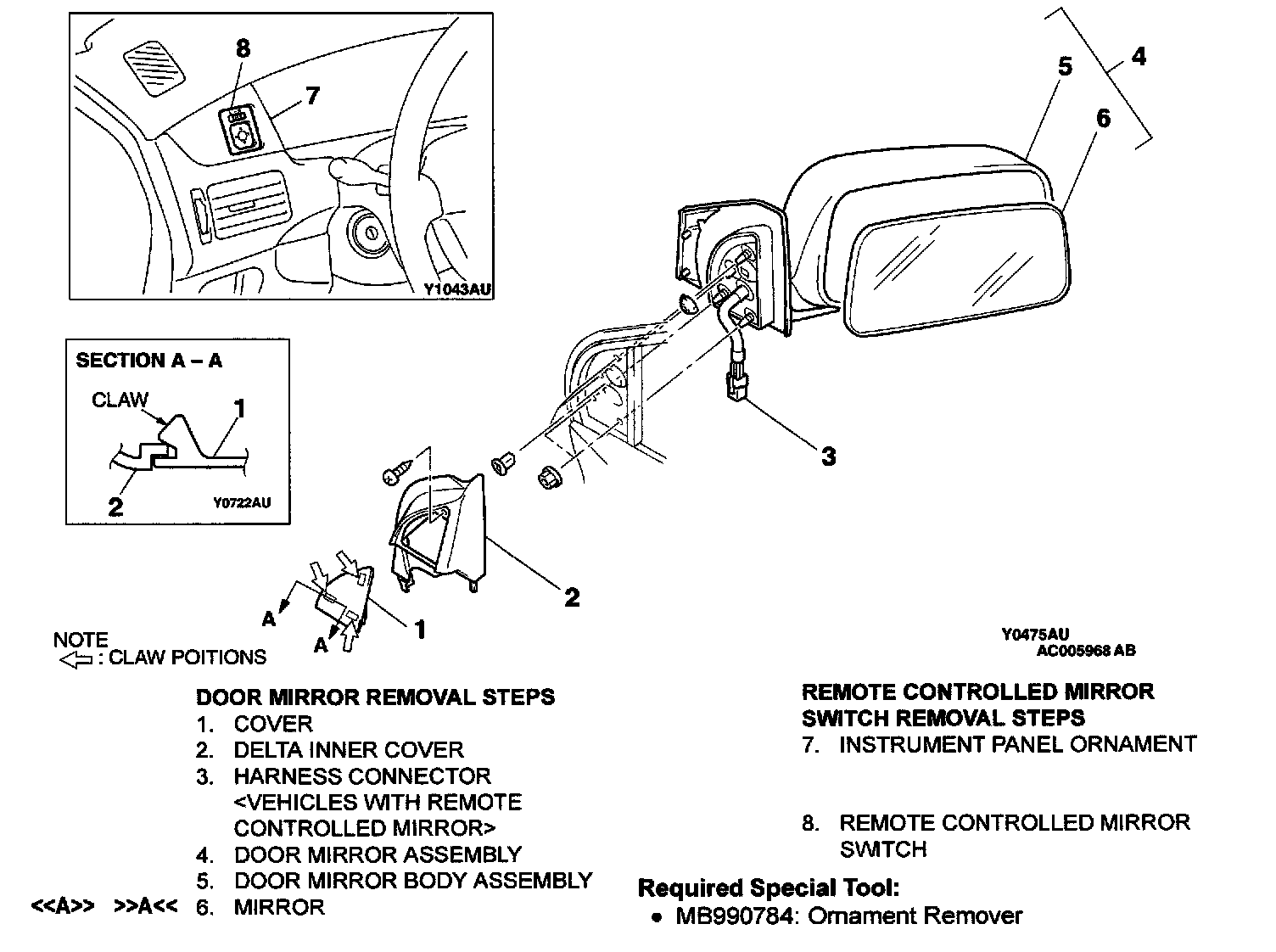

DOOR MIRROR

DOOR MIRROR:

REMOVAL SERVICE POINT

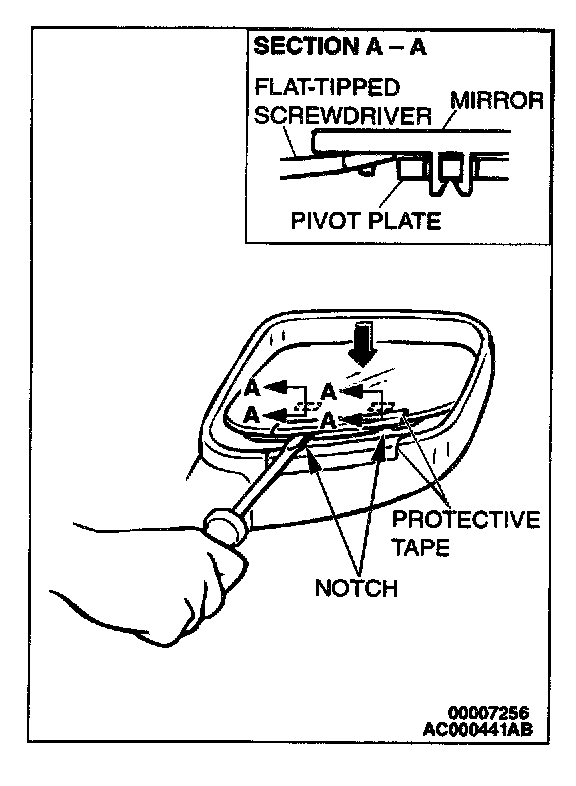

[[A]] MIRROR REMOVAL
Push the top of the mirror with your hand to tilt it and attach the protective tape as shown in the illustration. Then insert a flat-tipped screwdriver in between the notch at the rear of the mirror and the pivot plate, and disengage the bottom of the mirror.


INSTALLATION SERVICE POINT

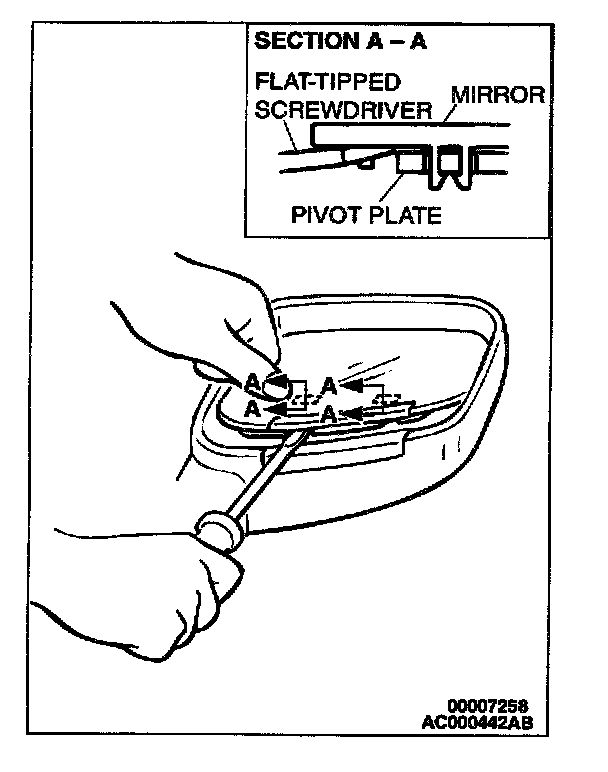

]]A[[ MIRROR INSTALLATION
While supporting the clip position on the underside of the pivot plate with a flat-tipped screwdriver, press the clip at the front of the mirror to engage the bottom of the mirror.
