Symptom Charts

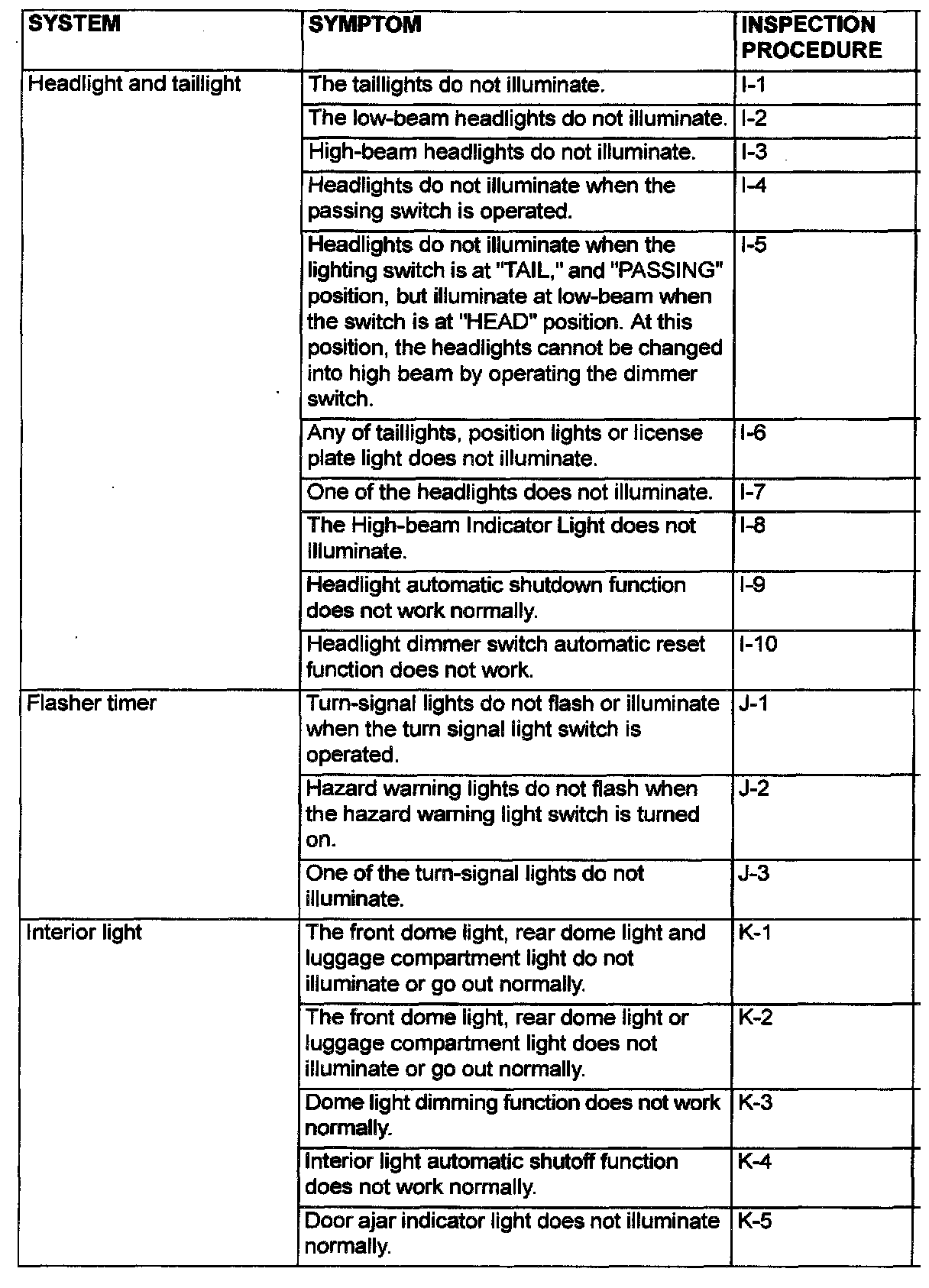

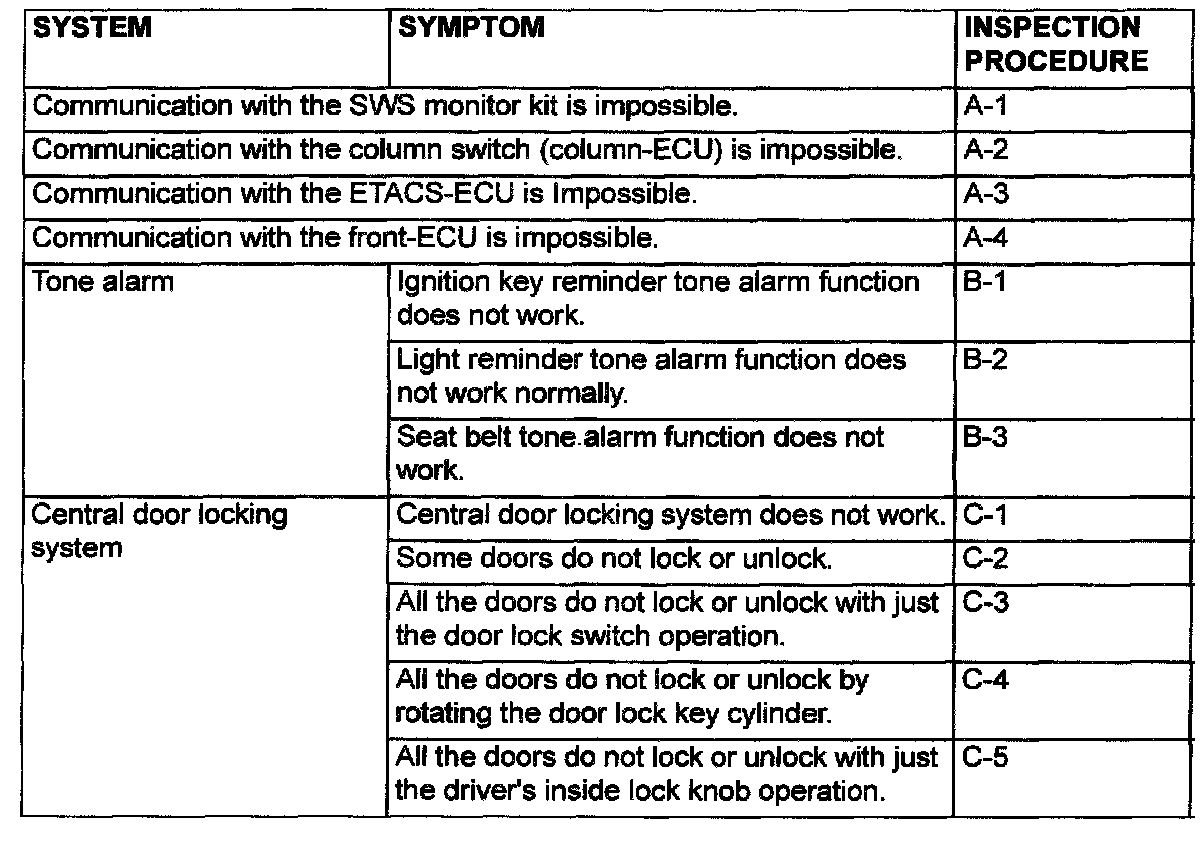

Symptom Chart Part 1:

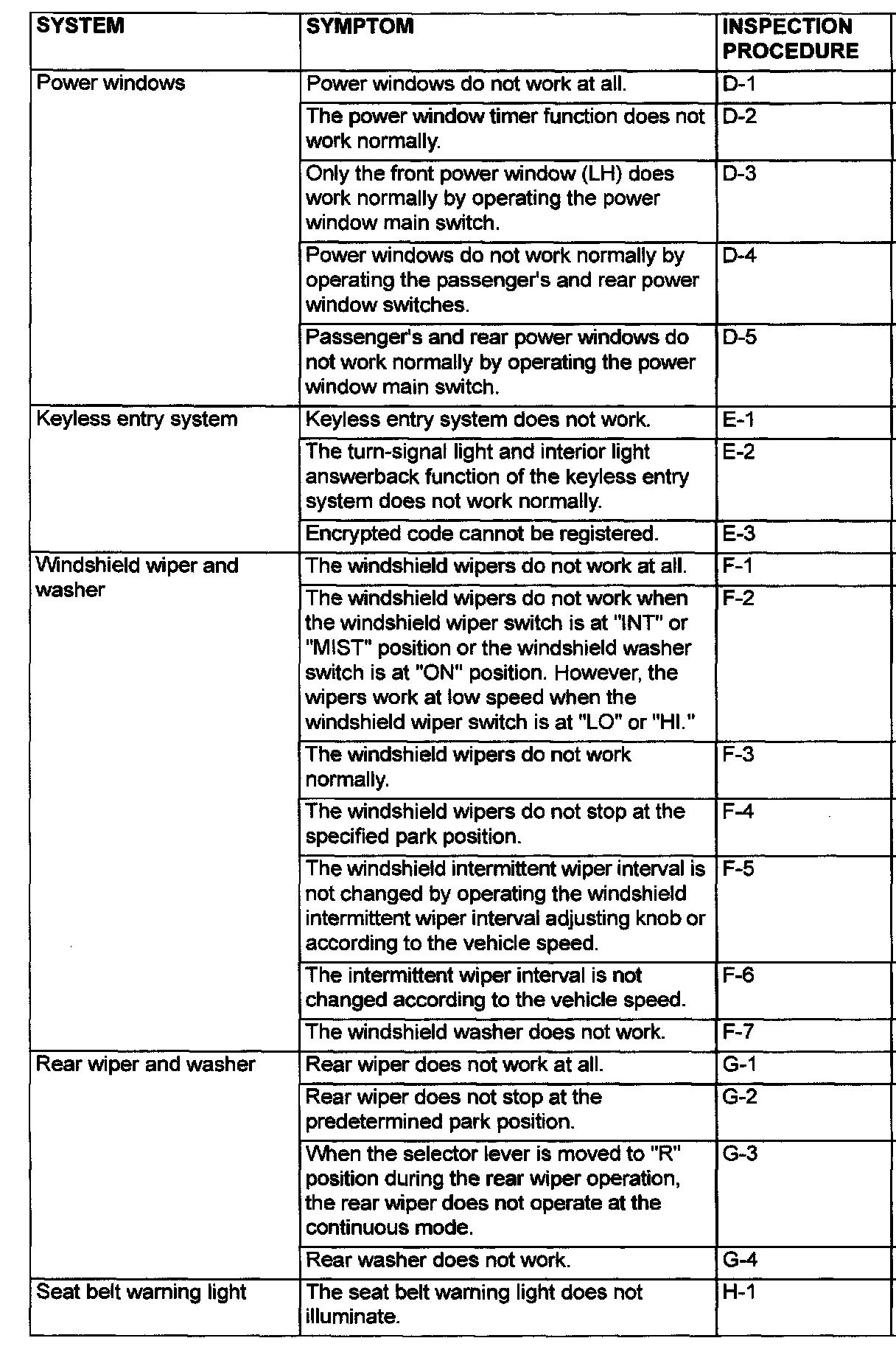

Symptom Chart Part 2:



Symptom Chart Part 3:

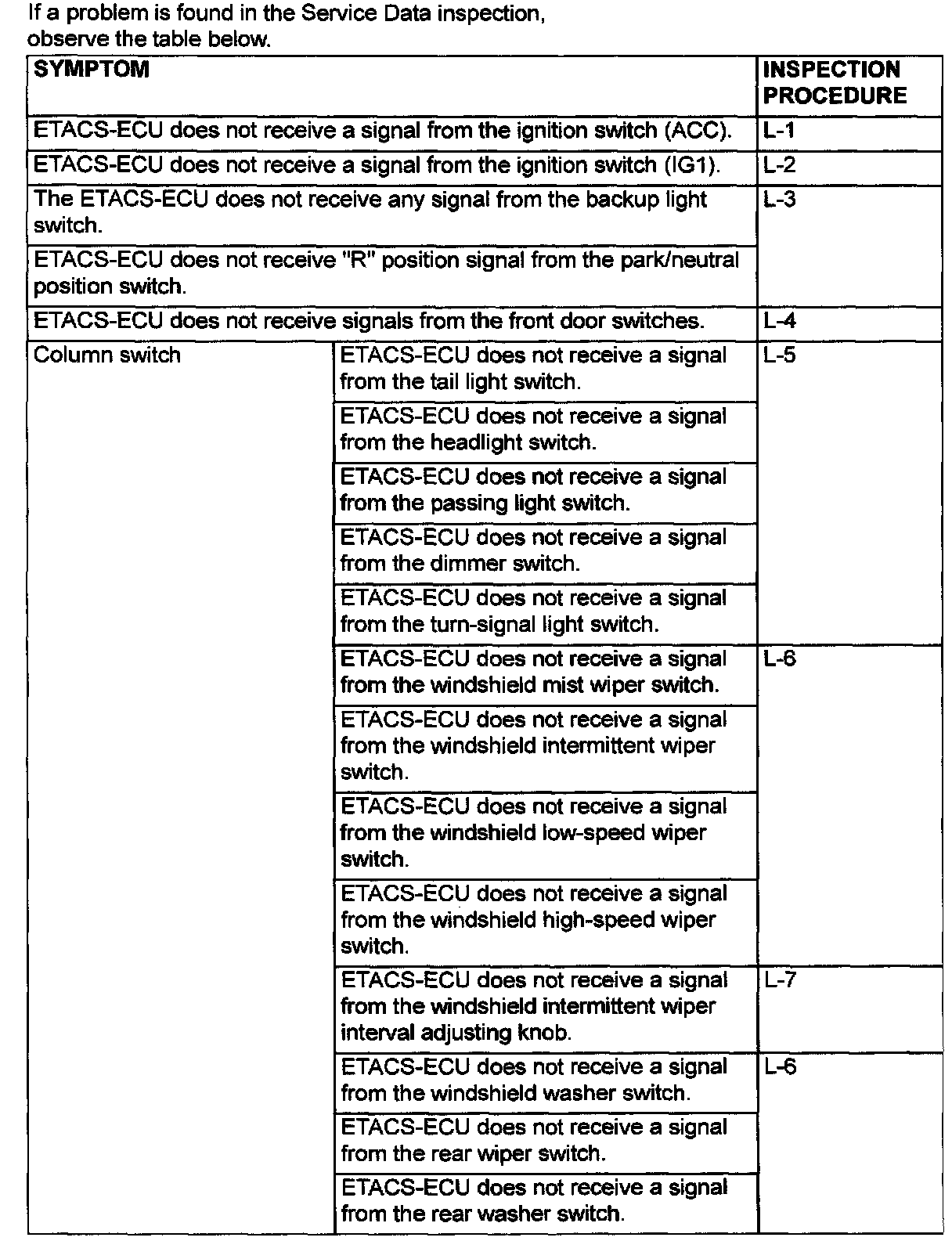

Defects Found During Input Signal Check - SWS Monitor:

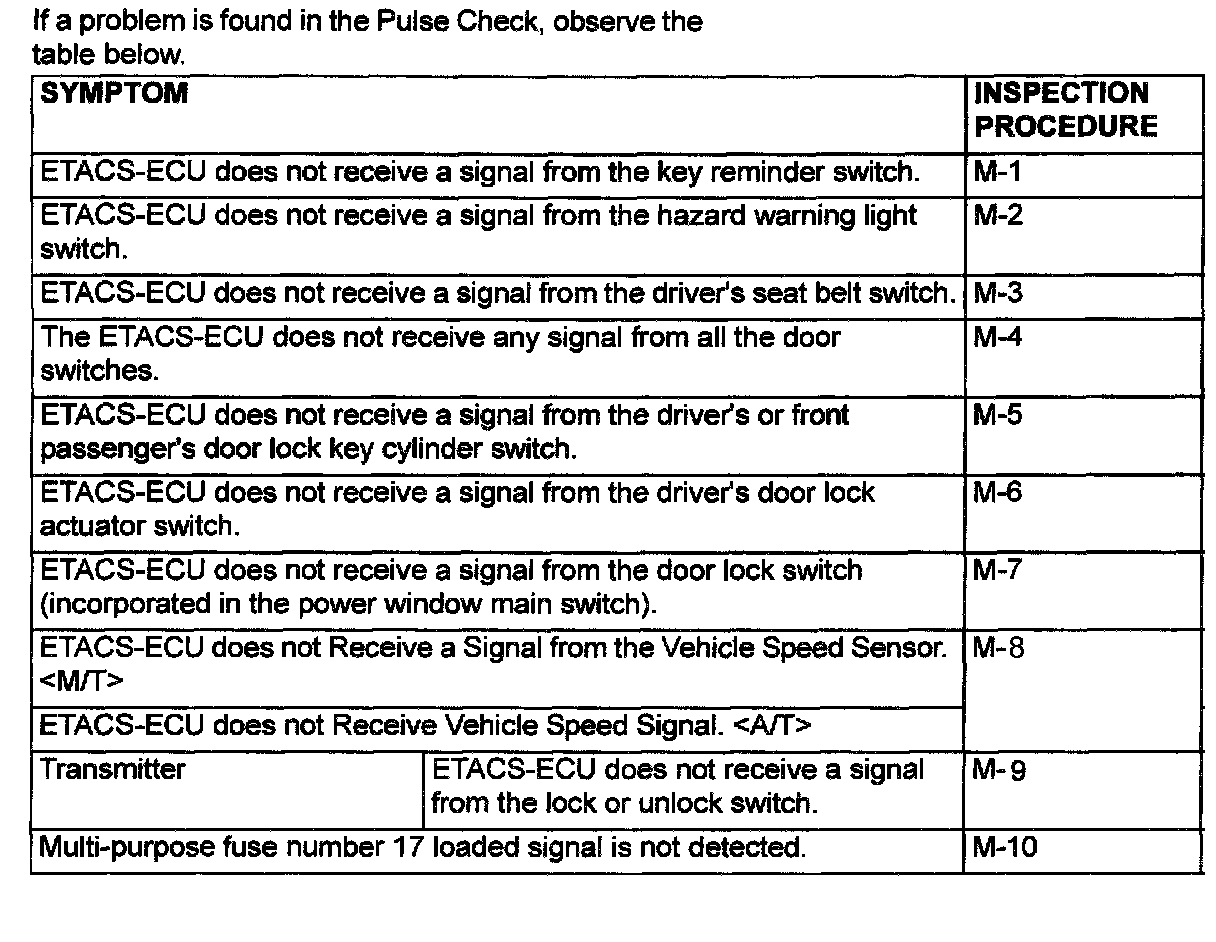

Defects Found During Input Signal Check - Scan Tool Or Voltmeter:
