Transmission Mount: Service and Repair
REMOVAL AND INSTALLATION
REMOVAL SERVICE POINT
<> TRANSAXLE MOUNT BRACKET REMOVAL

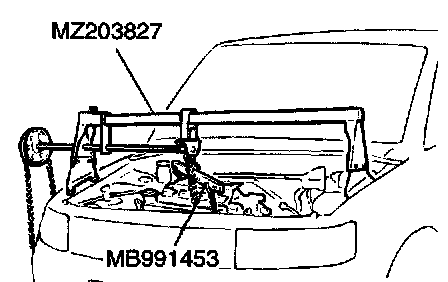

1. Install special tools MB991453 and MZ203827 to the vehicle body to support the engine and transaxle assembly.
2. Remove the centermember and rear roll stopper bracket.
3. Remove the bolt and nut of the transaxle mount bracket.
4. After lowering the engine and transaxle assembly, remove the transaxle mount bracket.
INSTALLATION SERVICE POINT
>>A<< TRANSAXLE MOUNT STOPPER INSTALLATION

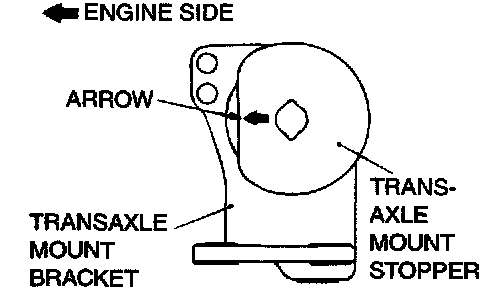

Clamp the transaxle mount stopper so that the arrow points in the direction as shown in the diagram.
