Rear Knuckle: Service and Repair

REMOVAL AND INSTALLATION

REMOVAL SERVICE POINT

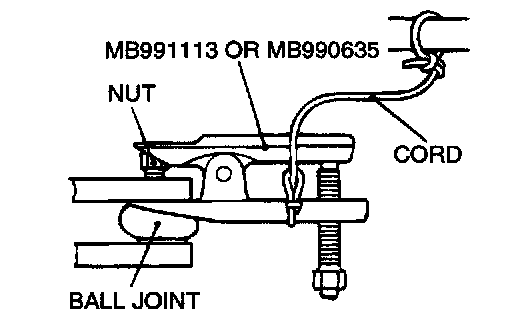

]]A[[ TOE CONTROL ARM DISCONNECTION

CAUTION:
^ Loosen the nut from the ball joint instead of removing it.
^ Hang special tool MB991113 or MB990635 with a cord, etc. to prevent it from falling.

INSPECTION
^ Check the knuckle for wear or cracks.
