Seat Belt: Service and Repair

Eclipse:

Eclipse Spyder:

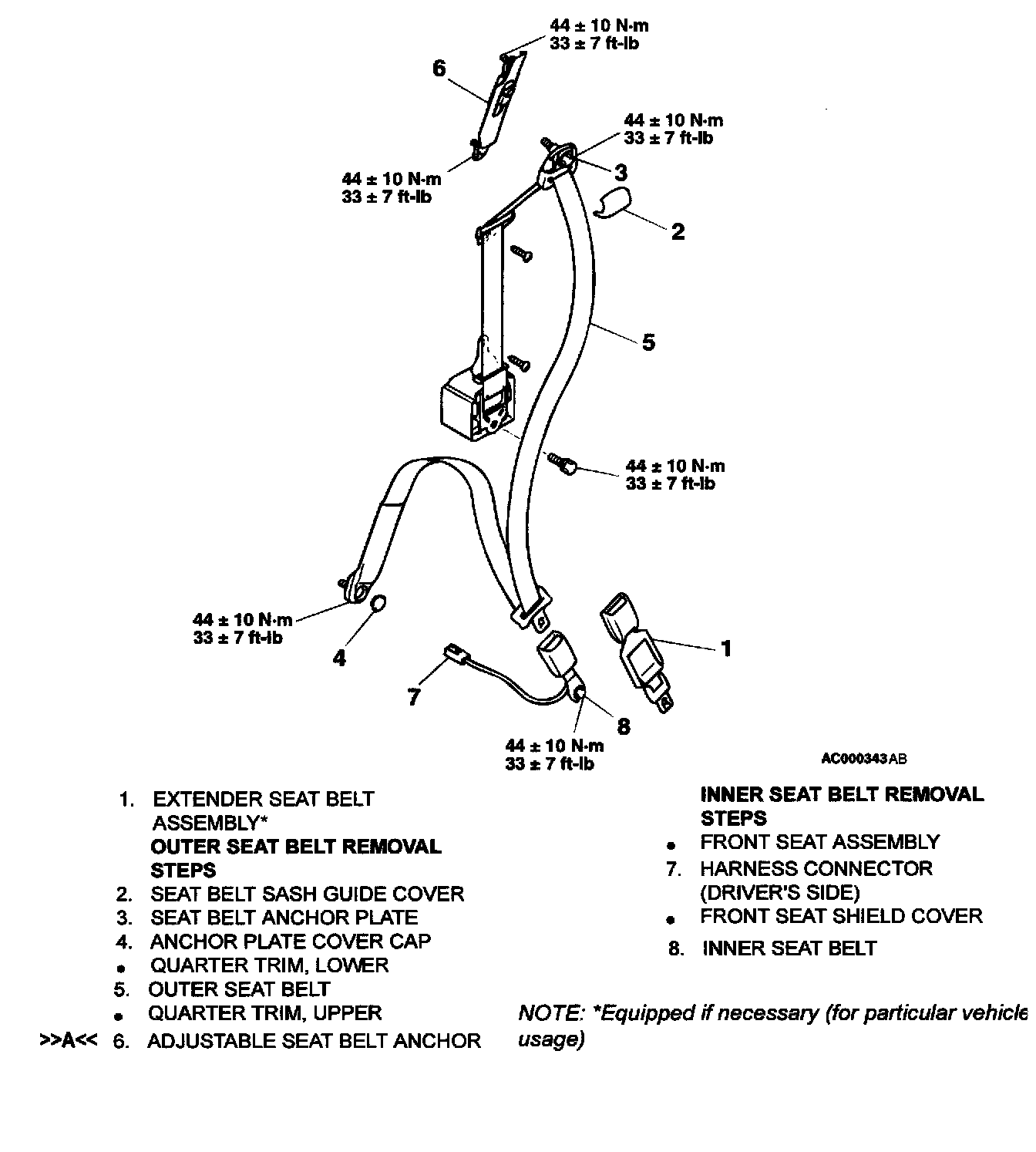

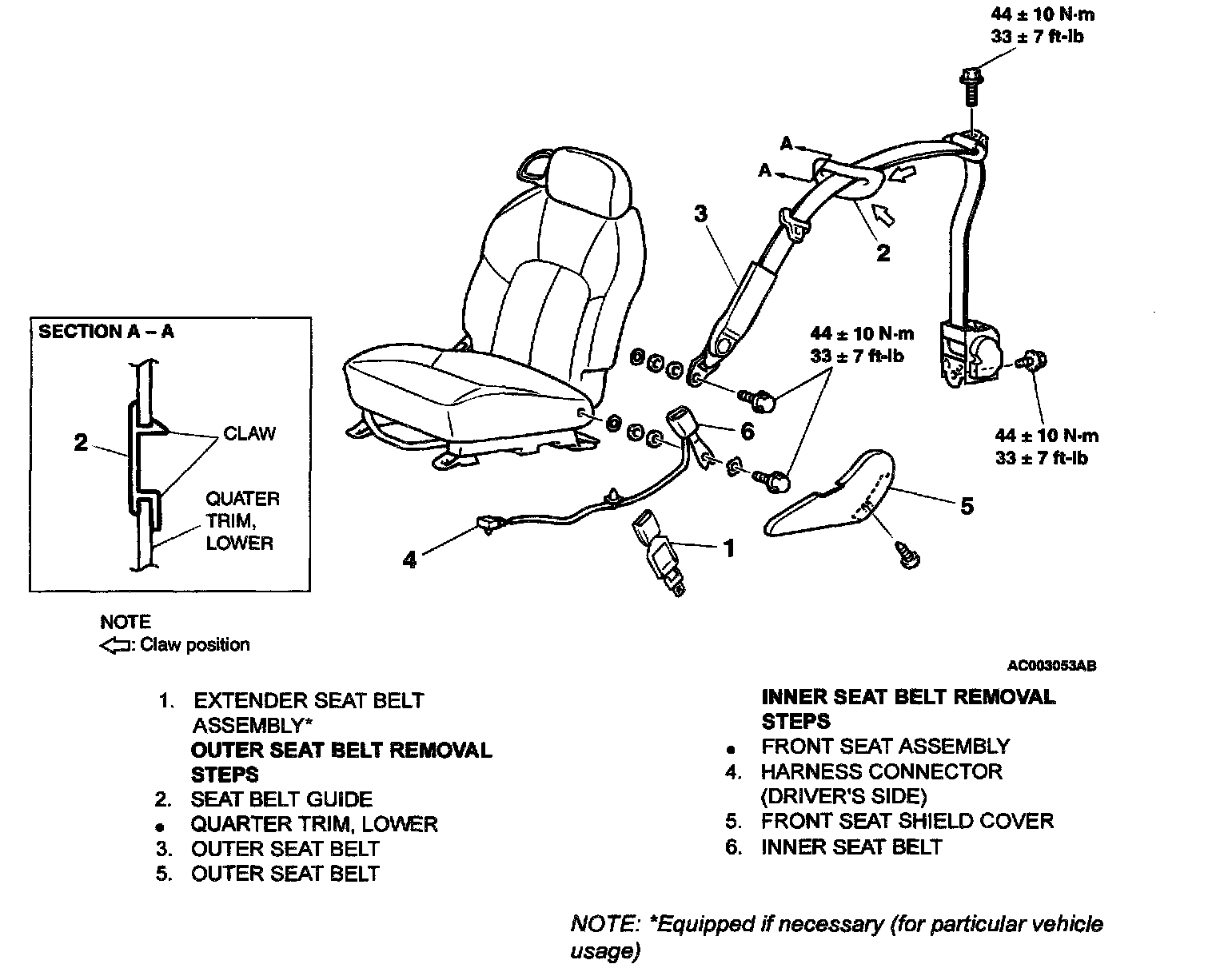

FRONT SEAT BELT

INSTALLATION SERVICE POINT

]]A[[ ADJUSTABLE SEAT BELT ANCHOR INSTALLATION
Observe the order shown.

Eclipse:

Eclipse Spyder:

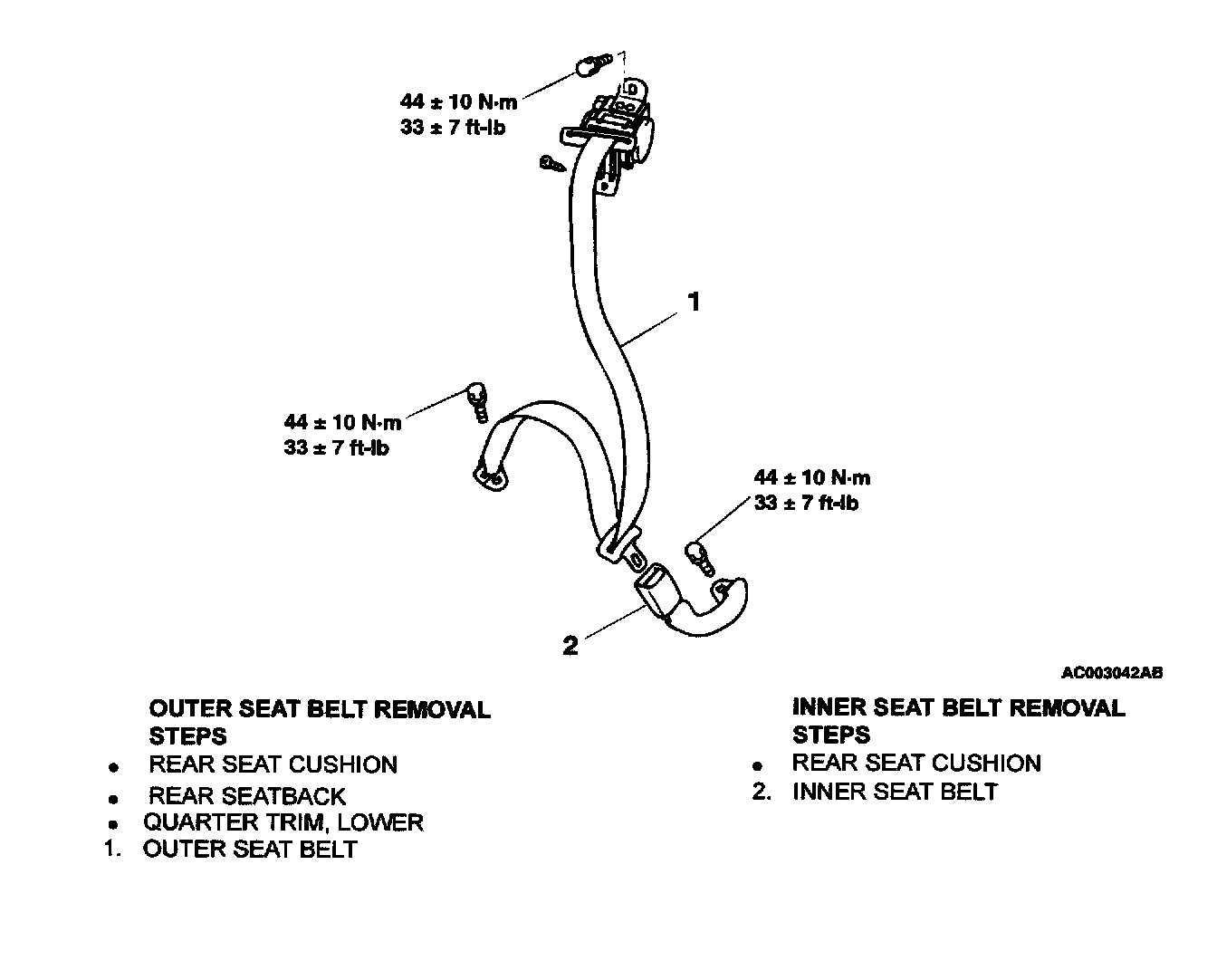

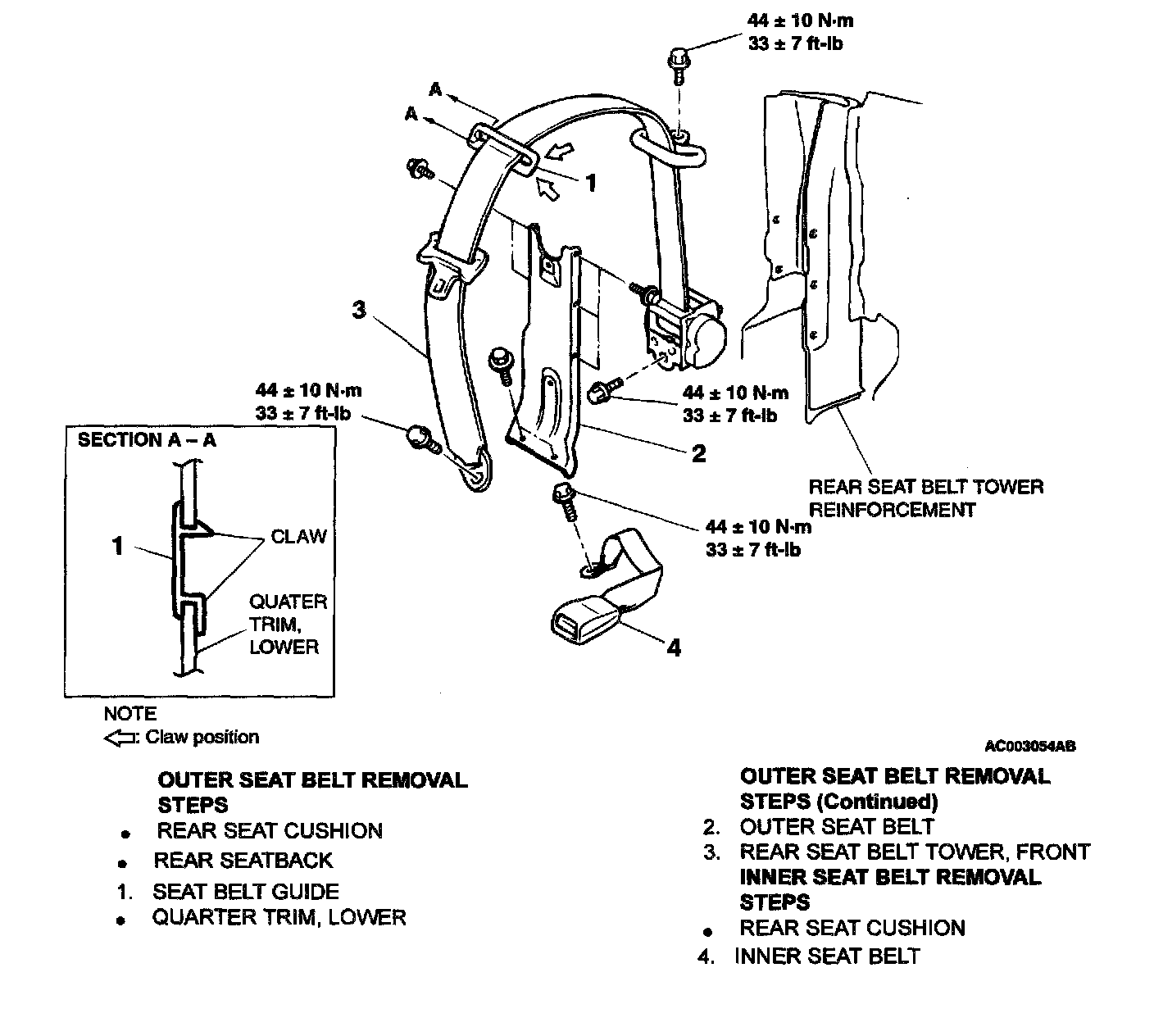

REAR SEAT BELT
