Resistance Check

INJECTOR CHECK



1. Disconnect the injector intermediate connector.

Standard Value:

2. Measure the resistance between the injector intermediate connector terminals.
3. Connect the injector intermediate connector.

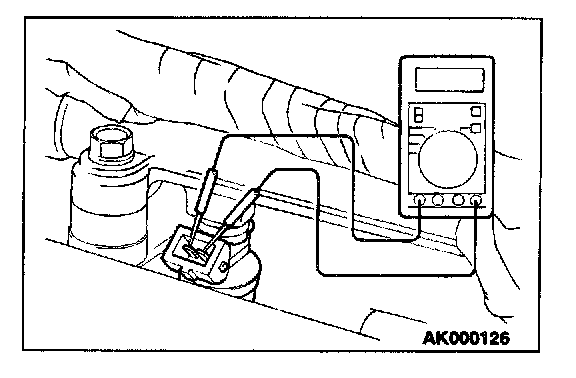

1. Disconnect the injector connector.
2. Measure the resistance between injector side connector terminals 1 and 2.

Standard value: 13 - 16 Ohms [at 20 °C (68 °F)]

3. Connect the injector connector.
