Home >> Mitsubishi >> 2002 >> Eclipse Spyder GT V6-3.0L SOHC >> Repair and Diagnosis >> Powertrain Management >> Emission Control Systems >> Evaporative Emissions System >> Evaporative Emission Control Canister >> Service and Repair

Evaporative Emission Control Canister: Service and Repair

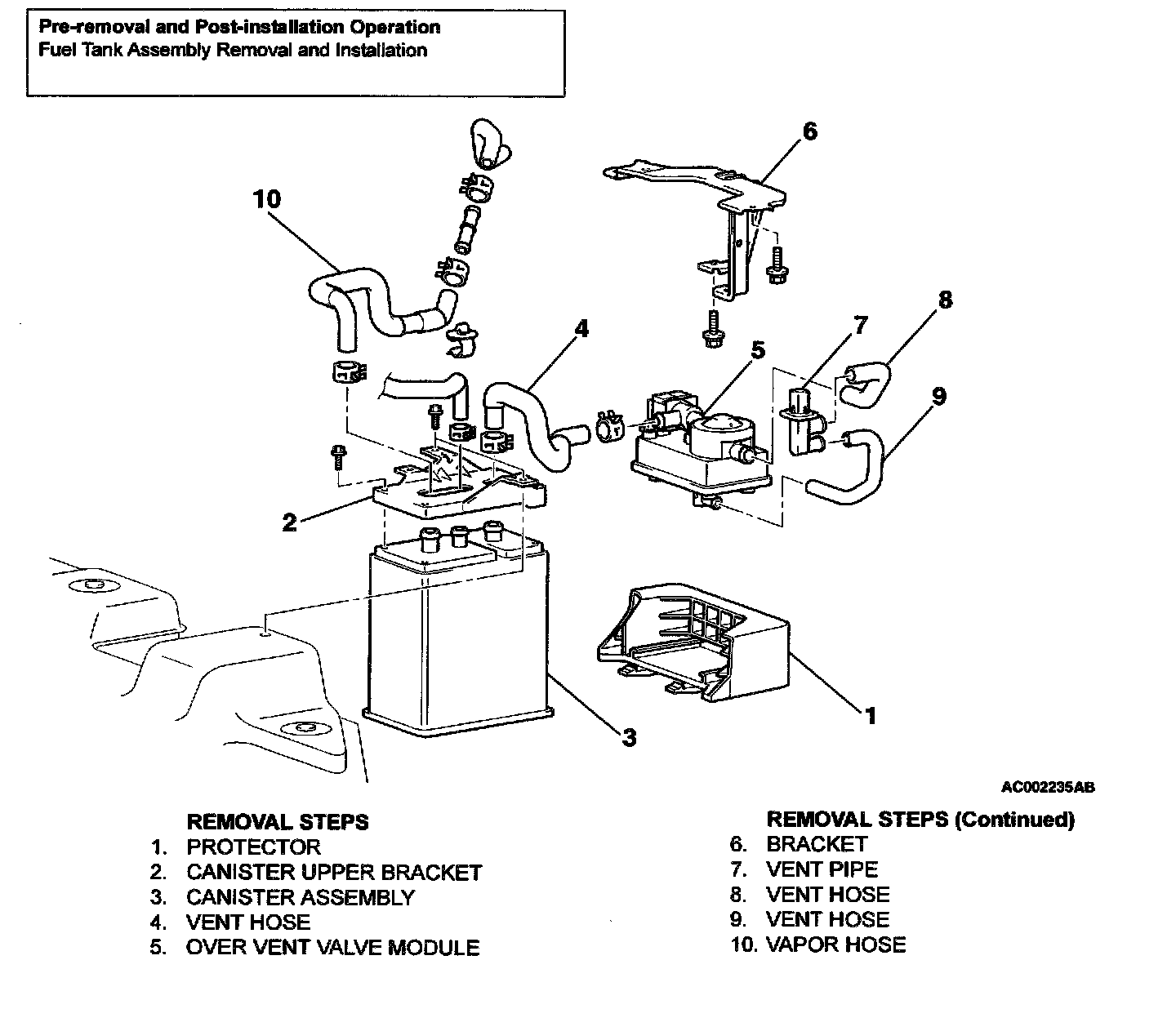

EVAP Emission Canister & Fuel Tank Pressure Relief Valve / Removal And Installation:
