Description of On-Board Diagnostics
>>

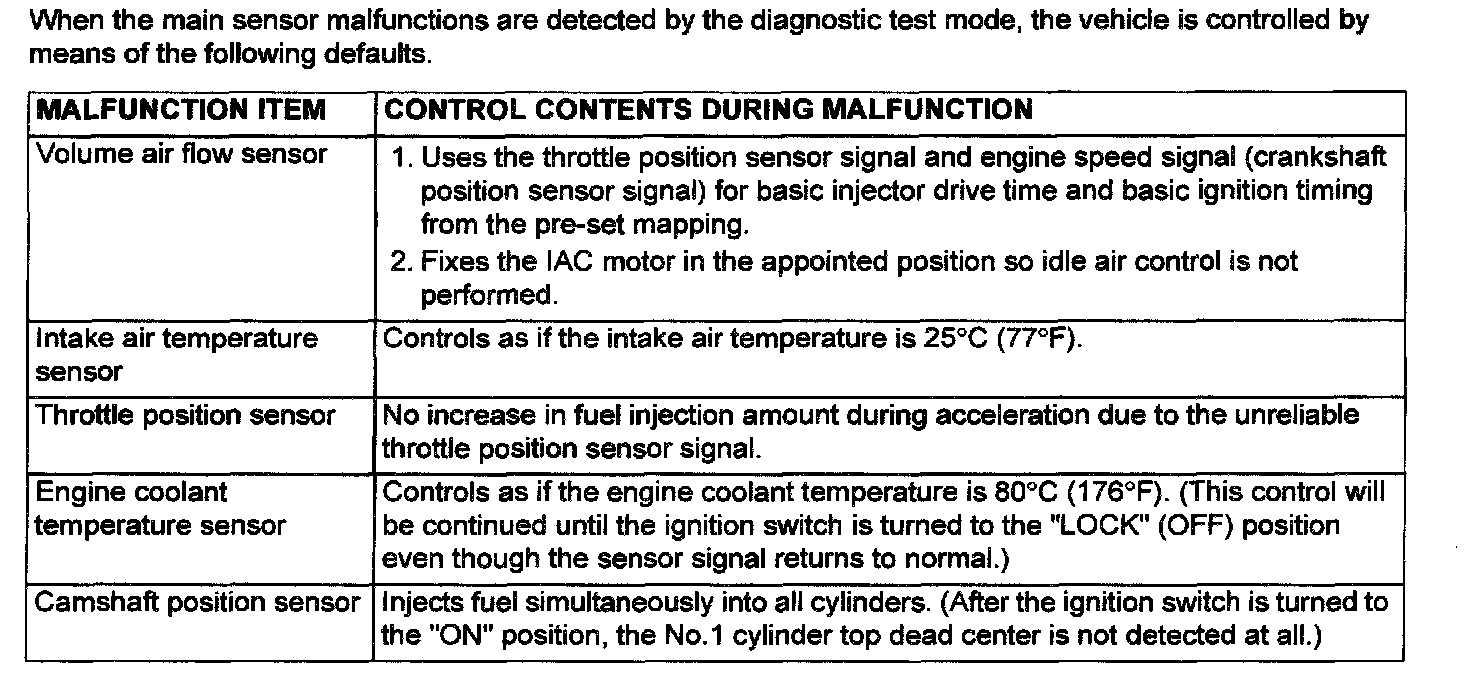

Fail-Safe Function Reference Table
Fail-Safe Function Reference Table
Fail-safe Function Reference Table Part 1:
Fail-safe Function Reference Table Part 2:
