Rear

CHECK AND ADJUSTMENT
Measure wheel alignment with an alignment equipment on level ground.
The rear suspension and wheels should be serviced to the normal condition prior to wheel alignment.

TOE-IN
Standard value: 3 ± 3 mm (0.12 ± 0.12 inch)

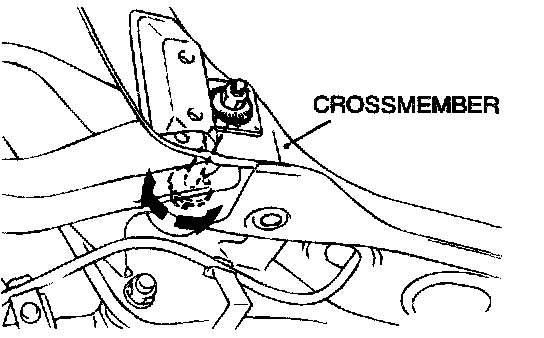

Loosen nut, then turn the toe control arm mounting bolt to adjust toe.

NOTE:
^ LH: Clockwise viewed from the rear --] Toe-out
^ RH: Clockwise viewed from the rear --] Toe-in
^ Toe adjustment can be made at graduations of approximately 2.5 mm (0.10 inch).

CAMBER
Standard value:
[ECLIPSE] -1° 20' ± 30' (Difference between right and left within 30')
[ECLIPSE SPYDER] -1° 10'± 30' (Difference between right and left within 30')

NOTE: Camber is preset at the factory and cannot be adjusted.

NOTE: If camber is not within the standard value, check and replace bent or damaged parts.
