Part 2
Speedometer does not Work (Continued)
STEP 15. Check the harness wires between vehicle speed sensor connector B-39

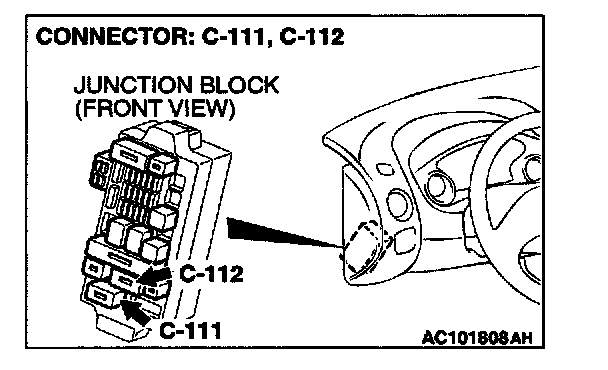

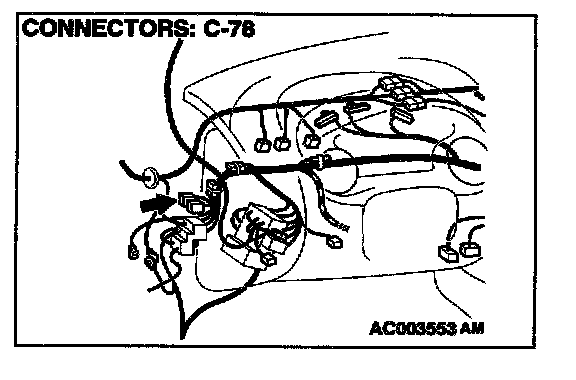

NOTE: After checking junction block connectors C-111 and C-112, joint connector C-78 and intermediate connector B-36
Q: Are the harness wires between vehicle speed sensor connector C-08 and ignition switch (IG1) in good condition?
YES: There is no action to be taken.
NO: Repair them. The speedometer should work normally.
STEP 16. Check the vehicle speed sensor ground circuit at the vehicle speed sensor connector B-39

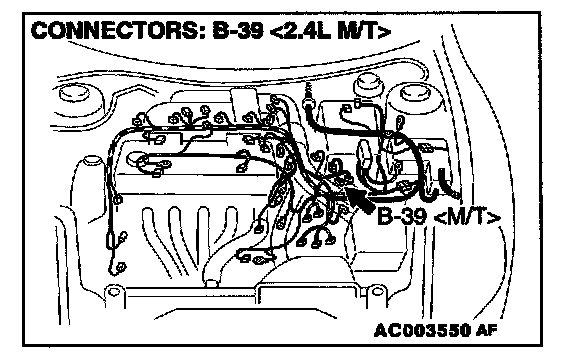

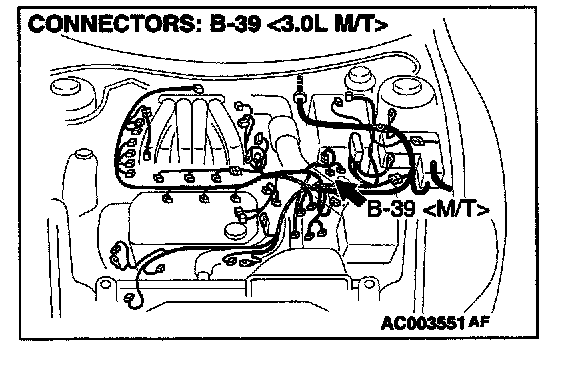

1. Disconnect the vehicle speed sensor connector B-39
2. Measure the resistance between terminal 2 and ground.
Q: Is the resistance less than 2 ohm?
YES: Go to Step 19.
NO: Go to Step 17.
STEP 17. Check the vehicle speed sensor connector B-49
Q: Is vehicle speed connector B-49
YES: Go to Step 18.
NO: Repair or replace it. Refer to Harness Connector Inspection. The speedometer should work normally.
STEP 18. Check the harness wire between vehicle speed sensor connector B-39 and ground.

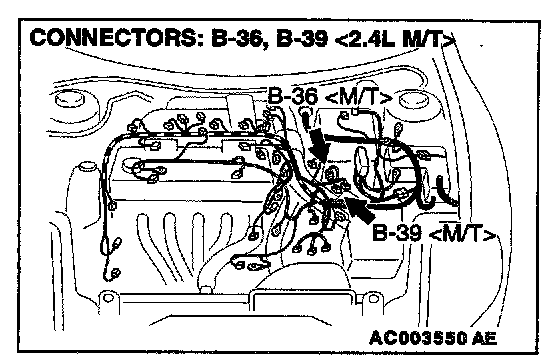

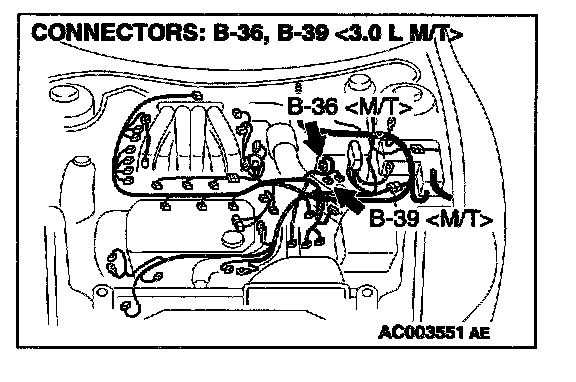

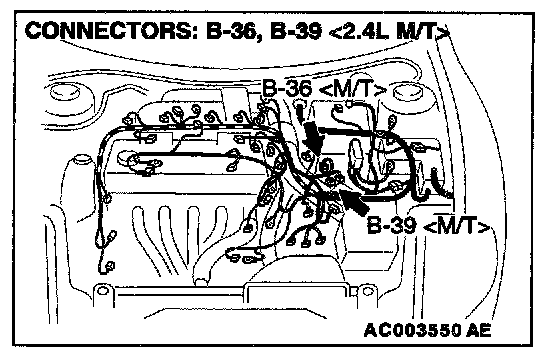

NOTE: After checking intermediate connector B-36
Q: Is the harness wire between vehicle speed sensor connector B-39
YES: There is no action to be taken.
NO: Repair it. The speedometer should work normally.
STEP 19. Check the vehicle speed sensor signal circuit at the vehicle speed sensor connector B-39.

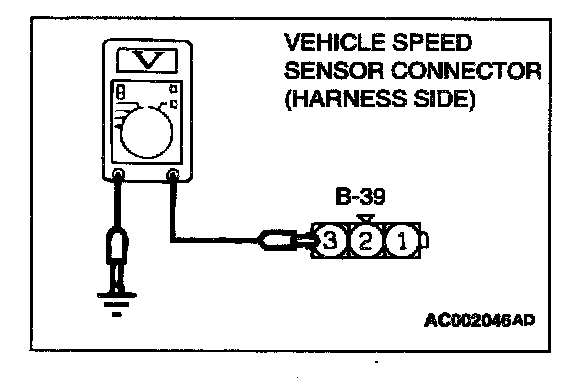

1. Disconnect the vehicle speed sensor connector B-39.
2. Turn the ignition switch to "ON".
3. Measure the voltage between terminal 3 and ground.
Q: Is the voltage approximately 9 volts or more?
More than approximately 9 volts: Replace the vehicle speed sensor. The speedometer should work normally.
Approximately 9 volts: Go to Step 20.
