Home >> Mitsubishi >> 2002 >> Eclipse Spyder GT V6-3.0L SOHC >> Repair and Diagnosis >> Diagrams >> Connectors >> F Connectors - Luggage Compartment Harness

F Connectors - Luggage Compartment Harness

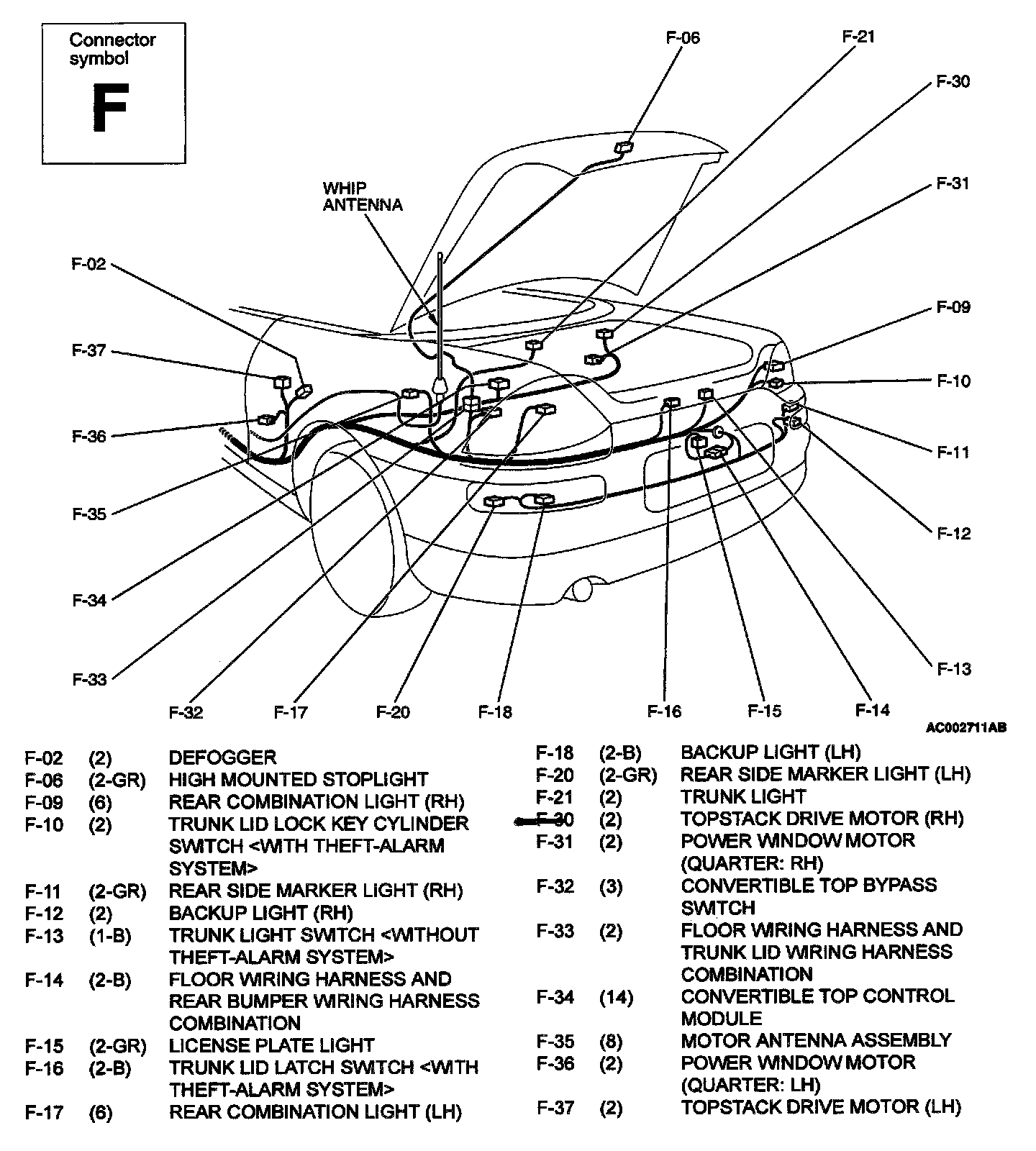

Luggage Compartment <Eclipse Spyder> - F Connector [02 (2) Thru 37 (2)]:
