Interior Moulding / Trim: Service and Repair
Door Trim And Waterproof Film:
Clip And Claw Positions:

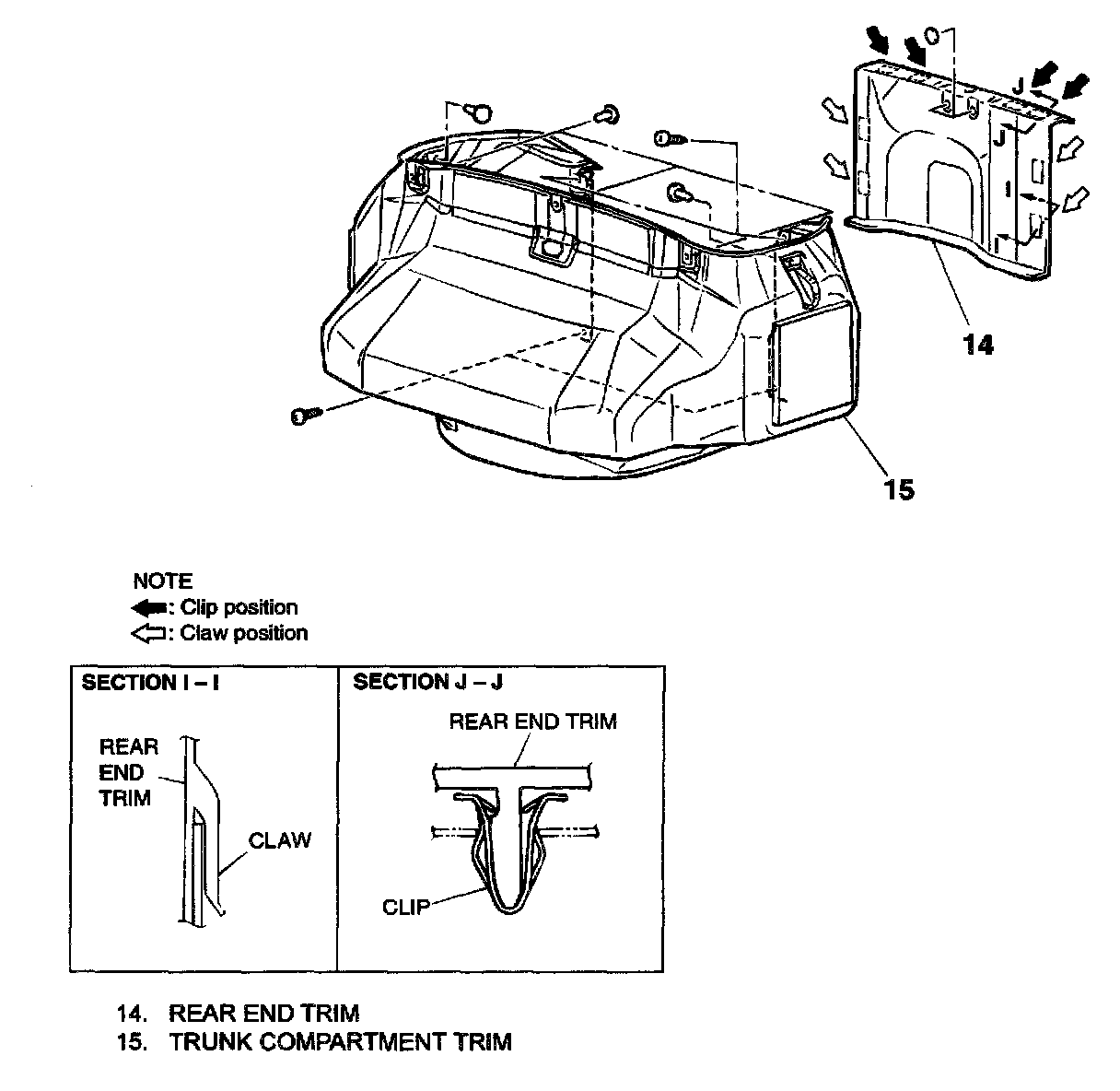

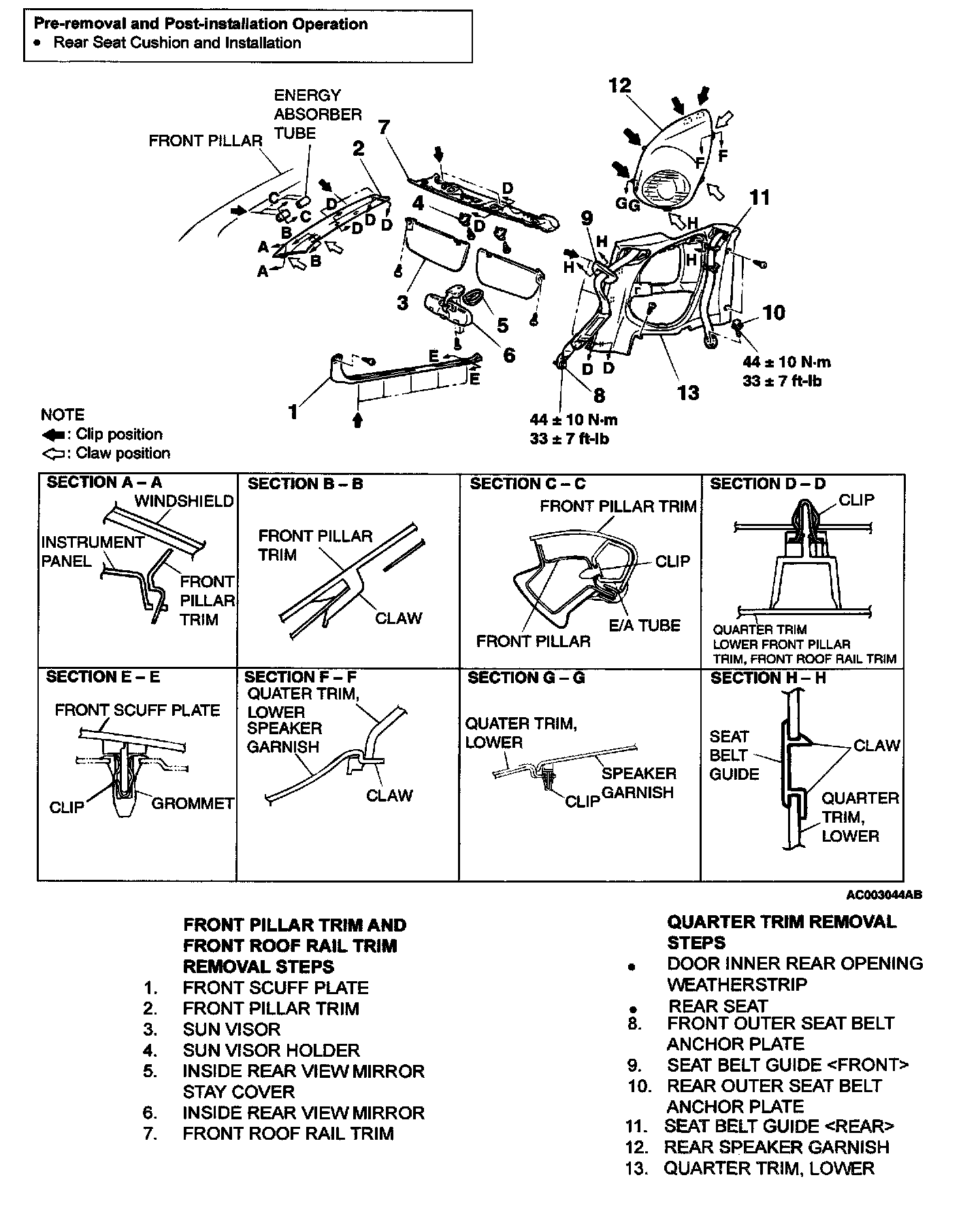

Trims Part 1 (Eclipse):
Trims Part 2 (Eclipse):
Trims Part 1 (Eclipse Spyder):
Trims Part 2 (Eclipse Spyder):
