Immobilizer Key Check - Manual Revision

No.: TSB-02-54-004
DATE: March, 2002
MODEL: See below

SUBJECT:
IMMOBILIZER KEY CHECK
- SERVICE MANUAL REVISION

PURPOSE

This bulletin contains a new procedure for determining whether an ignition key can be programmed for the vehicle's immobilizer system.

Write the TSB revision number of this bulletin in the "TSB Revision" box at the bottom of the affected service manual page.

AFFECTED VEHICLES

2002 Eclipse, Eclipse Spyder, Galant, Montero, and Montero Sport

AFFECTED SERVICE MANUALS

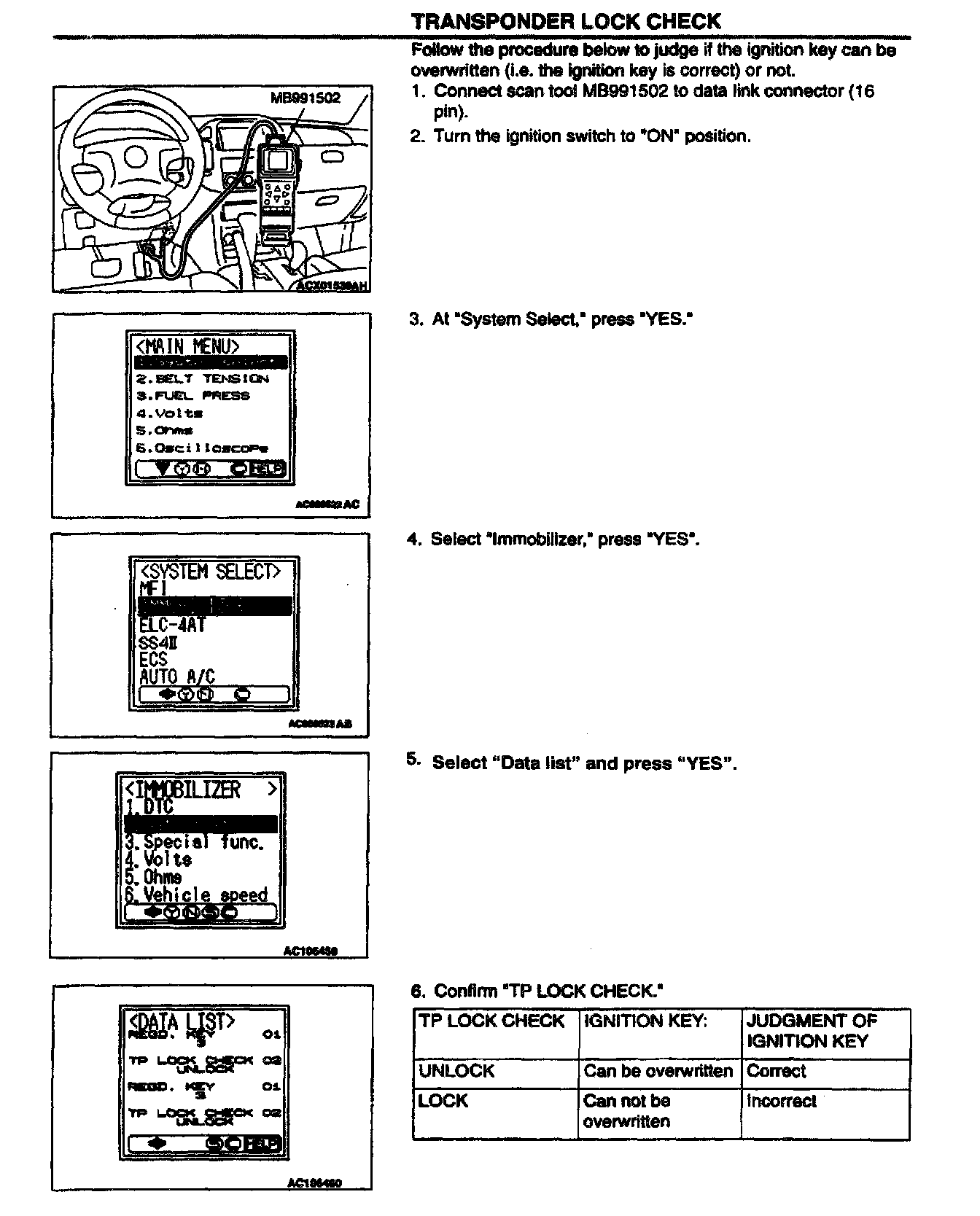

2002 Eclipse/Eclipse Spyder, Volume 4, page 54A-34

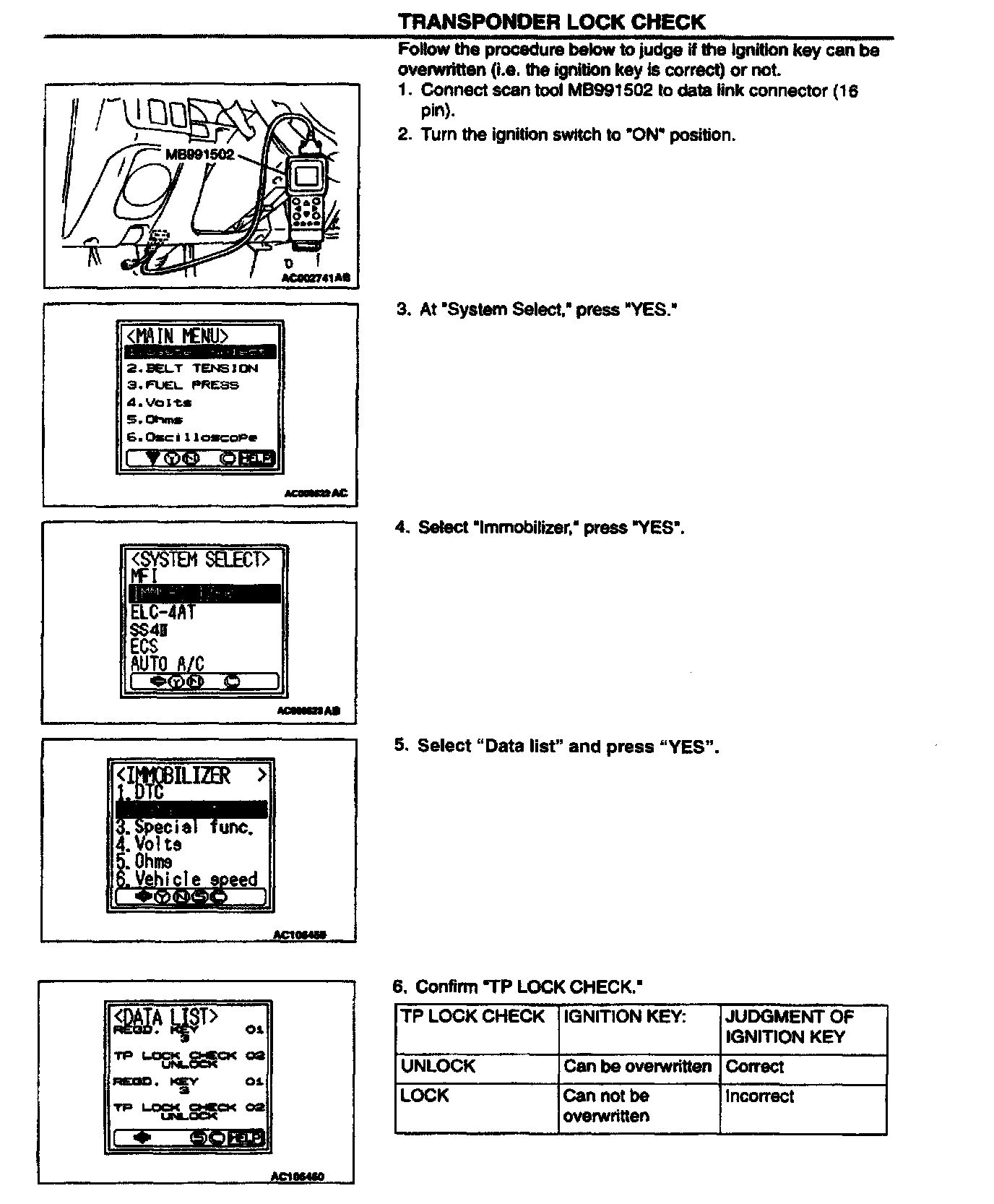

2002 Galant, Volume 4, page 54A-33

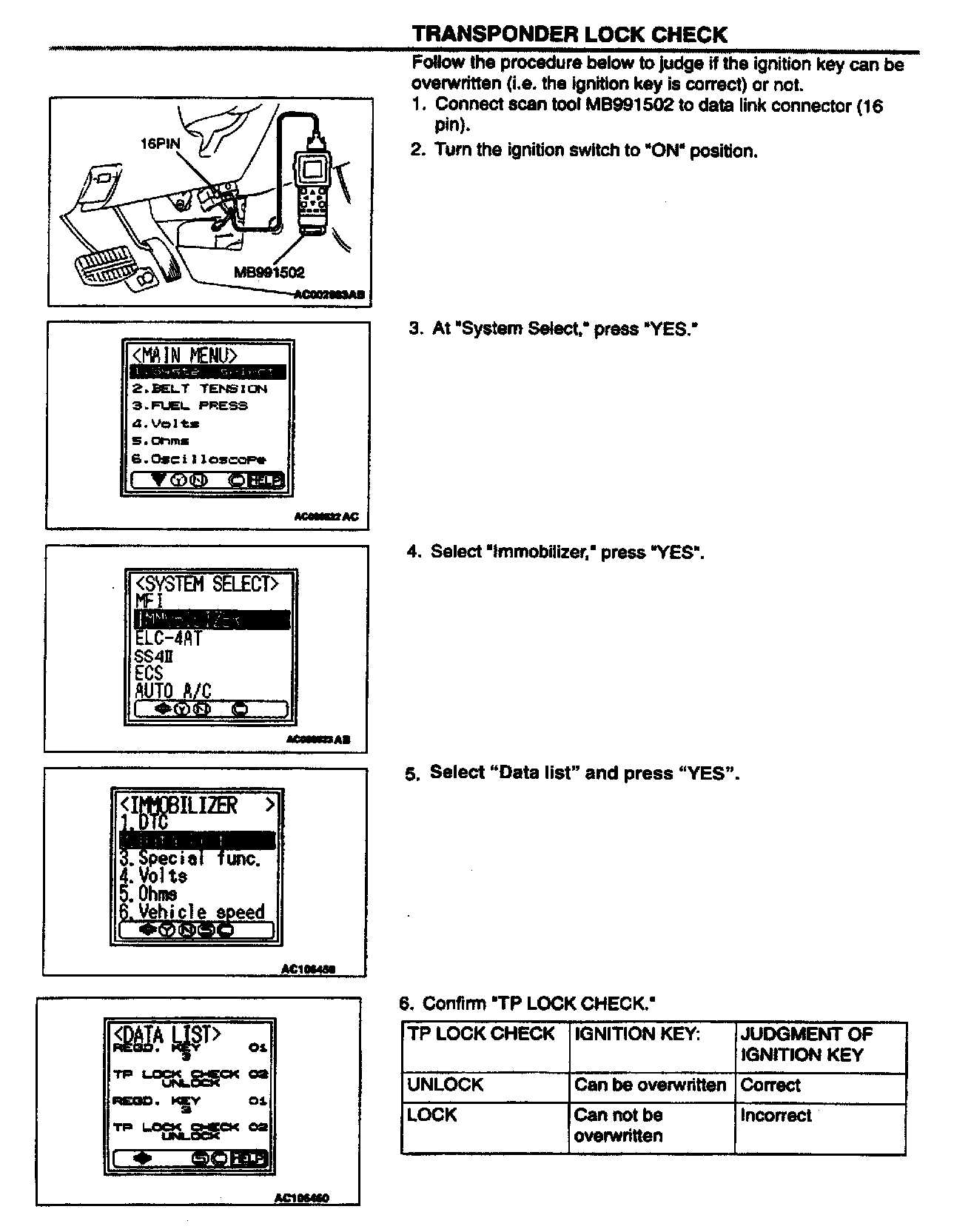

2002 Montero, Volume 4, page 54A-28
2002 Montero Sport, Volume 4, page 54-54





2002 Eclipse/Eclipse Spyder, Volume 4, page 54-34. Add the new information shown.





2002 Galant, Volume 4, page 54-33. Add the new information shown.





2002 Montero, Volume 3, page 54A-28. Add the new information shown.





2002 Montero Sport, Volume 3, page 54-54. Add the new information shown.
