Antenna Assembly

Antenna Feeder Cable:

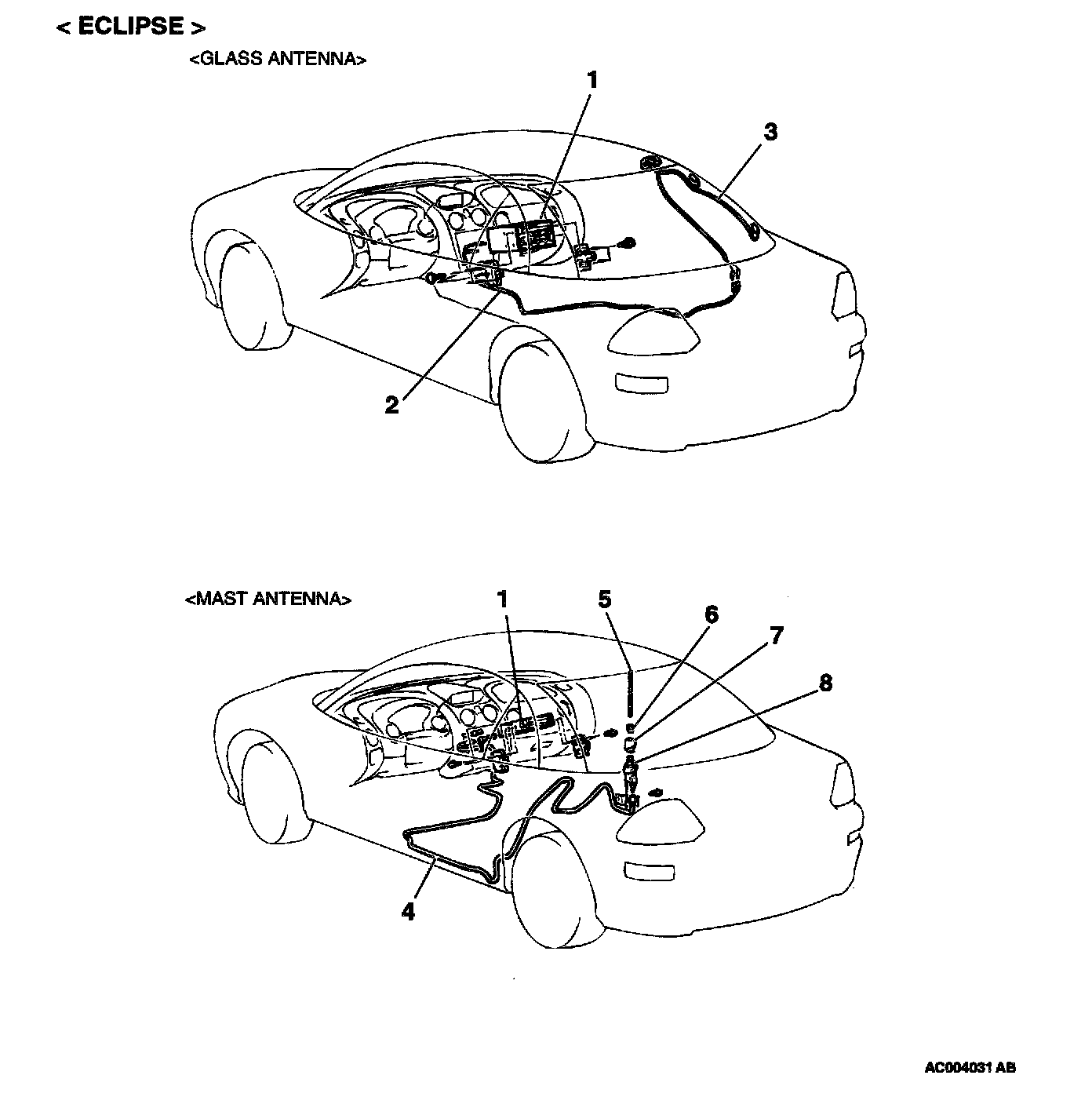

ANTENNA FEEDER CABLE

REMOVAL STEPS
1. RADIO, TAPE PLAYER, CD PLAYER AND CD AUTO CHANGER
- FLOOR CONSOLE (REFER TO FLOOR CONSOLE.)
- FRONT PASSENGER'S SEAT (REFER TO FRONT SEAT.)
- QUARTER TRIM LOWER (RH SIDE, REFER TO TRIMS.)

2. ANTENNA FEEDER CABLE (FRONT SIDE.)
- QUARTER TRIM UPPER (RH SIDE, REFER TO TRIMS.)
- LIFTGATE UPPER TRIM (RH SIDE, REFER TO LIFTGATE - LIFTGATE TRIM.)

3. ANTENNA FEEDER CABLE (REAR SIDE.)

REMOVAL STEPS
1. RADIO, TAPE PLAYER, CD PLAYER AND CD AUTO CHANGER
- FLOOR CONSOLE (REFER TO FLOOR CONSOLE.)
- FRONT DRIVER'S SEAT (REFER TO FRONT SEAT.)
- REAR SEAT (REFER TO REAR SEAT.)
- QUARTER TRIM LOWER (LH SIDE, REFER TO TRIMS.)

2. ANTENNA FEEDER CABLE

MAST ANTENNA REMOVAL STEPS

5. MAST ANTENNA
6. NUT
7. INSULATOR
- REAR SIDE TRIM (LH SIDE, REFER TO TRIMS.)

8. ANTENNA BASE
