Hydraulic Pressure Tests

The contaent of this article/image reflects the changes of TSB 03-23-001




STANDARD HYDRAULIC PRESSURE TEST








NOTE: If the torque converter pressure is measured, the engine speed should be 1,500 r/min or less.

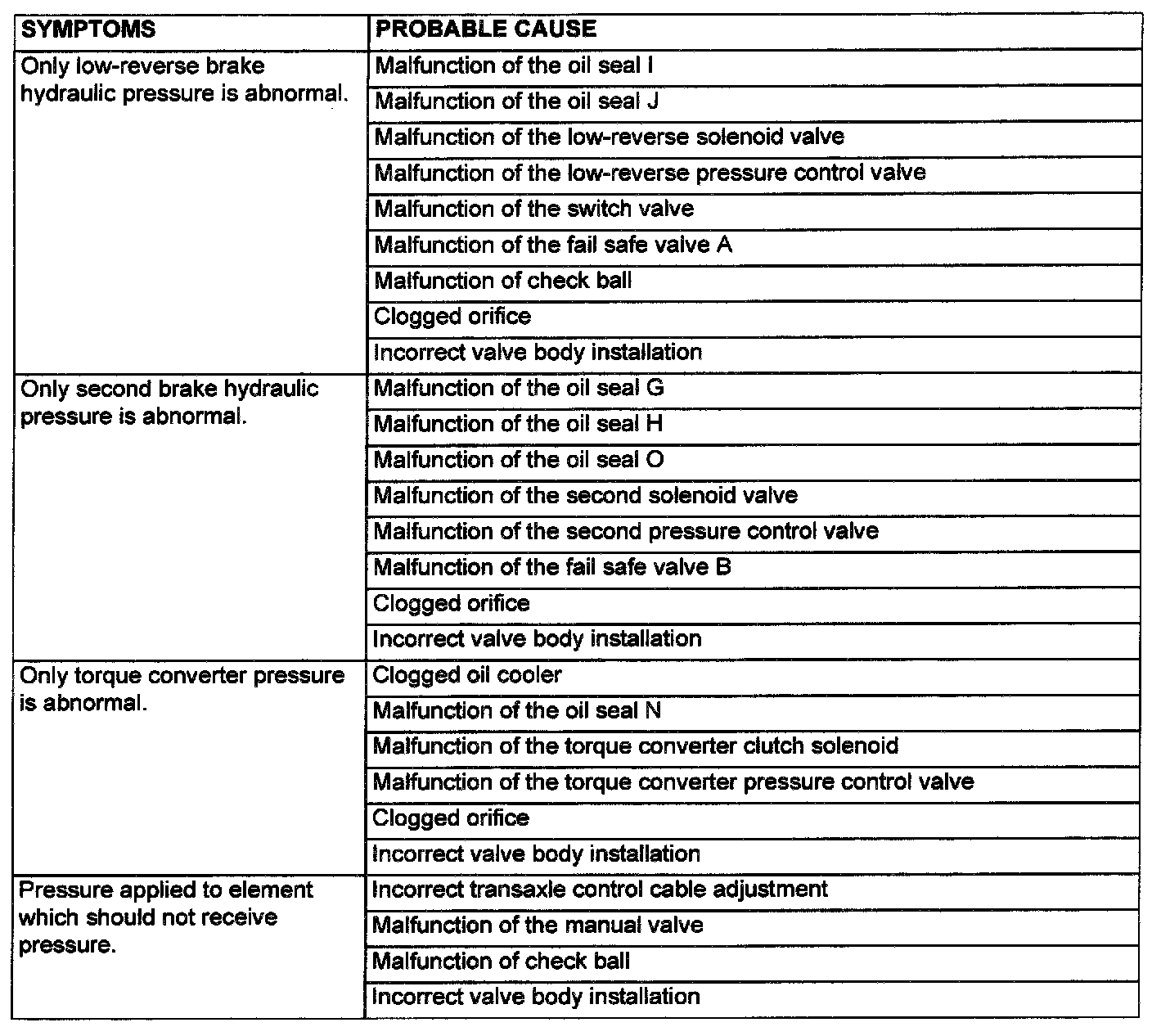

HYDRAULIC PRESSURE TEST DIAGNOSIS TABLE





OIL SEAL LAYOUT
