ECM Backup Power Supply - Service Manual Correction
No: TSB-02-13-010DATE: May, 2002
MODEL: 2002 Eclipse & Spyder
SUBJECT:
CORRECTED PCM BACKUP POWER SUPPLY CIRCUITS (ECLIPSE) - SERVICE MANUAL REVISION
PURPOSE
This bulletin Contains Corrections to the backup power supply circuit for the powertrain control module (PCM) on automatic transmission vehicles and the engine control module (ECM) on manual transmission vehicles. These corrections affect both 2.4L, 14 and 3.0L, V6 equipped vehicles.
Write the TSB revision number of this bulletin in the TSB Revision" box at the bottom of the affected service manual page.
AFFECTED VEHICLES
2002 Eclipse & Eclipse Spyder
AFFECTED SERVICE MANUALS
2002 Eclipse/Eclipse Spyder, Vol. 1, Pages 13A-430, 431, 433, 508 through 510, 514
2002 Eclipse/Eclipse Spyder, Vol. 2, Pages 13B-492, 493, 495, 578, 579, 583
2002 Eclipse/Eclipse Spyder, Vol. 3, Pages 23A-266 through 269
2002 Eclipse/Eclipse Spyder, Vol. 4, Pages 90-36, 37, 46, 47, 56, 57, 66, 67, 80, 81, 88, 89, 98, 99
SERVICE MANUAL REVISIONS

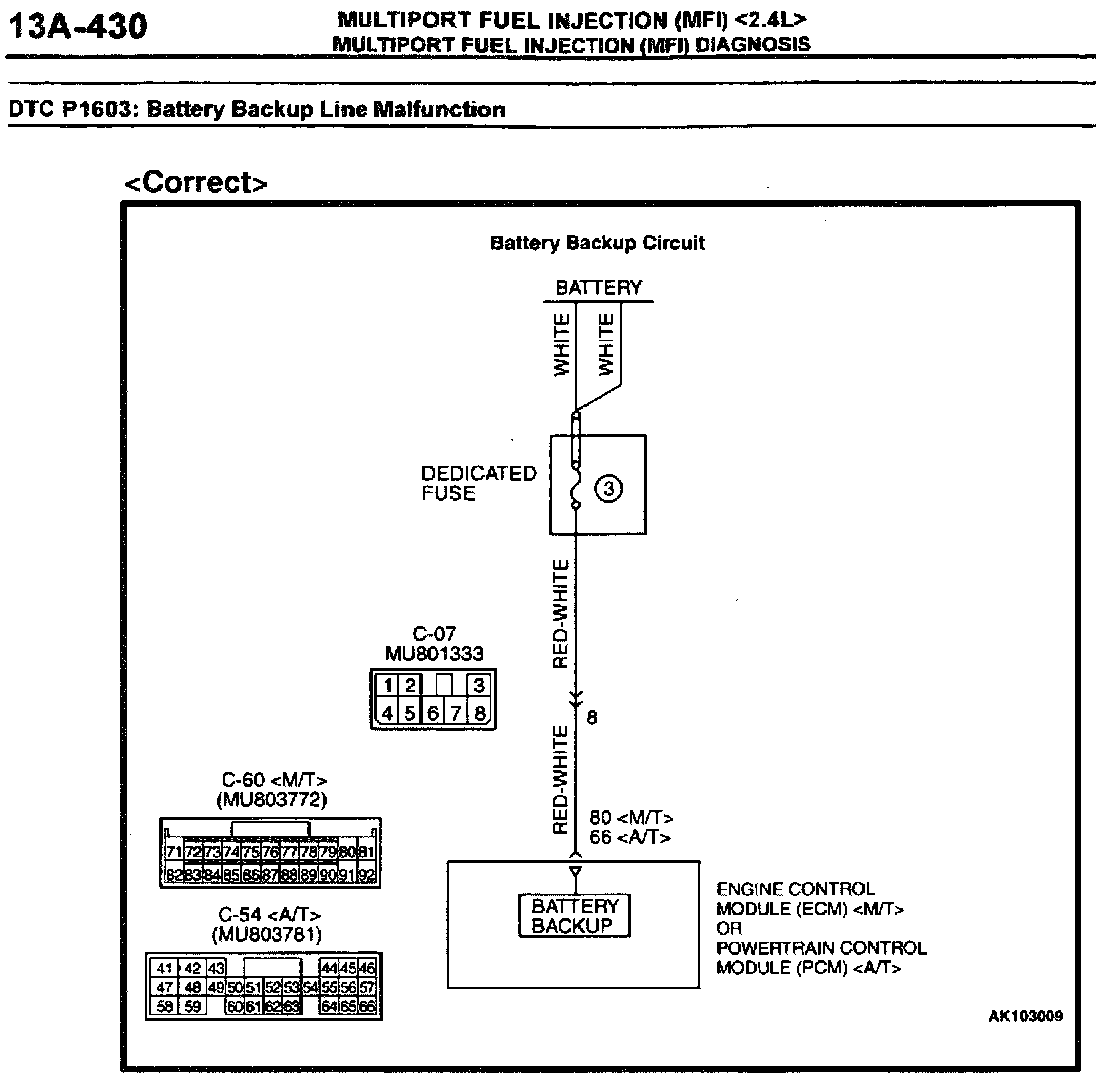

2002 Eclipse/Eclipse Spyder Volume 1, Page 13A-430
Delete the original page 13A-430 and replace it with the new page shown.
2002 Eclipse/Eclipse Spyder, Volume 1, Page 13A-431
Delete the indicated note and revise the illustrations as shown.

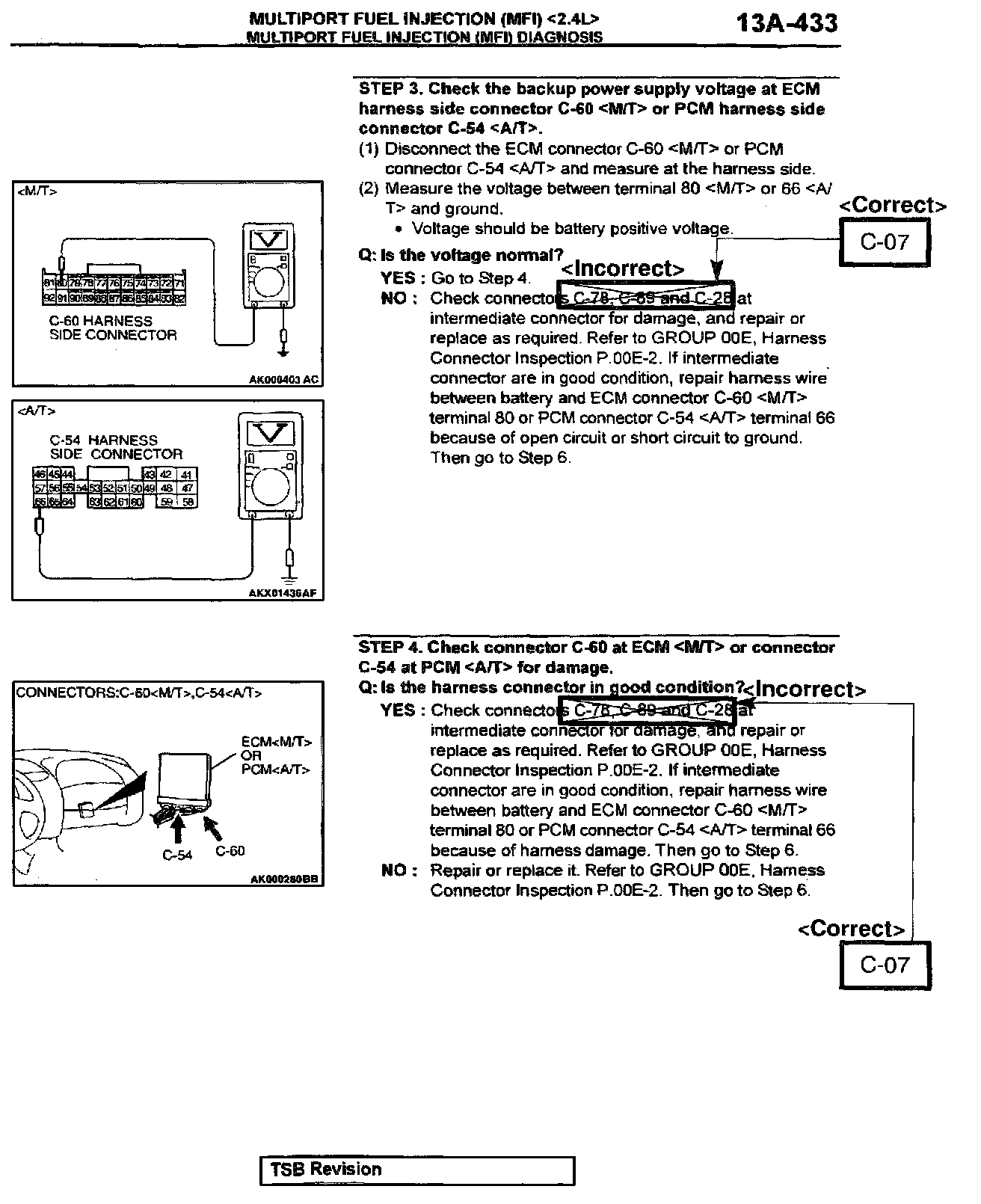

2002 Eclipse/Eclipse Spyder, Volume 1, Page 13A-433
Change the connector numbers as shown.

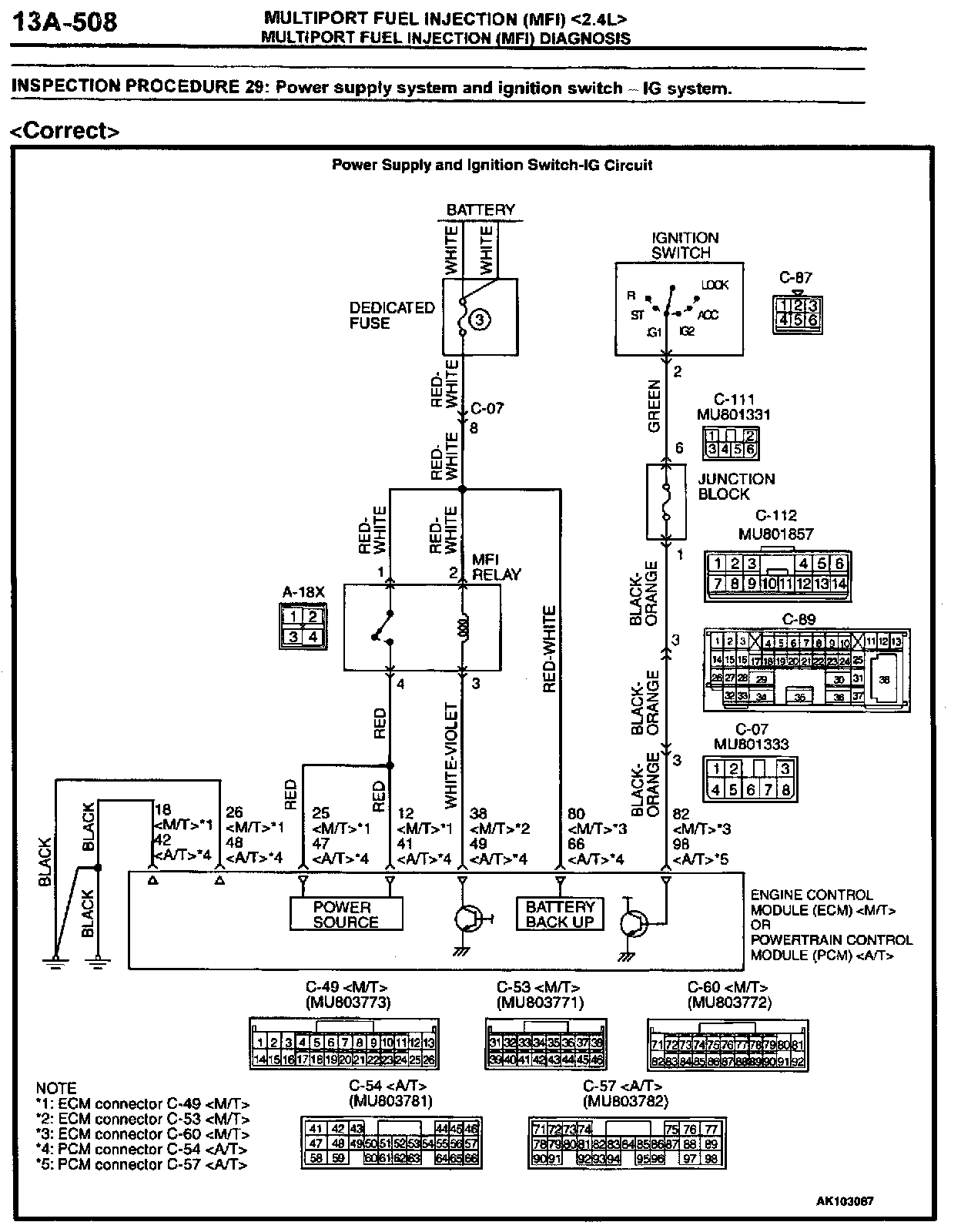

2002 Eclipse/Eclipse Spyder, Volume 1, Page 13A-508.
Delete the original page 13A-508 and replace it with the new page shown.

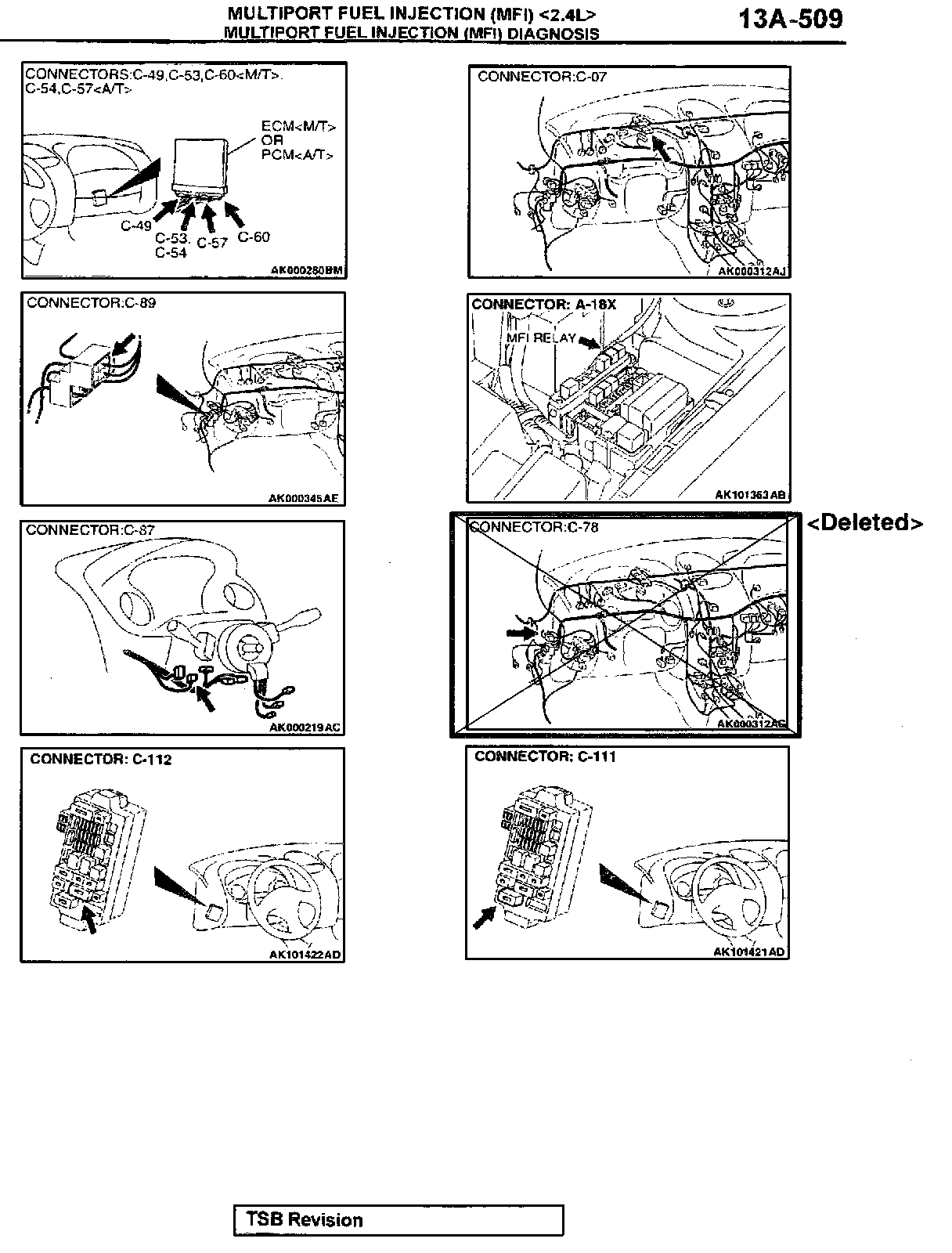

2002 Eclipse/Eclipse Spyder, Volume 1, Page 13A-509
Delete the indicated illustration as shown.
2002 Eclipse/Eclipse Spyder Volume 1, Page 13A-510
Delete the indicated illustration as shown.

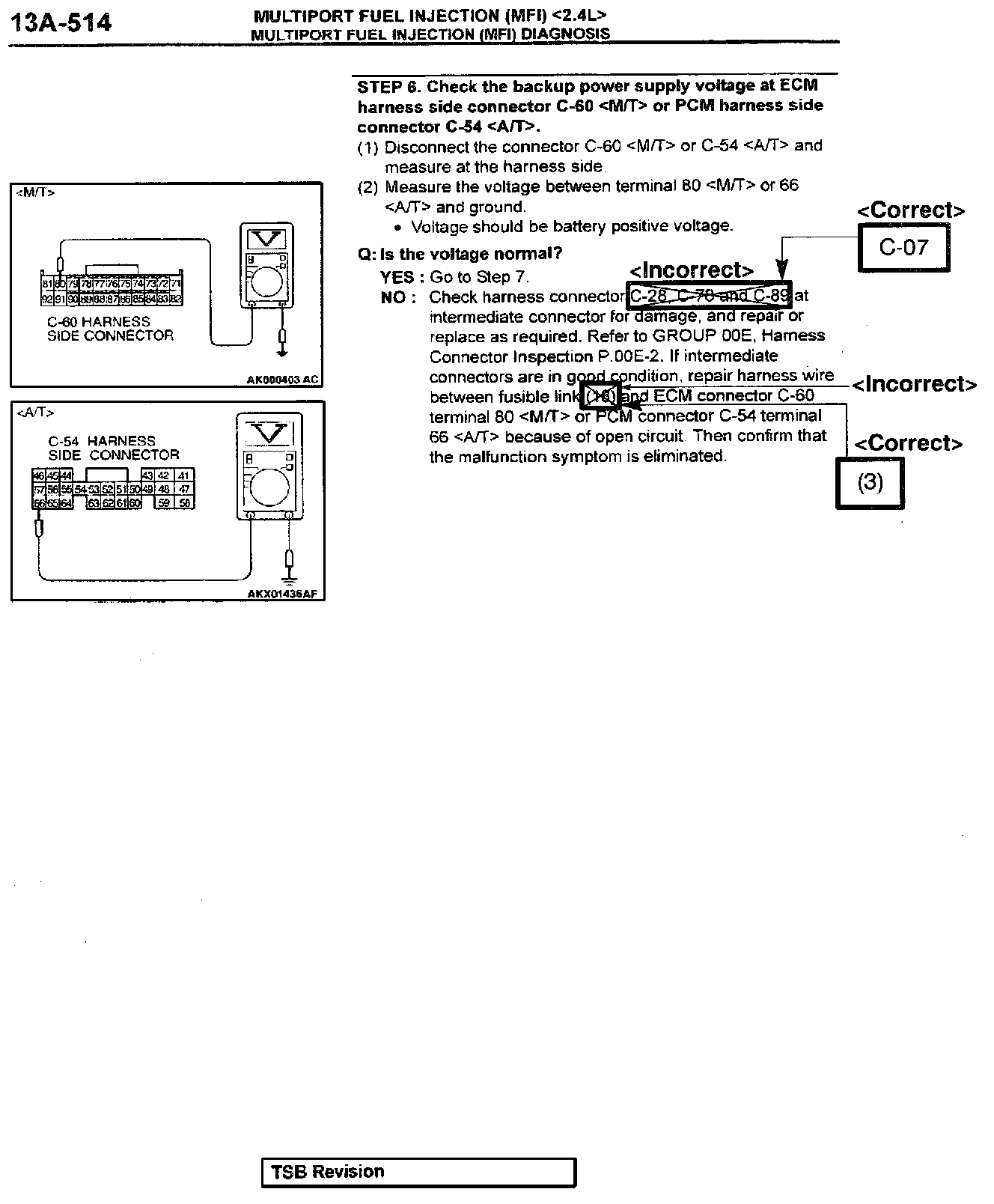

2002 Eclipse/Eclipse Spyder, Volume 1, Page 13A-514
Correct the fusible link and connector reference numbers as shown.

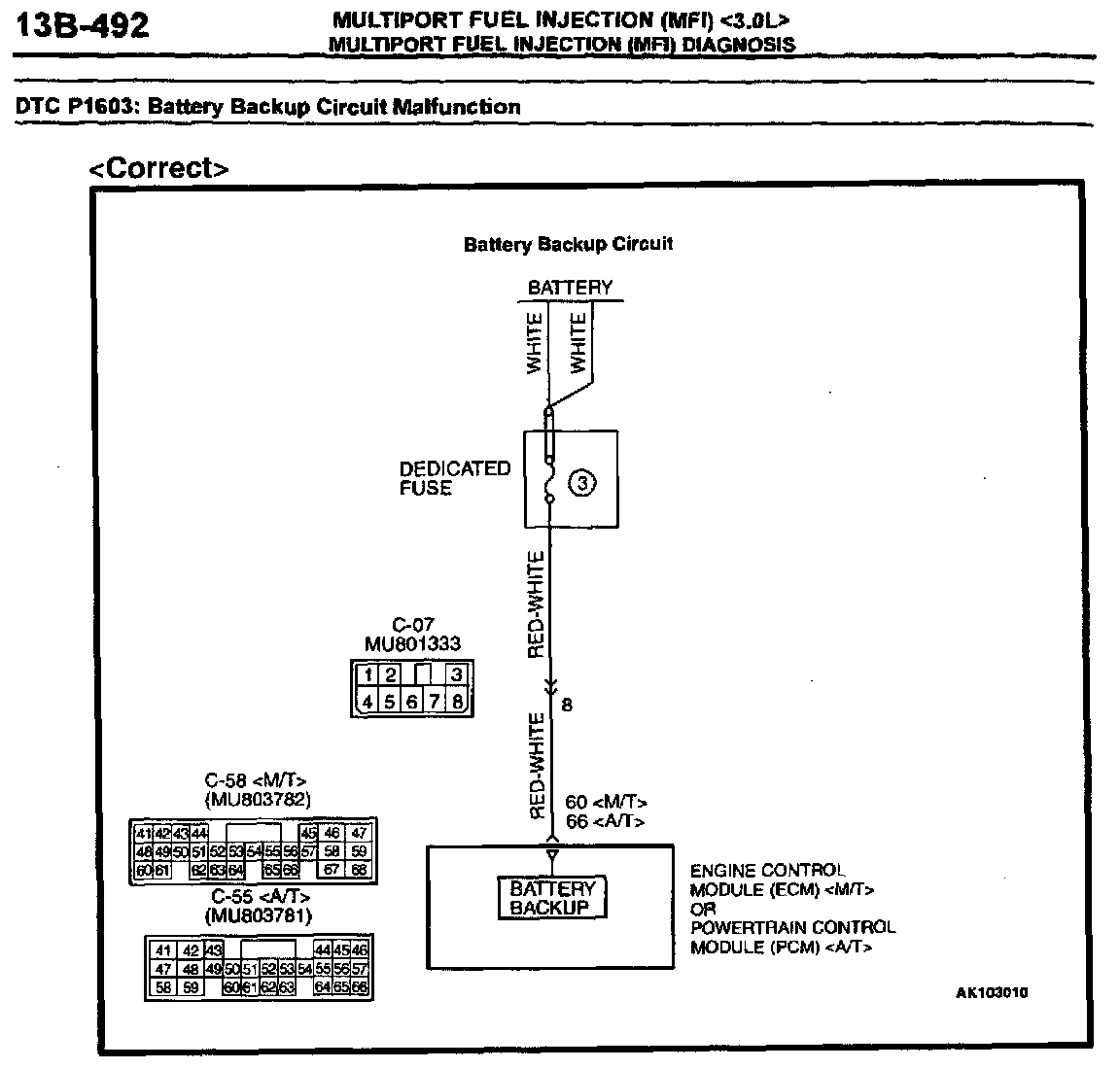

2002 Eclipse/Eclipse Spyder Volume 2, Page 13B-492.
Delete the original page 13B-492 and replace it with the new page shown.

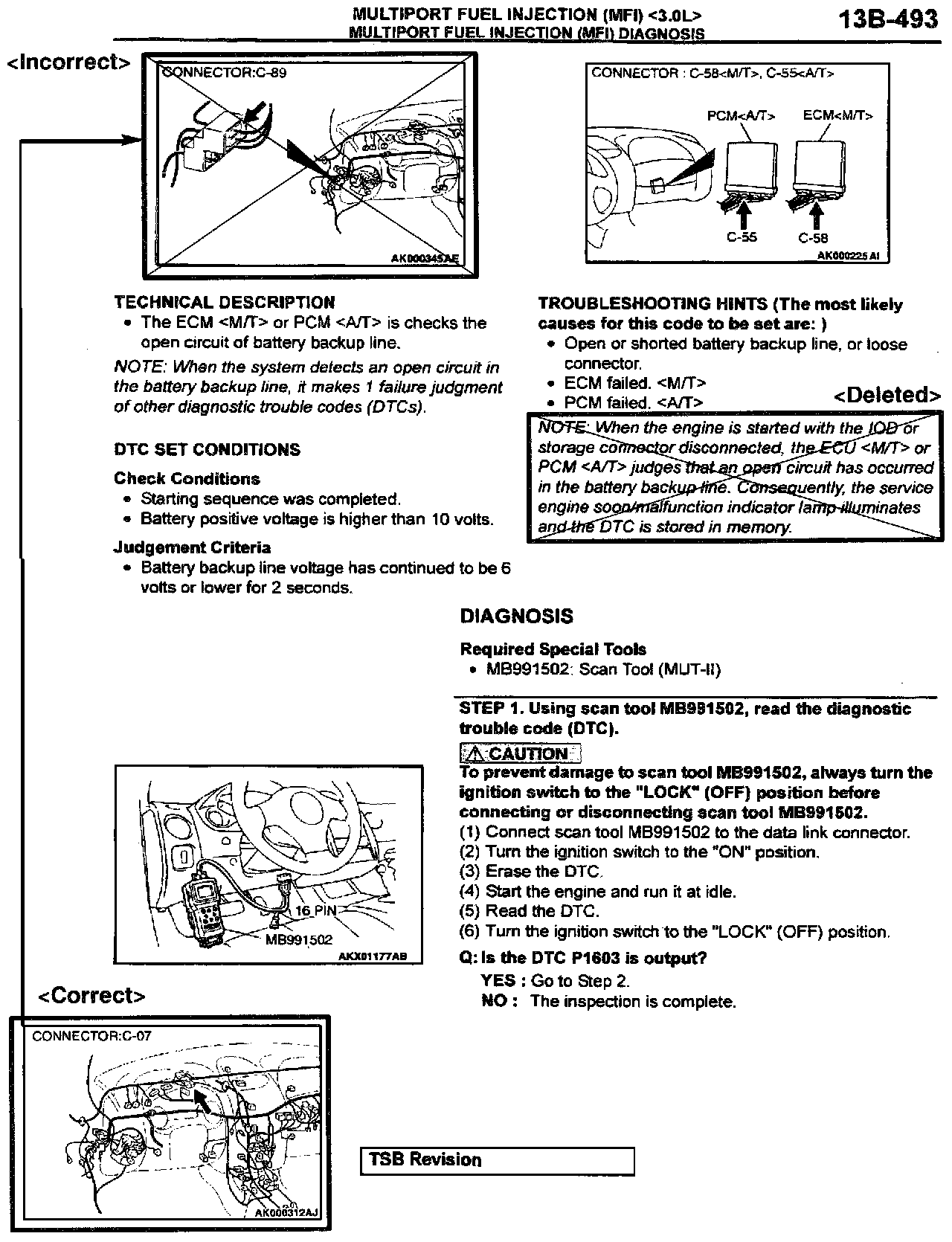

2002 Eclipse/Eclipse Spyder, Volume 2, Page 13B-493
Delete the indicated note and revise the illustrations as shown.

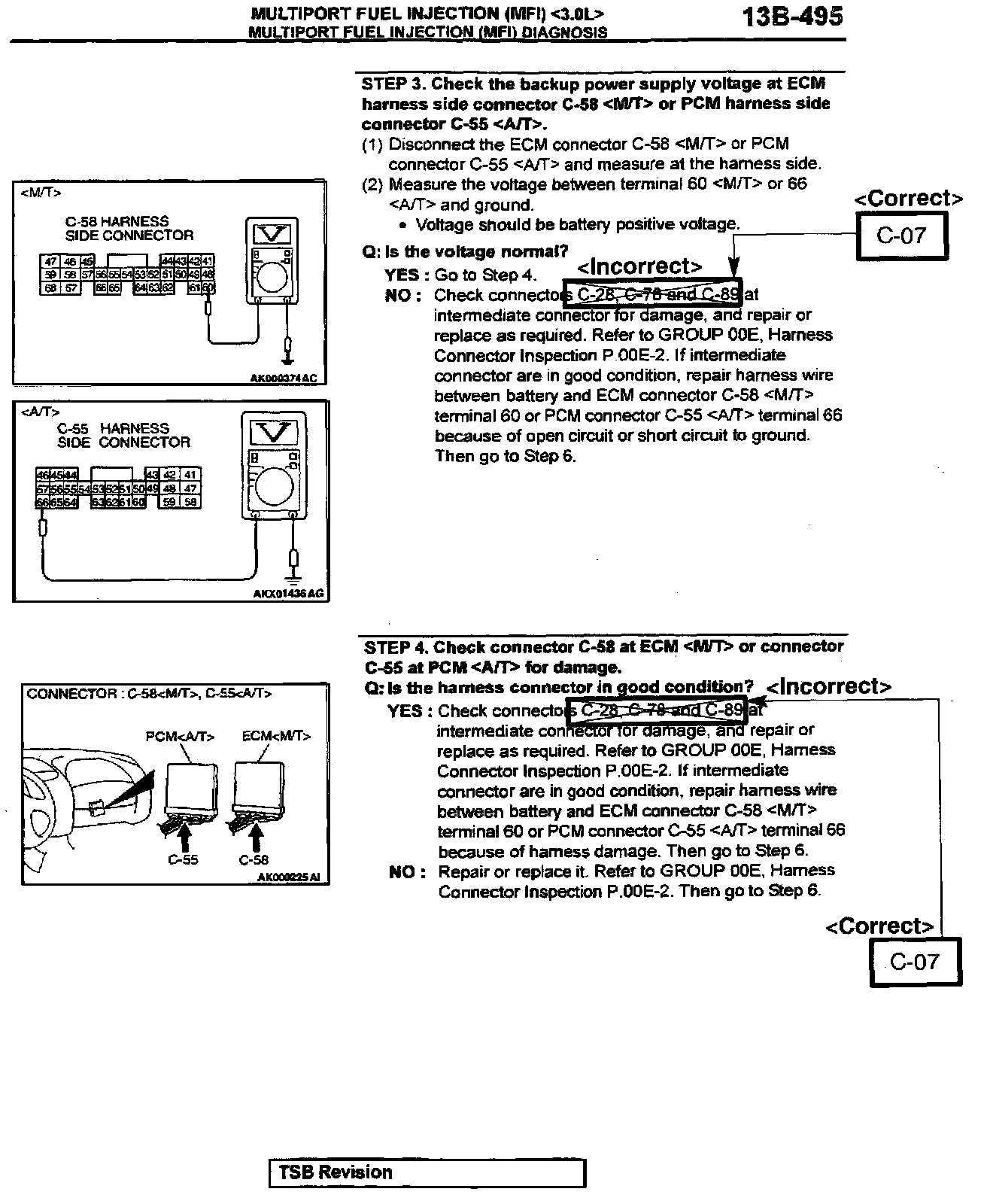

2002 Eclipse/Eclipse Spyder, Volume 2, Page 13B-495
Change the connector numbers as shown.

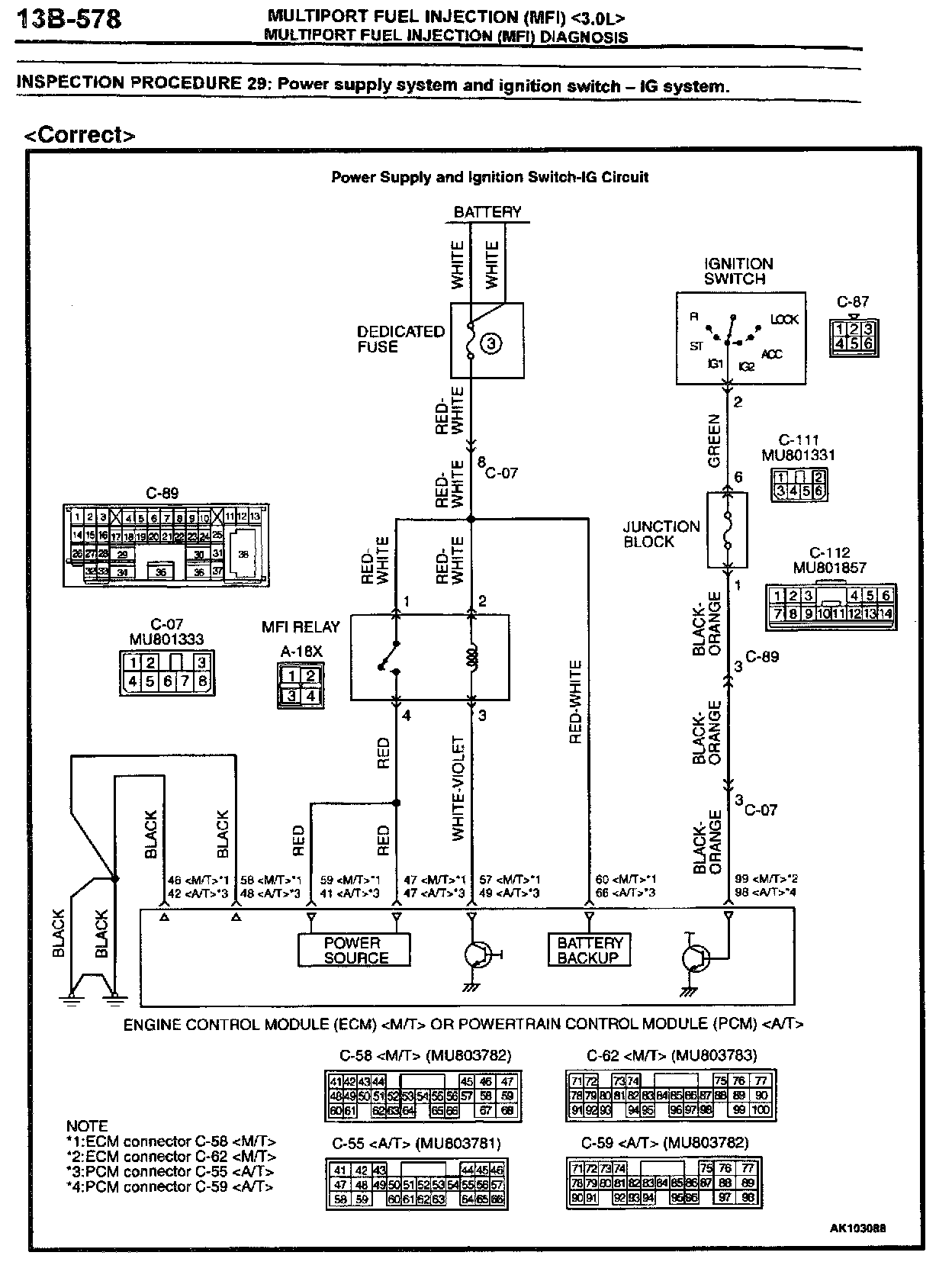

2002 Eclipse/Eclipse Spyder, Volume 2, Page 13B-578.
Delete the original page 13B-578 and replace it with the new page shown.

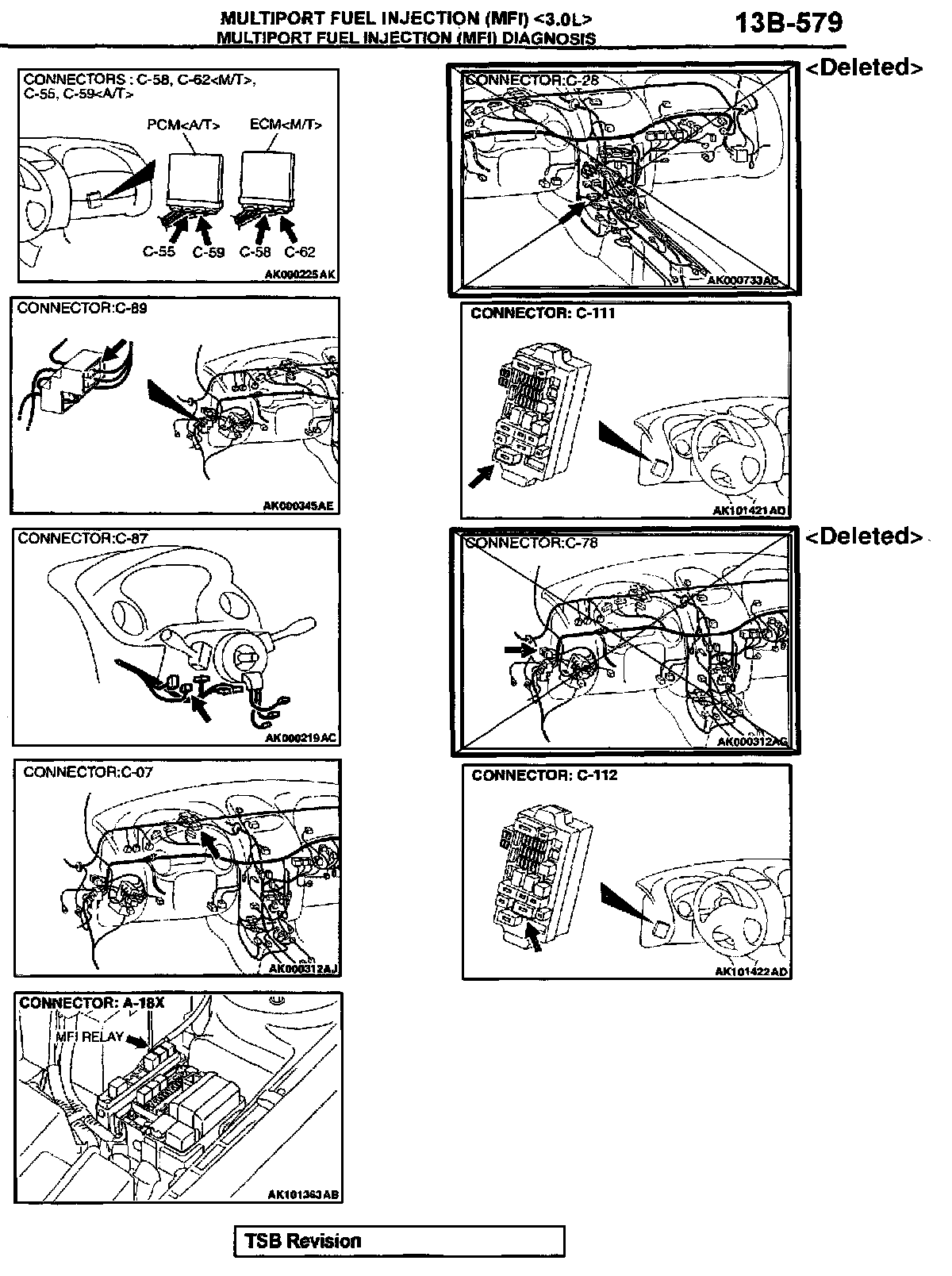

2002 Eclipse/Eclipse Spyder, Volume 2, Page 13B-579
Delete the indicated illustration as shown.

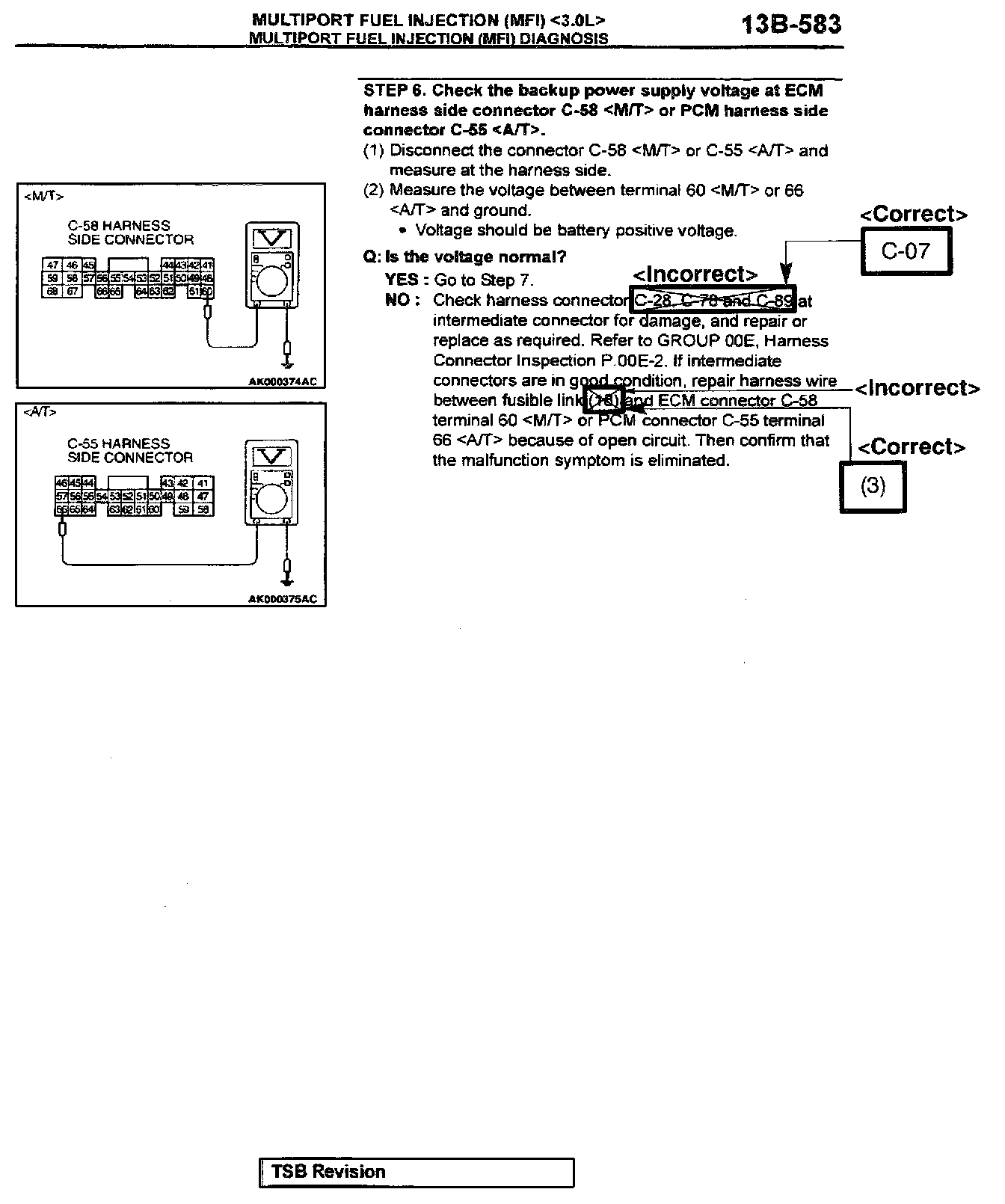

2002 Eclipse Spyder, Volume 2, Page 13B-583.
Correct the fusible link and connector reference numbers as shown.

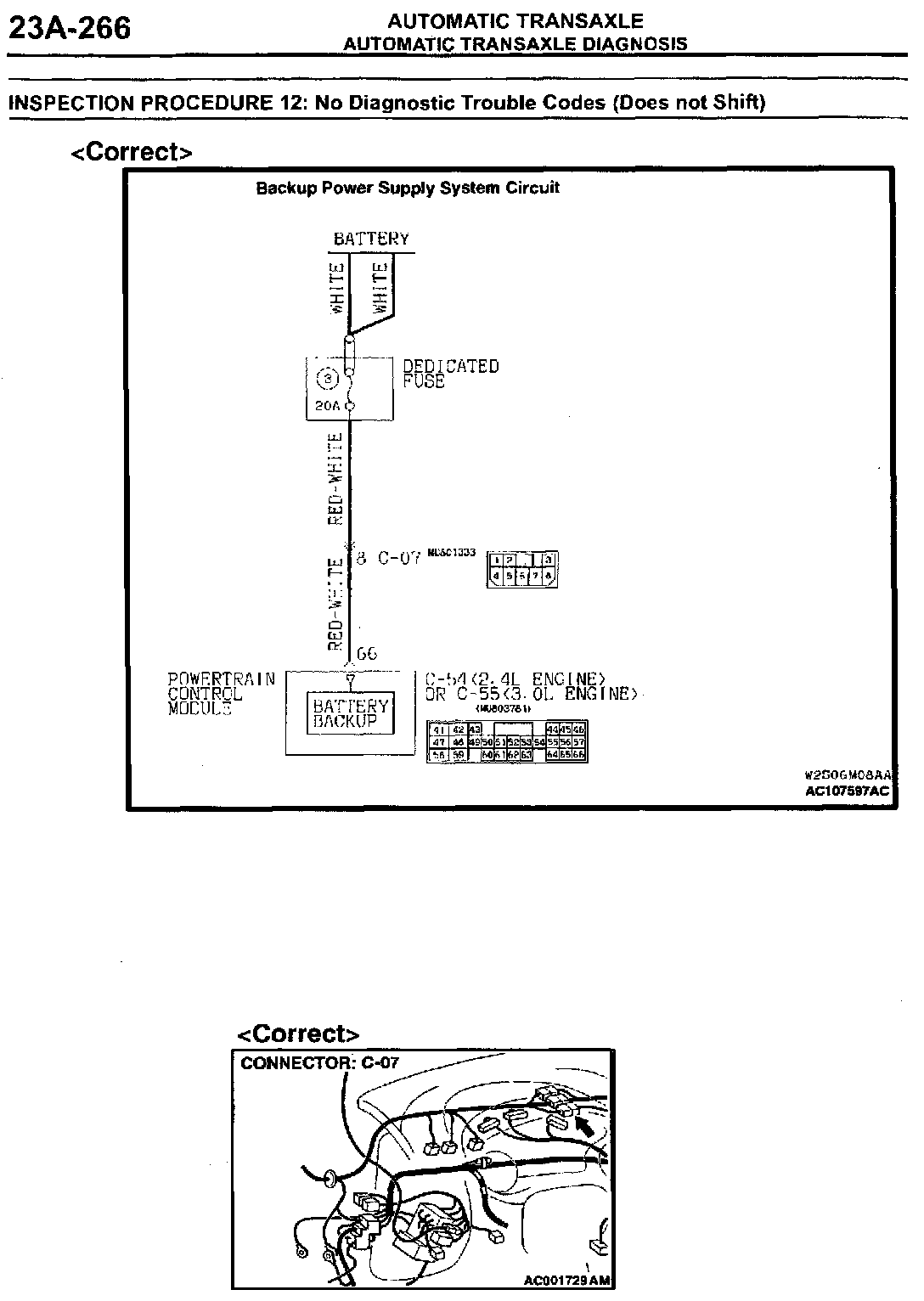

2002 Eclipse/Eclipse Spyder, Volume 3, Page 23A-266.
Delete the original page 23A-266 and replace it with the new page shown.
2002 Eclipse/Eclipse Spyder, Volume 3, Page 23A-267
Delete the indicated illustration as shown.

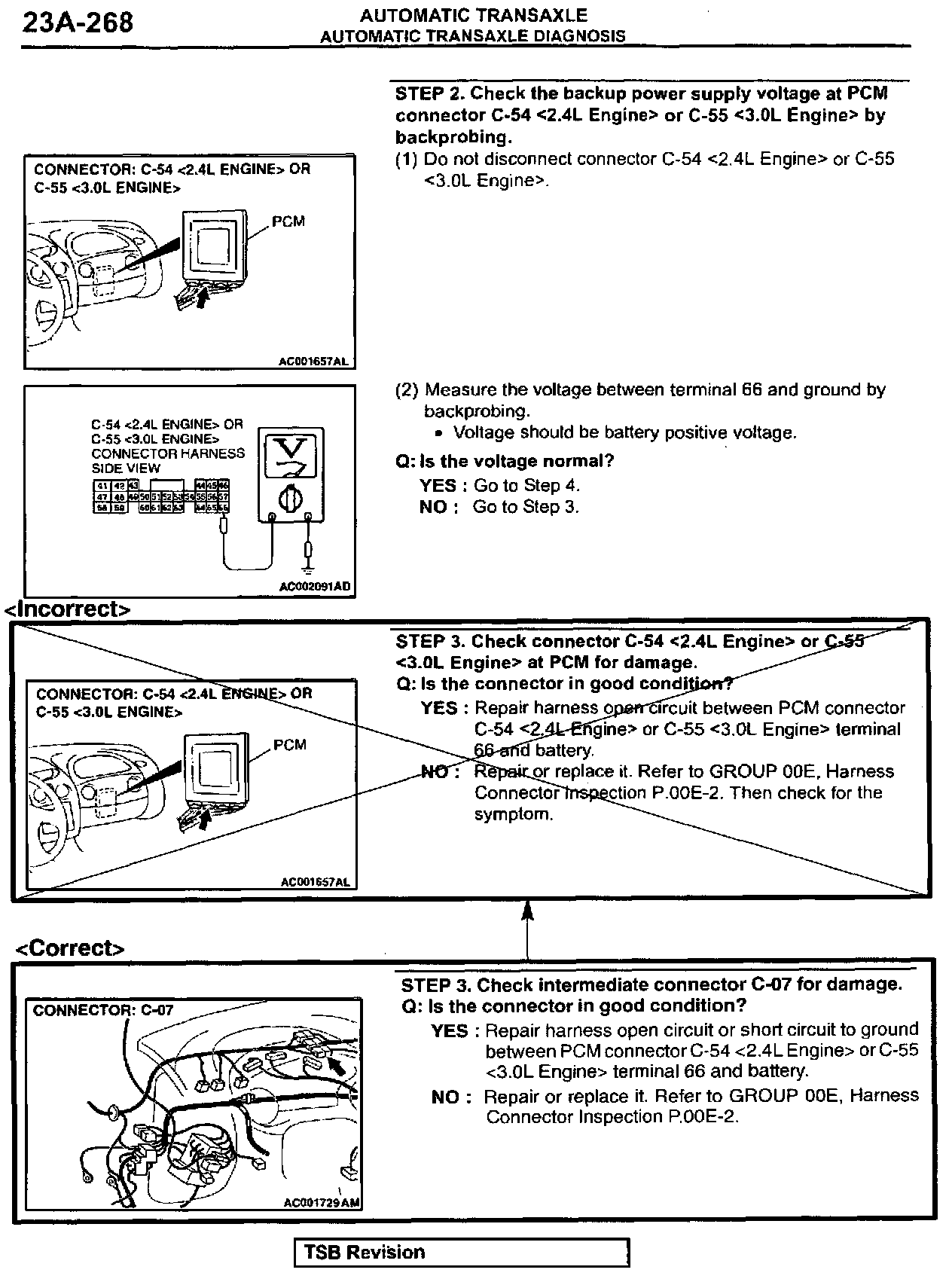

2002 Eclipse/Eclipse Spyder, Volume 3, Page 23A-268
Revise step 3 as shown.

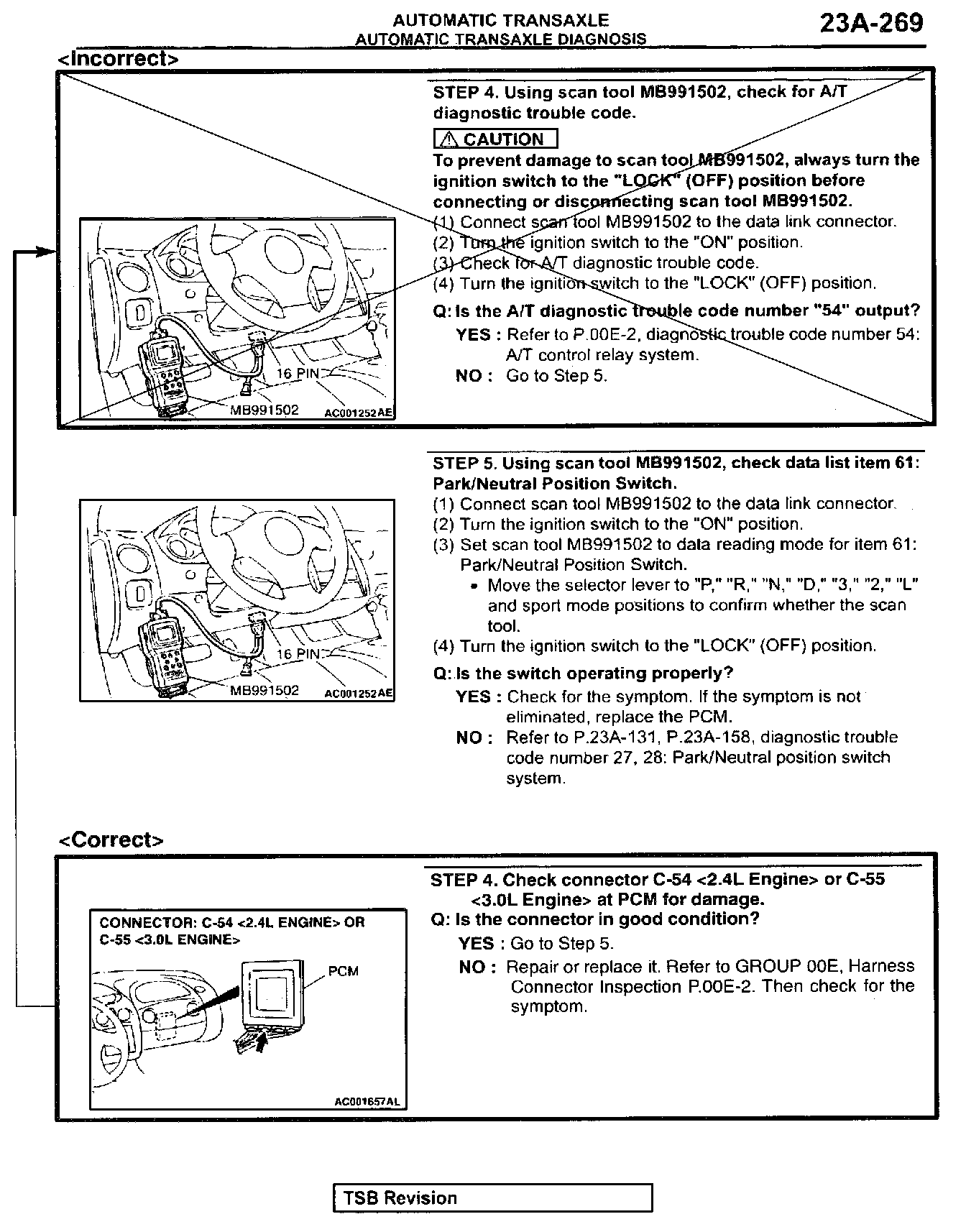

2002 Eclipse/Eclipse Spyder Volume 3, Page 23A-269
Revise step 4 as shown.

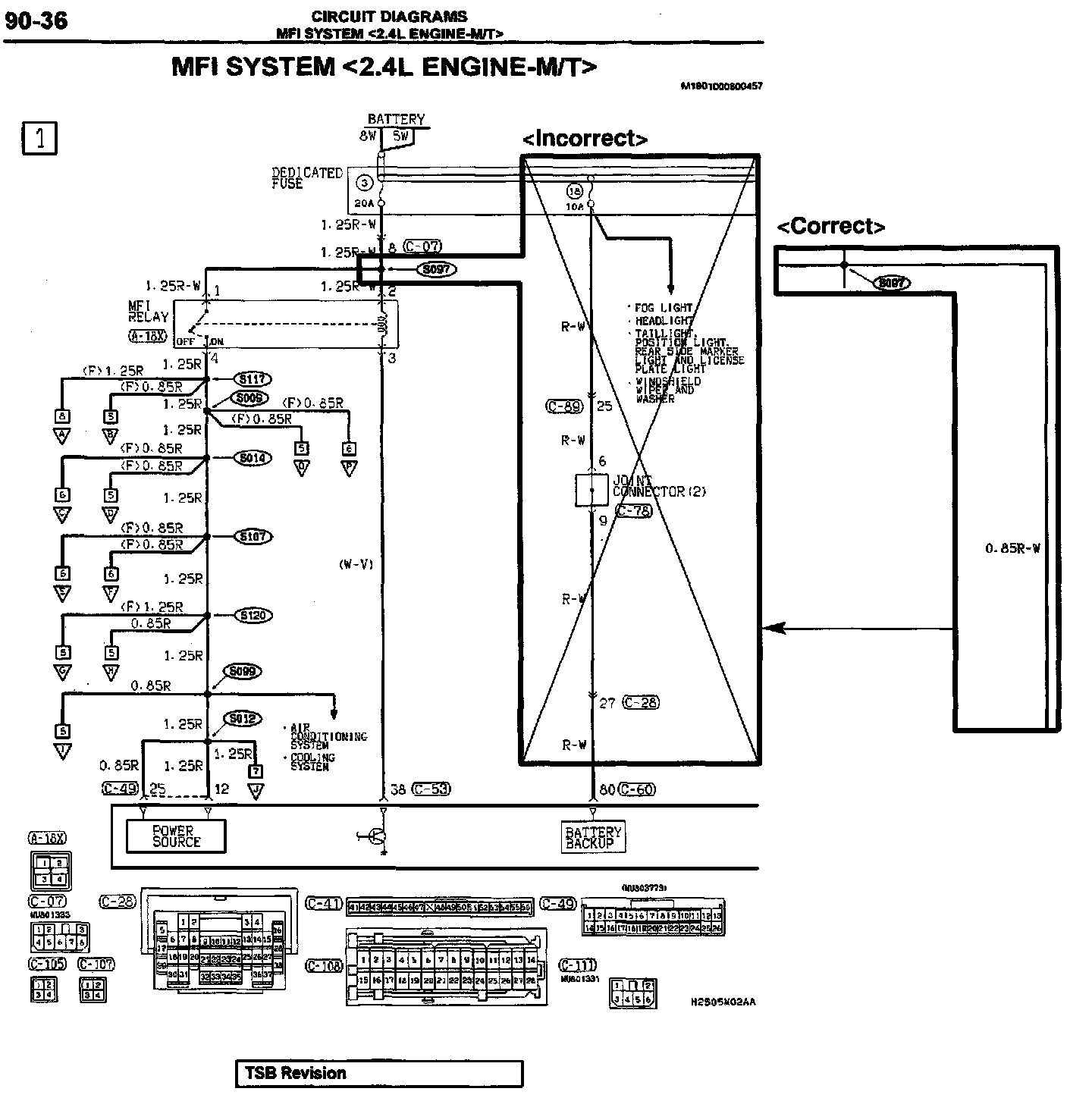

2002 Eclipse/Eclipse Spyder, Volume 4, Page 90-36
Correct the circuit diagram as shown.

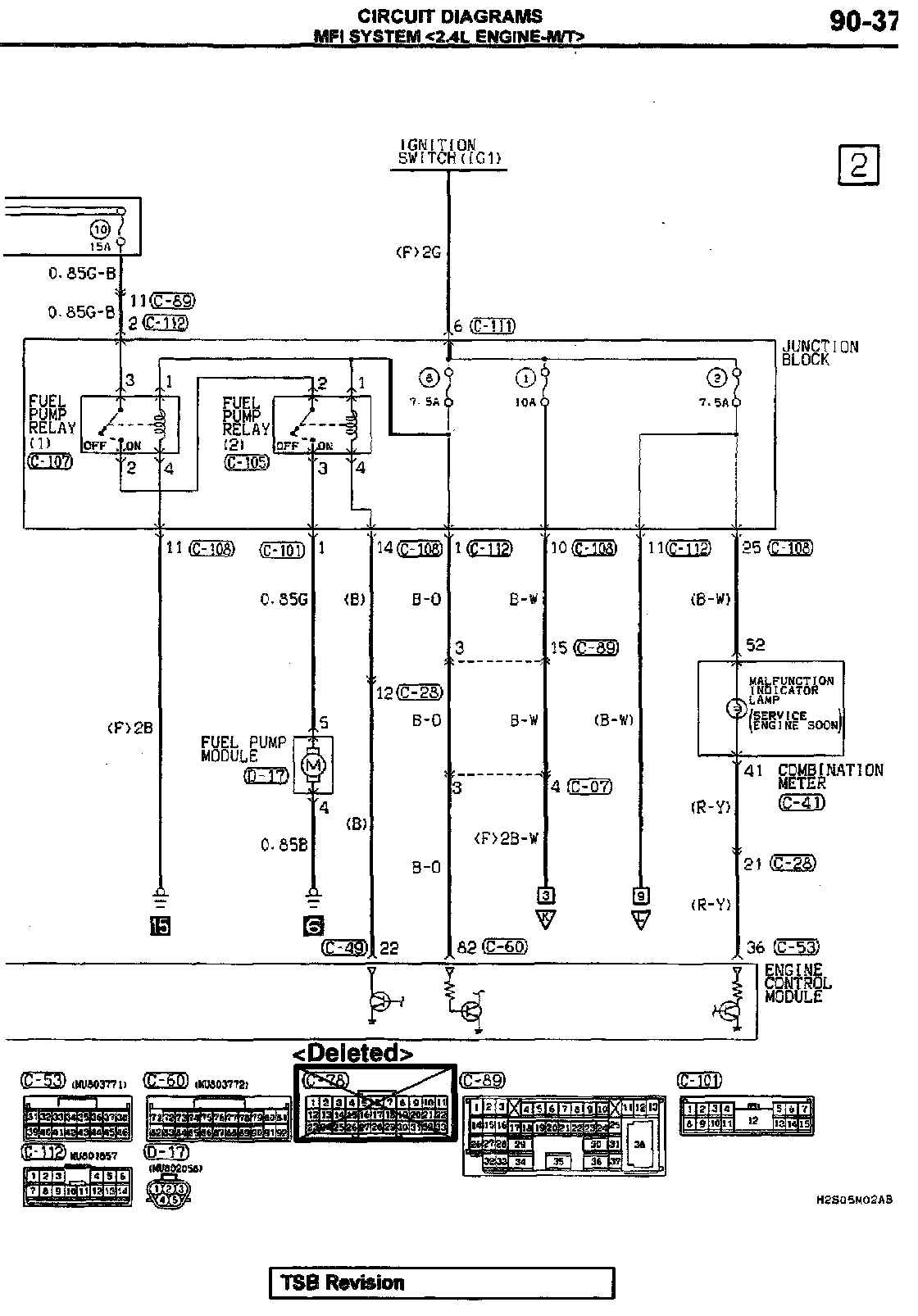

2002 Eclipse/Eclipse Spyder, Volume 4, Page 90-37.
Delete the reference for connector C-78 from the circuit diagram as shown.

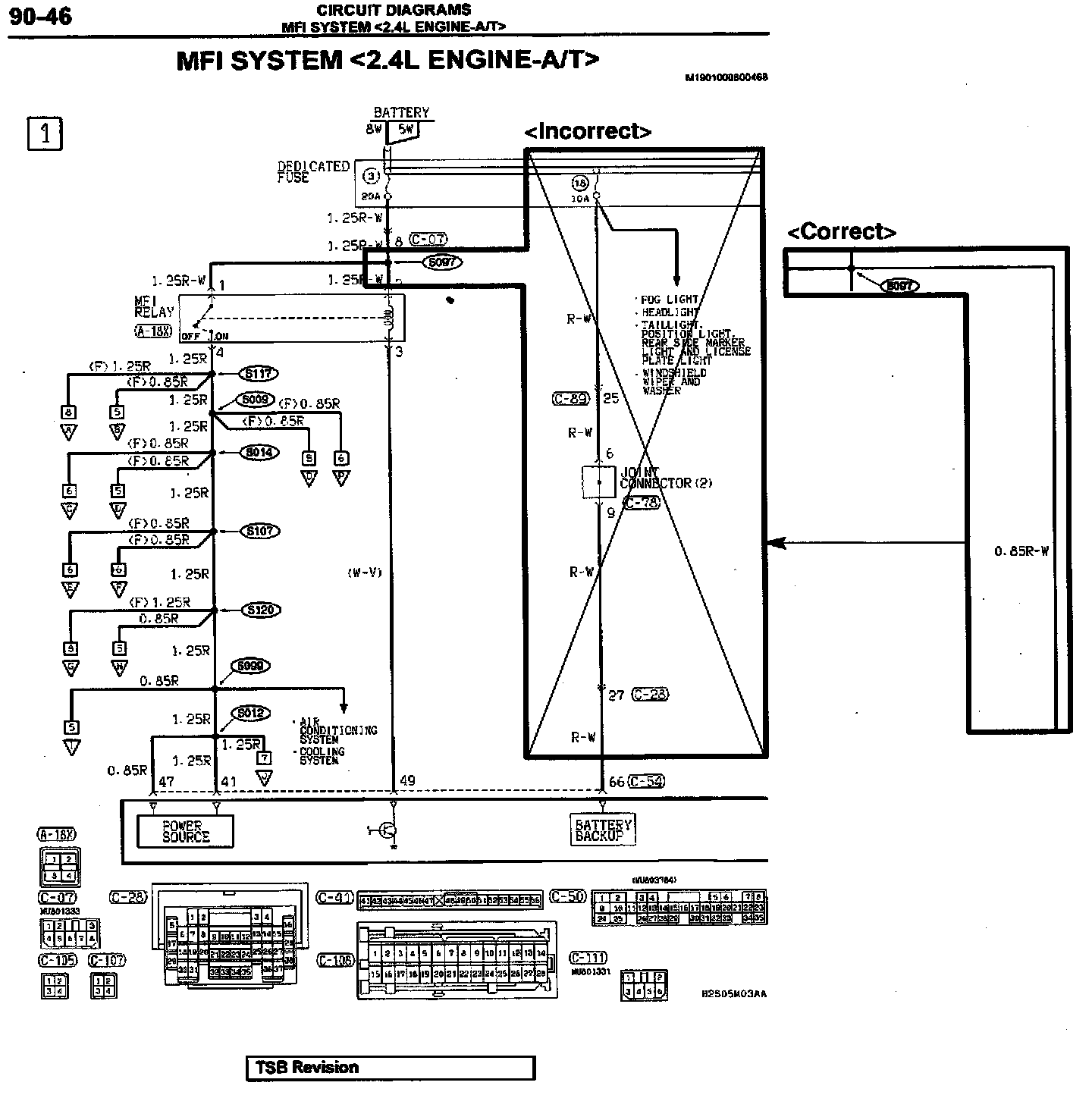

2002 Eclipse/Eclipse Spyder, Volume 4, Page 90-46
Correct the circuit diagram as shown.

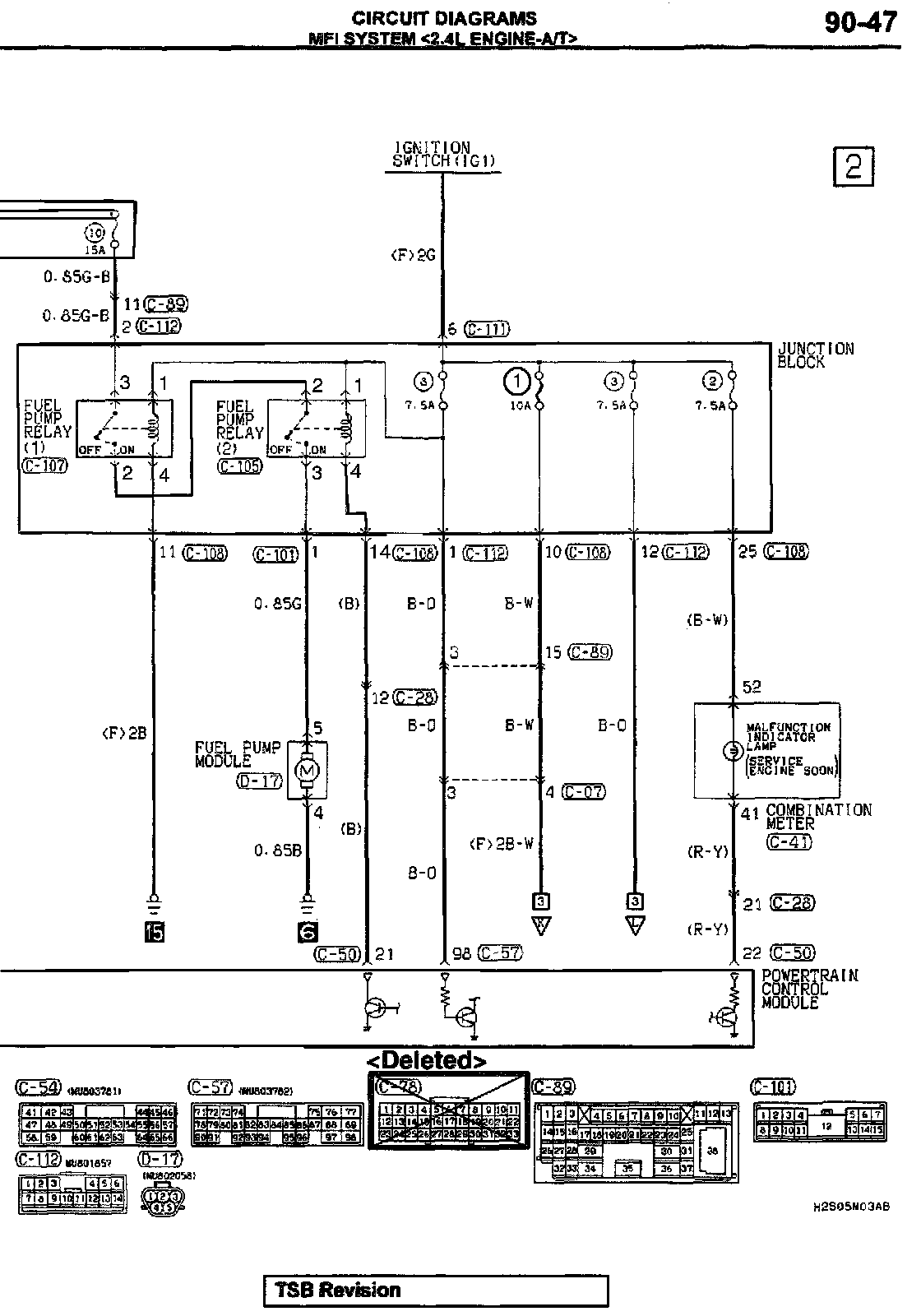

2002 Eclipse/Eclipse Spyder, Volume 4, Page 90-47.
Delete the reference for connector C-78 from the circuit diagram as shown.

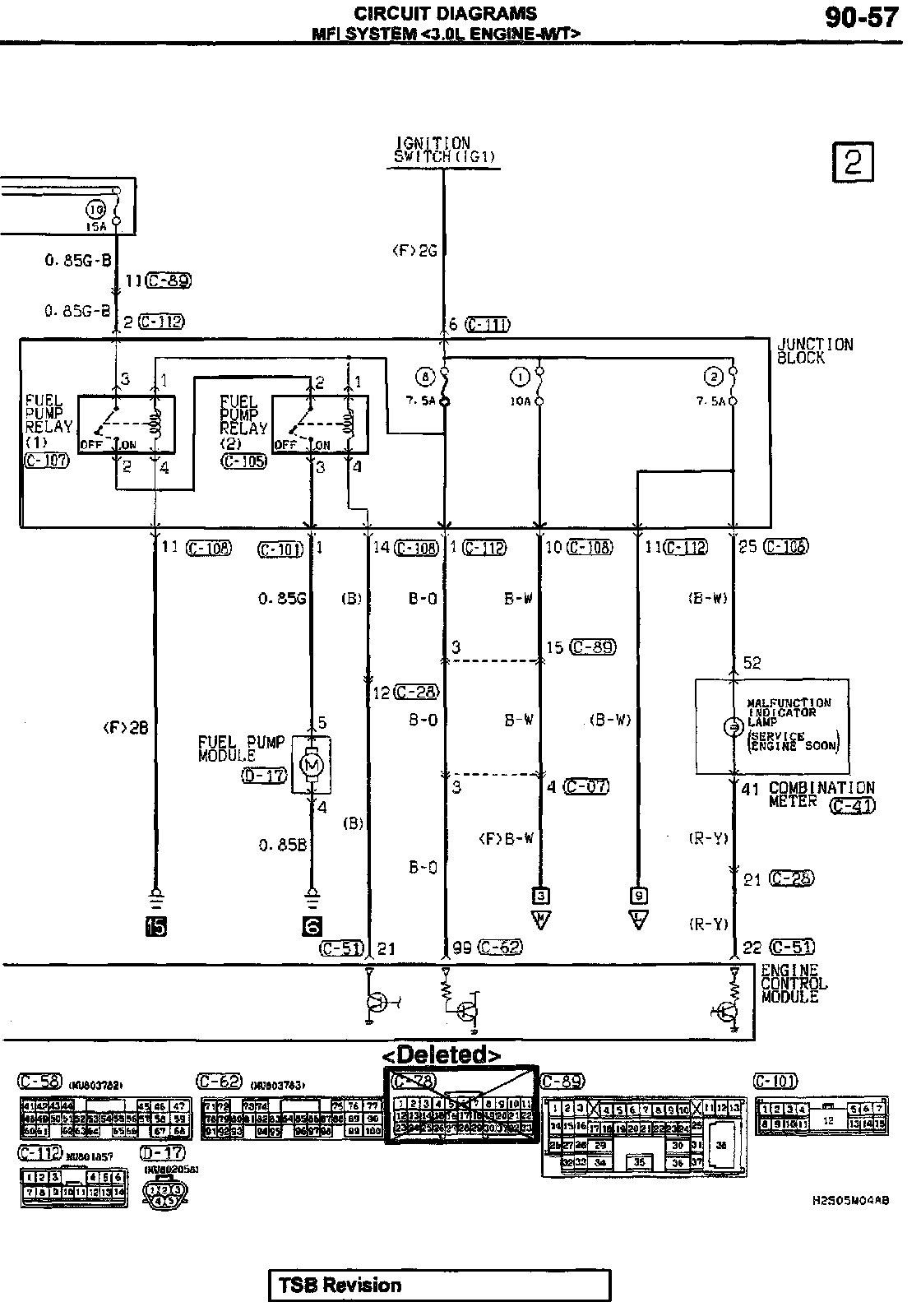

2002 Eclipse/Eclipse Spyder, Volume 4, Page 90-57.
Delete the reference for connector C-78 from the circuit diagram as shown.

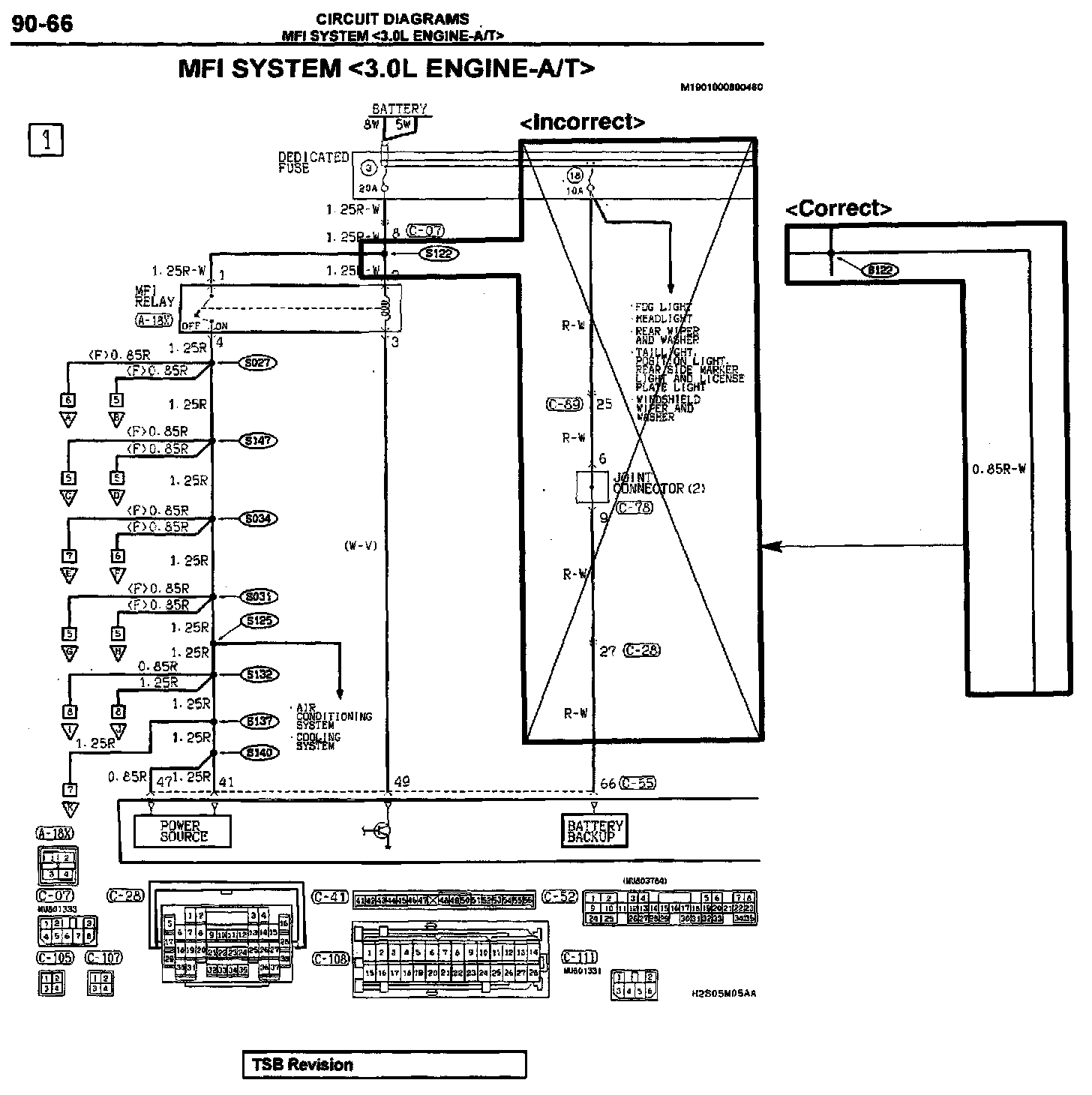

2002 Eclipse/Eclipse Spyder, Volume 4, Page 90-66
Correct the circuit diagram as shown.

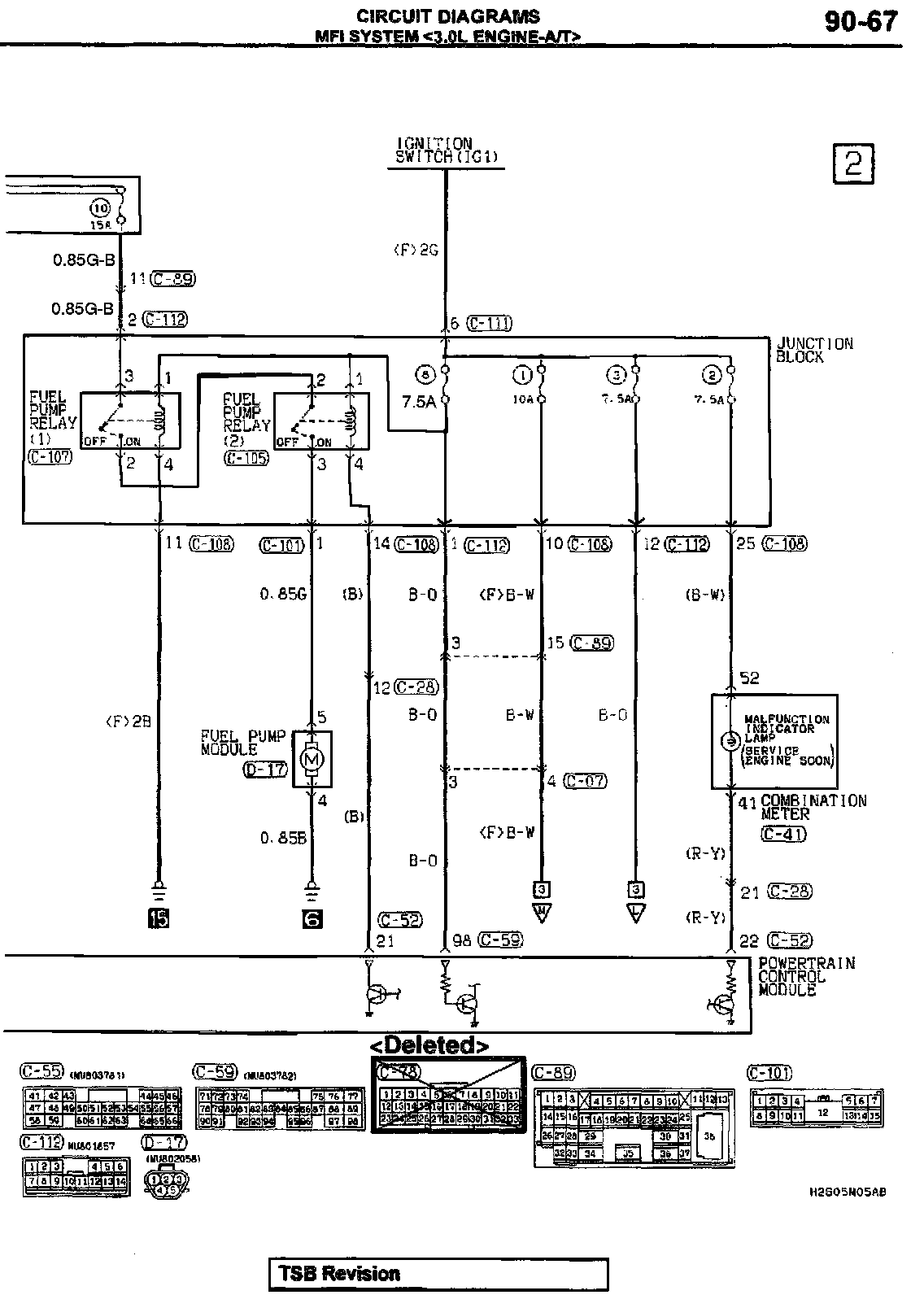

2002 Eclipse/Eclipse Spyder, Volume 4, Page 90-67.
Delete the reference for connector C-78 from the circuit diagram as shown.

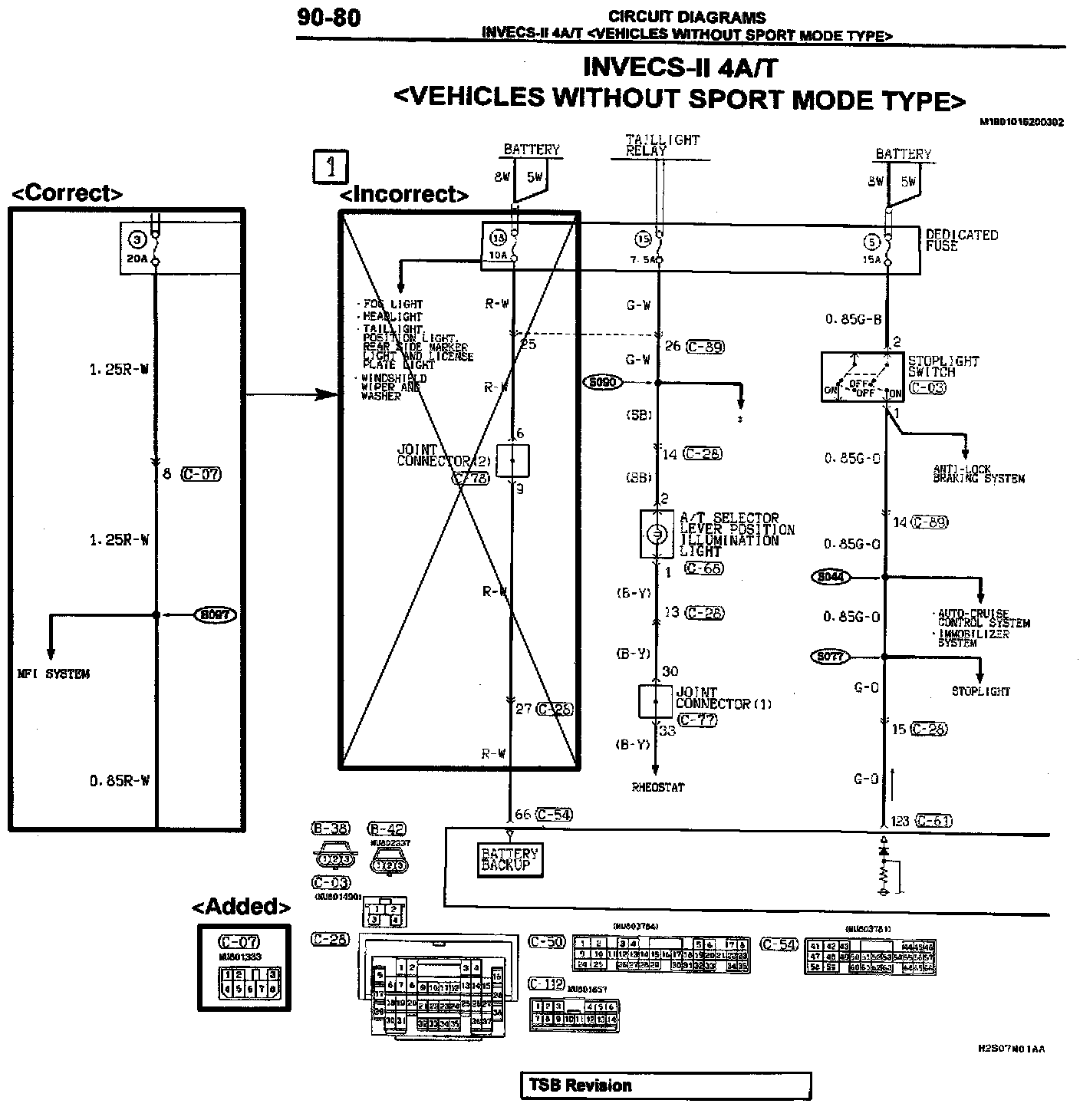

2002 Eclipse/Eclipse Spyder, Volume 4, Page 90-80
Correct the circuit diagram as shown.

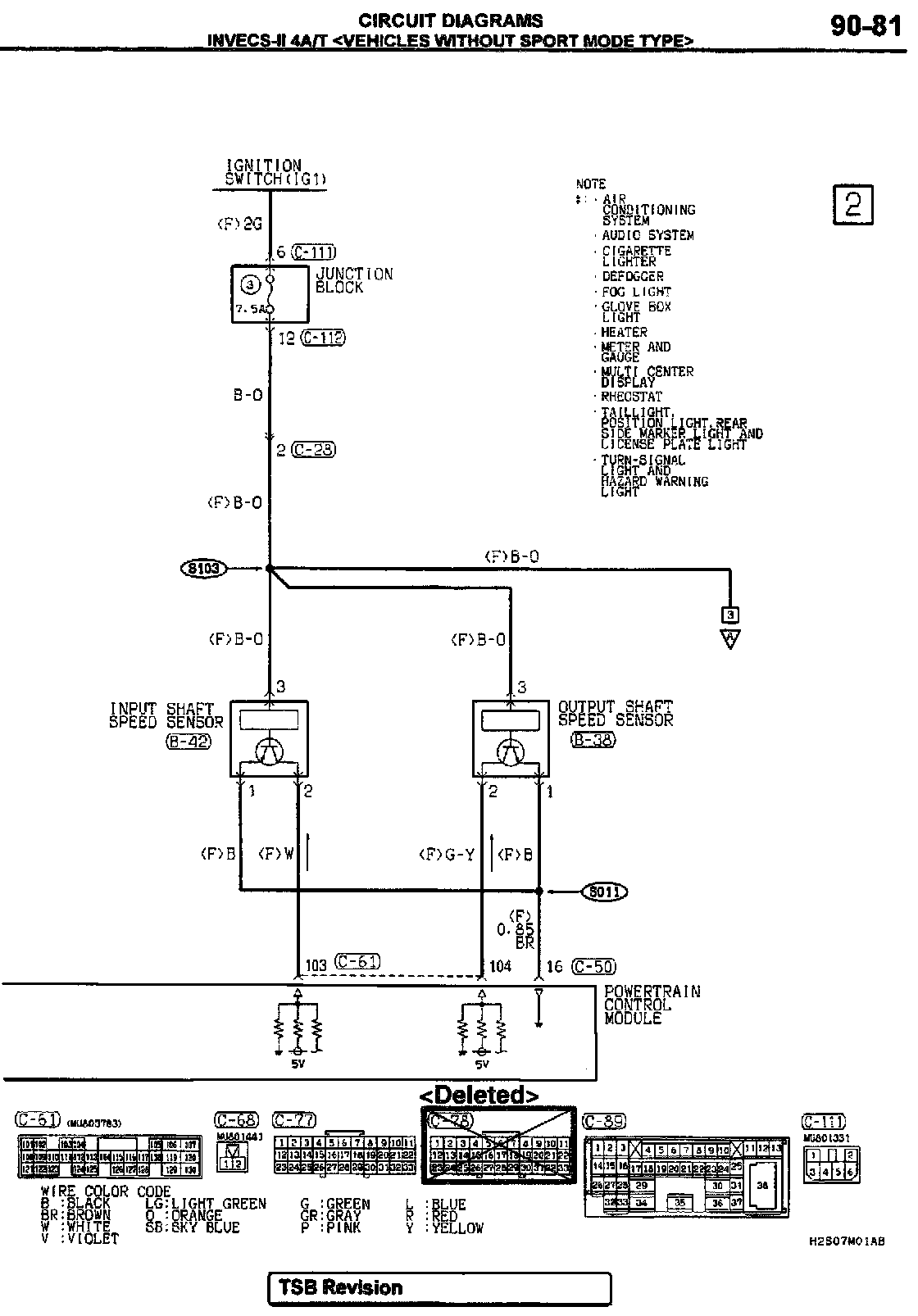

2002 Eclipse/Eclipse Spyder, Volume 4, Page 90-81.
Delete the reference for connector C-78 from the circuit diagram as shown.
2002 Eclipse/Eclipse Spyder, Volume 4, Page 90-88
Correct the circuit diagram as shown.

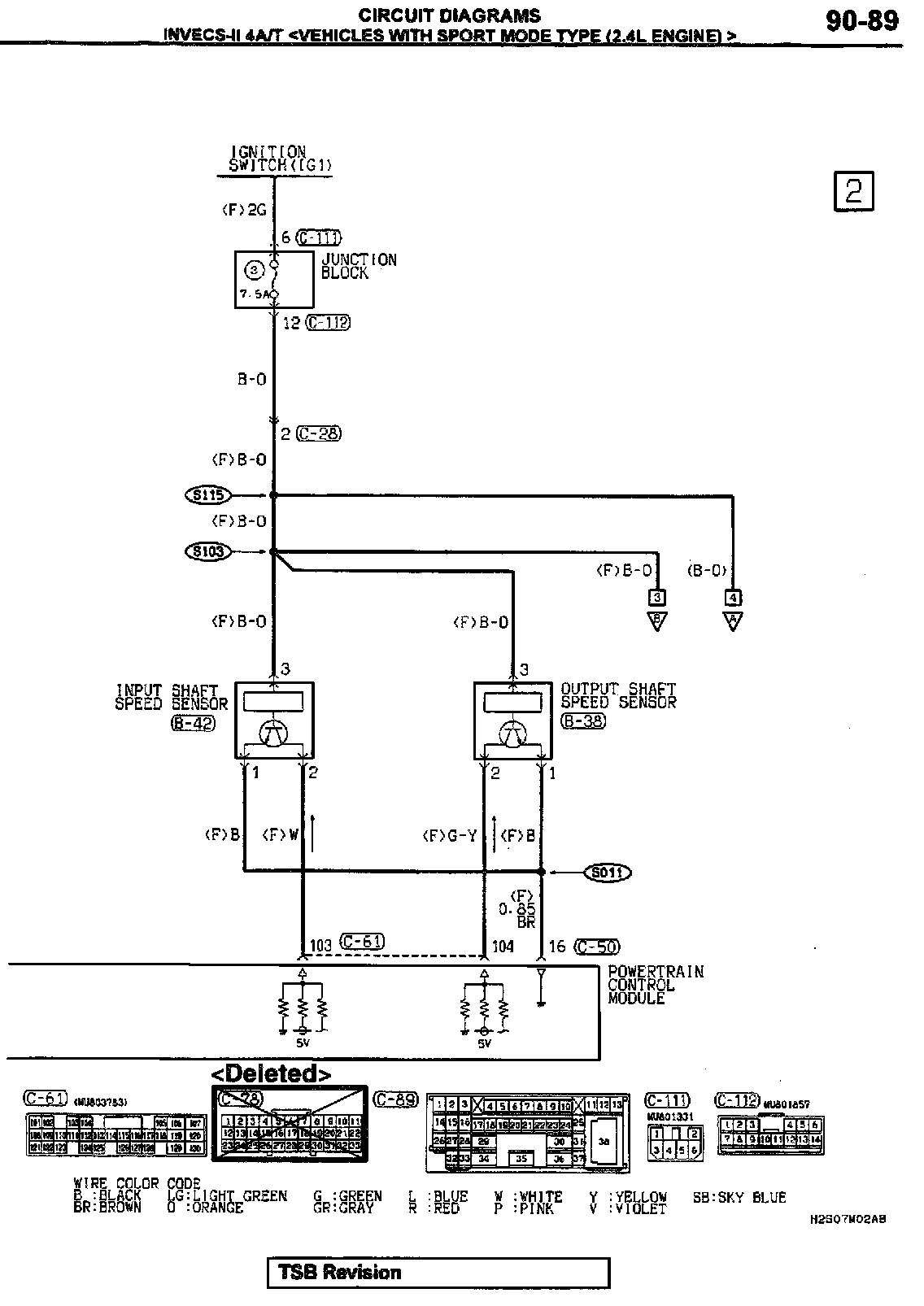

2002 Eclipse/Eclipse Spyder, Volume 4, Page 90-89.
Delete the reference for connector C-78 from the circuit diagram as shown.

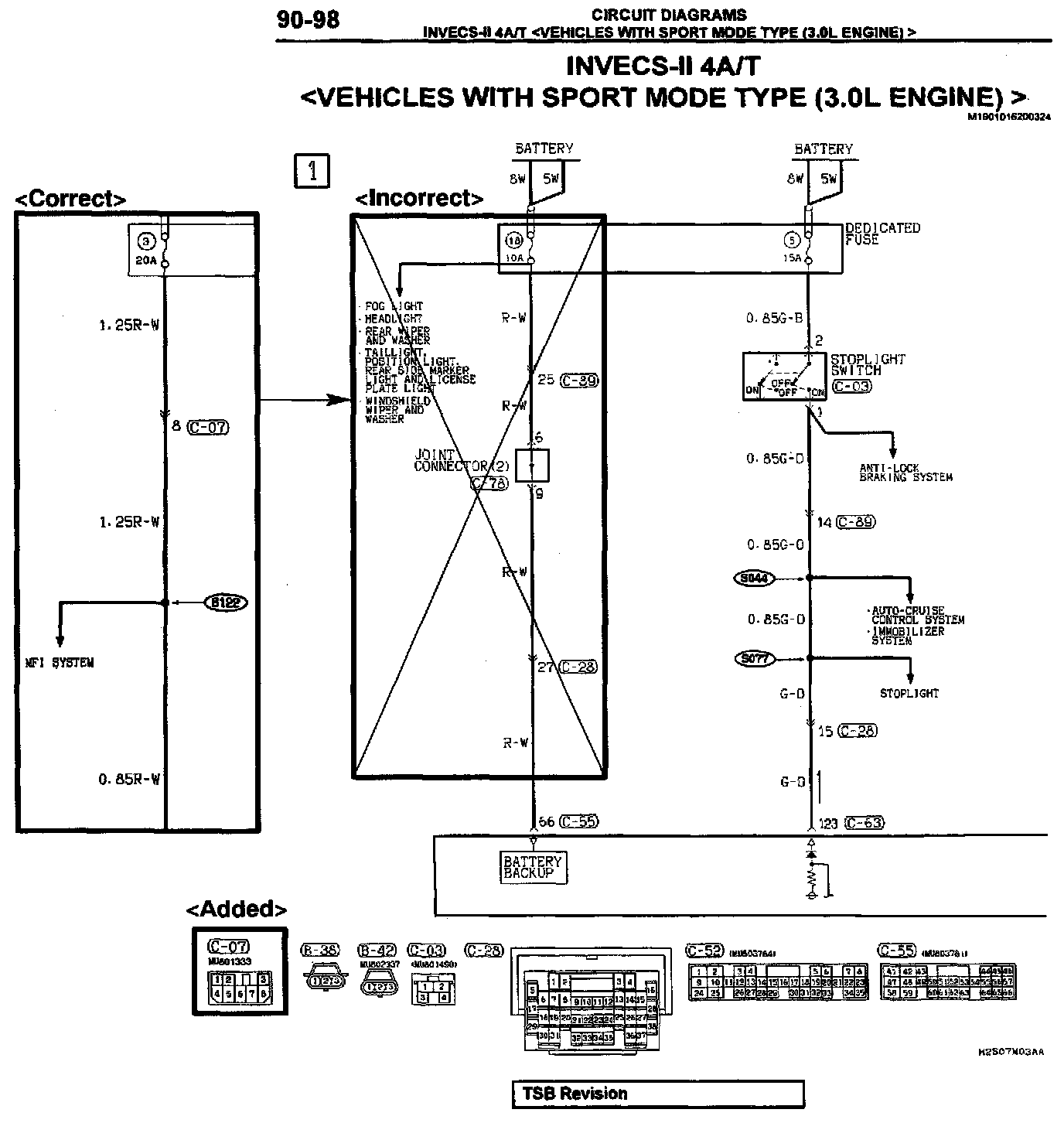

2002 Eclipse/Eclipse Spyder, Volume 4, Page 90-98
Correct the circuit diagram as shown.

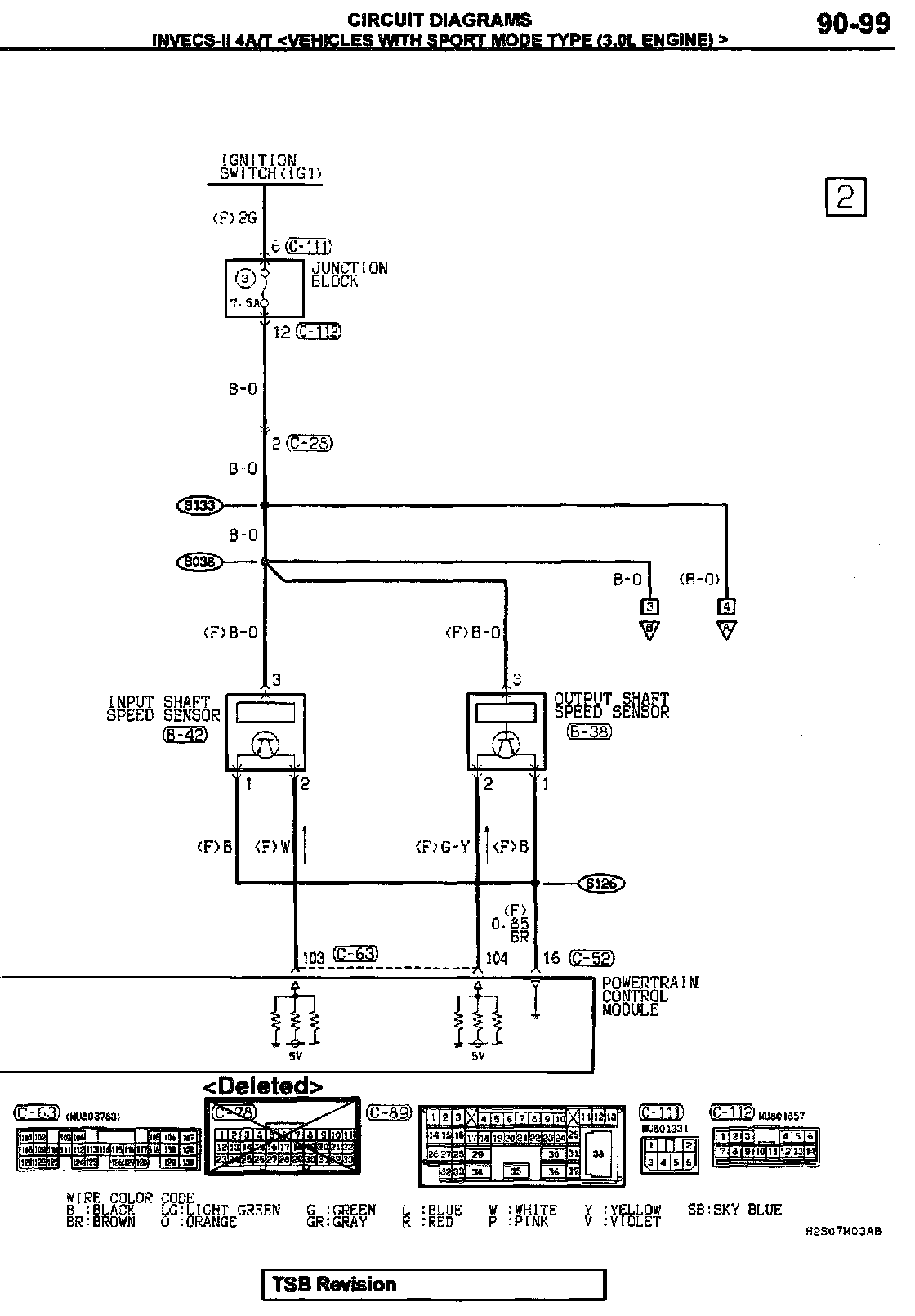

2002 Eclipse/Eclipse Spyder, Volume 4, Page 90-99.
Delete the reference for connector C-78 from the circuit diagram as shown.
