Dedicated Fuse (Engine Compartment)
Dedicated Fuse (Engine Compartment)

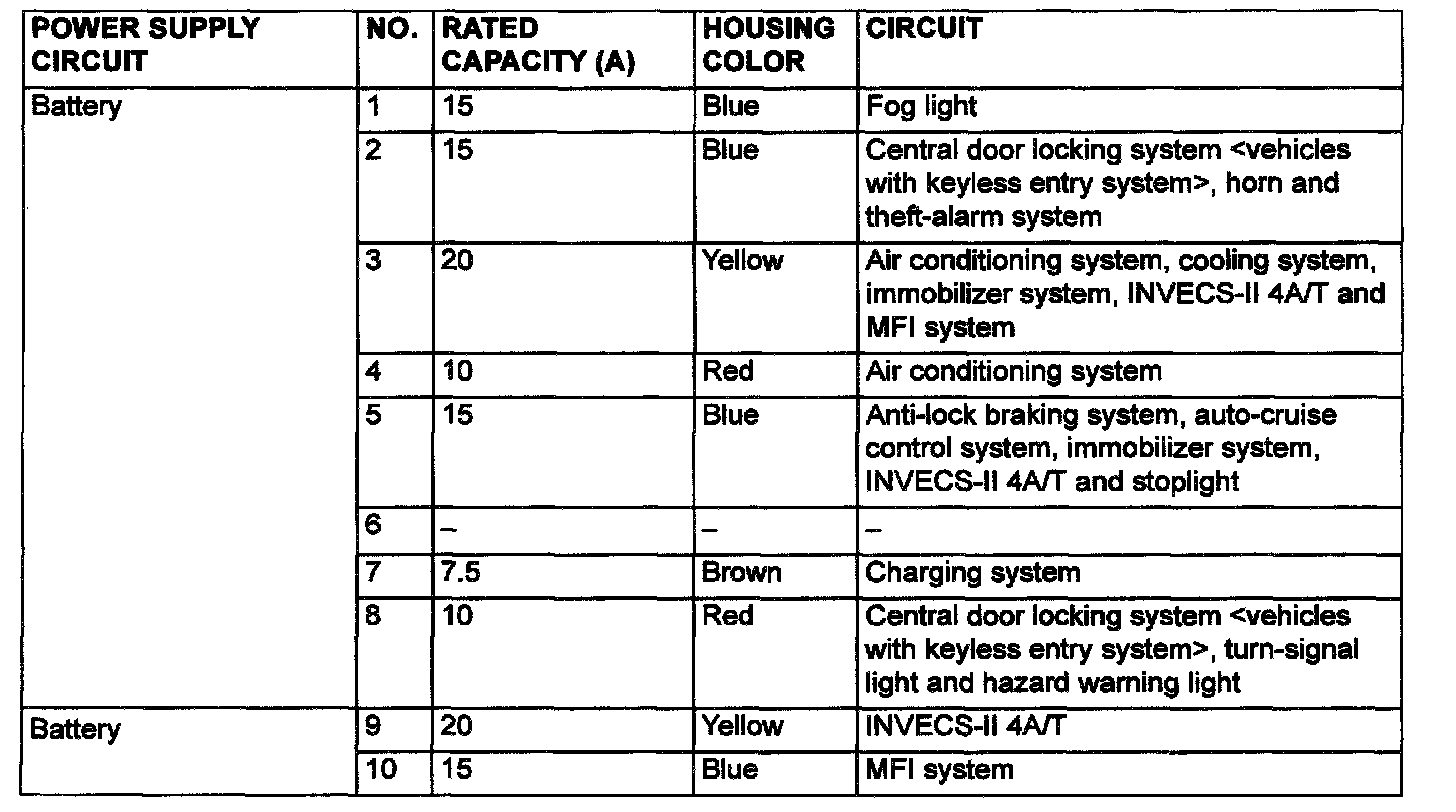

Dedicated Fuse Location Index Part 1:

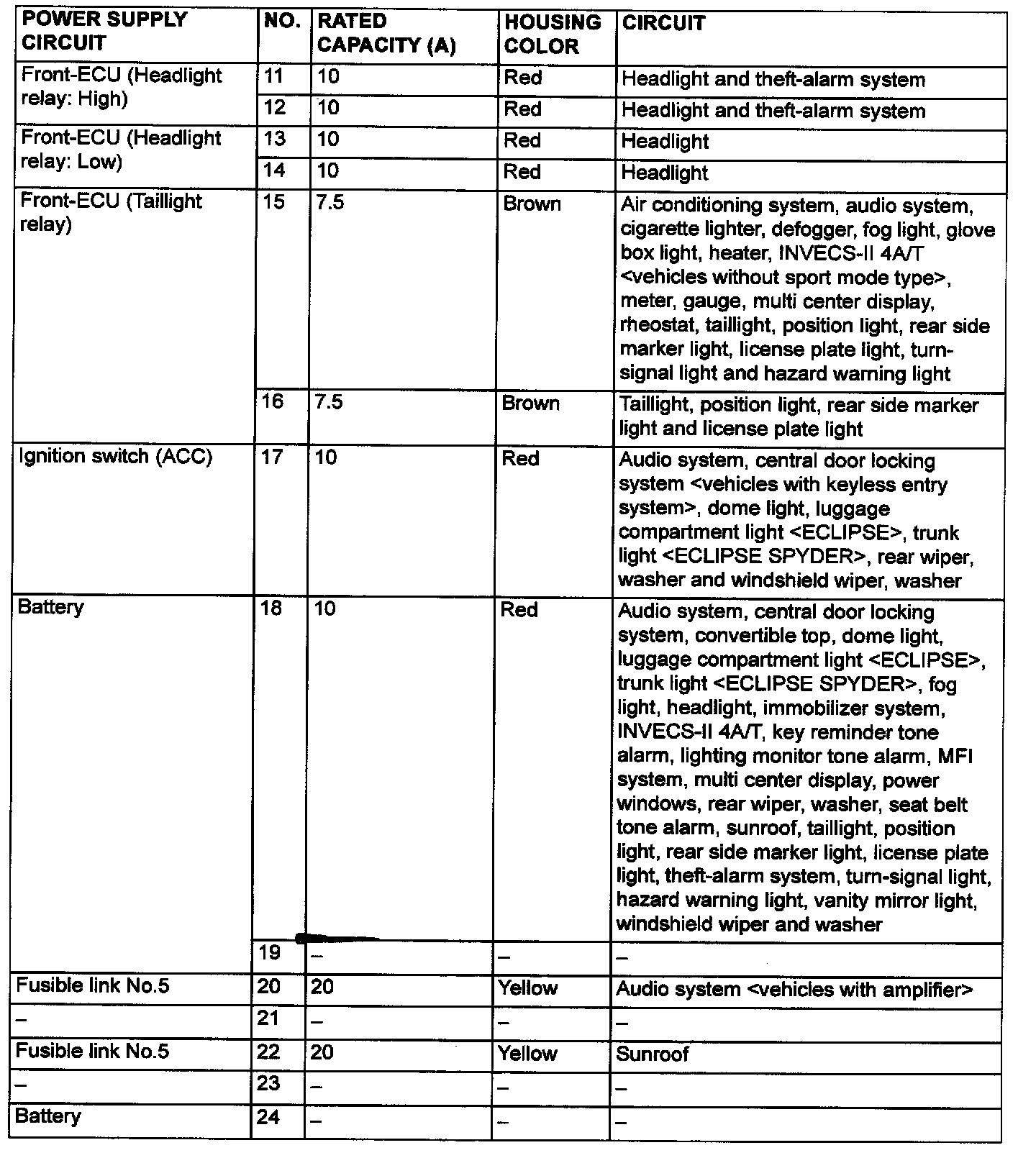

Part 2:

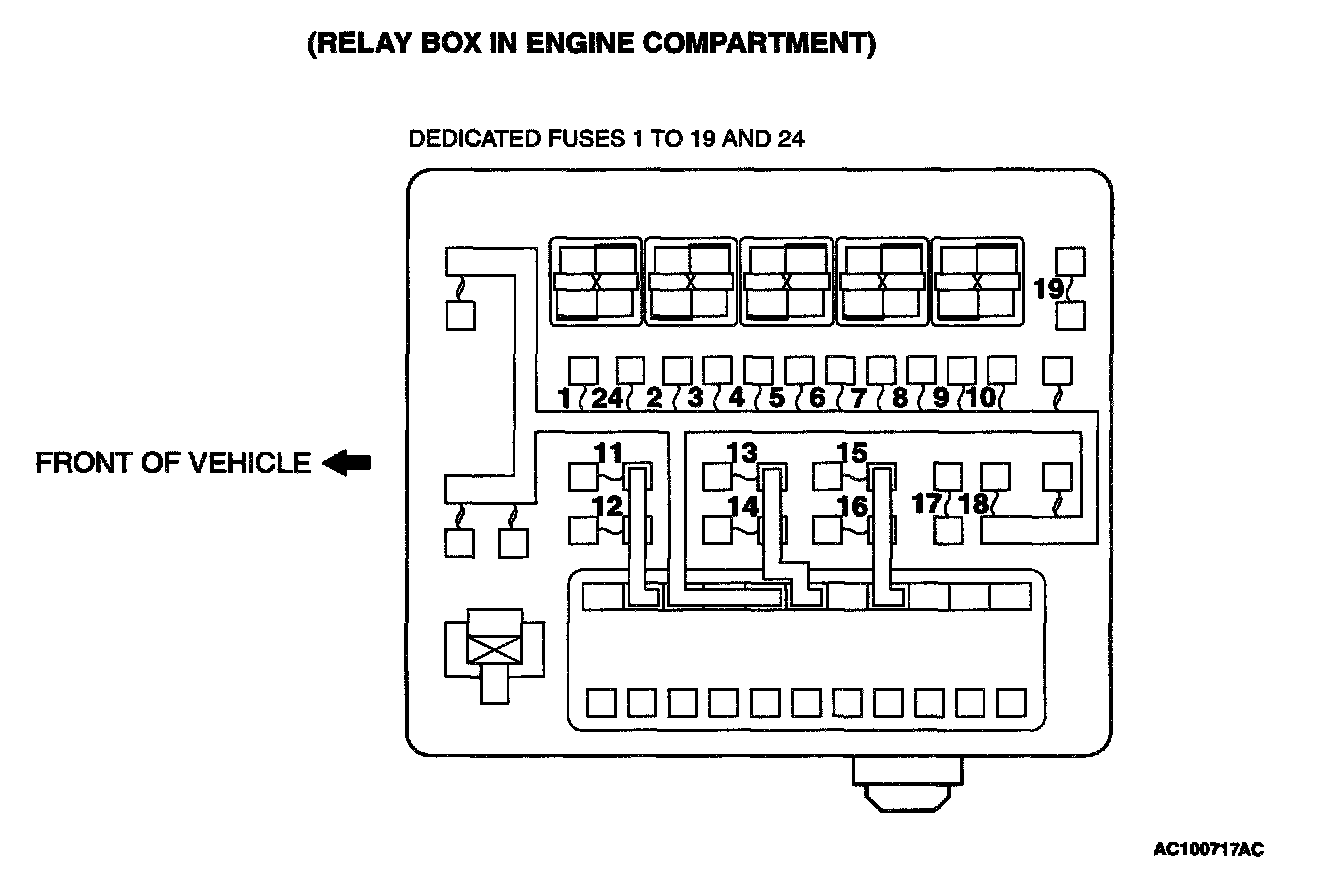

Fuses 1 - 19 & 24 (Relay Box In Engine Compartment):

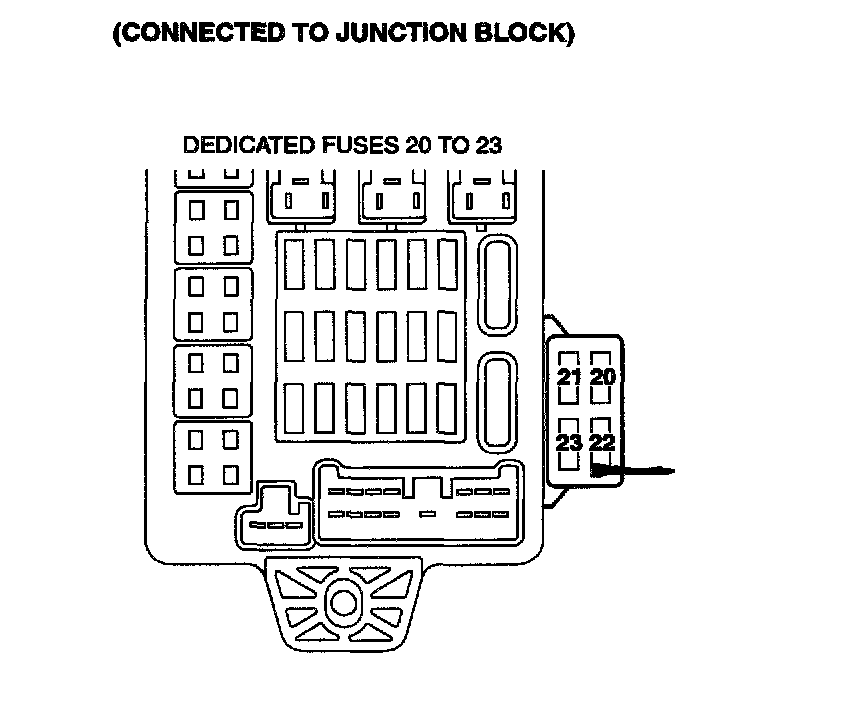

Fuses 20 - 23 (Connected To Junction Block):
