System Specifications

AUTOMATIC TRANSAXLE

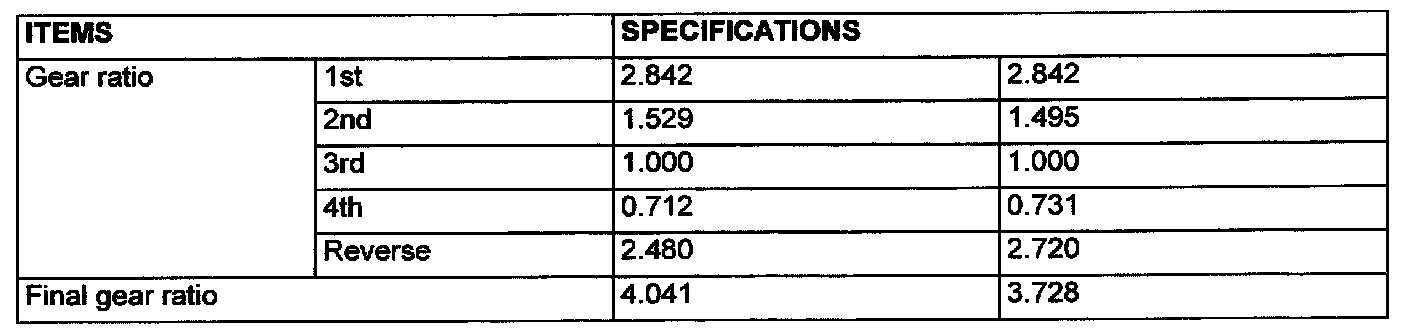

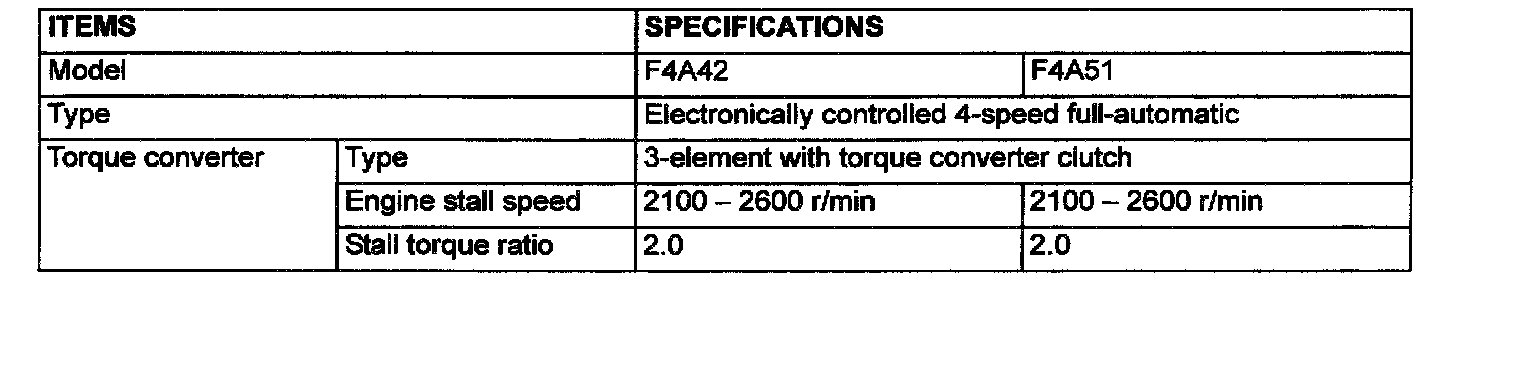

GENERAL SPECIFICATIONS

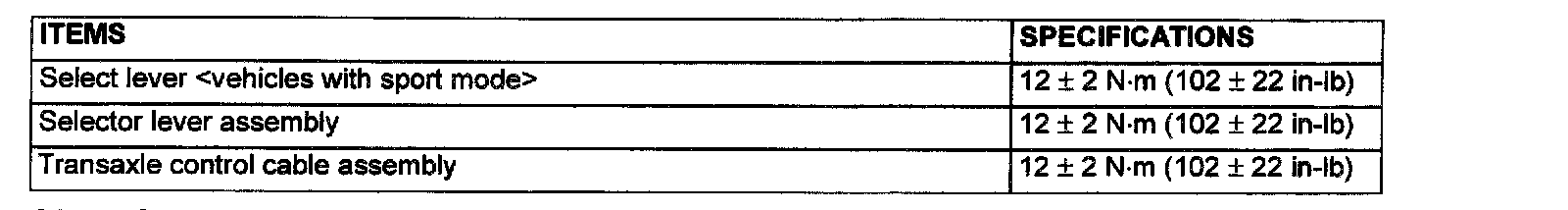

FASTENER TIGHTENING SPECIFICATIONS

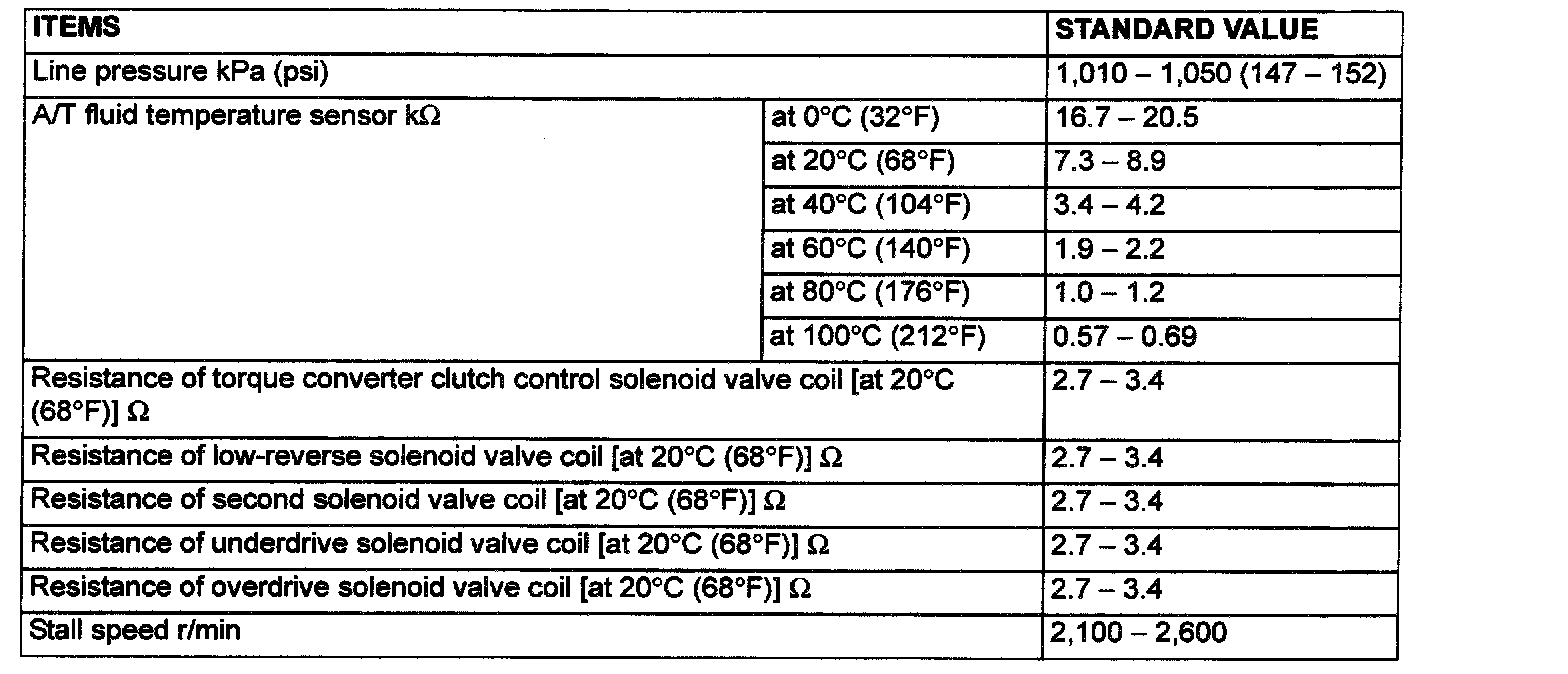

SERVICE SPECIFICATIONS

AUTOMATIC TRANSAXLE OVERHAUL

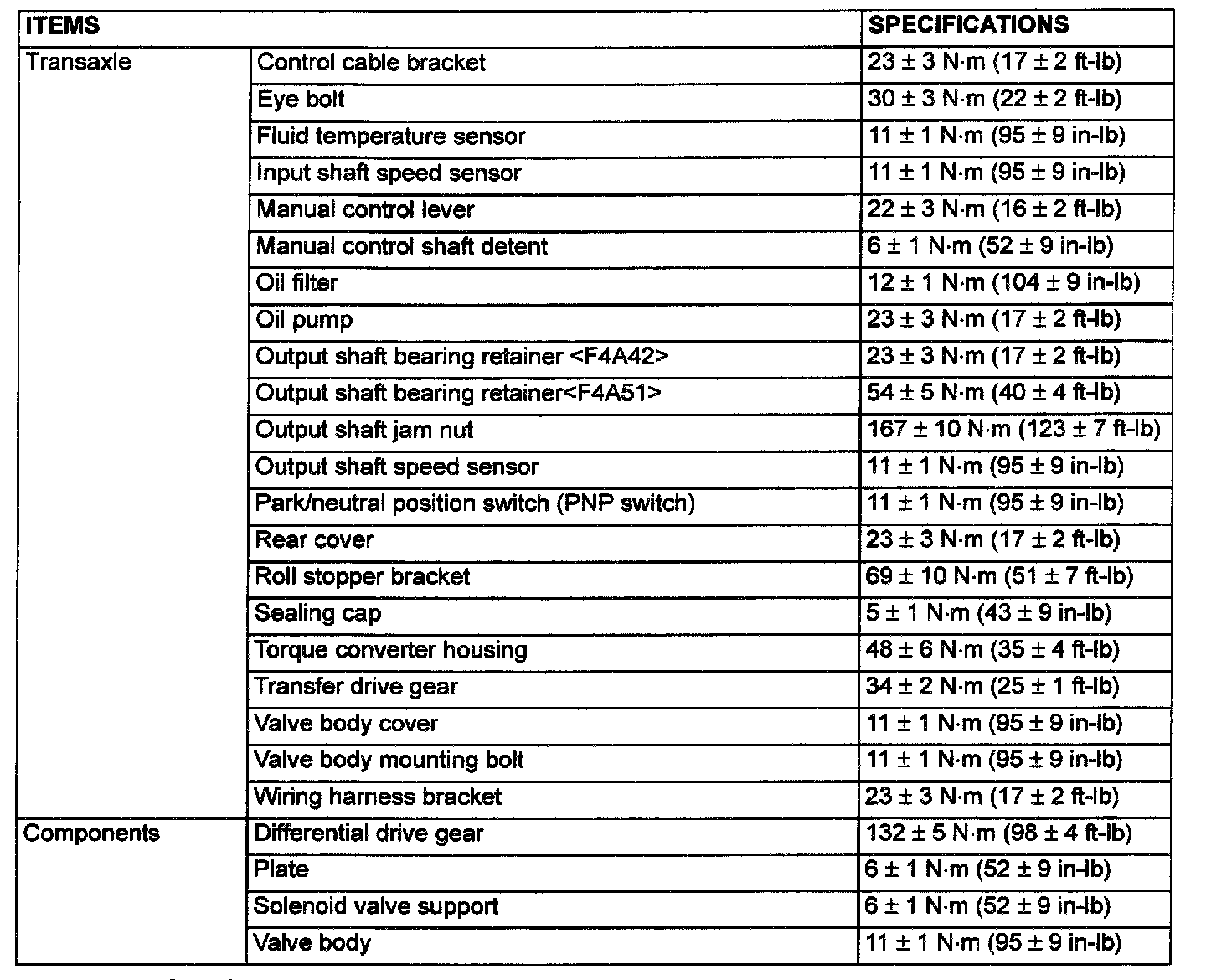

FASTENER TIGHTENING SPECIFICATIONS

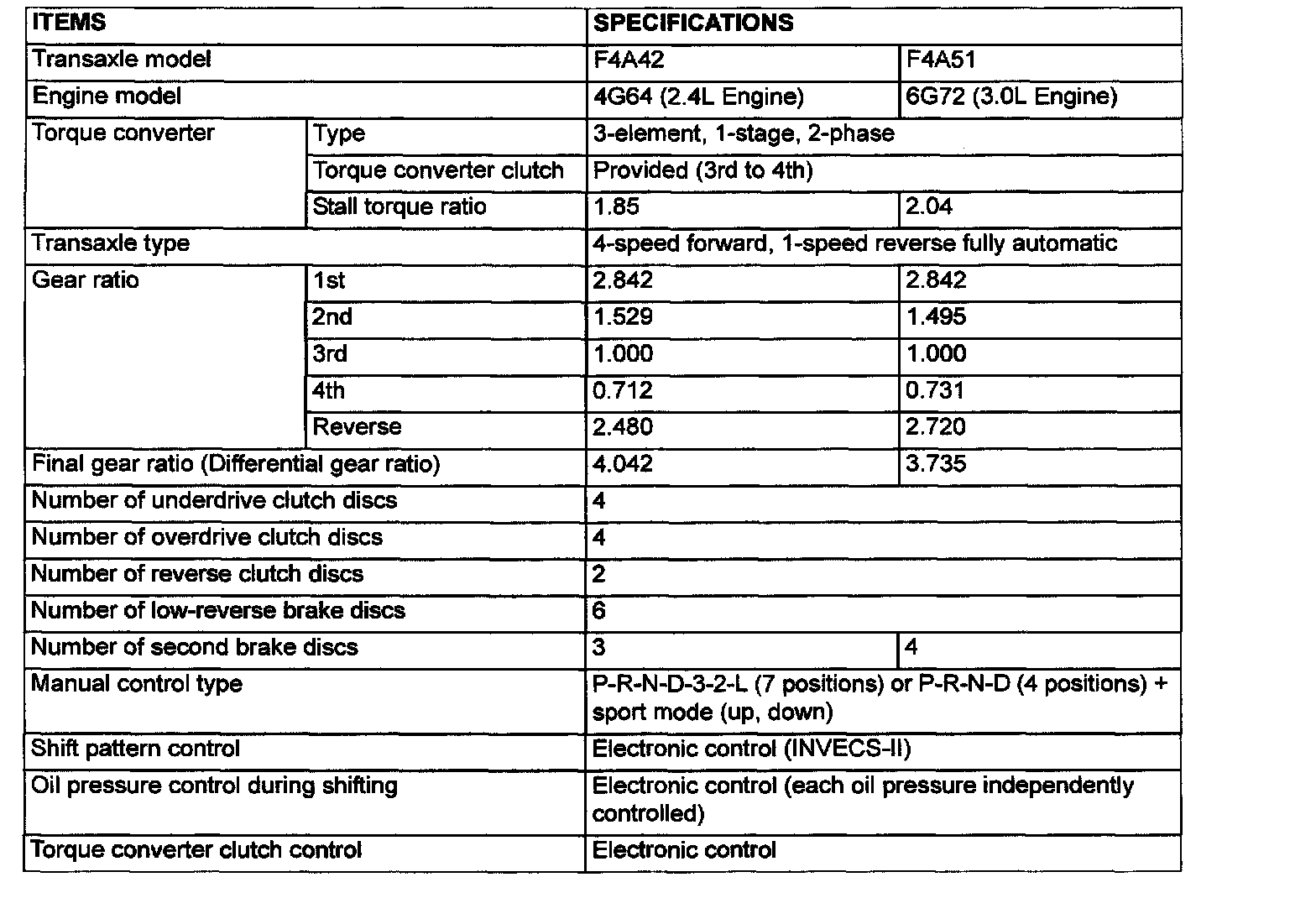

GENERAL SPECIFICATIONS

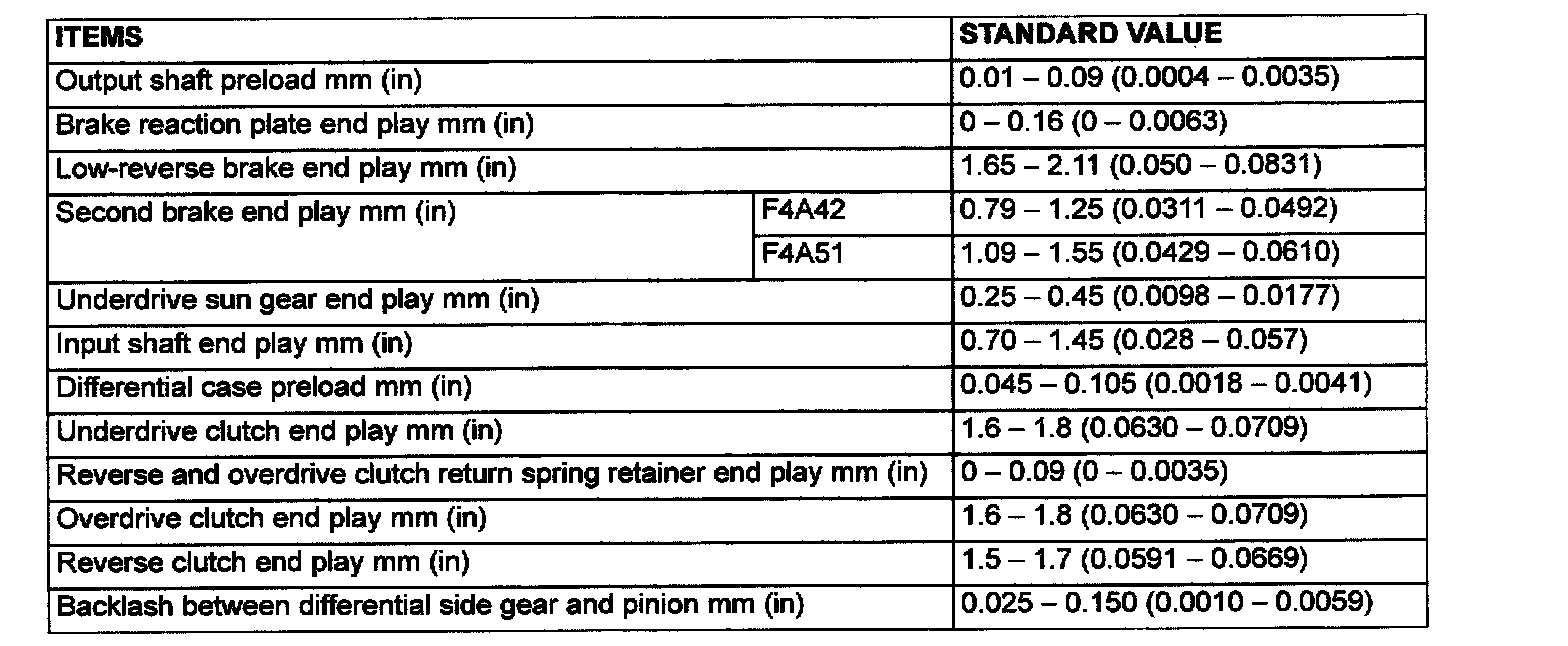

SERVICE SPECIFICATIONS
