Symptom Chart

INTRODUCTION TO FUEL SUPPLY DIAGNOSIS
The fuel supply device is used to supply an appropriate mixture to the engine. The device is configured of the fuel tank, fuel filter, fuel pump and the fuel pipe that couples each part. An evaporative emission control system is also provided to prevent pollution from the evaporated fuel.

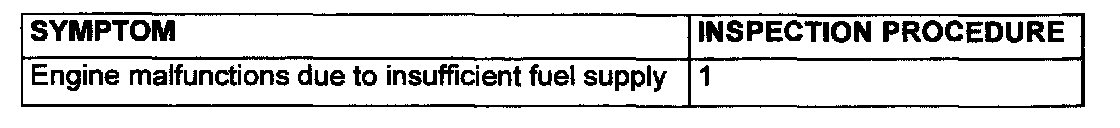

Symptom Chart:

Use these steps to plan your diagnostic strategy. If you follow them carefully, you will be sure that you have exhausted most of the possible ways to find a fuel supply fault.
1. Gather information from the customer.
2. Verify that the condition described by the customer exists.
3. Find the malfunction by following the Symptom Chart.
4. Verify malfunction is eliminated.
