Intake Air Plenum: Service and Repair

INTAKE MANIFOLD PLENUM

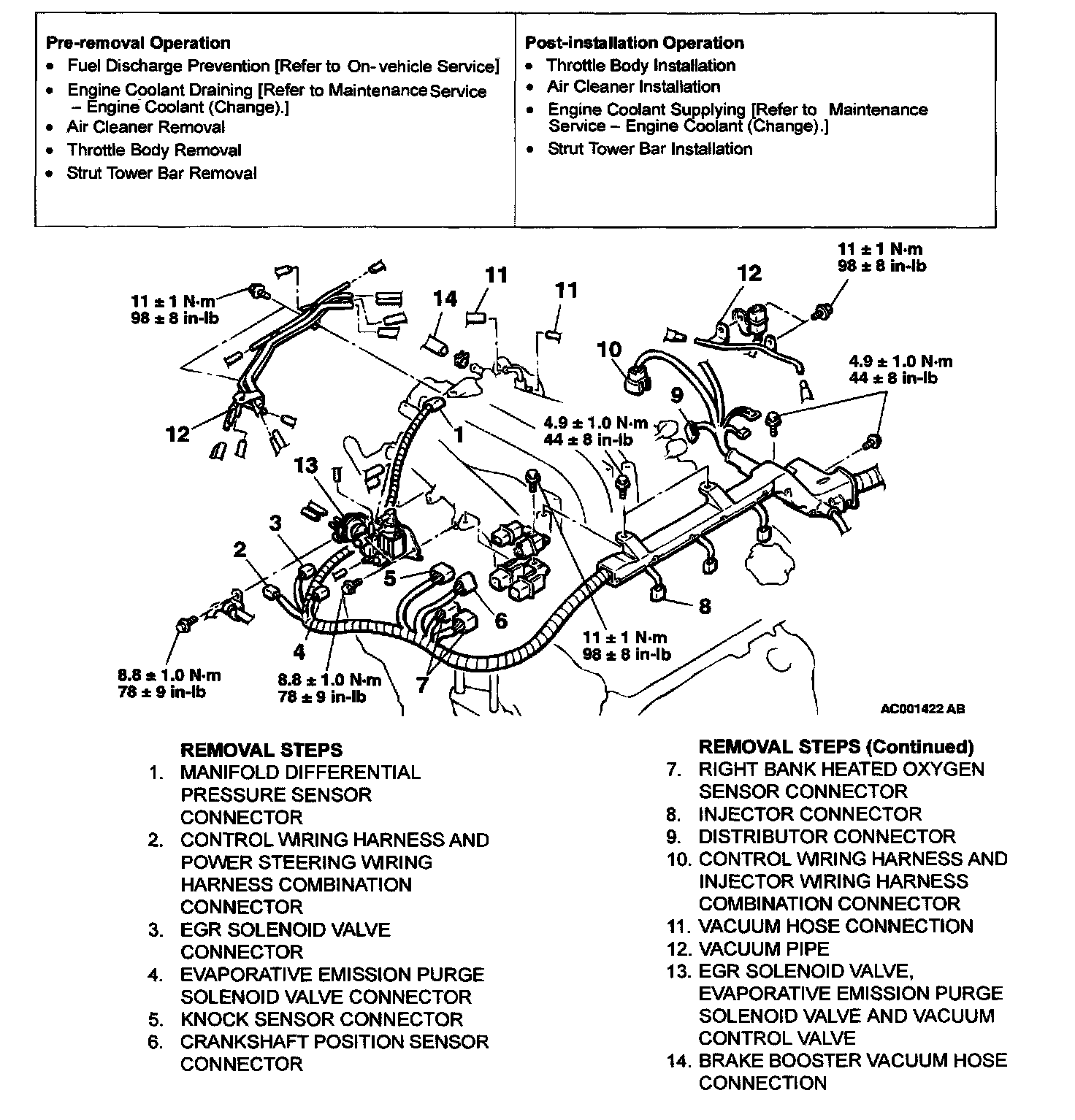

Part 1:

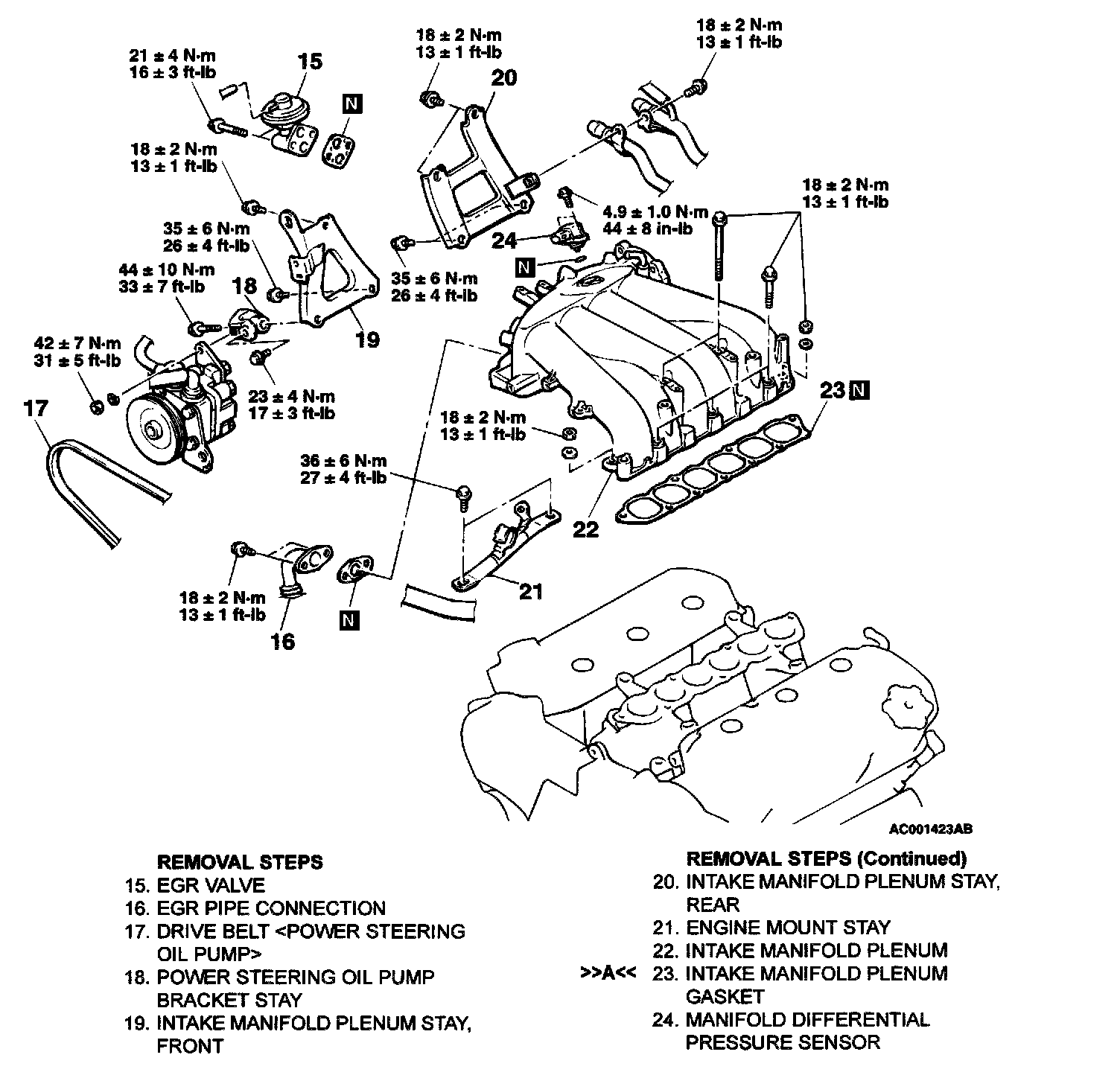

Part 2:

INSTALLATION SERVICE POINT

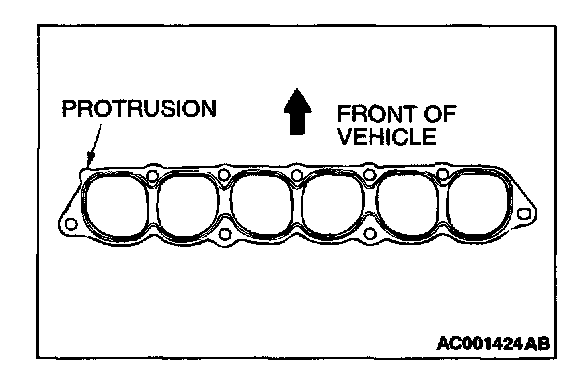

>>A<< INTAKE MANIFOLD PLENUM GASKET INSTALLATION
Install the gasket with the protrusion in the position illustrated.
