Catalytic Converter: Service and Repair

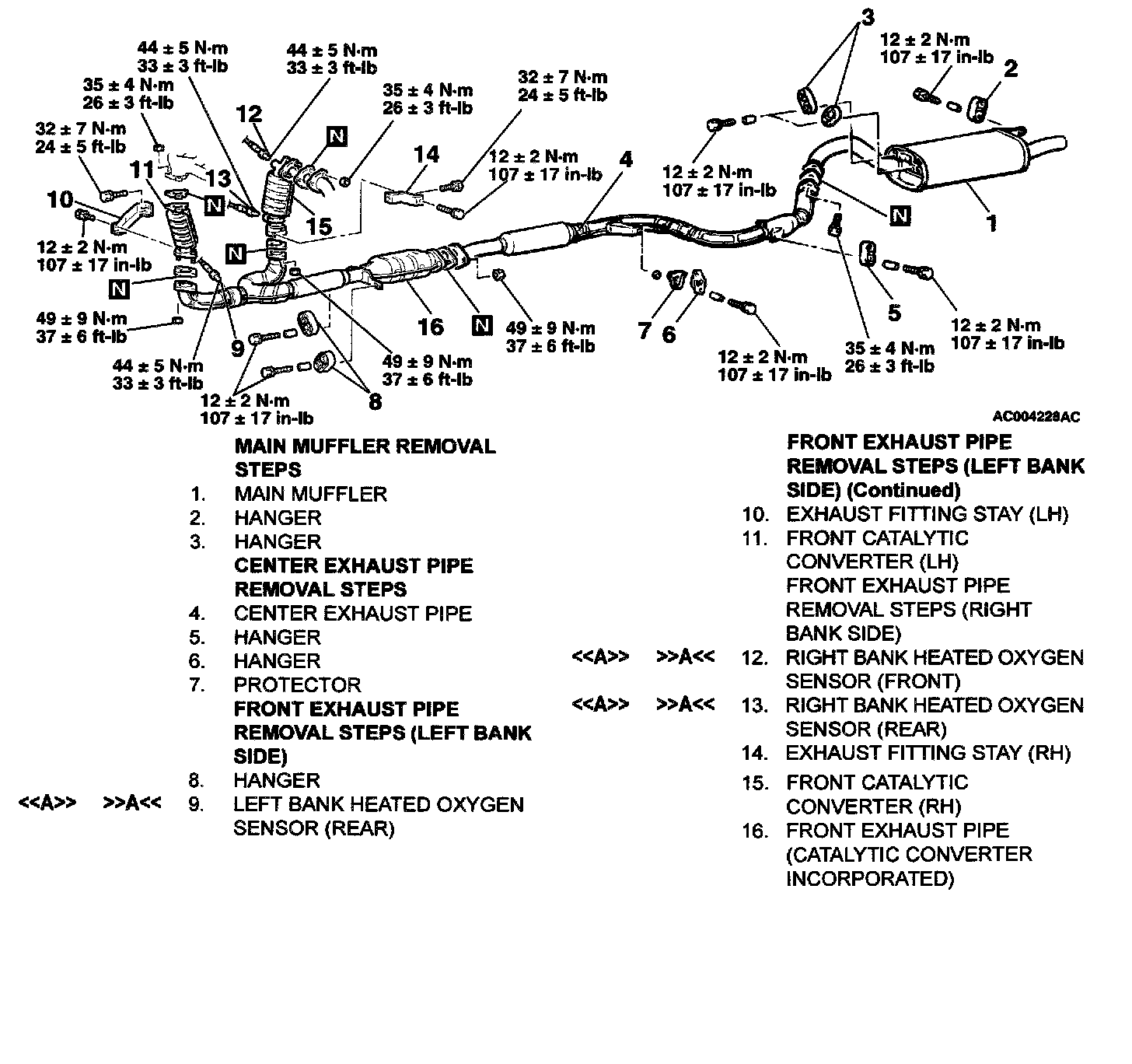

EXHAUST PIPE, MAIN MUFFLER AND CATALYTIC CONVERTER <3.0L>
REMOVAL SERVICE POINT
<> LEFT BANK HEATED OXYGEN SENSOR (REAR)/RIGHT BANK HEATED OXYGEN SENSOR (REAR)/RIGHT BANK HEATED OXYGEN SENSOR (FRONT) REMOVAL

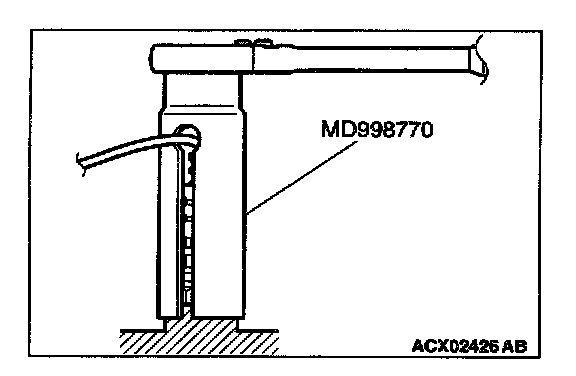

Use special tool MD998770 to remove the oxygen sensor.
INSTALLATION SERVICE POINT
>>A<< RIGHT BANK HEATED OXYGEN SENSOR (FRONT) RIGHT BANK HEATED OXYGEN SENSOR (REAR)/LEFT BANK HEATED OXYGEN SENSOR (REAR) INSTALLATION
Use pedal tool MD998770 to install the oxygen sensor.

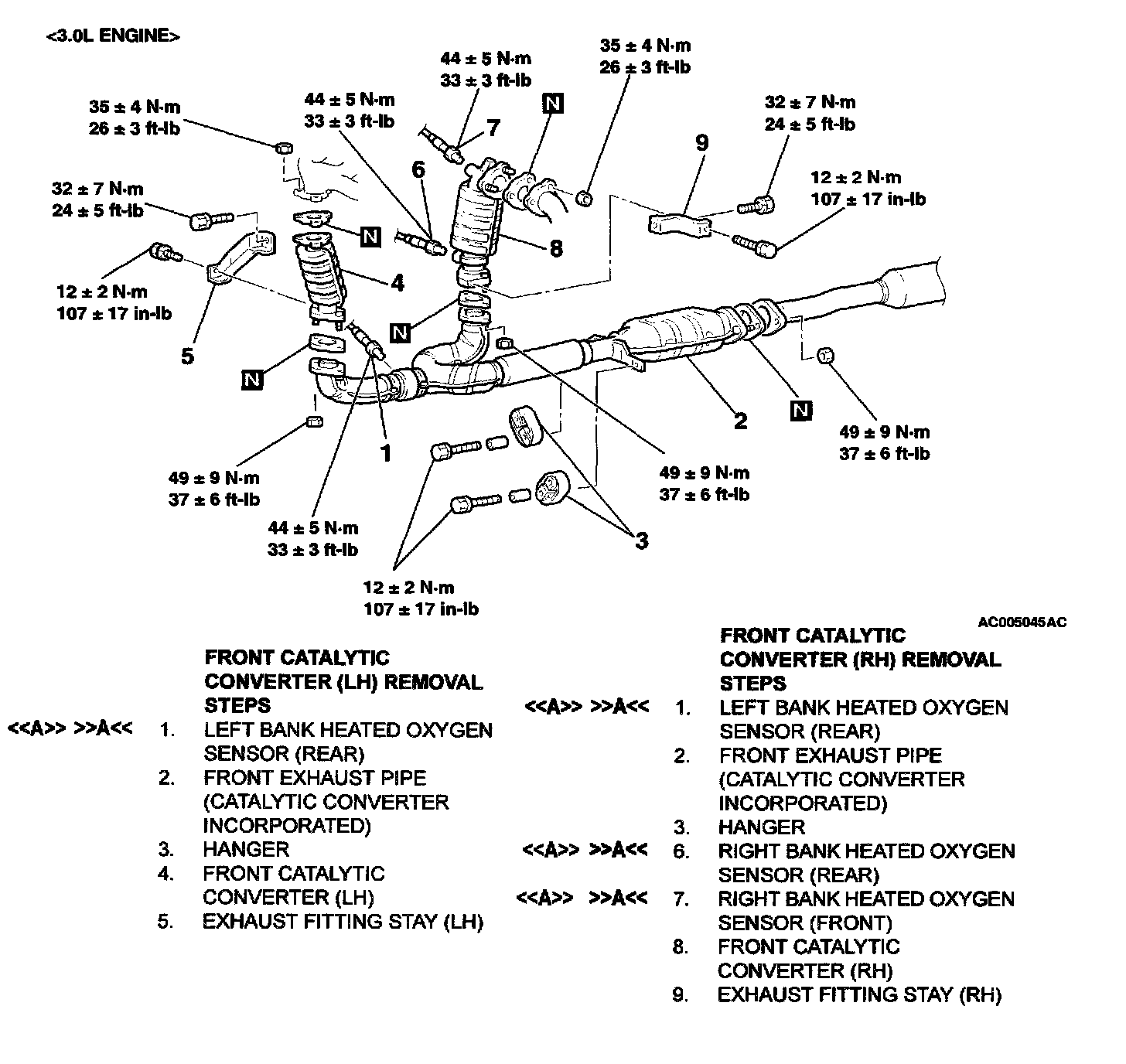

CATALYTIC CONVERTER
Required Special Tool:
MD998770: Oxygen sensor wrench
REMOVAL SERVICE POINT
<> HEATED OXYGEN SENSOR (REAR)/LEFT BANK HEATED OXYGEN SENSOR (REAR)/RIGHT BANK HEATED OXYGEN SENSOR (REAR)/RIGHT BANK HEATED OXYGEN SENSOR (FRONT) REMOVAL

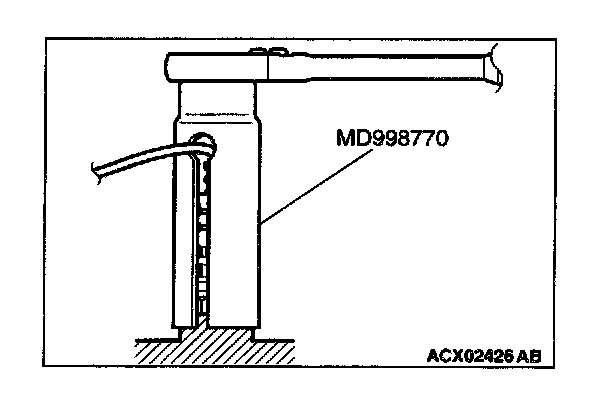

Use special tool MD998770 to remove the oxygen sensor.
INSTALLATION SERVICE POINT
>>A<< RIGHT BANK HEATED OXYGEN SENSOR (FRONT)/RIGHT BANK HEATED OXYGEN SENSOR (REAR)/LEFT BANK HEATED OXYGEN SENSOR (REAR)/HEATED OXYGEN SENSOR (REAR) INSTALLATION
Use special tool MD998770 to installation the oxygen sensor.
