Symptom Charts

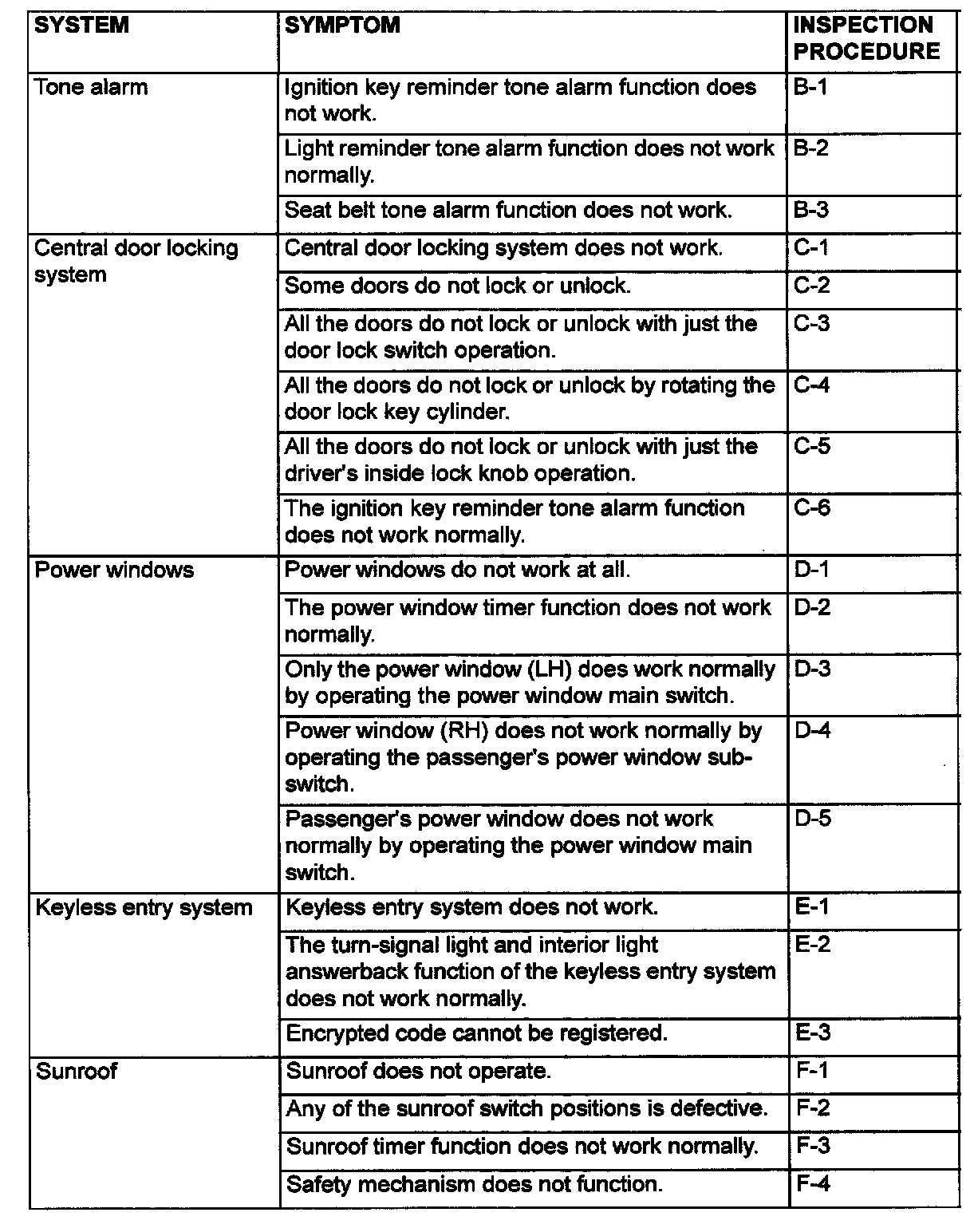

Symptom Chart Part 1:

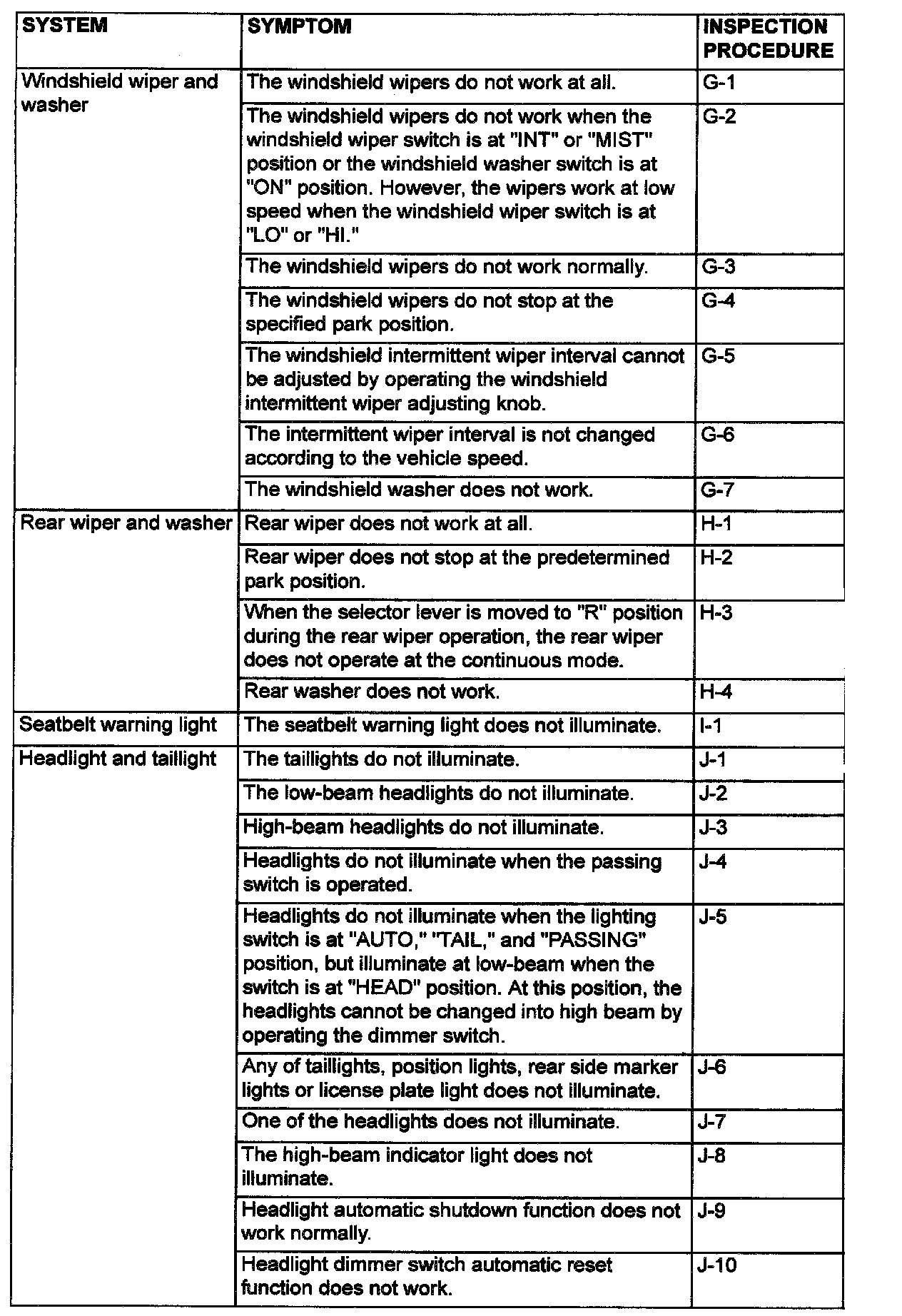

Symptom Chart Part 2:

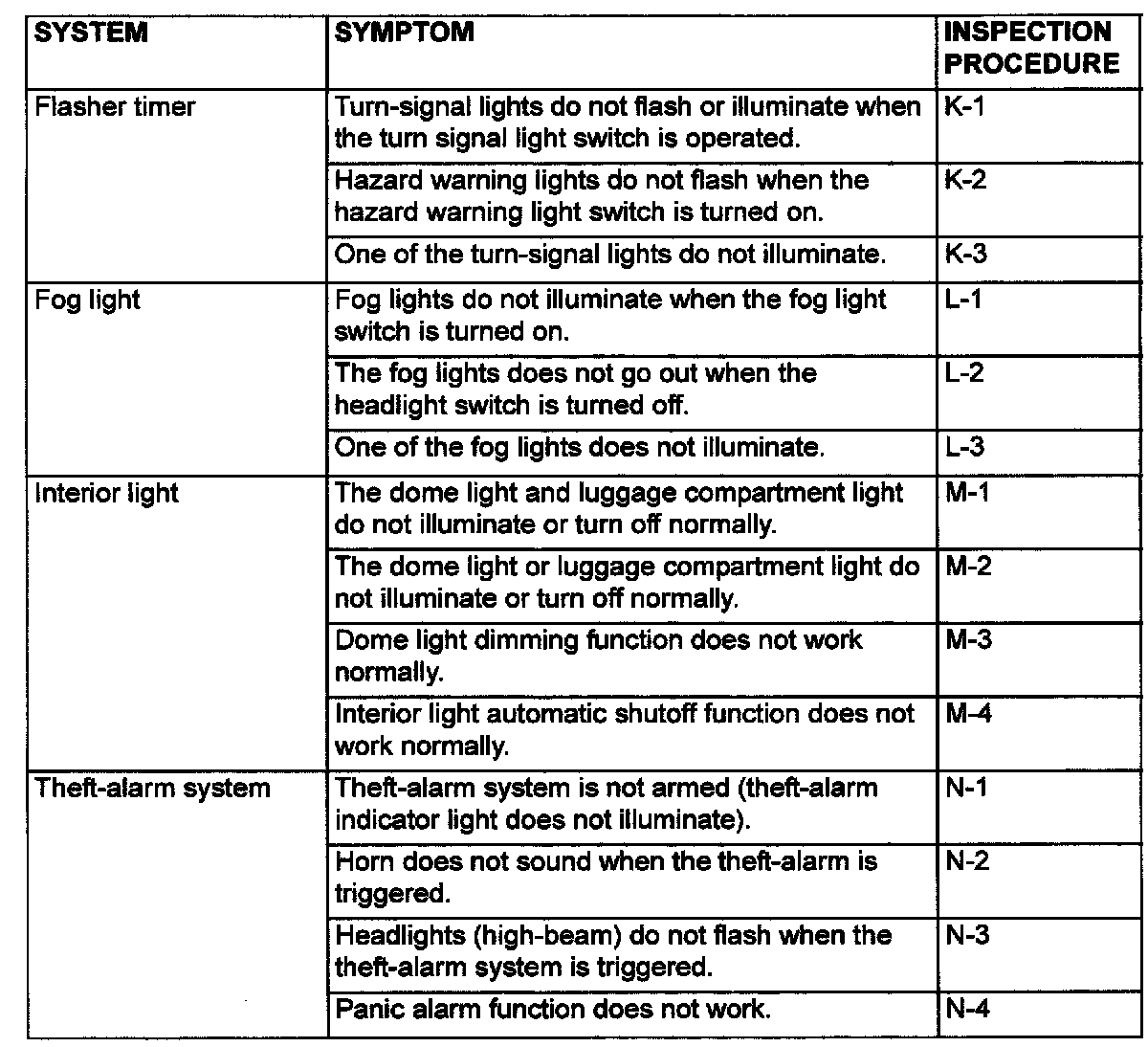

Symptom Chart Part 3:

Symptom Chart Part 4:

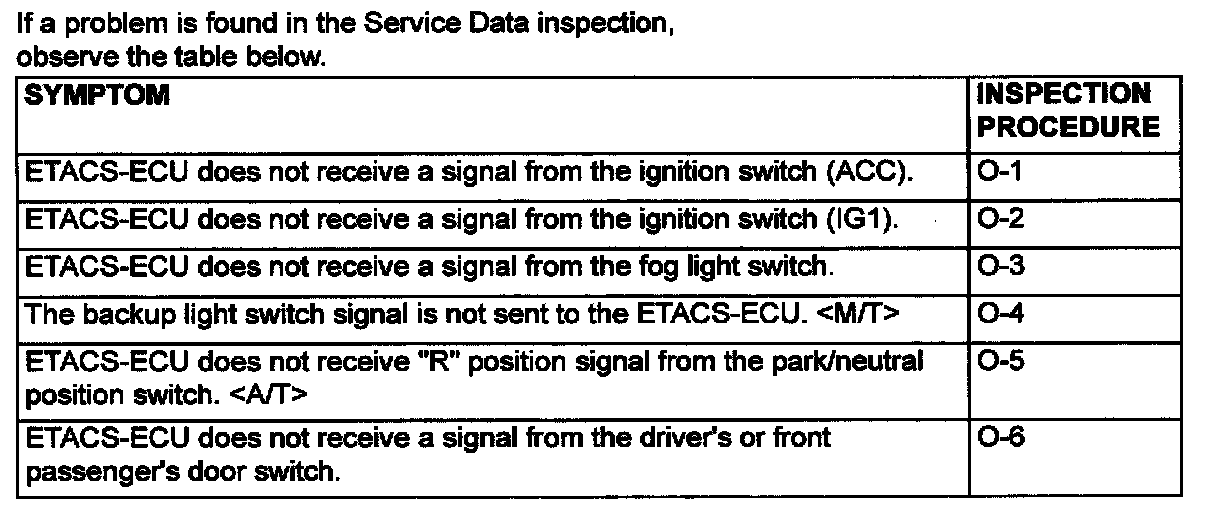

Defects Found During Input Signal Check <SWS Monitor> Part 1:

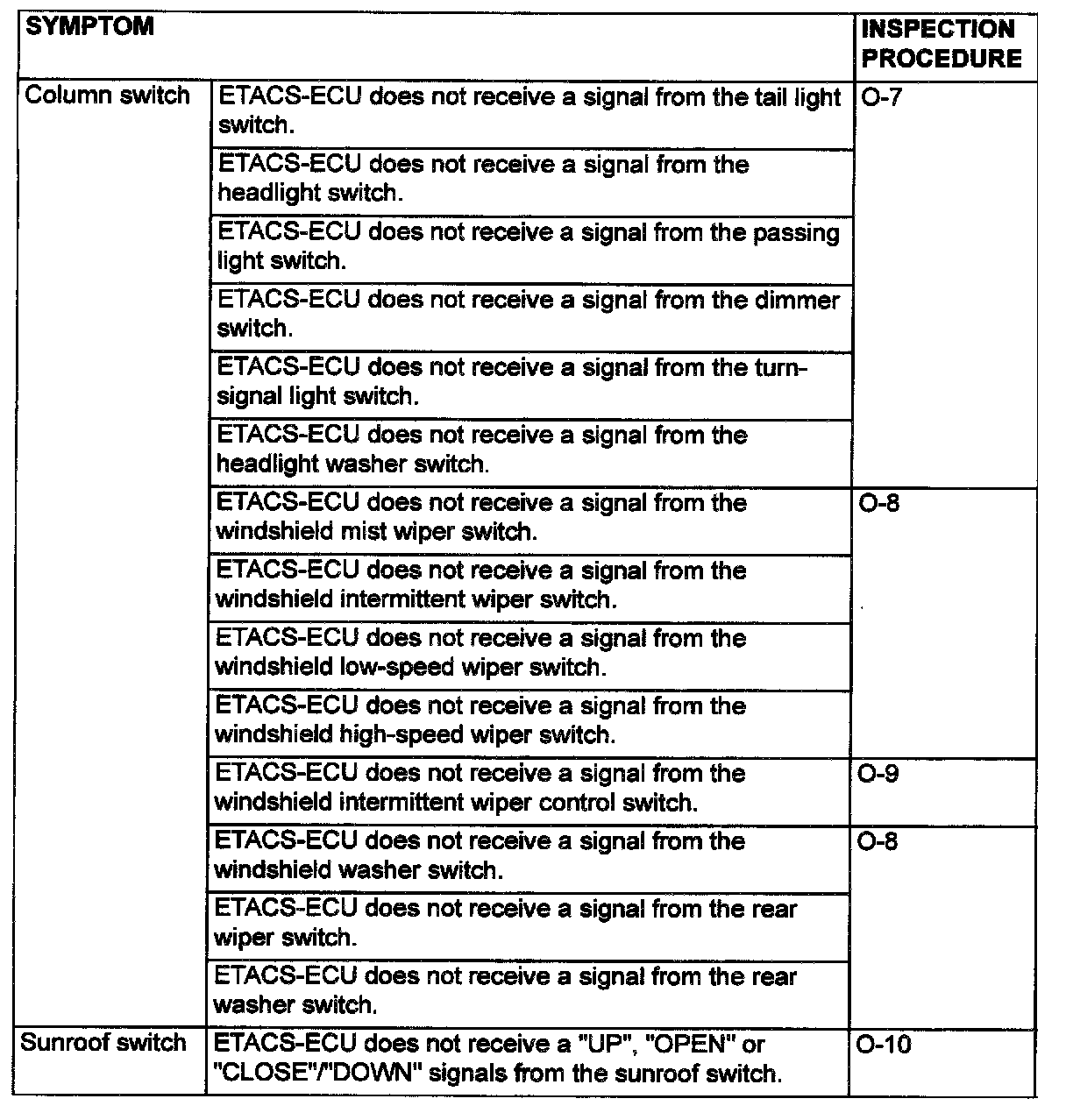

Defects Found During Input Signal Check <SWS Monitor> Part 2:

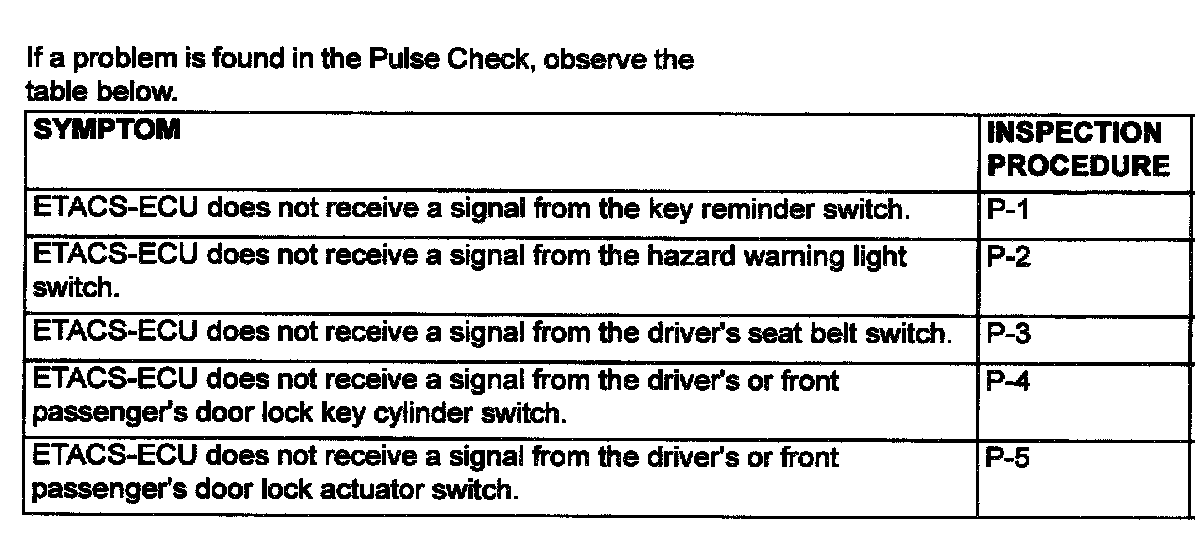

Defects Found During Input Signal Check <Scan Tool Or Voltmeter> Part 1:

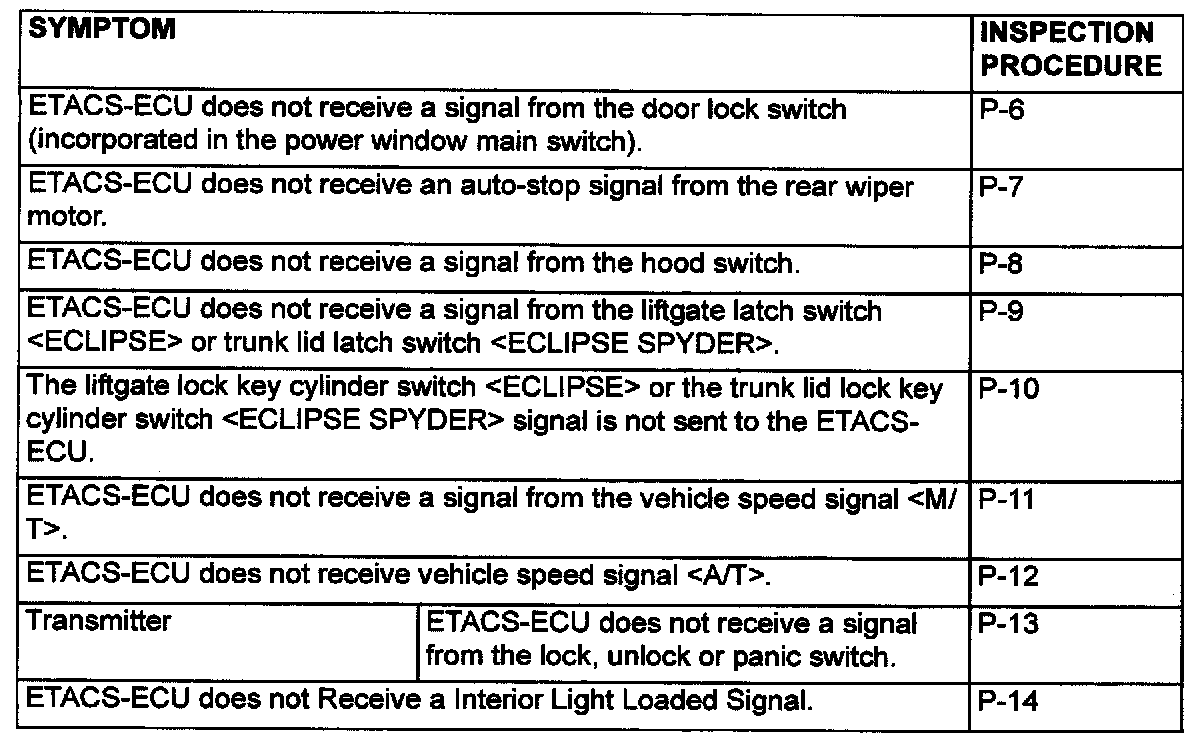

Defects Found During Input Signal Check <Scan Tool Or Voltmeter> Part 2:
