Front-ECU
Front-ECU

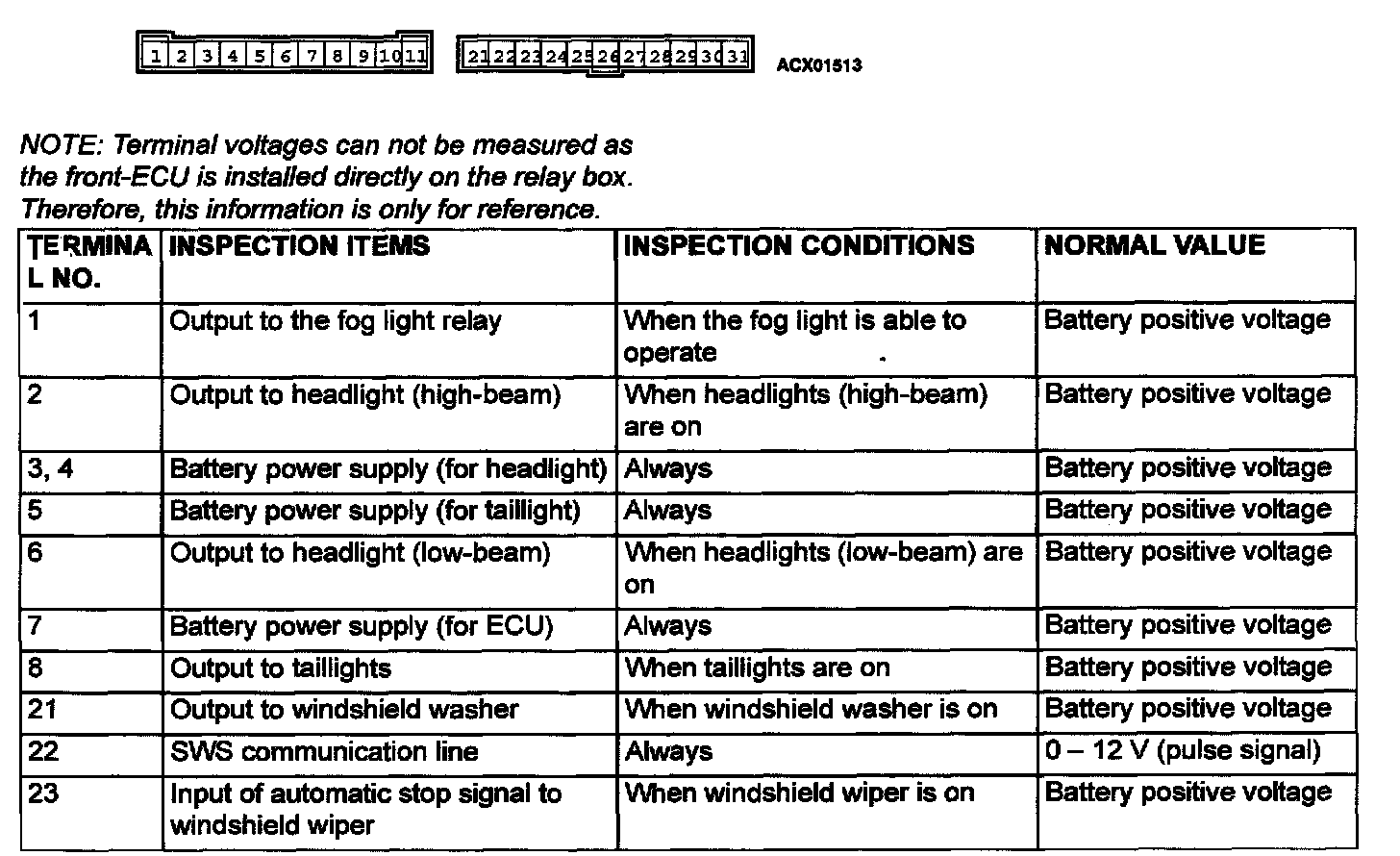

Front-ECU Terminal Arrangement And Terminal No: 1 - 23 Part 1:

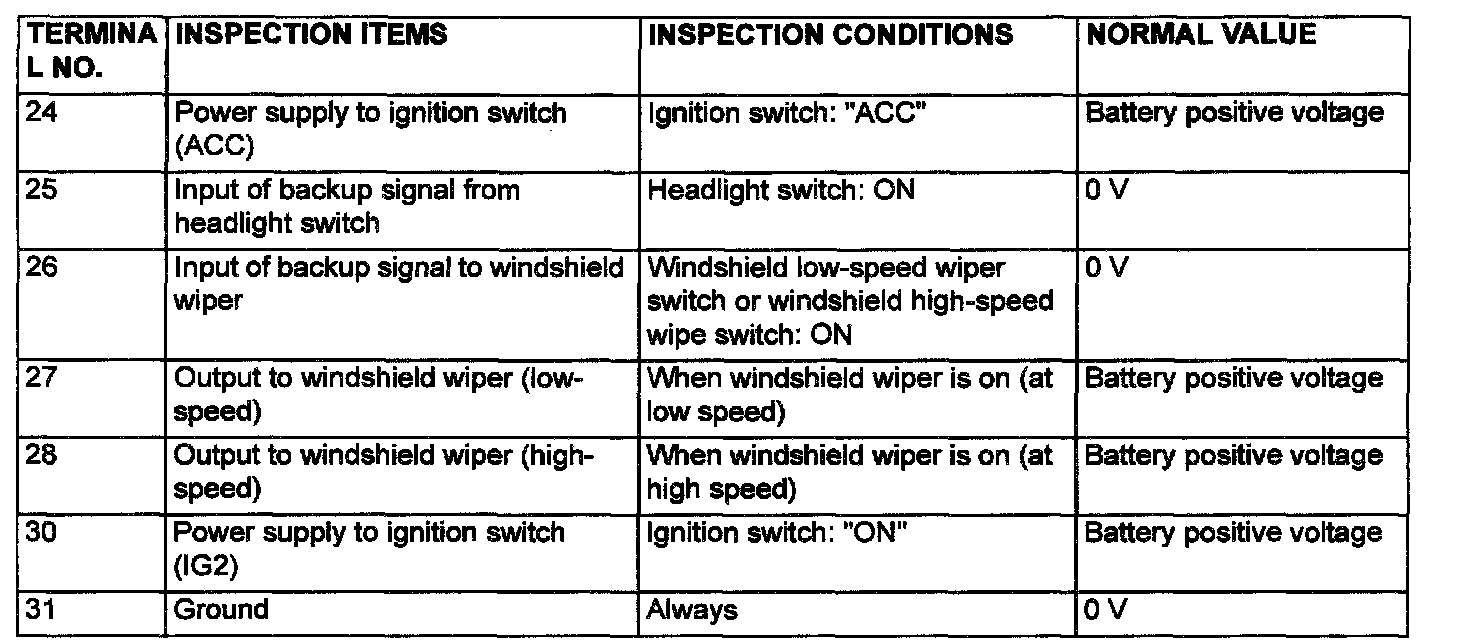

Front-ECU Terminal No: 24 - 31 Part 2:
