EATCS-ECU

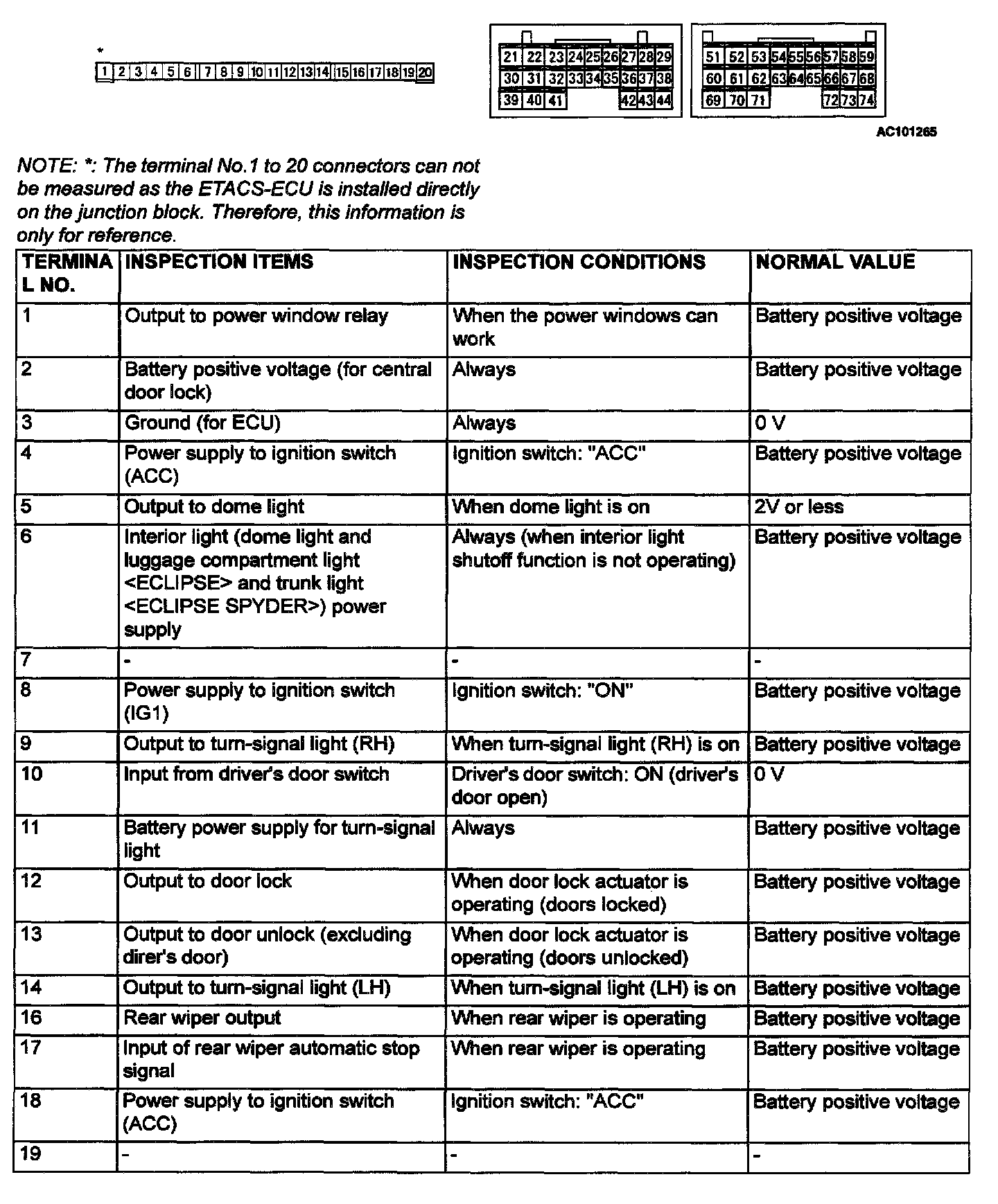

ETACS-ECU Terminal Arrangement And Terminal No: 1 - 19 Part 1:

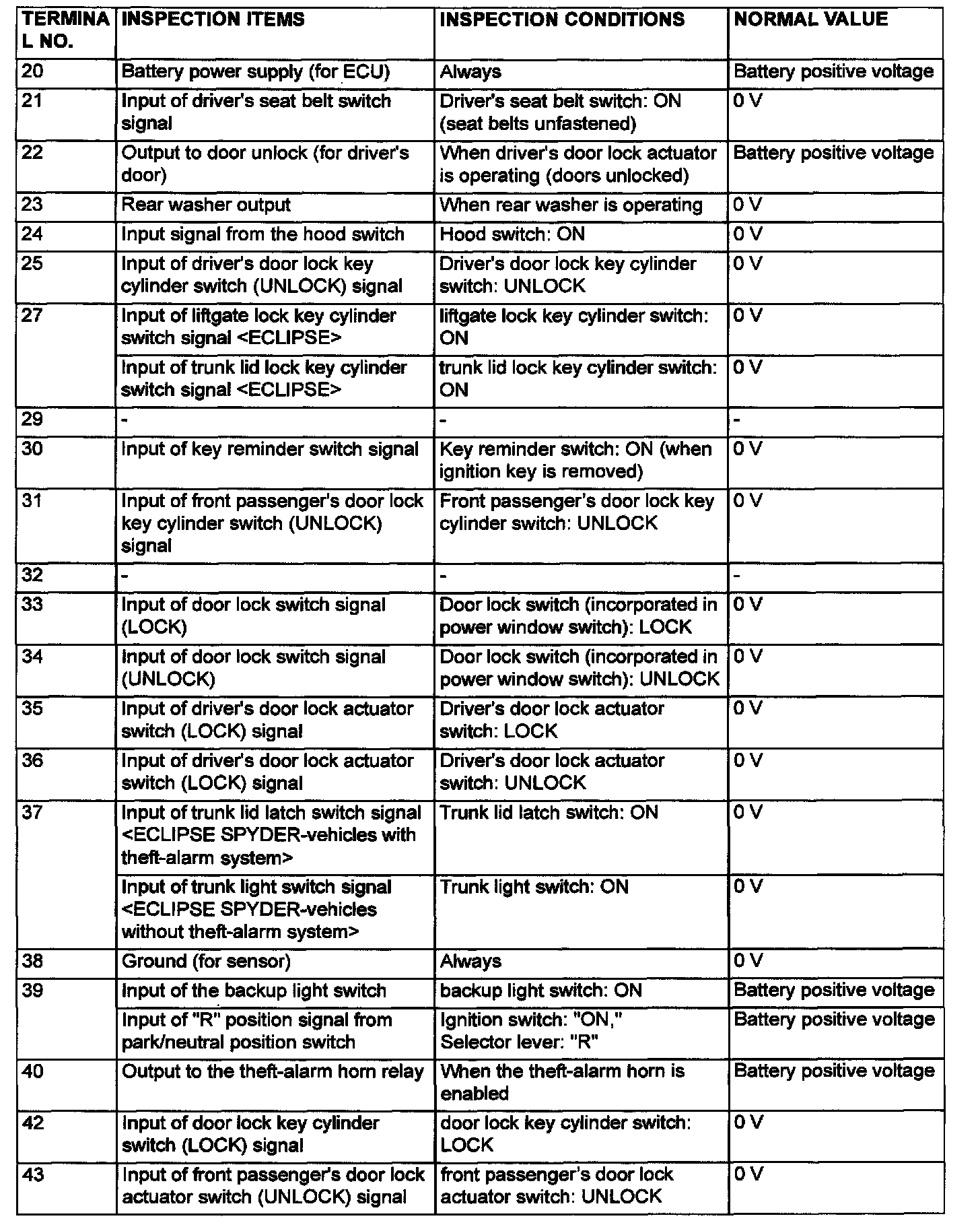

ETACS-ECU Terminal No: 20 - 43 Part 2:

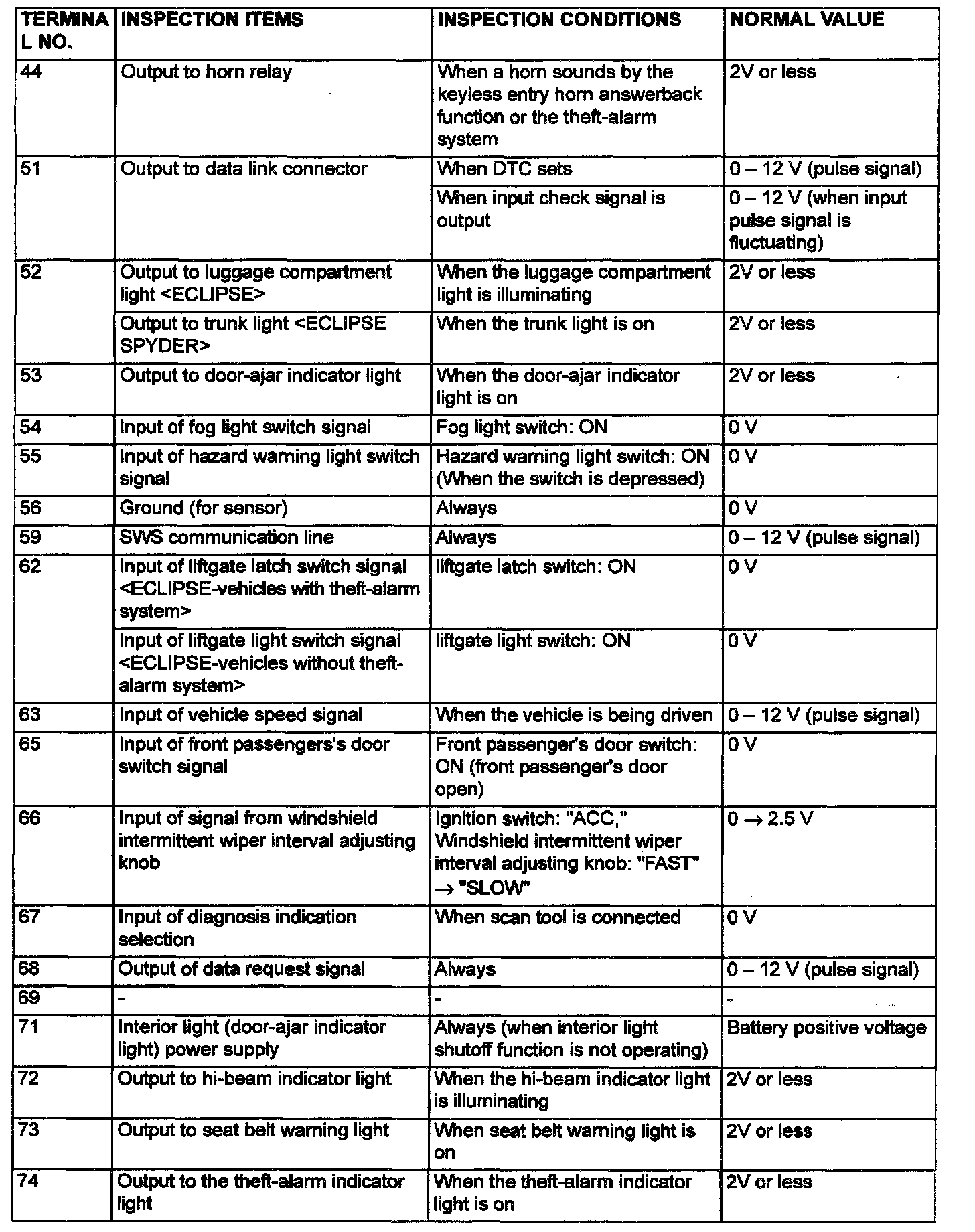

ETACS-ECU Terminal No: 44 - 74 Part 3:
