02 - Inspection Procedure

When the Air Outlet Changeover Control Knob is moved to Defroster or Defroster/Foot Position, the A/C or the Inside/Outside Air Changeover Damper Motor does not Operate.

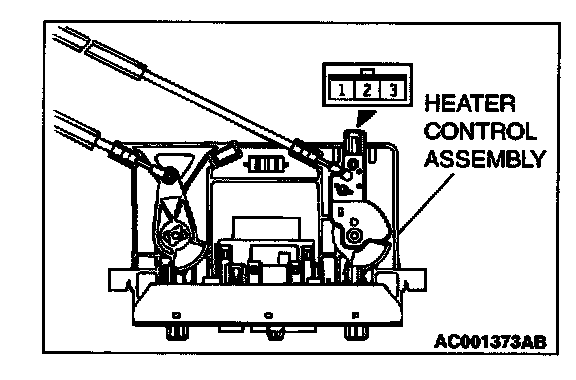

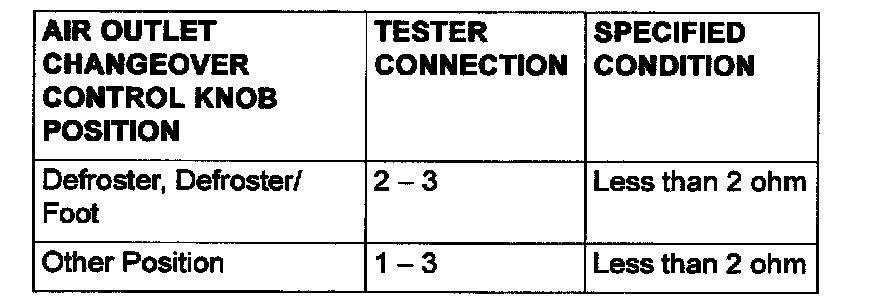

STEP 1. Check the defroster switch continuity.

Q: Is the defroster switch in good condition?

YES: Go to Step 2.

NO: Replace. Then go to Step 2.

STEP 2. Check each A/C part.
Refer to Inspection Procedure 1.

Q: Is the A/C operating properly?

YES: This diagnosis is complete. (If no malfunctions are not found in all steps, an intermittent malfunction is suspected. Refer to How to Use Troubleshooting/Inspection Service Points - How to Cope with Intermittent Malfunction.)

NO: Go to Step 1.
