Engine Compartment Harness - A Connectors
Engine Compartment Harness - A Connectors

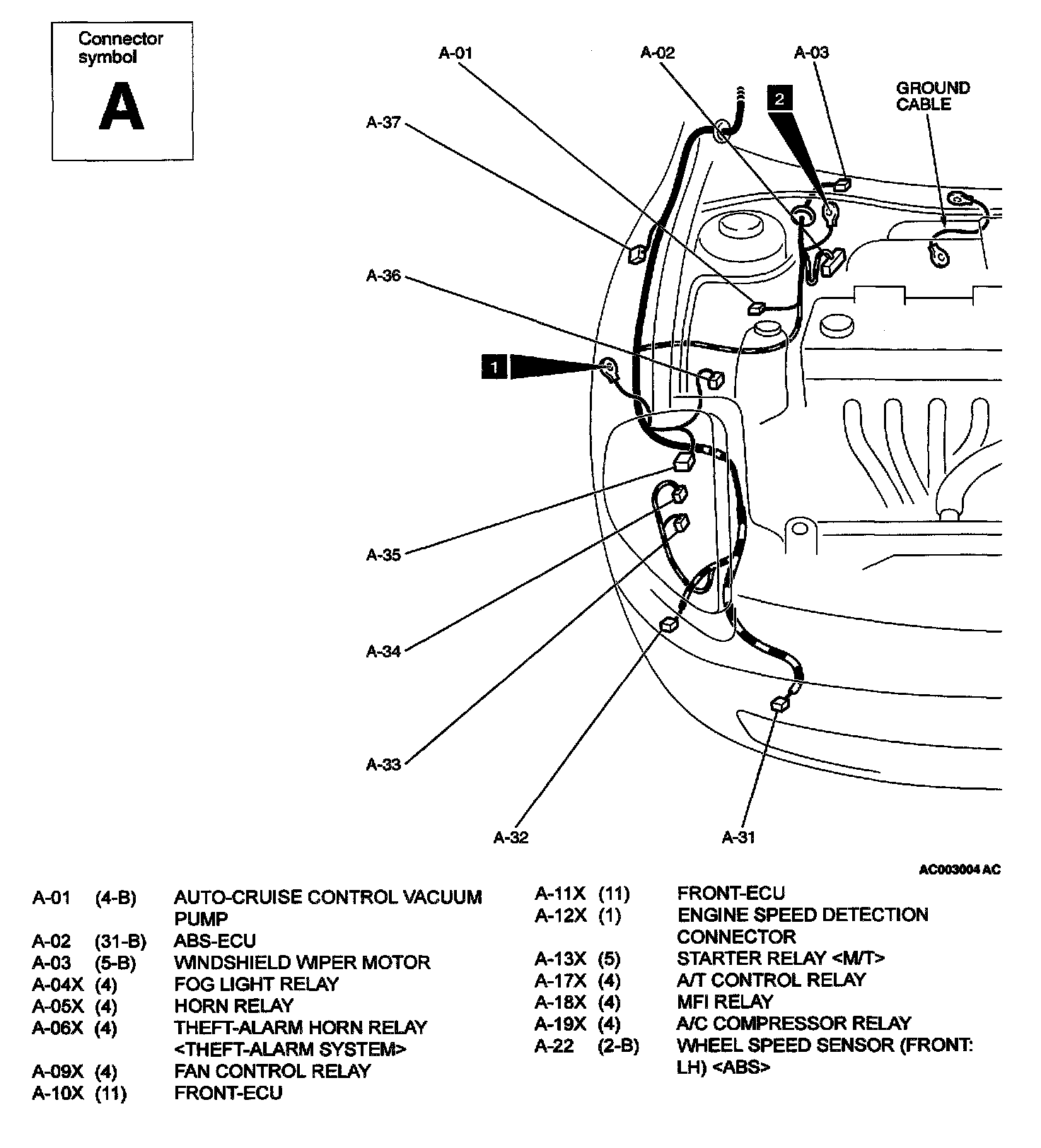

Engine Compartment - A Connector [01 (4-B) Thru 22 (2-B)]:

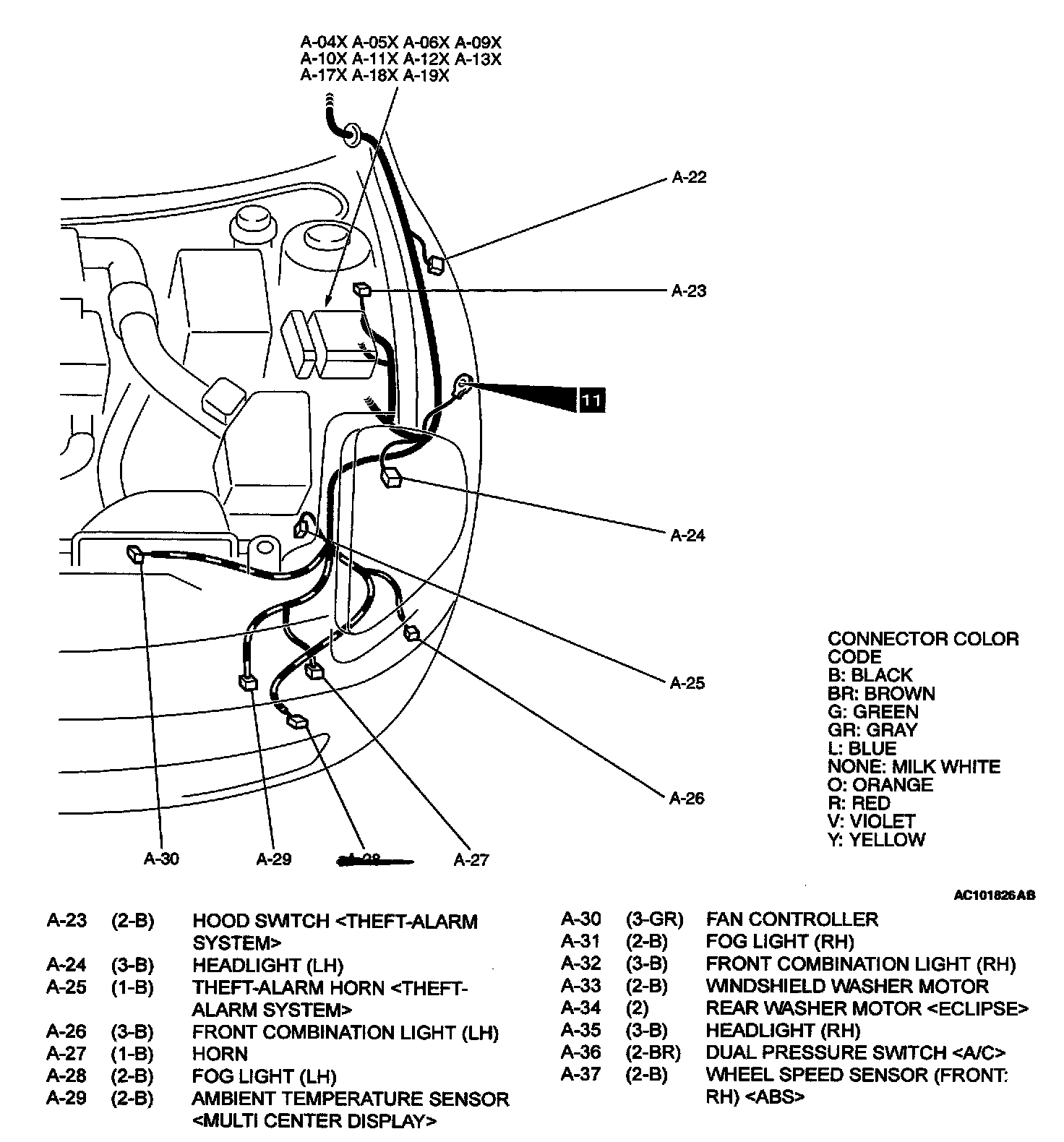

Engine Compartment - A Connector [23 (2-B) Thru 37 (2-B)]:
