Eclipse GT V6-3.0L SOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Wheel Cylinder
Wheel Cylinder

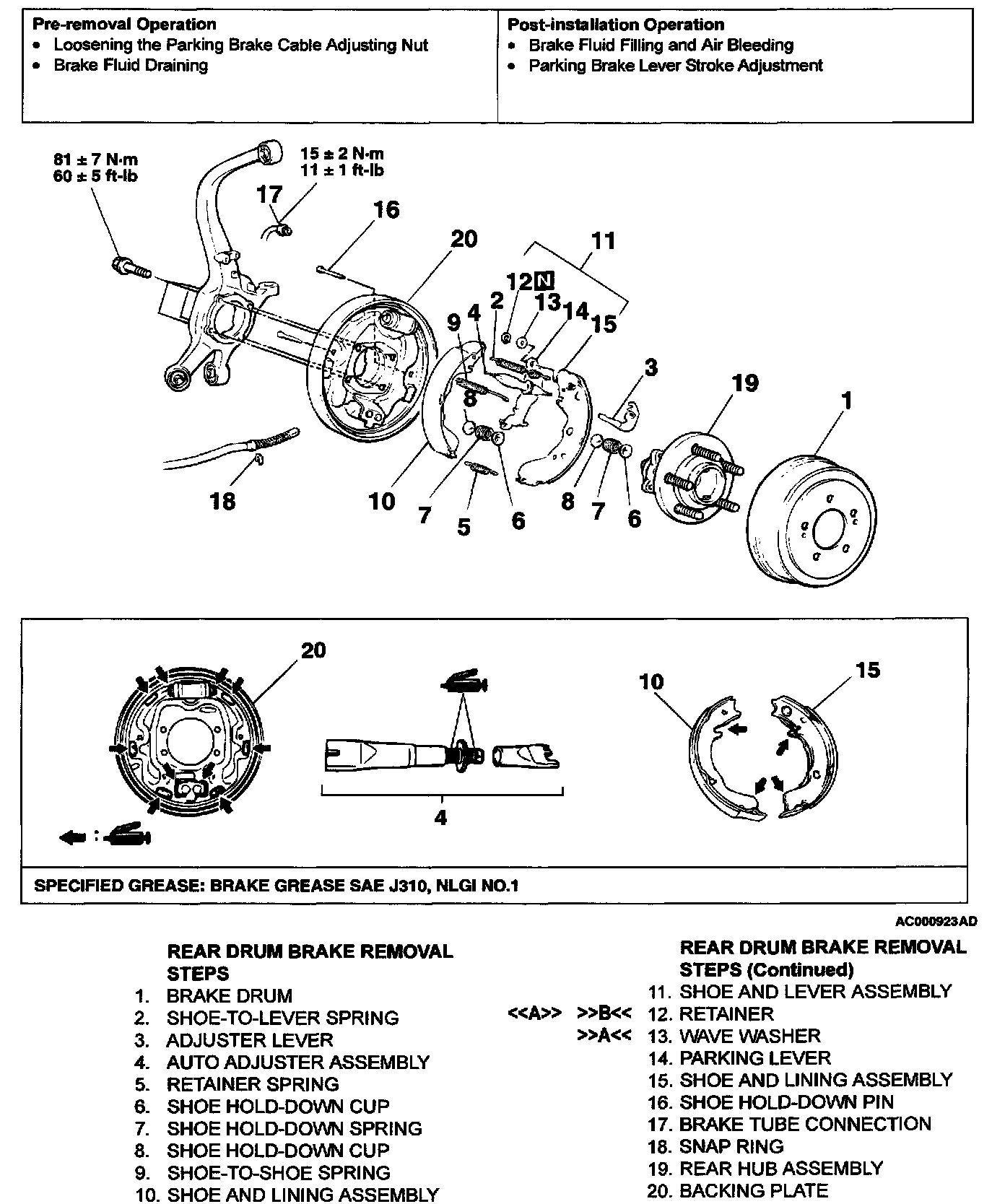

REAR DRUM BRAKE
WHEEL CYLINDER
REPLACEMENT AND OVERHAUL W/ RELATED COMPONENTS
Replacement

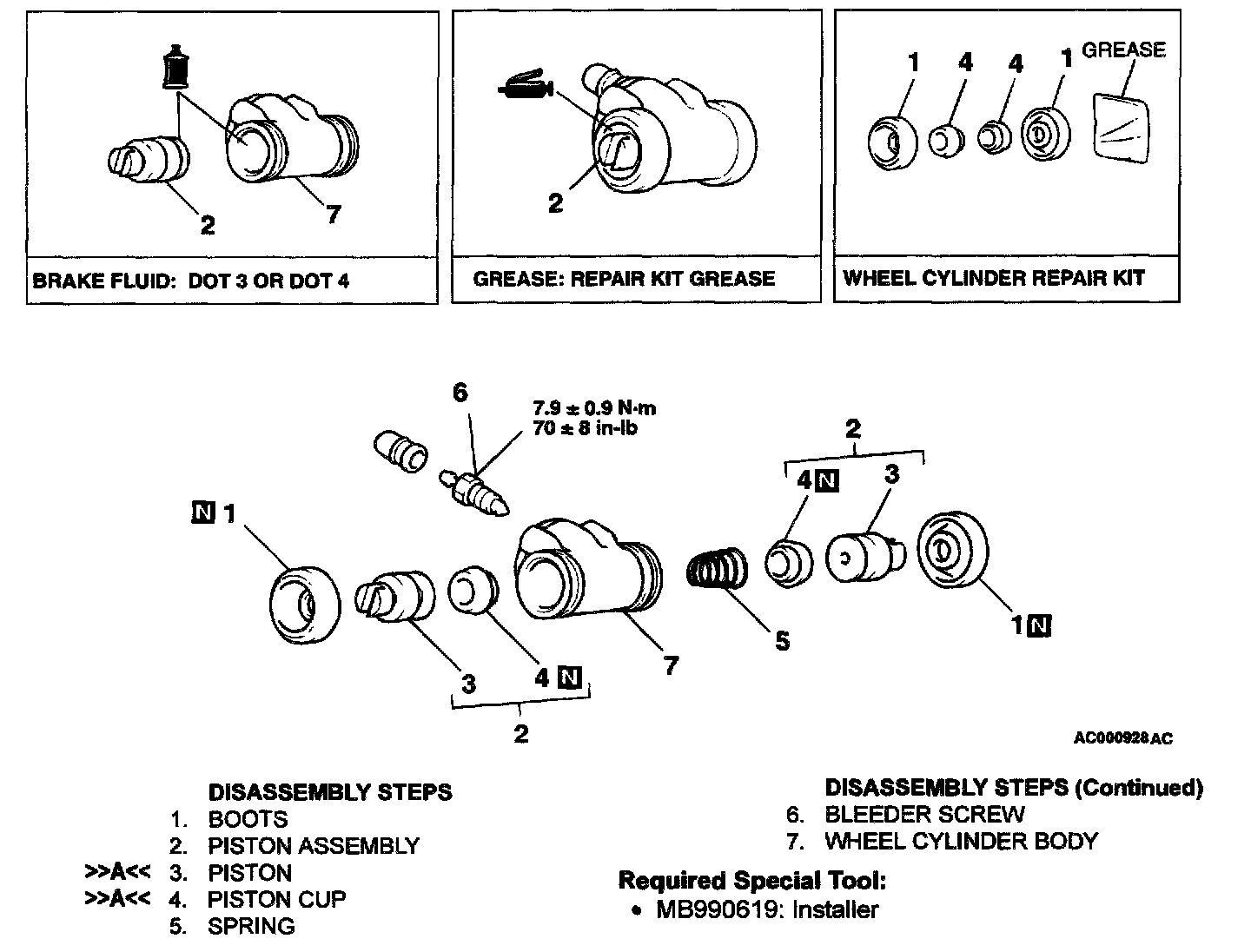

Overhaul
