Antitheft and Alarm Systems
Antitheft and Alarm Systems

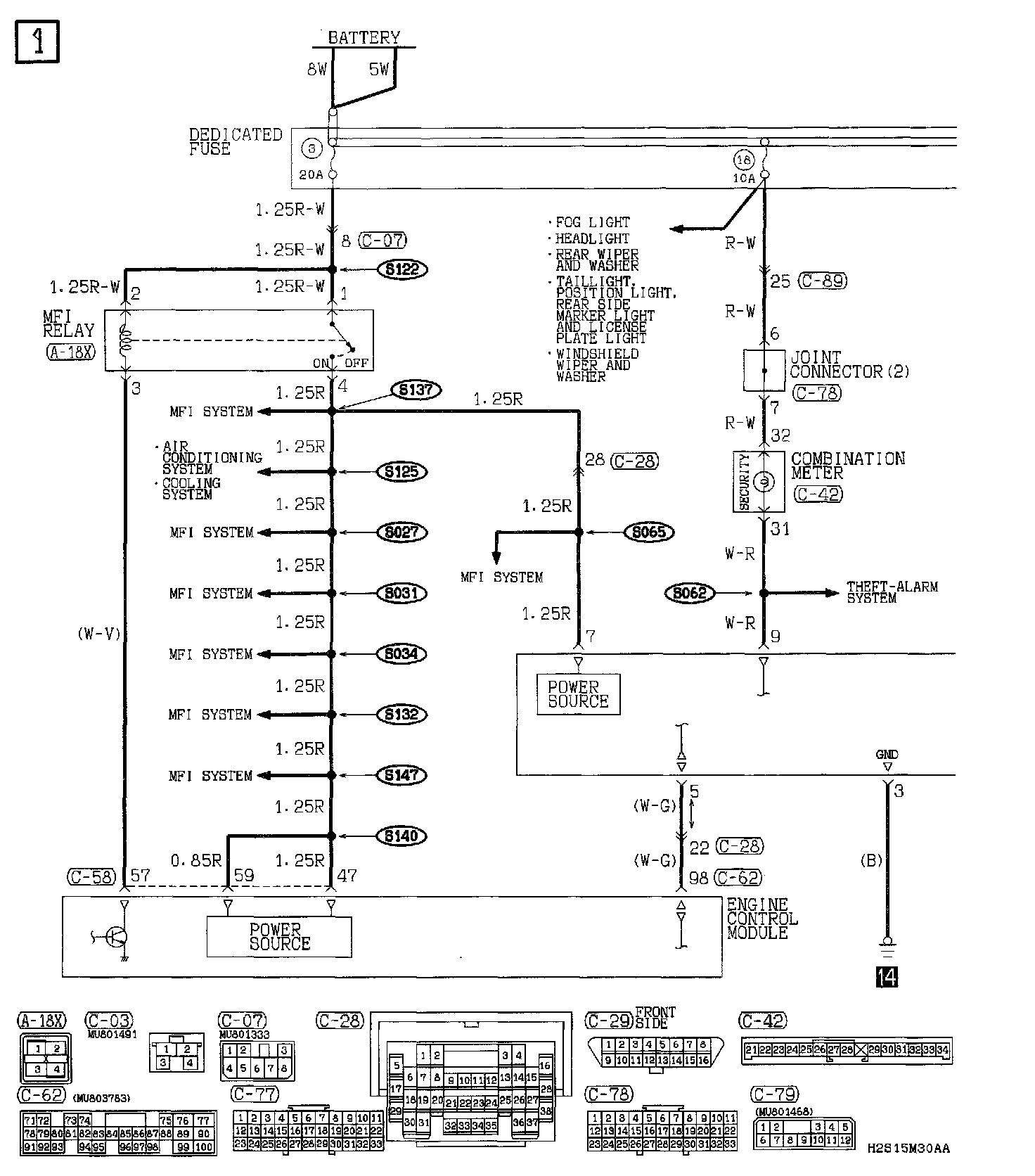

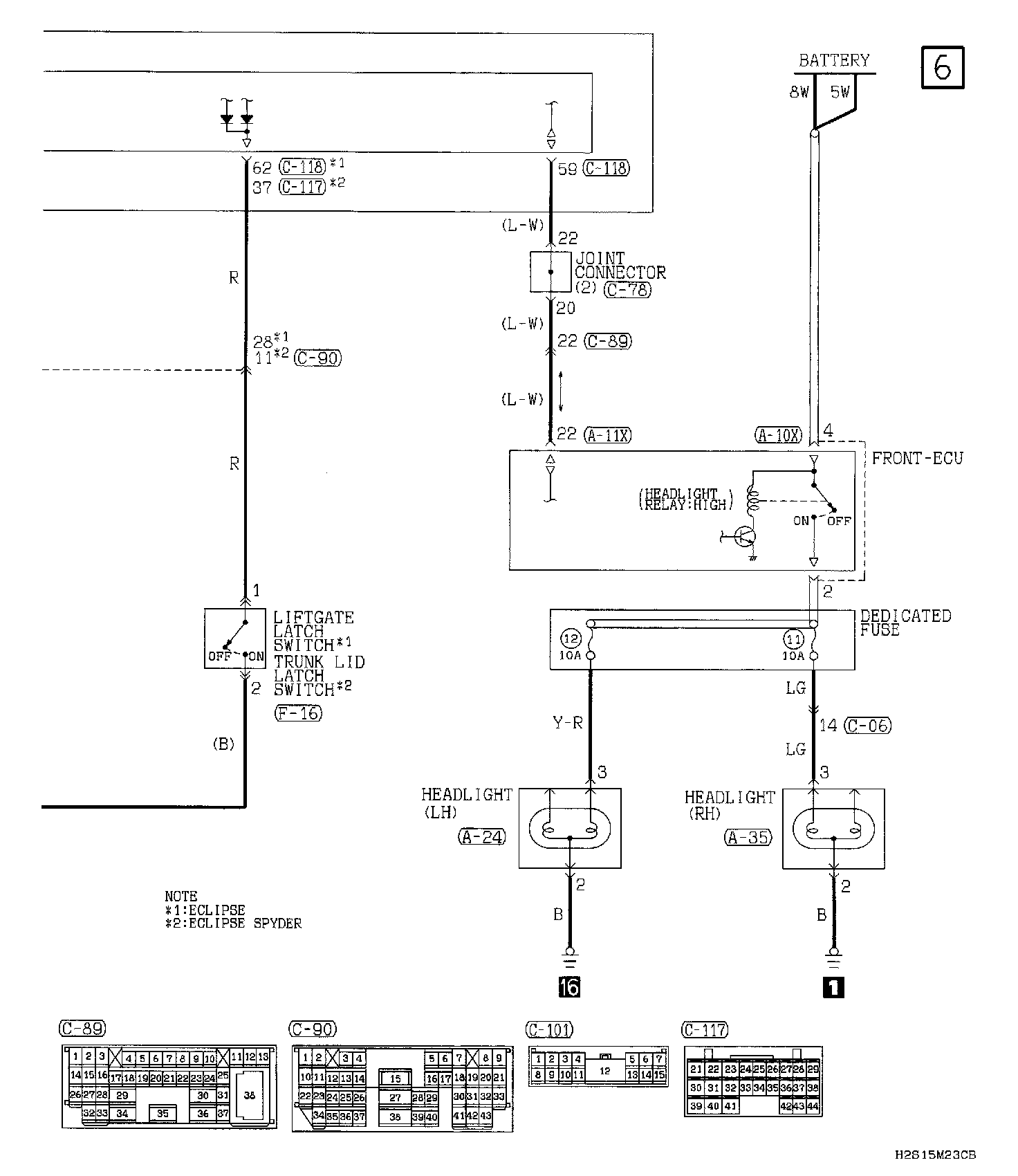

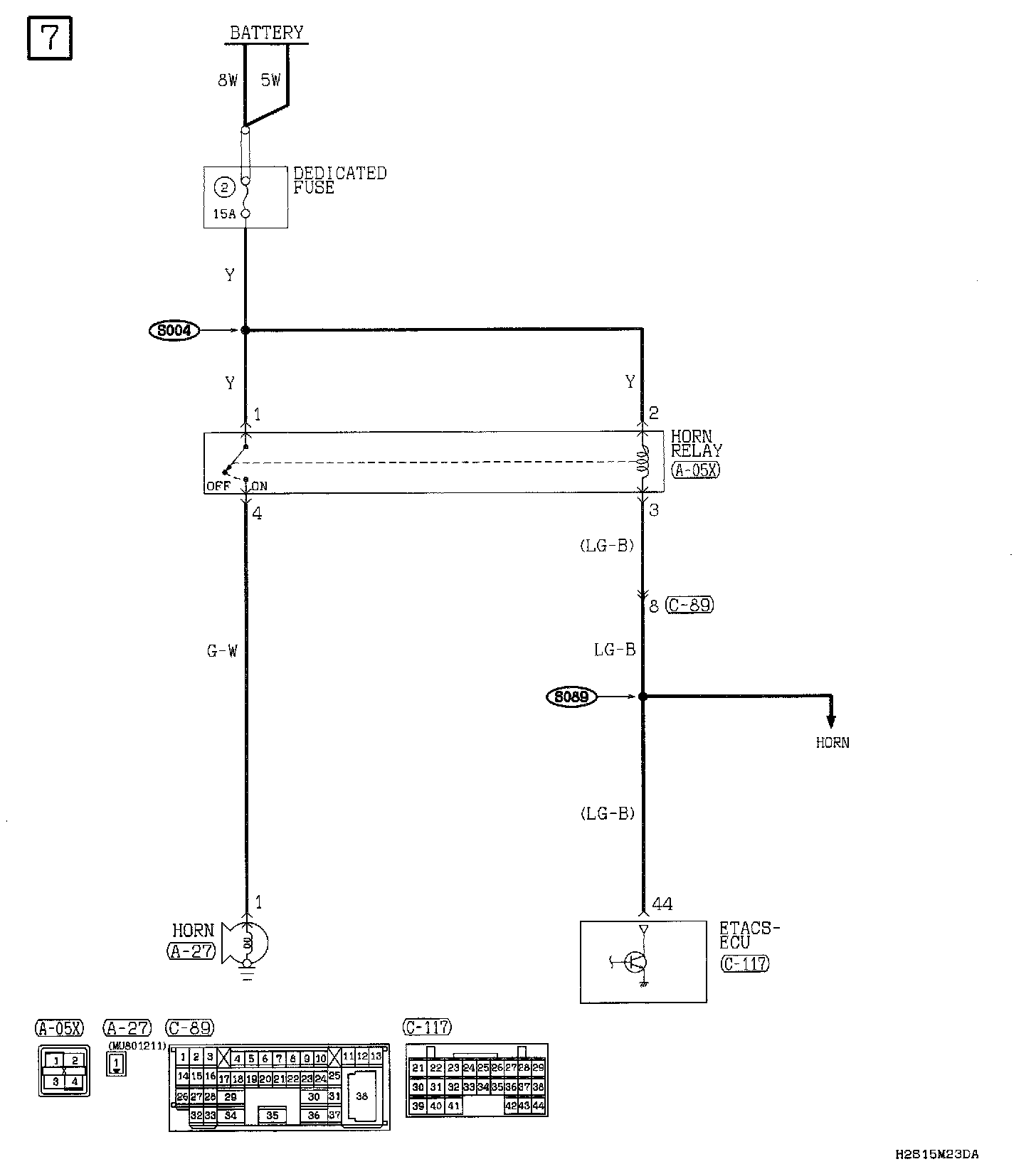

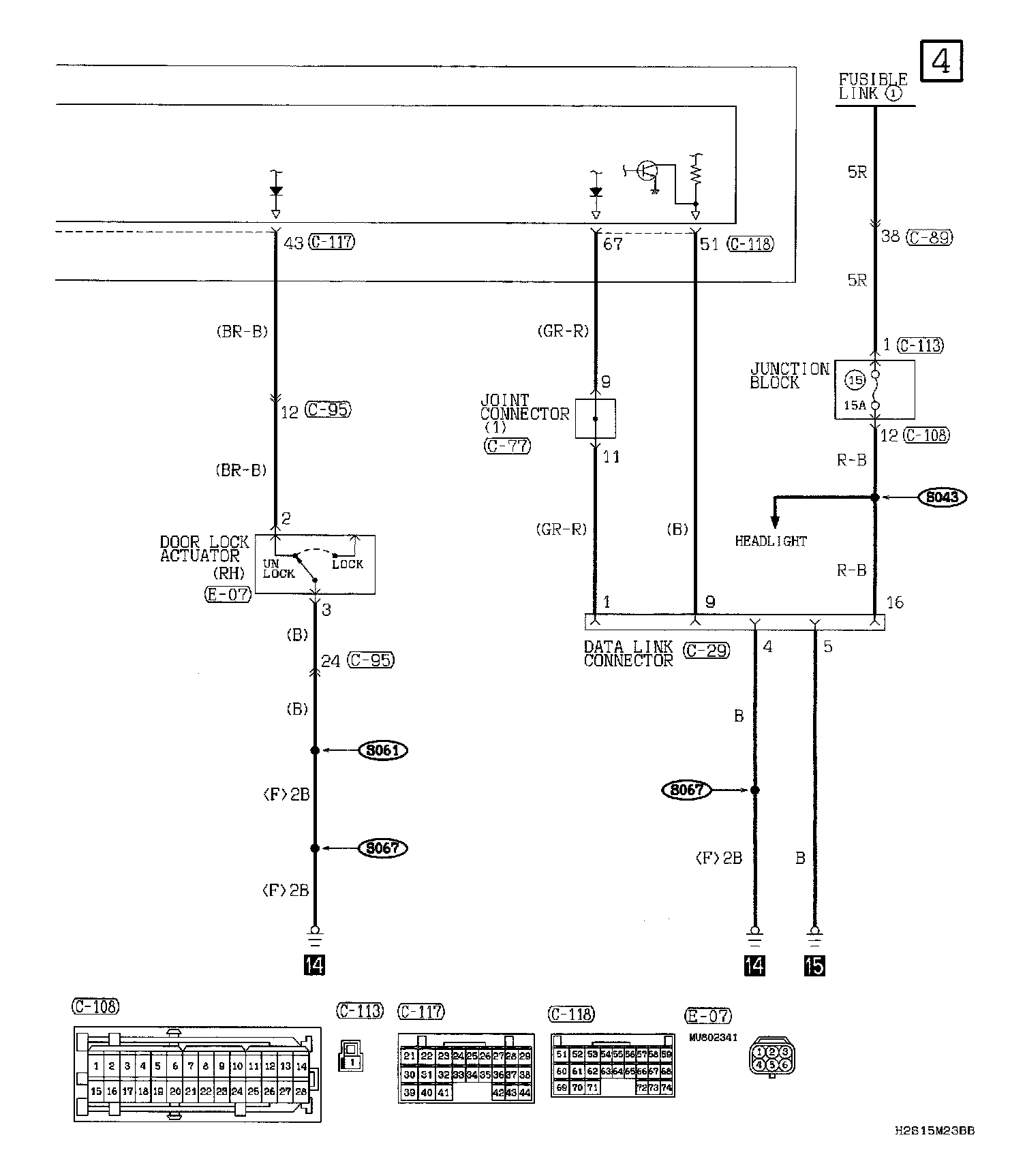

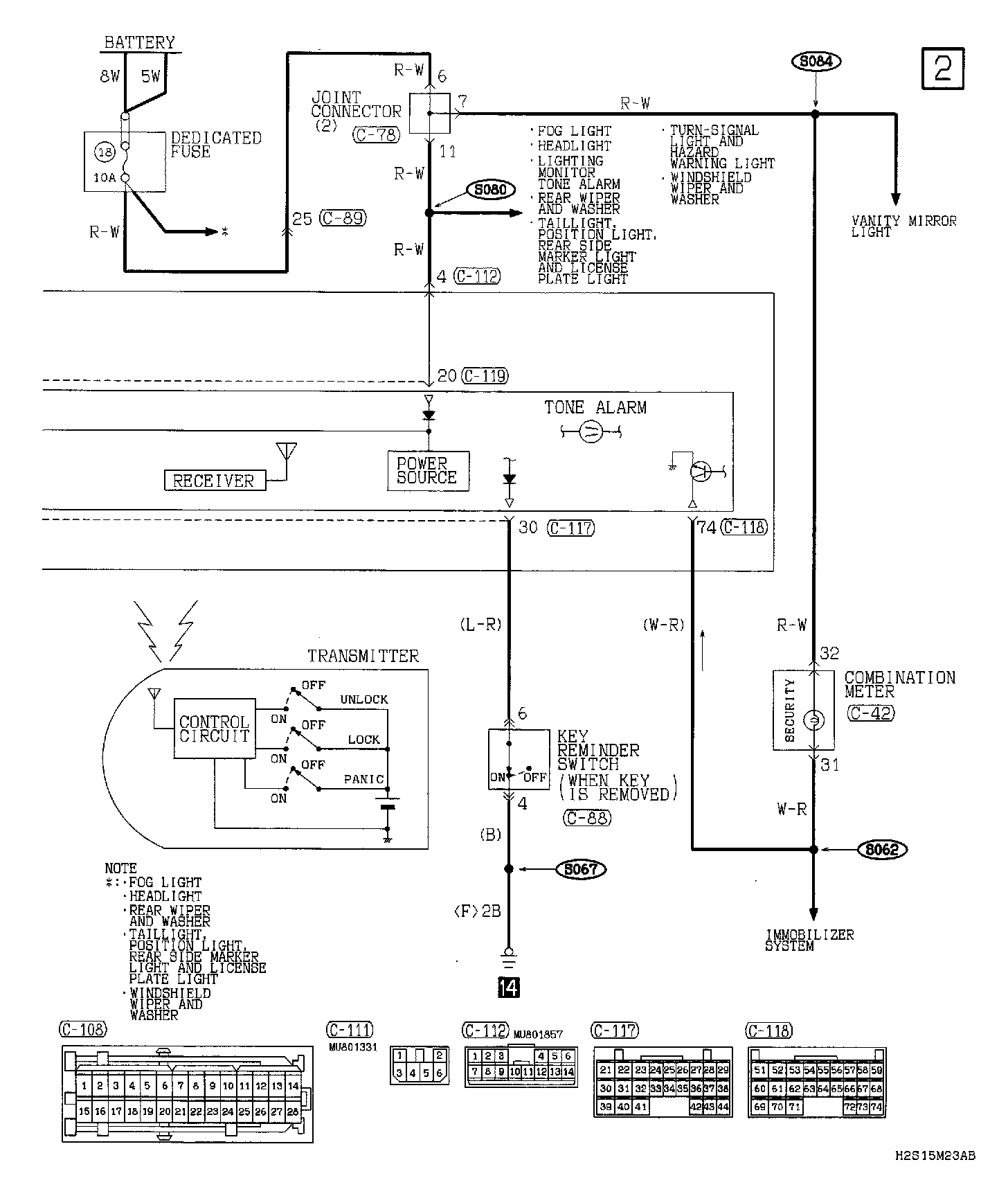

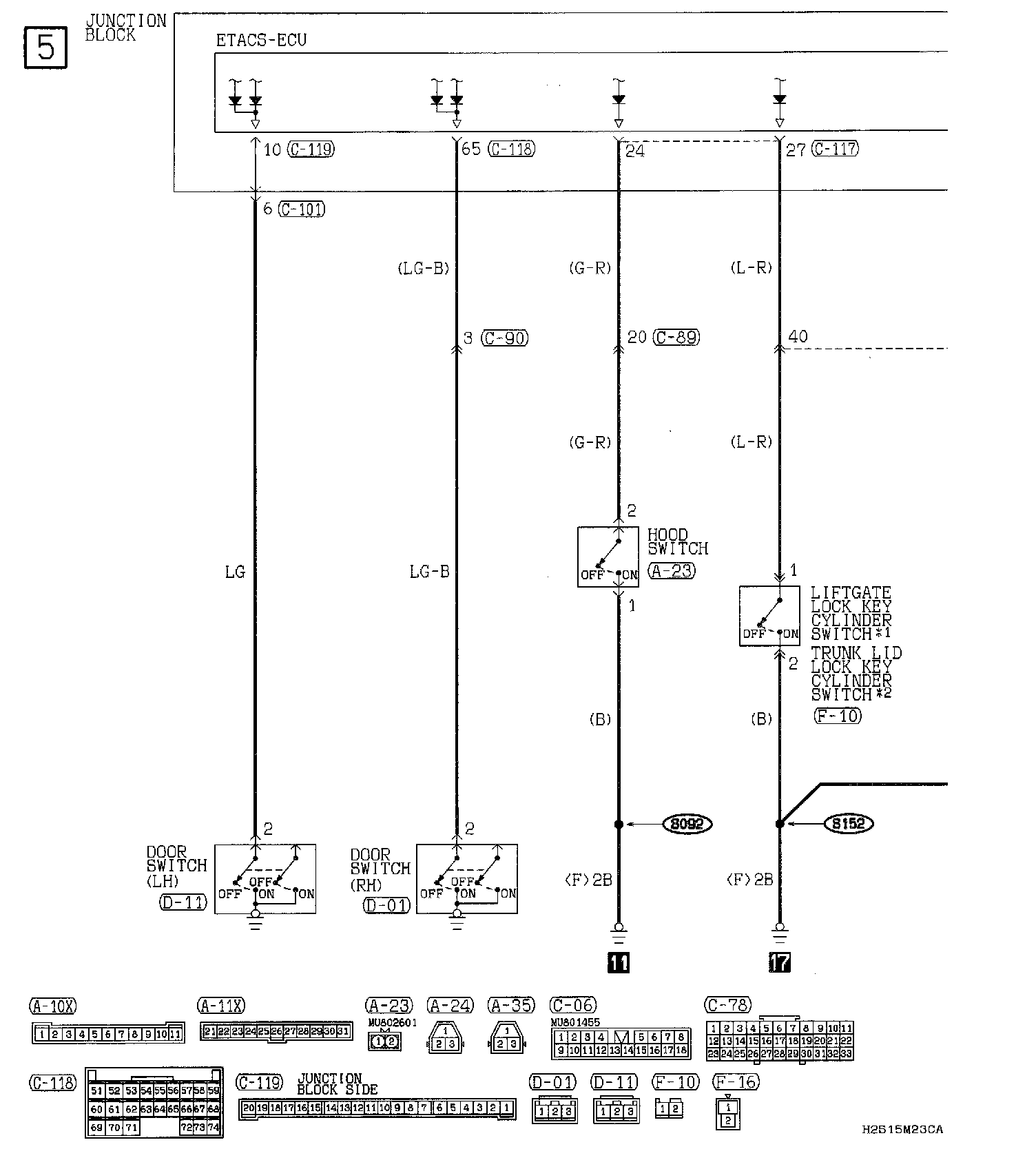

Theft-Alarm System Part 1:
Part 2:

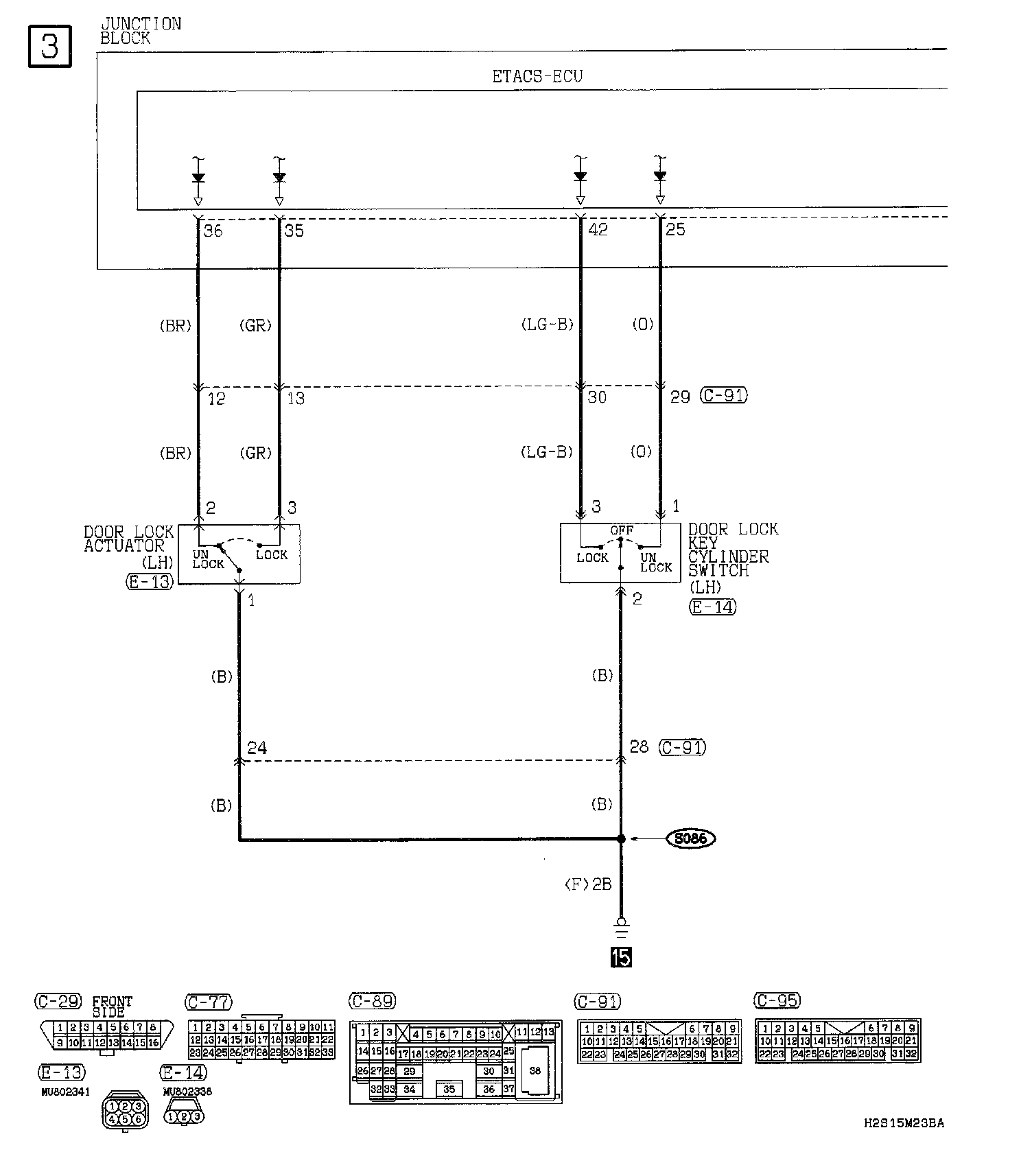

Part 3:
Part 4:
Part 5:
Part 6:
Part 7:

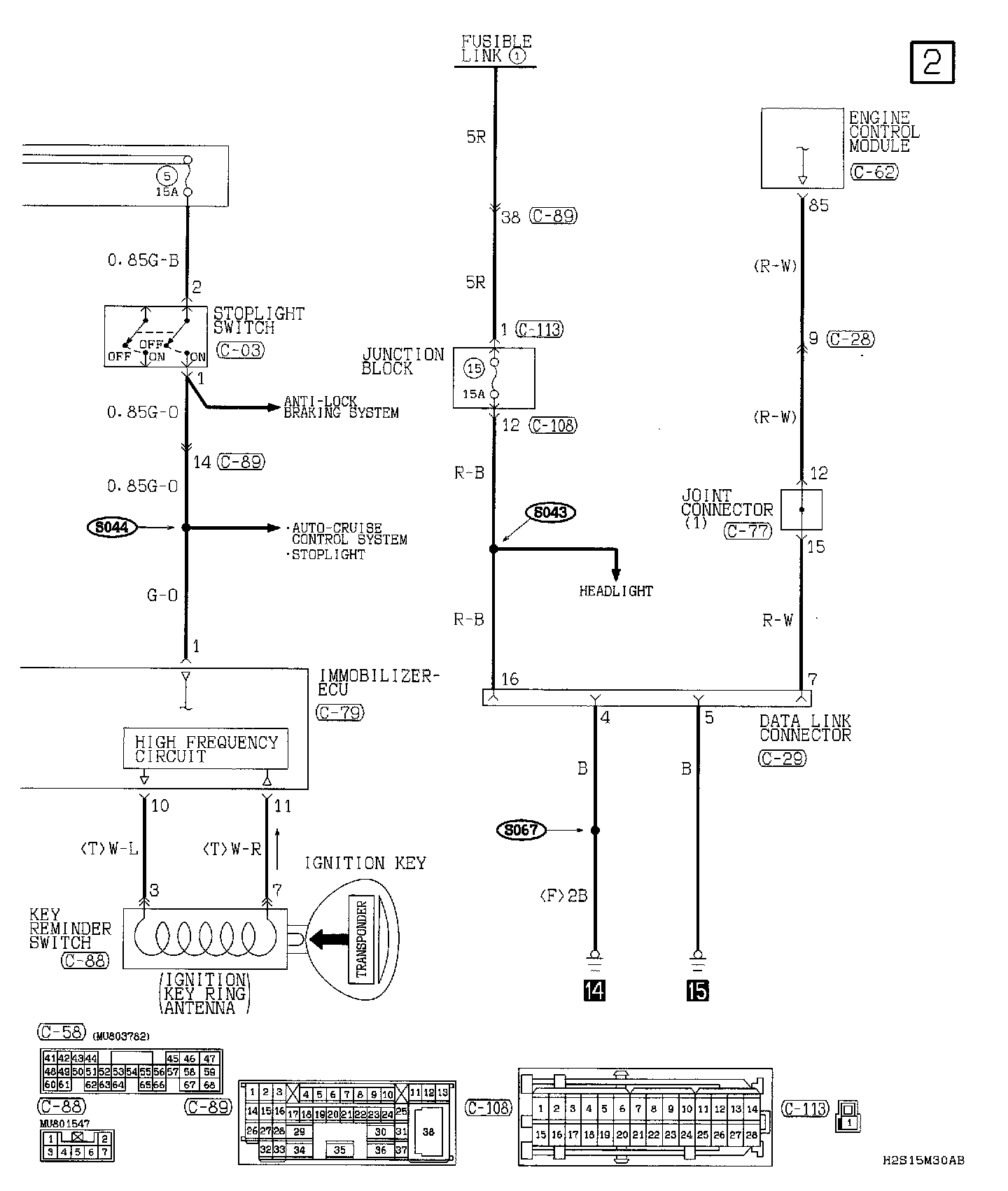

Immobilizer System <3.0L Engine-M/T> Part 1:
Part 2:

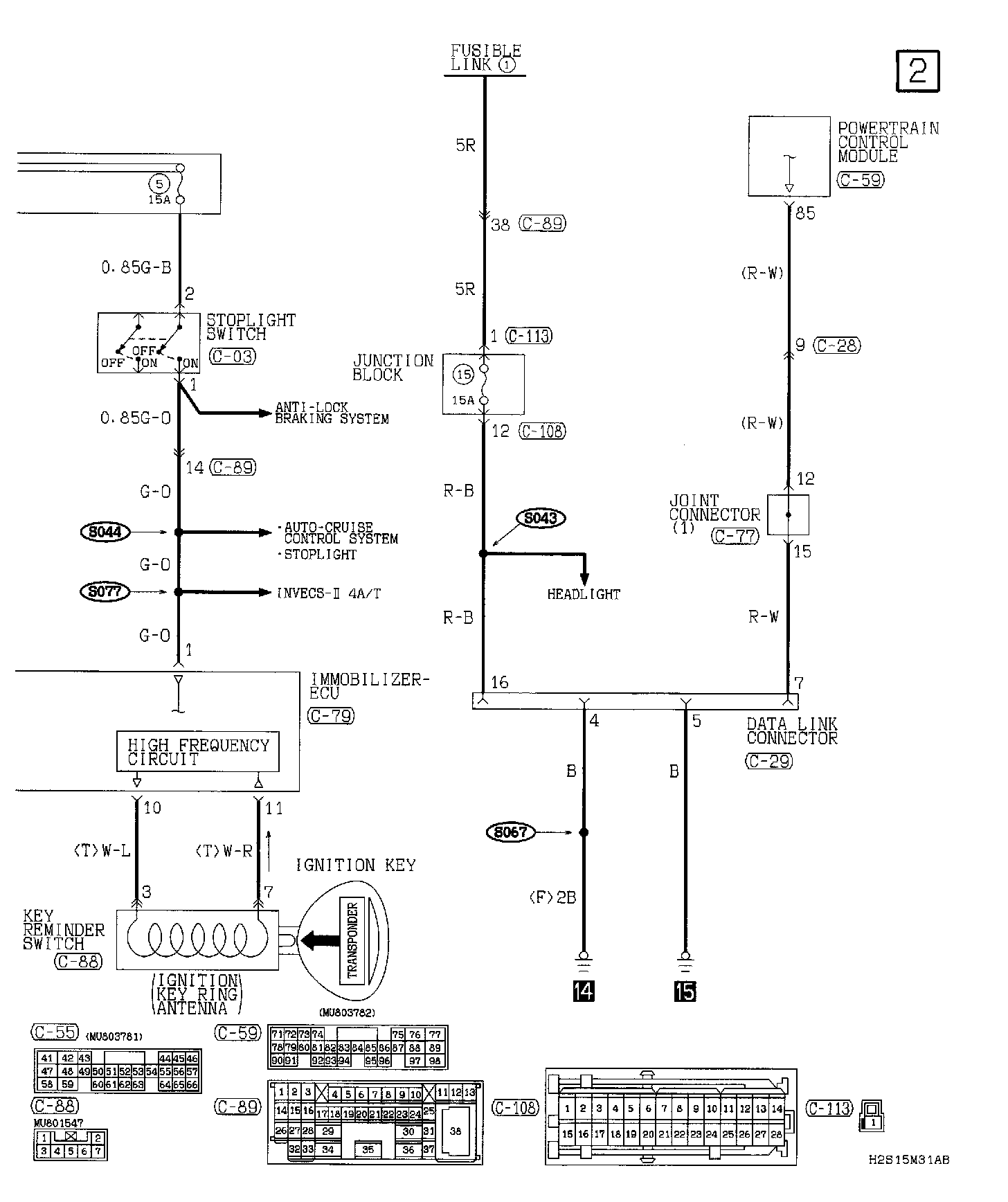

Immobilizer System <3.0L Engine-A/T> Part 1:
Part 2:
