B Connector - Engine and Transaxle Harness

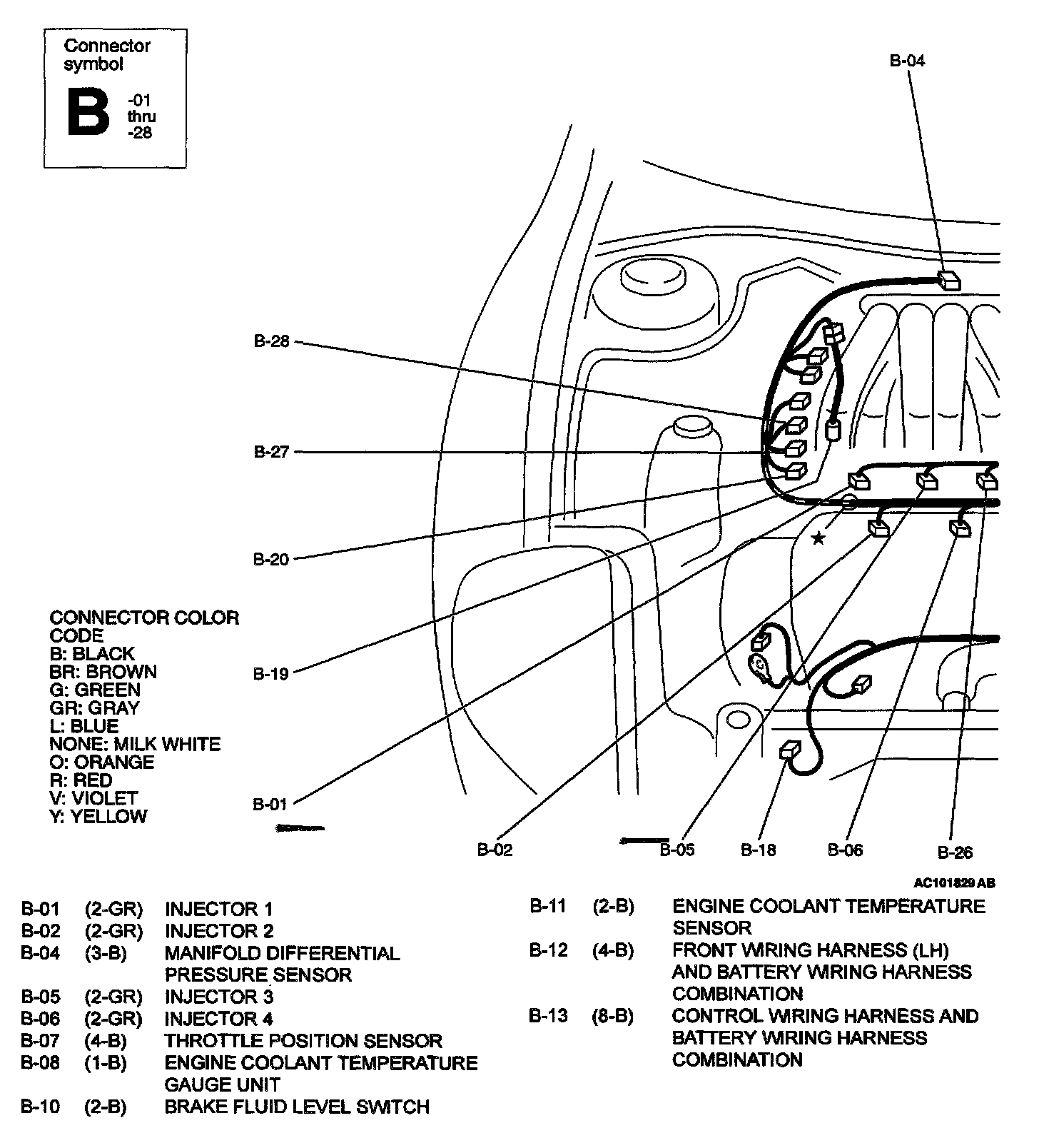

Engine/Transaxle (3.0L) - B Connector [01 (2-GR) Thru 13 (8-B)]:

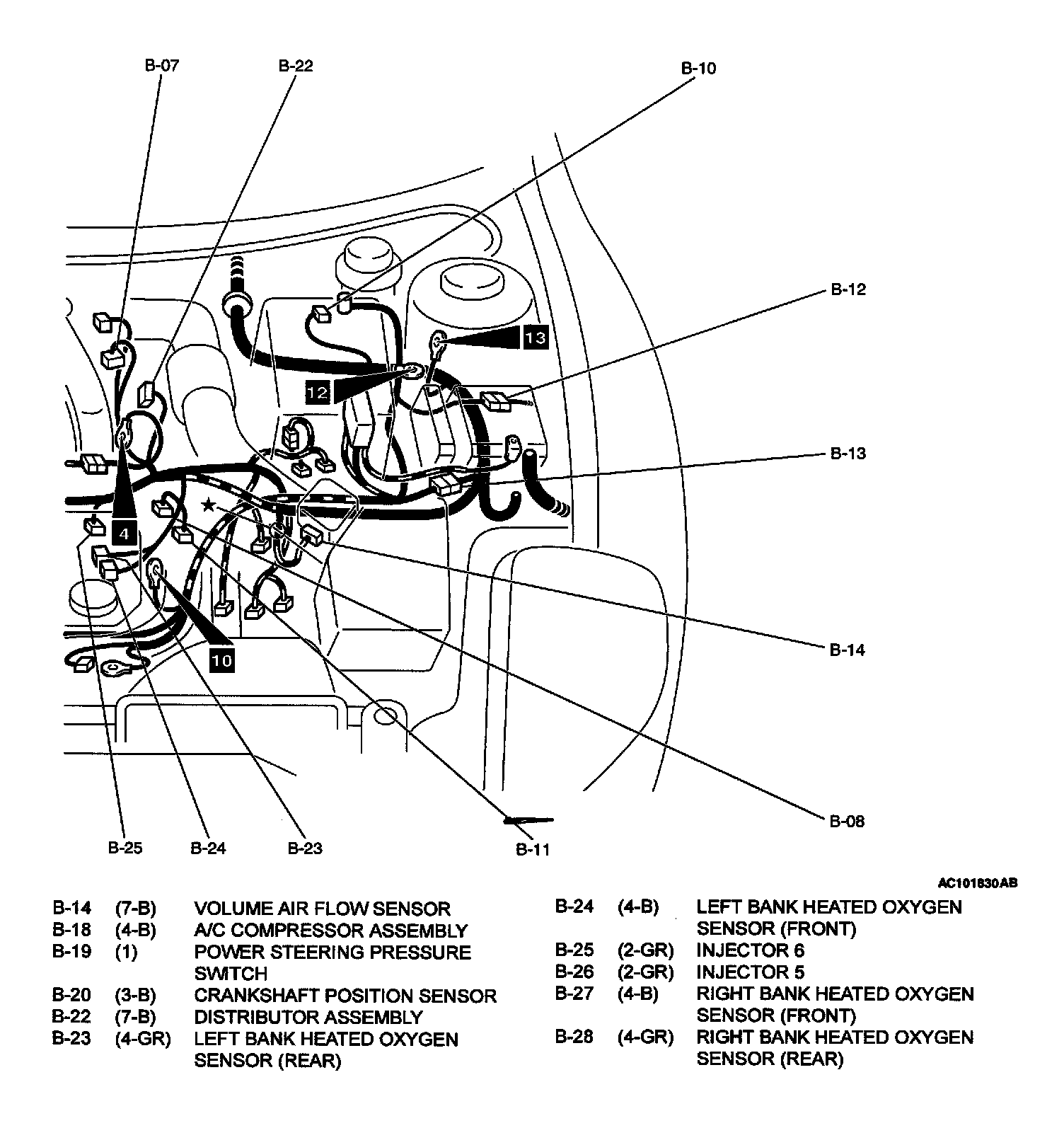

Engine/Transaxle (3.0L) - B Connector [14 (7-B) Thru 28 (4-GR)]:

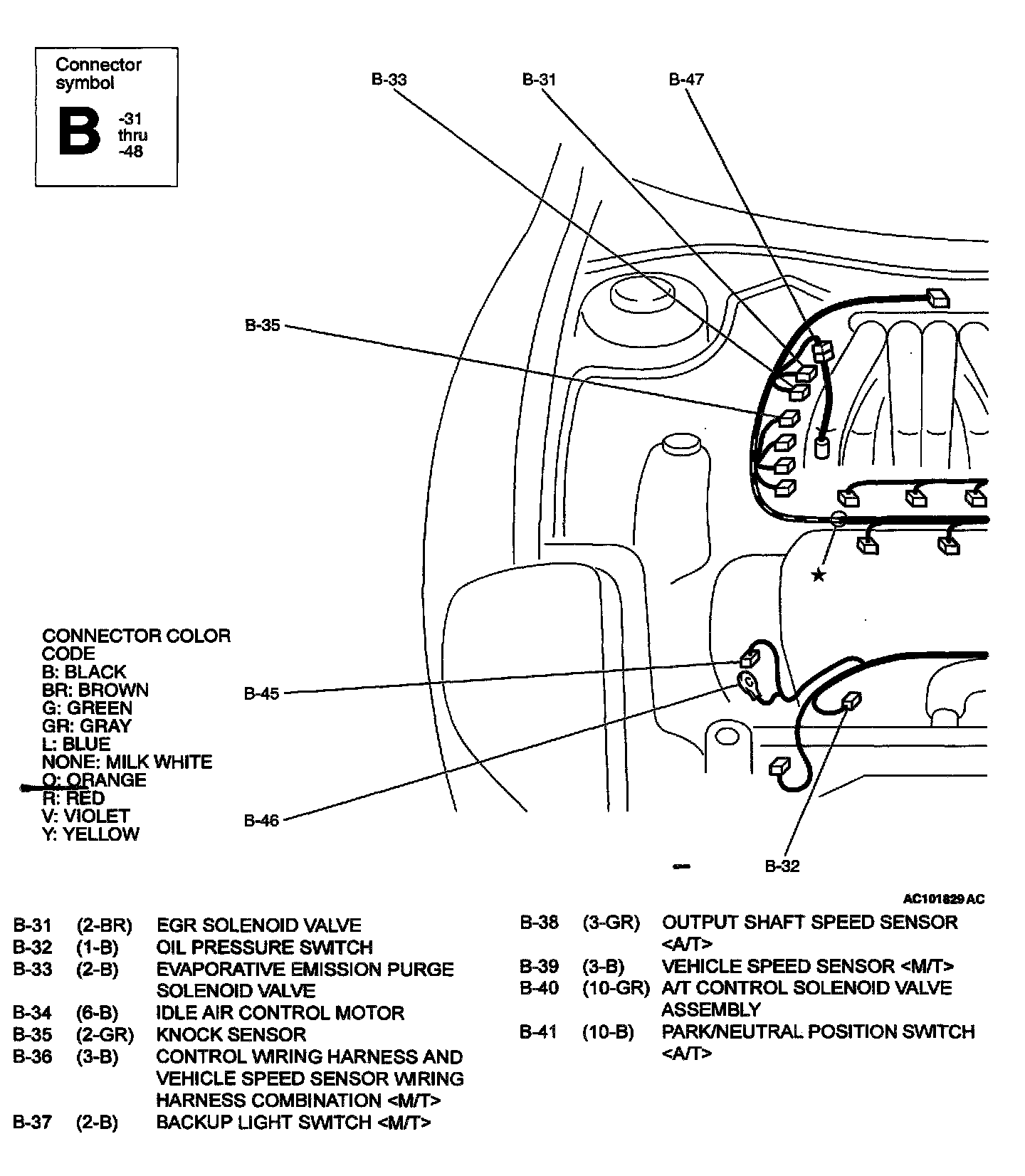

Engine/Transaxle (3.0L) - B Connector [31 (2-BR) Thru 41 (10-B)]:

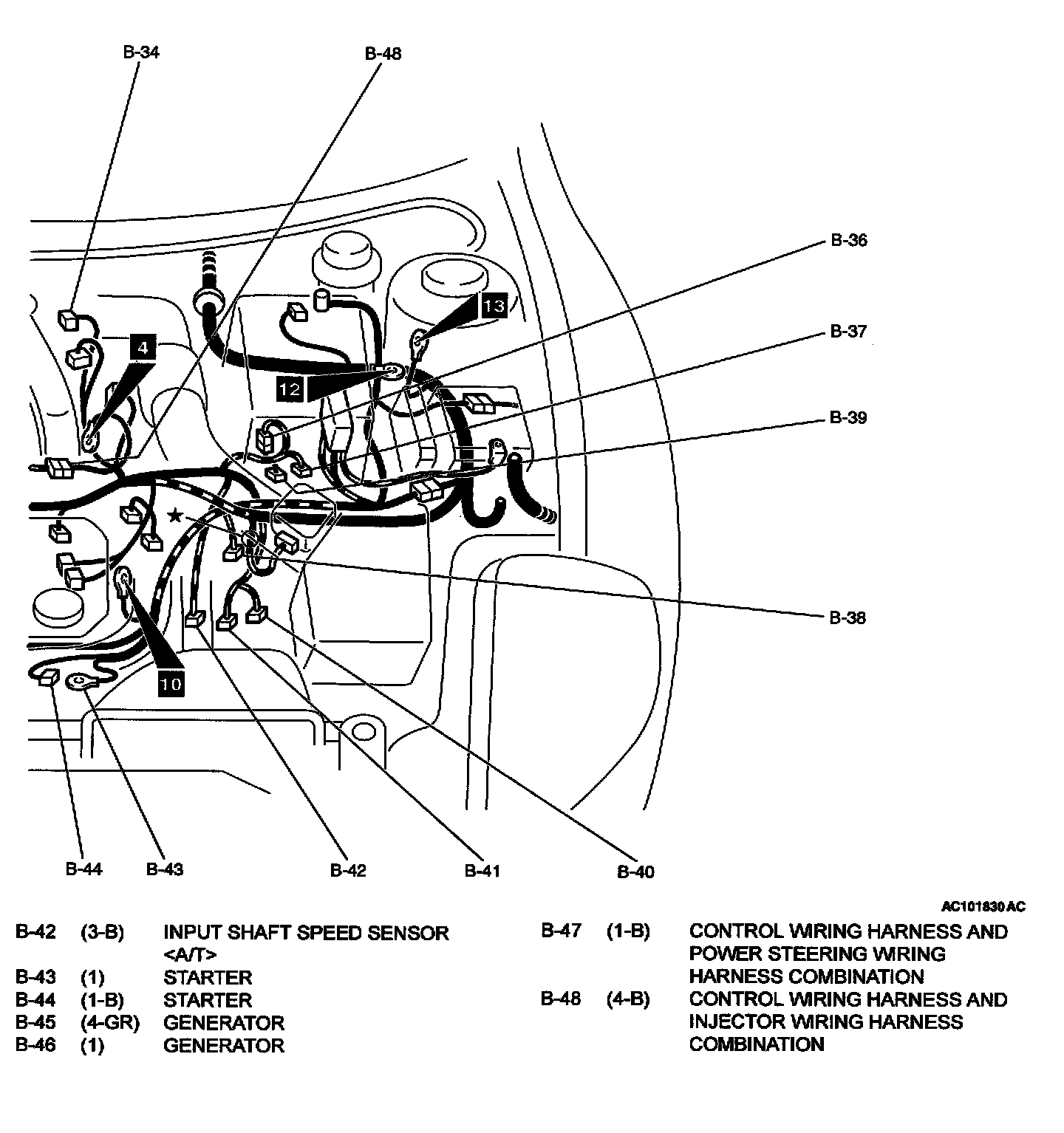

Engine/Transaxle (3.0L) - B Connector [42 (3-B) Thru 48 (4-B)]:
